Transfer Case

DIAGNOSTIC TROUBLE CODE CHART

DTC 12-42:

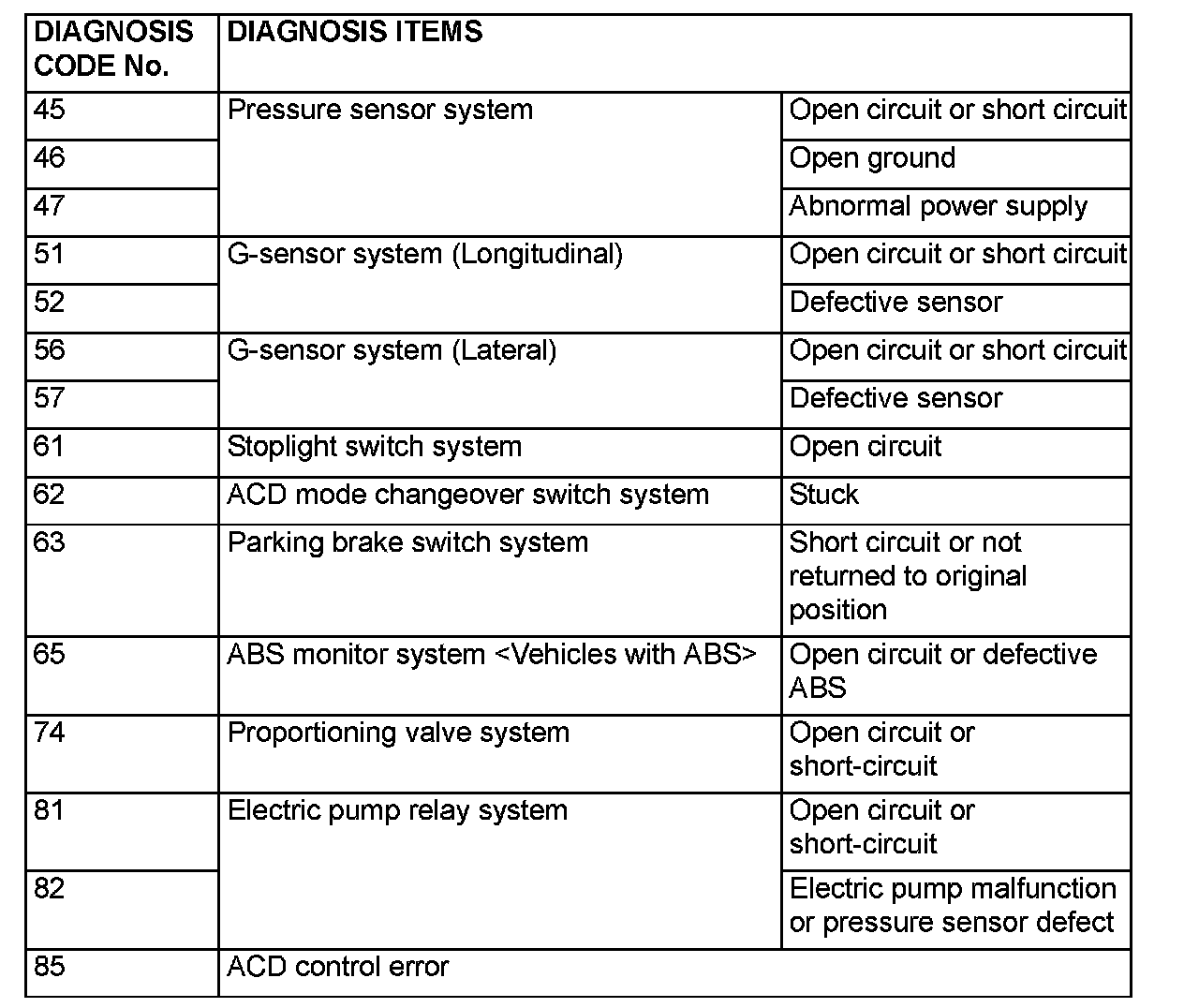

DTC 45-85:

NOTE: Code No. 85 is not a code number output due to malfunction, but a code number output when control for the AWD-ECU to protect the ACD is stopped in excessive driving. ACD control can be recovered by turning the ignition switch ON to OFF to ON.
