Transmission Case
DISASSEMBLY AND ASSEMBLYRequired Special Tools:
^ MB990211: Slide hammer
^ MB990938: Installer bar
^ MB991015: Knuckle oil seal installer
^ MB991966: Bearing outer race installer
^ MB992039: Slide hammer puller
DISASSEMBLY SERVICE POINTS

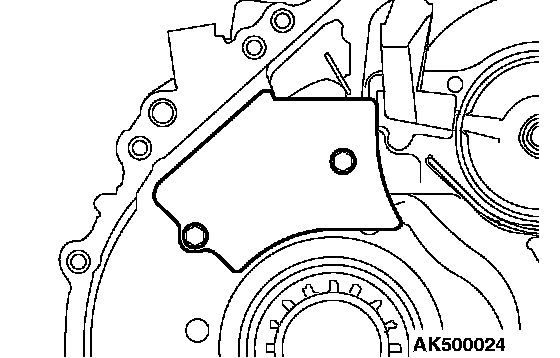

1. Remove the transmission oil separator.
2. Using special tools MB990211 and MB992039, remove the tapered roller bearing No. 1.
3. Remove the shim.

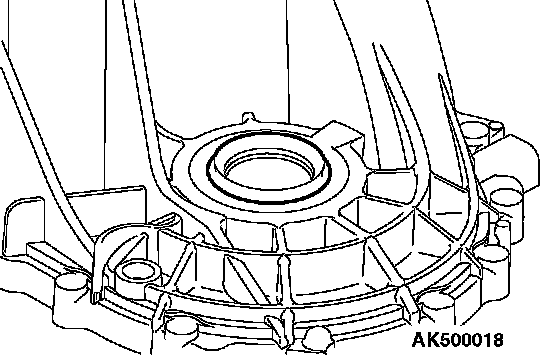

4. Remove the type T oil seal.
5. Using special tools MB990211 and MB992039, remove the tapered roller bearing No. 1 and shim.

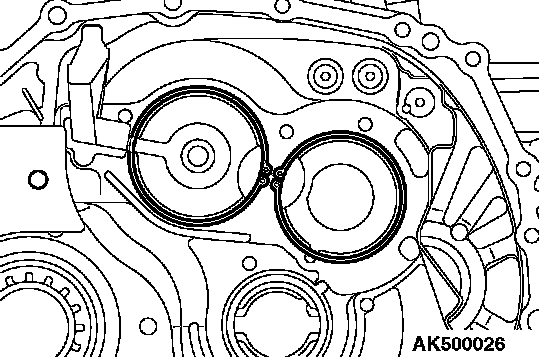

6. Remove the hole snap ring (two pieces).

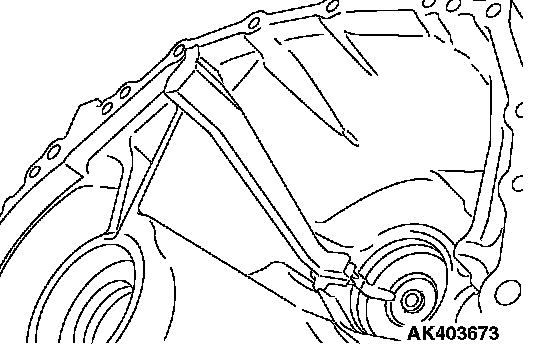

7. Remove the oil receiver pipe.
REASSEMBLY SERVICE POINTS
1. install the oil receiver pipe in the transmission case.

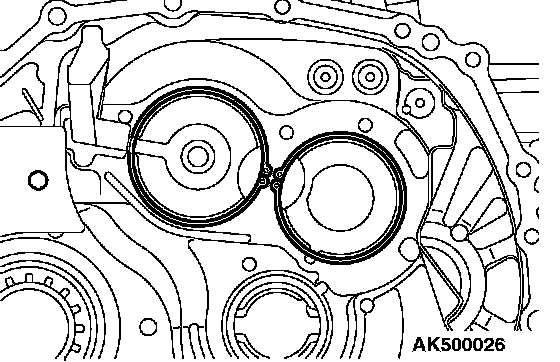

2. install the hole snap ring (two pieces) in the transmission case.

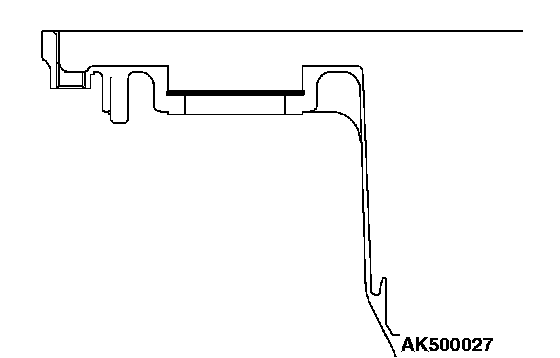

3. install the shim in the transmission case.

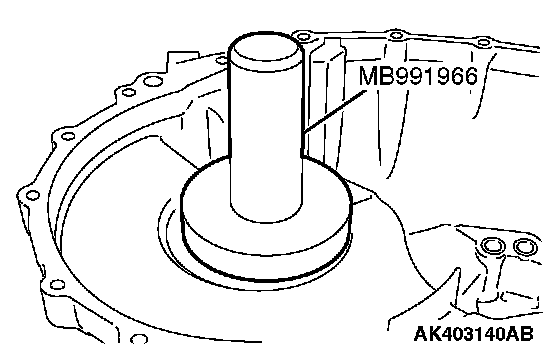

4. Using special tool MB991966, install the tapered roller bearing No. 1 in the transmission case.

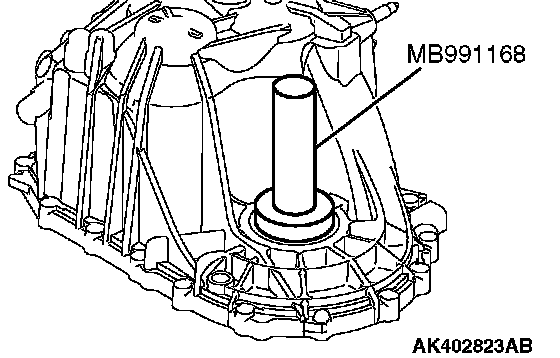

5. Using special tool MB991168, install the type T oil seal in the transmission case.

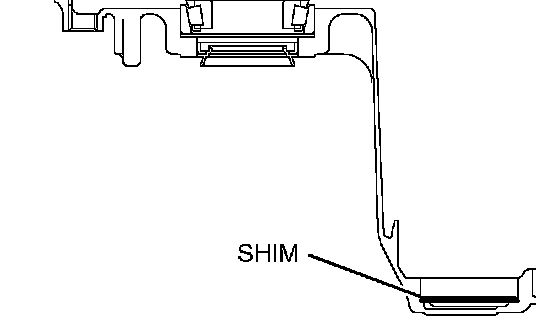

6. Install the shim in the transmission case.

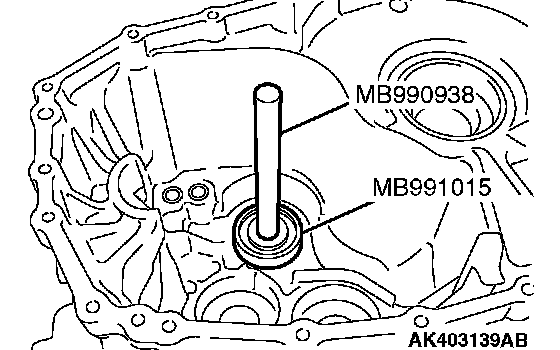

7. Using special tools MB990938 and NB991445, install the tapered roller bearing No. 1 in the transaxle case.
8. Install the oil separator and tighten to the specified torque of 8.5 ± 2.5 Nm (75 ± 25 inch lbs.).
