Select Lever

SELECT LEVER

DISASSEMBLY AND ASSEMBLY

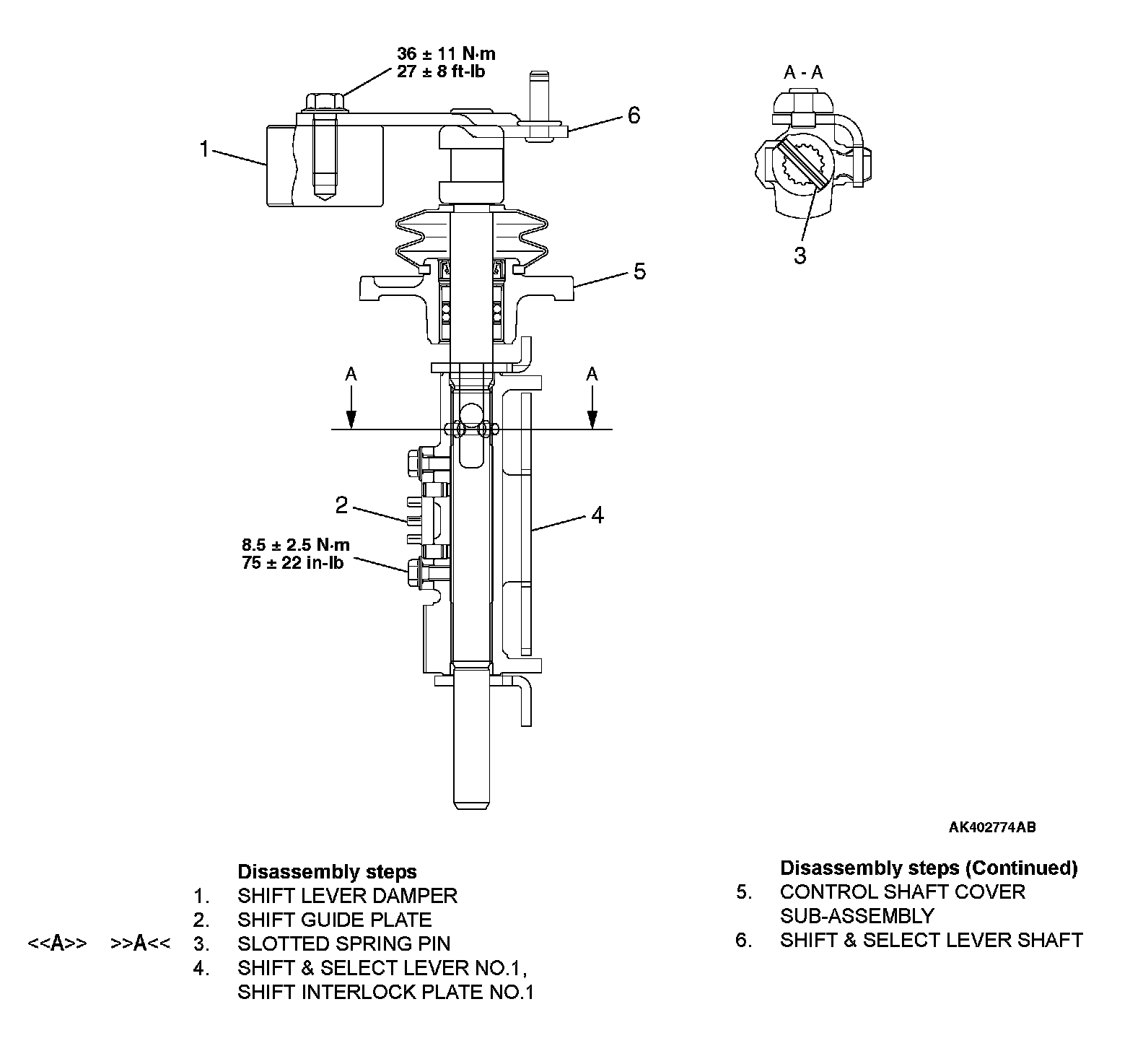

Disassembly Steps 1-6:

DISASSEMBLY SERVICE POINTS

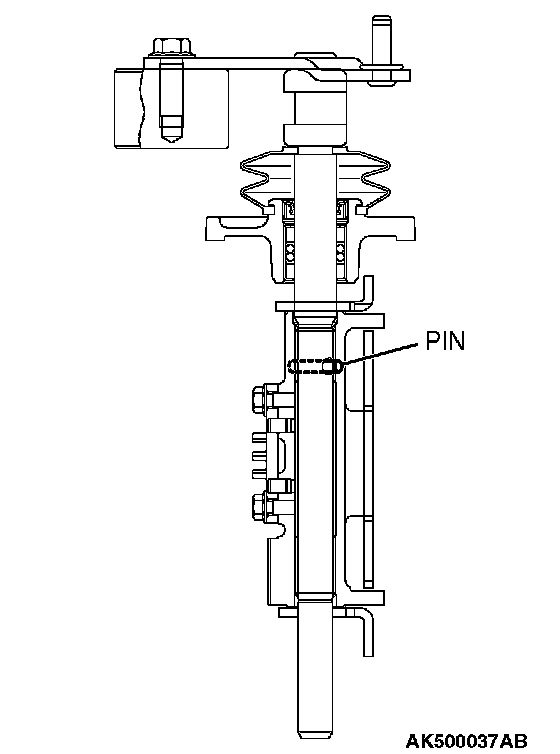

<> SLOTTED SPRING PIN REMOVAL

CAUTION: As shown in the illustration, remove the slotted spring pin, not touching the shift interlock plate No.1.

ASSEMBLY SERVICE POINTS
SLOTTED SPRING PIN INSTALL

As shown in the illustration, stick the slotted spring pin in the shift interlock plate No. 1
