Differential
DISASSEMBLY AND ASSEMBLYRequired Special Tools
^ MD998812: Installer cap
^ MD998813: Installer 100
^ MD998827: Installer adapter
^ MD998917: Bearing remover
DISASSEMBLY SERVICE POINTS

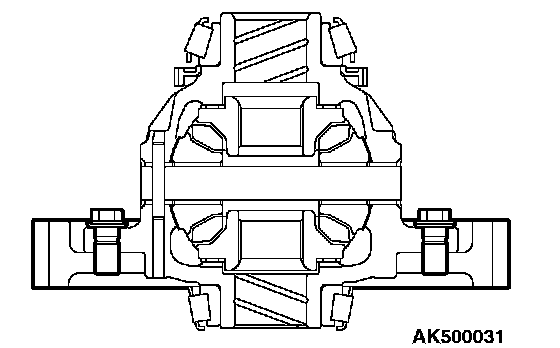

1. Remove the differential ring gear.
CAUTION: Do not damage the case and the gear.
2. Loosen and remove the speed meter drive gear.

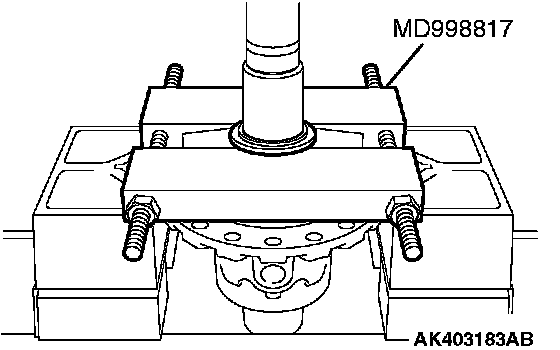

3. Place special tool MD998817 in the speedometer drive gear location, and remove the tapered roller bearing No.2.
CAUTION: Do not damage the case and the gear.

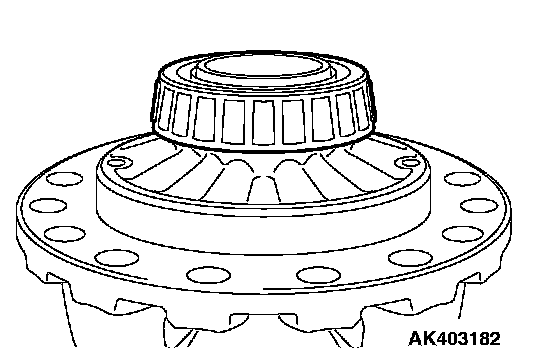

4. Loosen and remove the tapered roller bearing No.2 (roller).

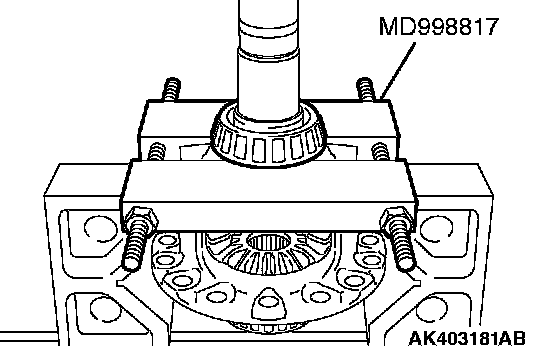

5. Place special tool MD998817 in the tapered roller bearing No.2 (roller) location, and remove the tapered roller bearing No.2 (inner race).
ASSEMBLY SERVICE POINTS

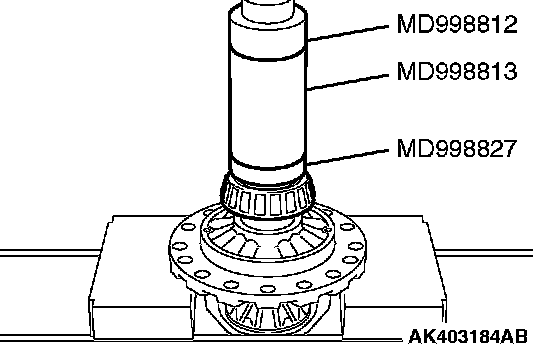

1. Using special tools MB998812, MD998813 and MD998827, install the tapered roller bearing No.2.

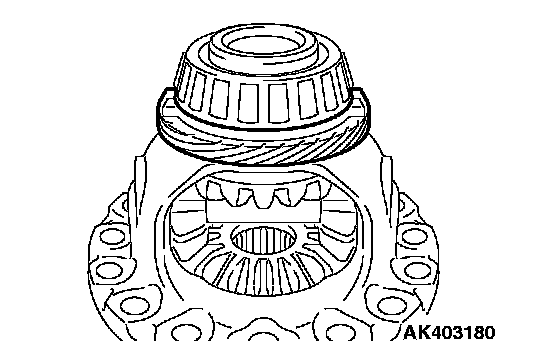

2. Install the speedometer drive gear to the differential case sub-assembly.

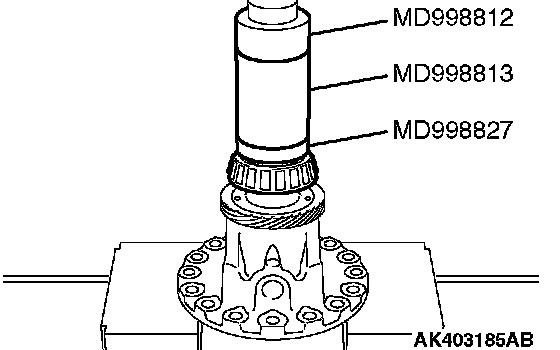

3. Using special tools MB998812, MD998813 and MD998827, install the tapered roller bearing No.2.

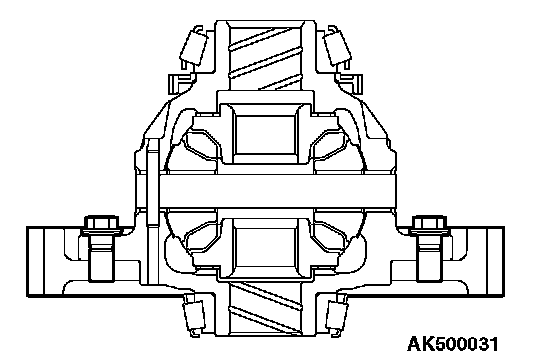

4. Install the differential ring gear to the differential case sub-assembly and tighten the bolts to the specified torque of 106 Nm (78 ft. lbs.).
