Clutch Housing

DISASSEMBLY AND ASSEMBLY

Required Special Tools
^ MB990211: Slide hammer
^ MB990699: Differential oil seal installer
^ MB990938: Installer bar
^ MB991168: Differential oil seal installer
^ MB991445: Bush remover & installer base
^ MB991448: Bush remover & installer base
^ MB992037: Input shaft oil seal installer
^ MB992039: Slide hammer puller
^ MD998550: Extension HSG seal installer

DISASSEMBLY SERVICE POINTS





1. Remove the transmission magnet.

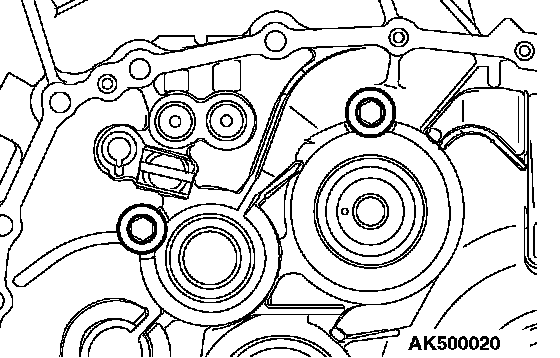

2. Remove the bolt with washer and bearing lock plate.
3. Using special tools MB990211 and MB992039, remove the tapered roller bearing No. 1.





4. Remove the type T oil seal.
5. Using special tools MB990211 and MB992039, remove the cylindrical roller bearing.





6. Remove the type T oil seal.
7. Using special tools MB990211 and MB992039, remove the cylindrical roller bearing.
8. Using special tools MB990211 and MB992039, remove the tapered roller bearing No. 1.

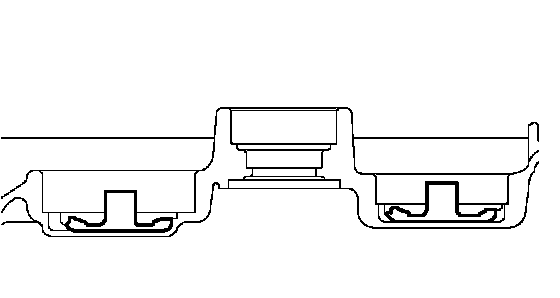

9. Remove the output shaft cover (two pieces).

ASSEMBLY SERVICE POINTS

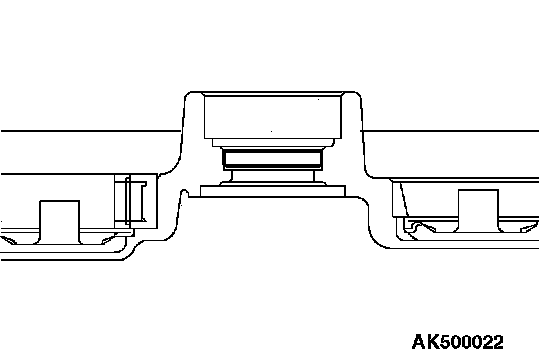

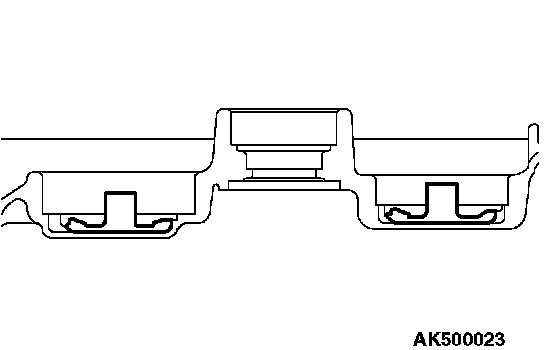

1. Install the output shaft cover (two pieces) in the transaxle case.

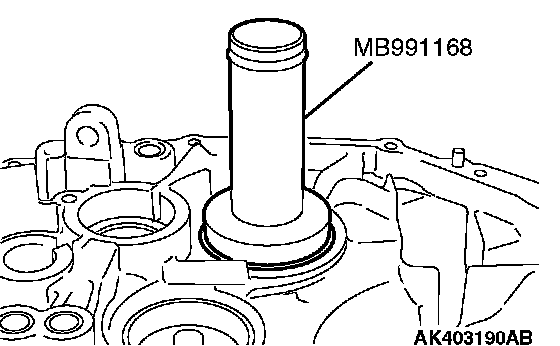

2. Using special tool MB991168, install the tapered roller bearing No. 1 in the transaxle case.

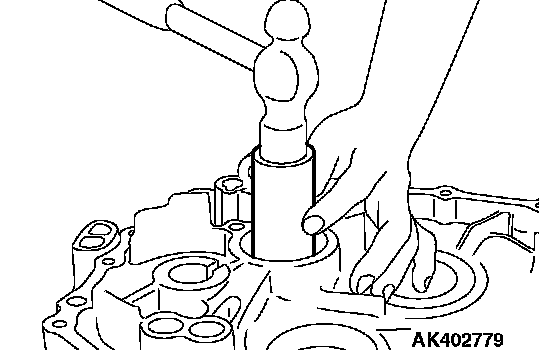

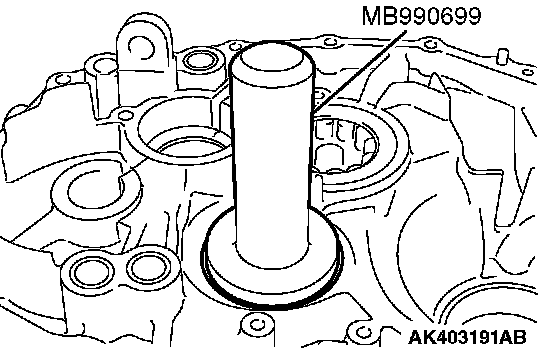

3. Using special tool MB990699, install the cylindrical roller bearing in the transaxle case.





4. Using special tool MB9902037, install the type T oil seal in the transaxle case.

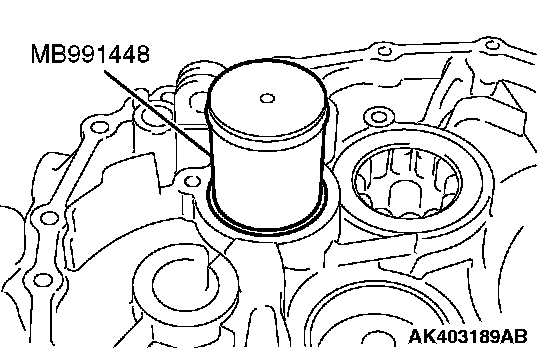

5. Using special tool MB991448, install the cylindrical roller bearing in the transaxle case.

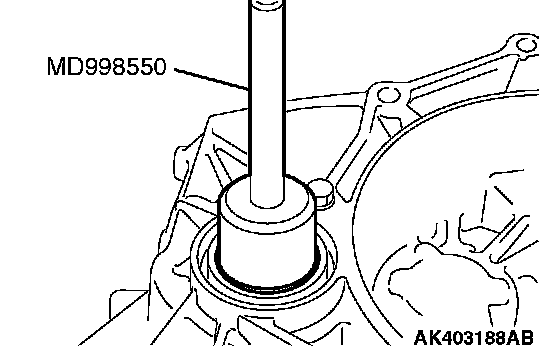

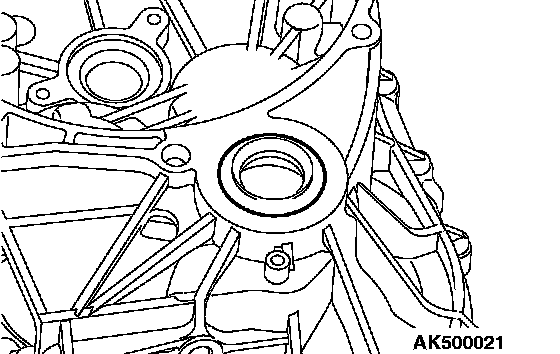

6. Using special tool MD998550, install the type T oil seal in the transaxle case.

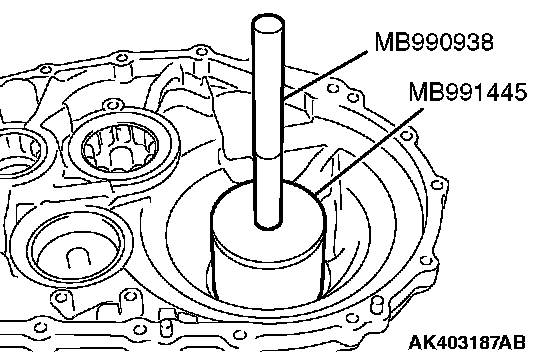

7. Using special tools MB990938 and MB991445, install the tapered roller bearing No. 1 in the transaxle case.





8. Install the bearing lock plate.
9. Tighten the bolt with washer to the specified torque of 11 ± 4 Nm (98 ± 35 inch lbs.).

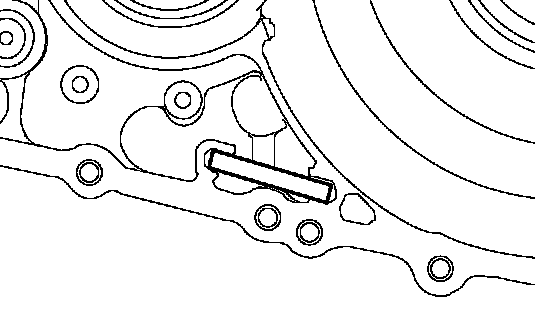

10. Install the transmission magnet in the transaxle case.
