Clutch: Service and Repair

REMOVAL AND INSTALLATION

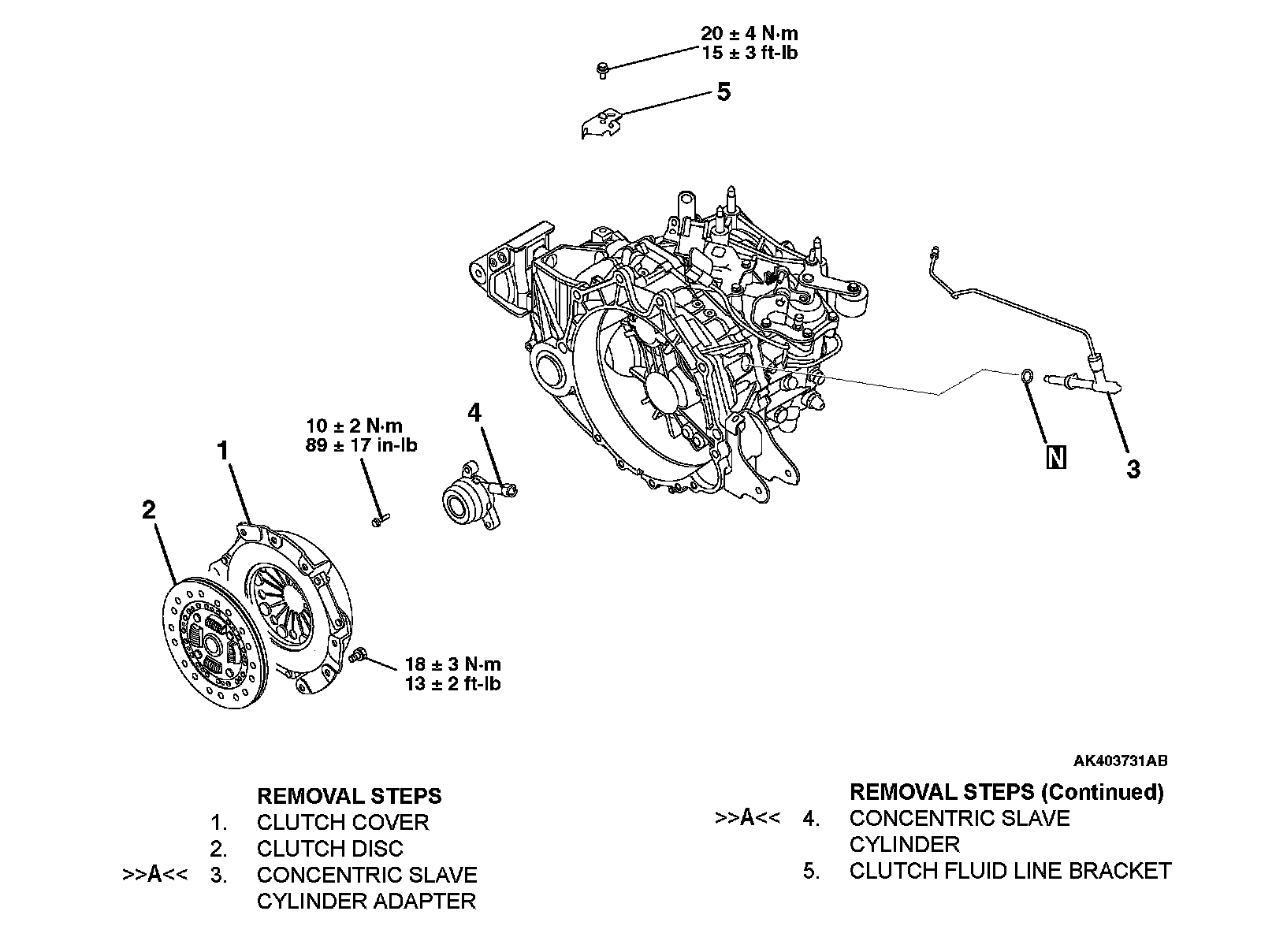

Removal Steps 1-5:

Required Special Tool:

INSTALLATION SERVICE POINTS
>>A<< CLUTCH RELEASE CYLINDER ASSEMBLY INSTALLATION

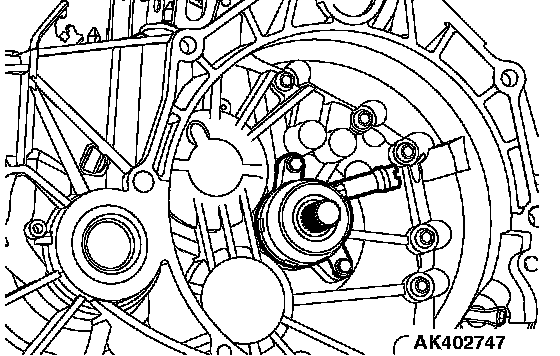

1. After setting the concentric slave cylinder to the transaxle case, tighten the flange bolt temporally.





2. Combine the concentric slave cylinder adapter with the concentric slave cylinder.

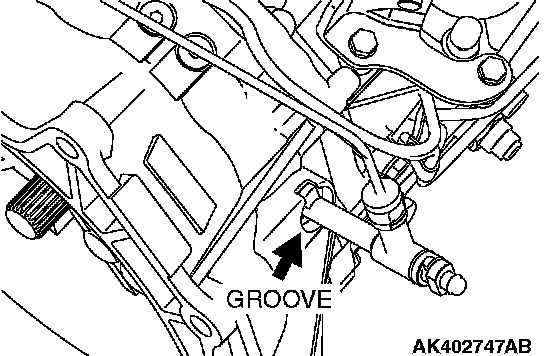

NOTE: Fix to the groove of the transaxle case certainly.

3. Tighten the flange bolt to the specified torque of 10 ± 2 Nm (89 ± 17 inch lbs.).

>>B<< CLUTCH DISC AND CLUTCH COVER INSTALLATION





1. Apply Mitsubishi Part number 0101011 or equivalent to the clutch disc splines and rub it in the splines with a brush.

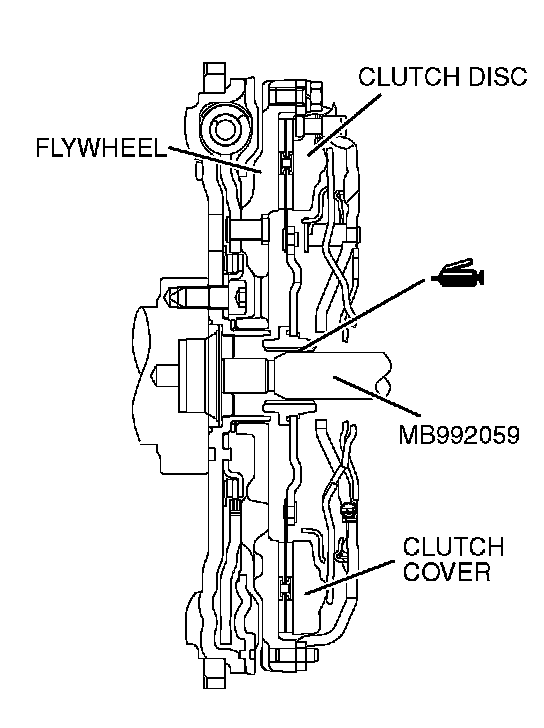

2. Using special tool MB992059 to position the clutch disc on the flywheel.
3. Install the clutch cover onto the flywheel.
