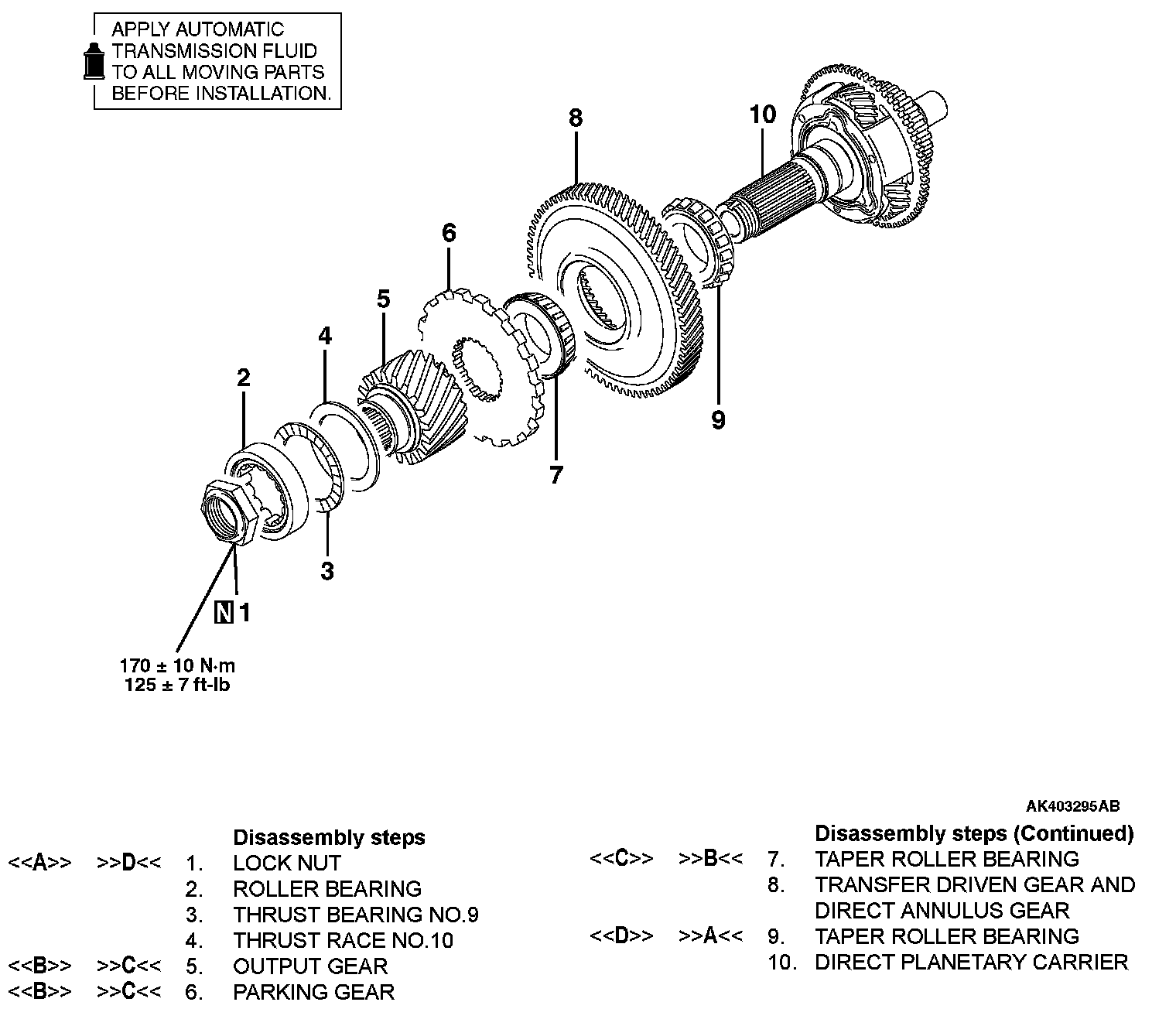

Direct Planetary Career

Disassembly Steps 1-10:

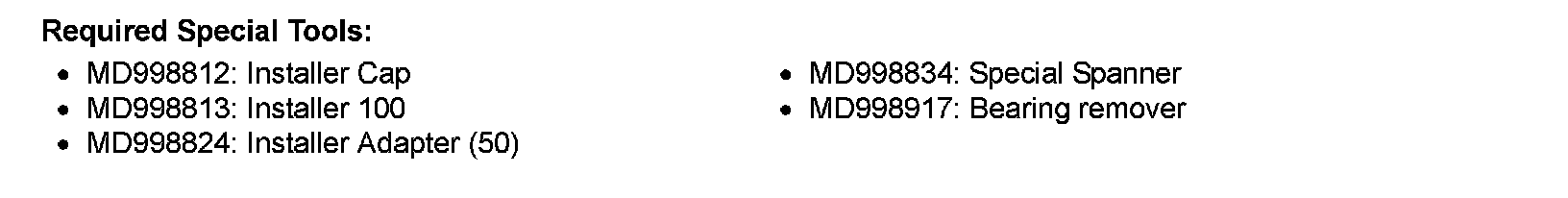

Required Special Tools:

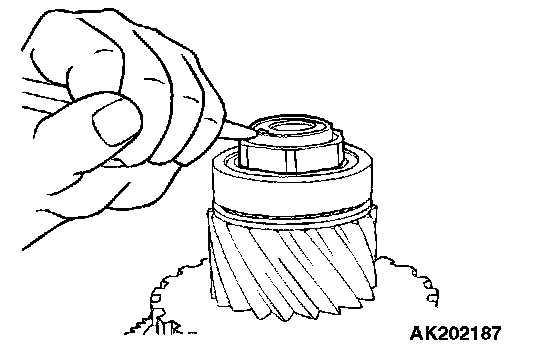

1. Un stake staking of the lock nut.

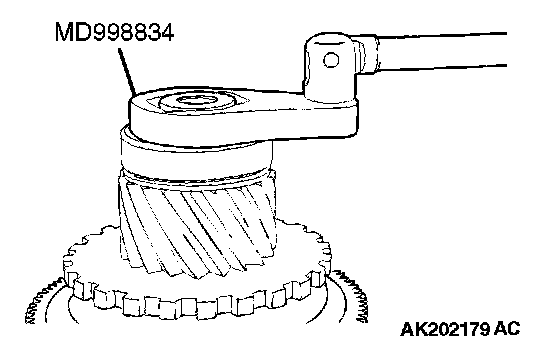

2. Using special tool MD998834 to remove the lock nut.

<> OUTPUT GEAR/PARKING GEAR REMOVAL

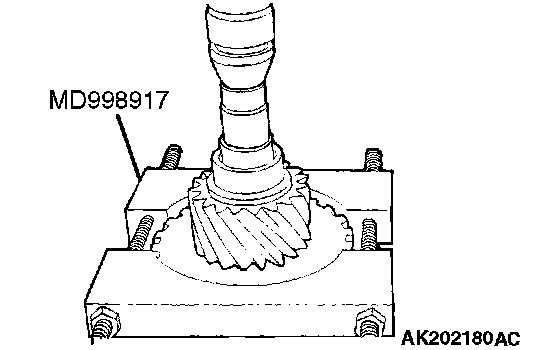

Using special tool MD998917 to remove the output gear and parking gear.

<> TAPER ROLLER BEARING REMOVAL

1. Support the transfer driven gear as shown in the illustration.
2. Push the shaft of the direct planetary carrier to remove the taper roller bearing and gear.

<> TAPER ROLLER BEARING REMOVAL

1. Support the transfer driven gear as shown in the illustration.

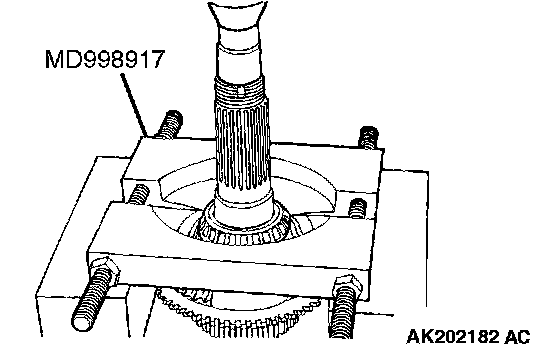

2. Using special tool MD998917 to remove the taper roller bearing.

ASSEMBLY SERVICE POINTS
>>A<< TAPER ROLLER BEARING INSTALLATION

1. Set the transfer driven gear as shown in the illustration.

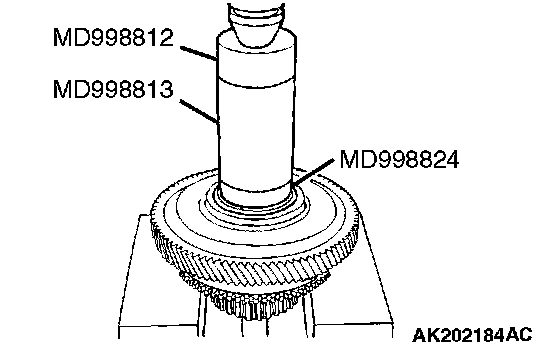

2. Using special tools MD998812, MD998813 and MD998824, press in the taper roller bearing.

>>B<< TAPER ROLLER BEARING INSTALLATION

1. Set the transfer driven gear as shown in the illustration.

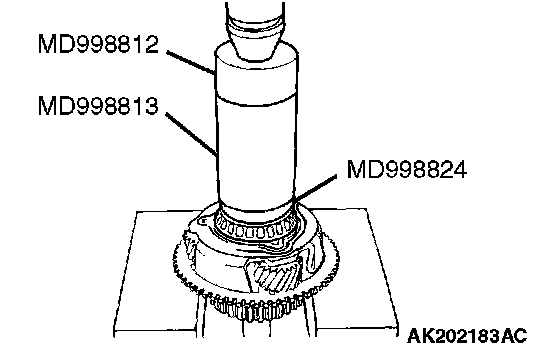

2. Using special tools MD998812, MD998813 and MD998824, press in the taper roller bearing.

>>C<< OUTPUT GEAR/PARKING GEAR INSTALLATION

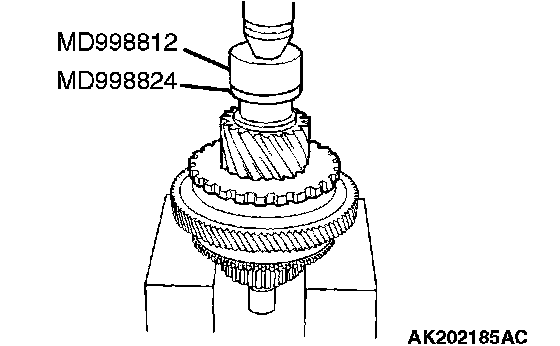

1. Using special tools MD998812 and MD998824, press in the parking gear.

>>D<< LOCK NUT INSTALLATION

1. Apply ATF on a new locknut, and use special tool MD998834 to tighten the specified torque. Then turn back on turn, and tighten to the specified torque.
Tightening torque: 170 ± 10 Nm (125 ± 7 ft. lbs.)

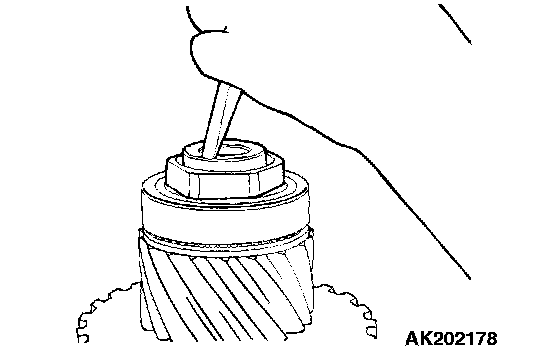

2. Use a punch to stake the lock nut at two places.
