Removal and Replacement

POWER STEERING OIL PUMP ASSEMBLY

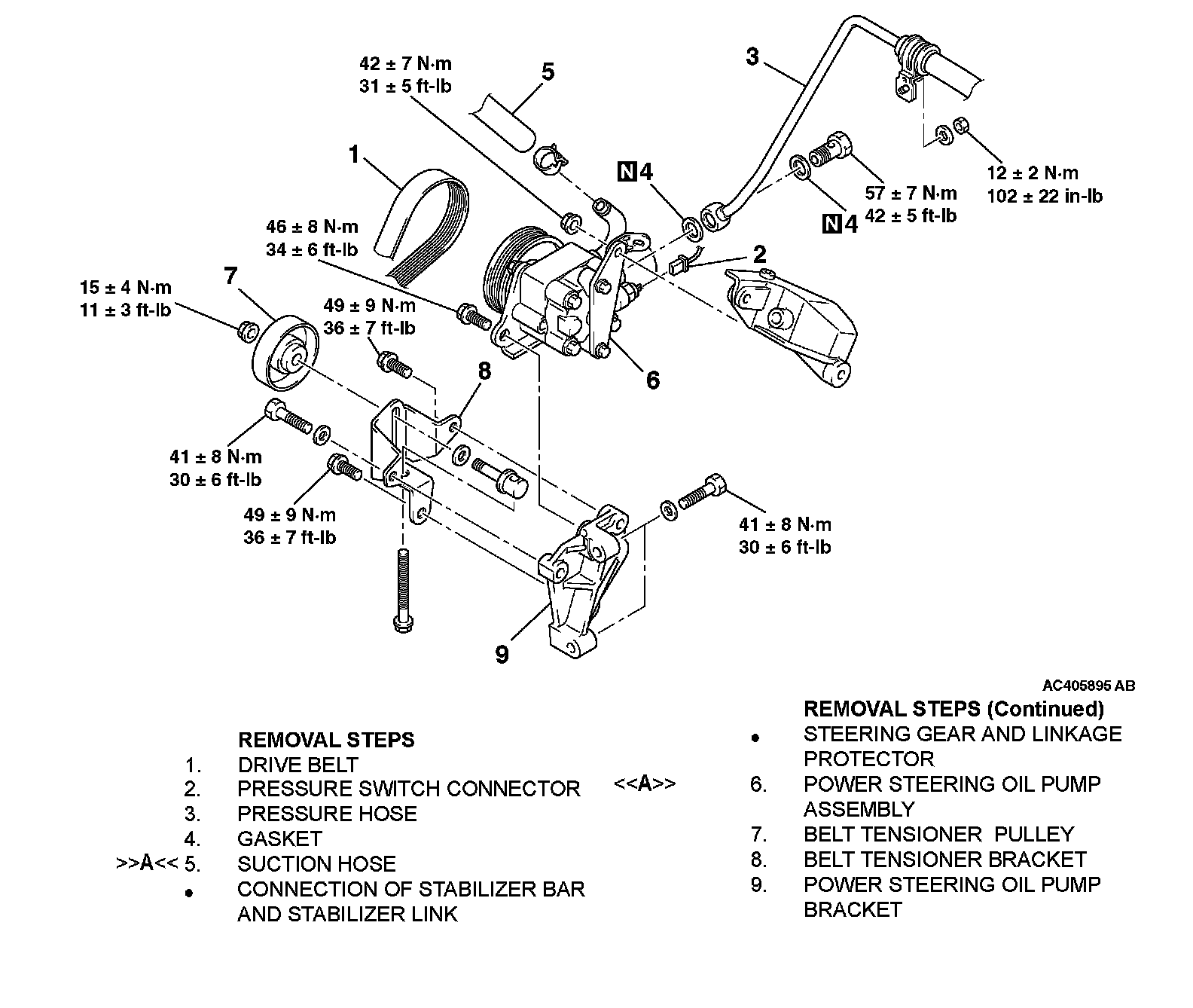

REMOVAL AND INSTALLATION

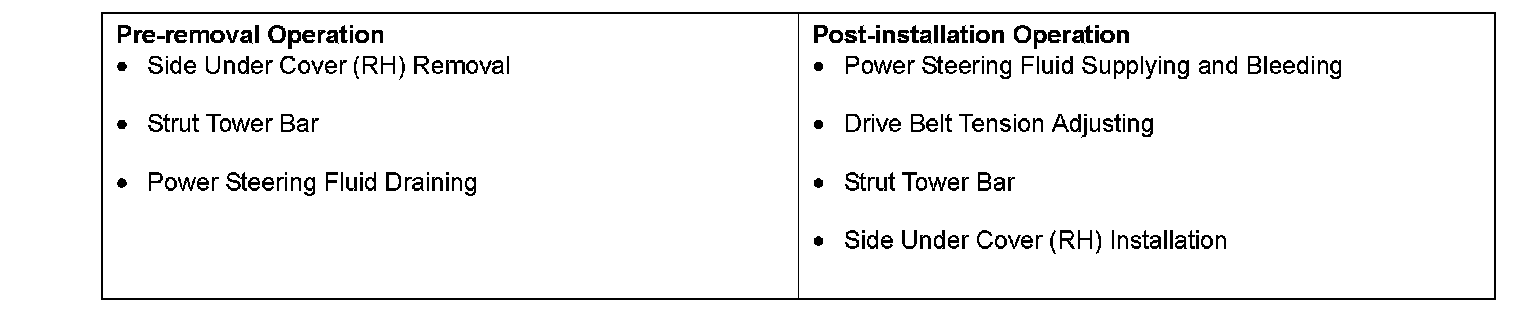

Pre-removal & Post-installation Operation:

REMOVAL SERVICE POINT

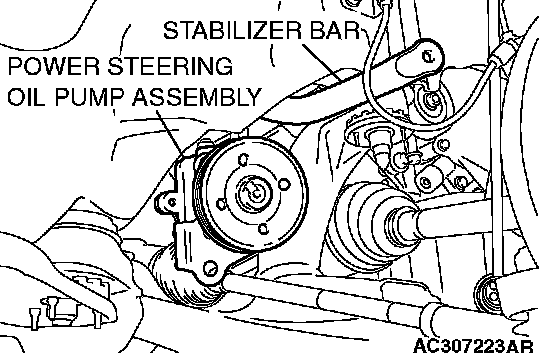

[[A]] POWER STEERING OIL PUMP ASSEMBLY REMOVAL





Fully disconnect the stabilizer from the stabilizer link. Turn the steering wheel fully to left, and remove the power steering oil pump assembly.

INSTALLATION SERVICE POINT

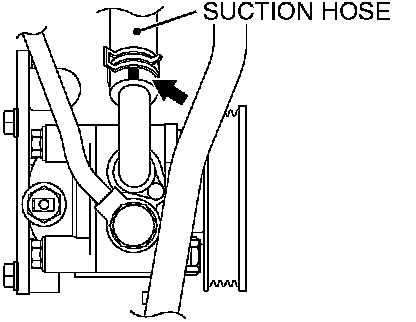

]]A[[ SUCTION HOSE INSTALLATION





Install the suction hose so that the marking is positioned as shown in the illustration.
