System Specifications

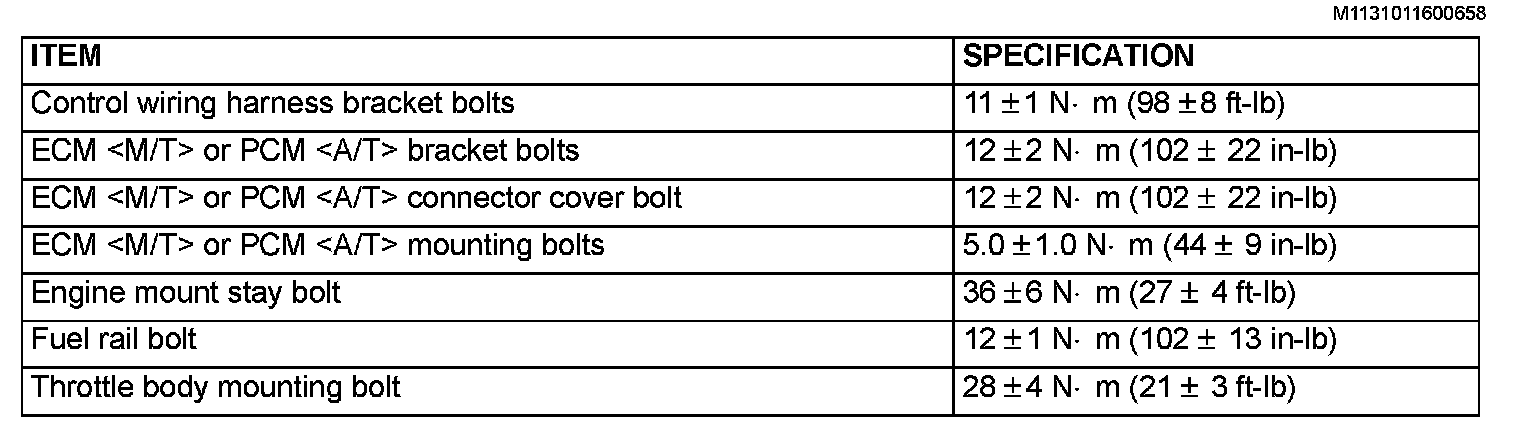

Fastener Tightening Specifications:



Fastener Tightening Specification:



Fastener Tightening Specifications Part 1:



Fastener Tightening Specifications Part 2:



Fastener Tightening Specifications Part 3:
