Powertrain Management: Locations

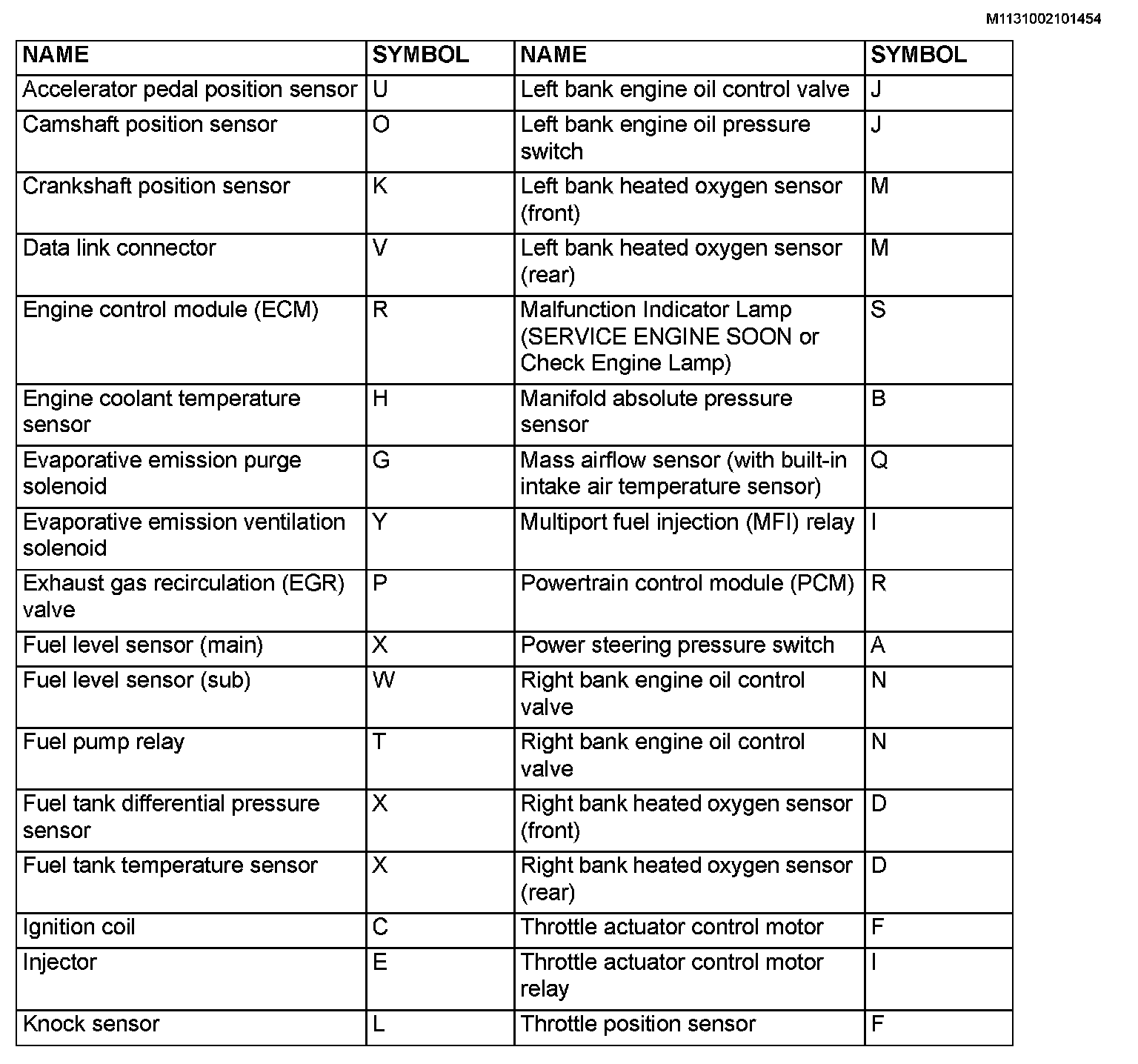

Component Location:

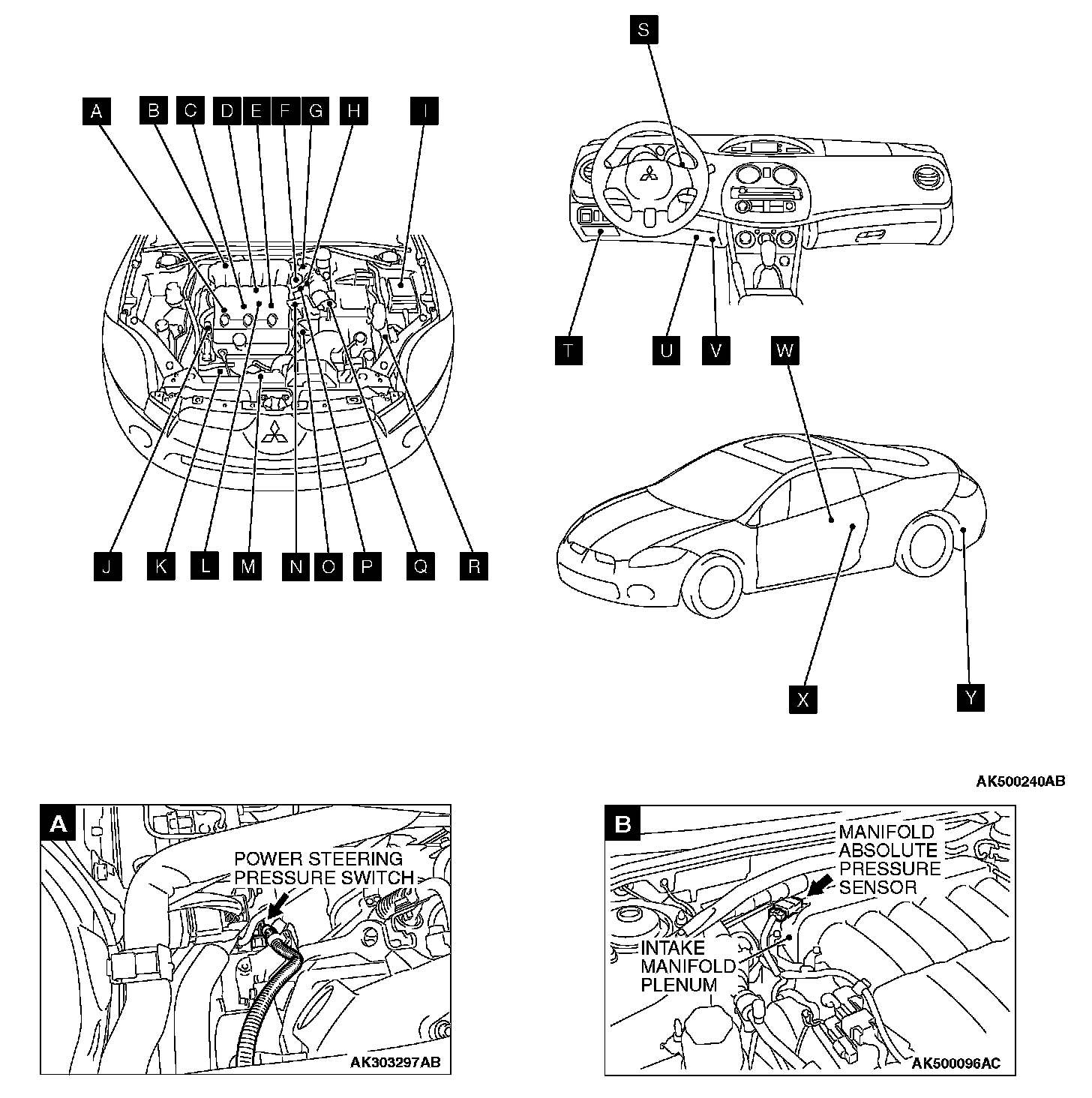

Overall View:

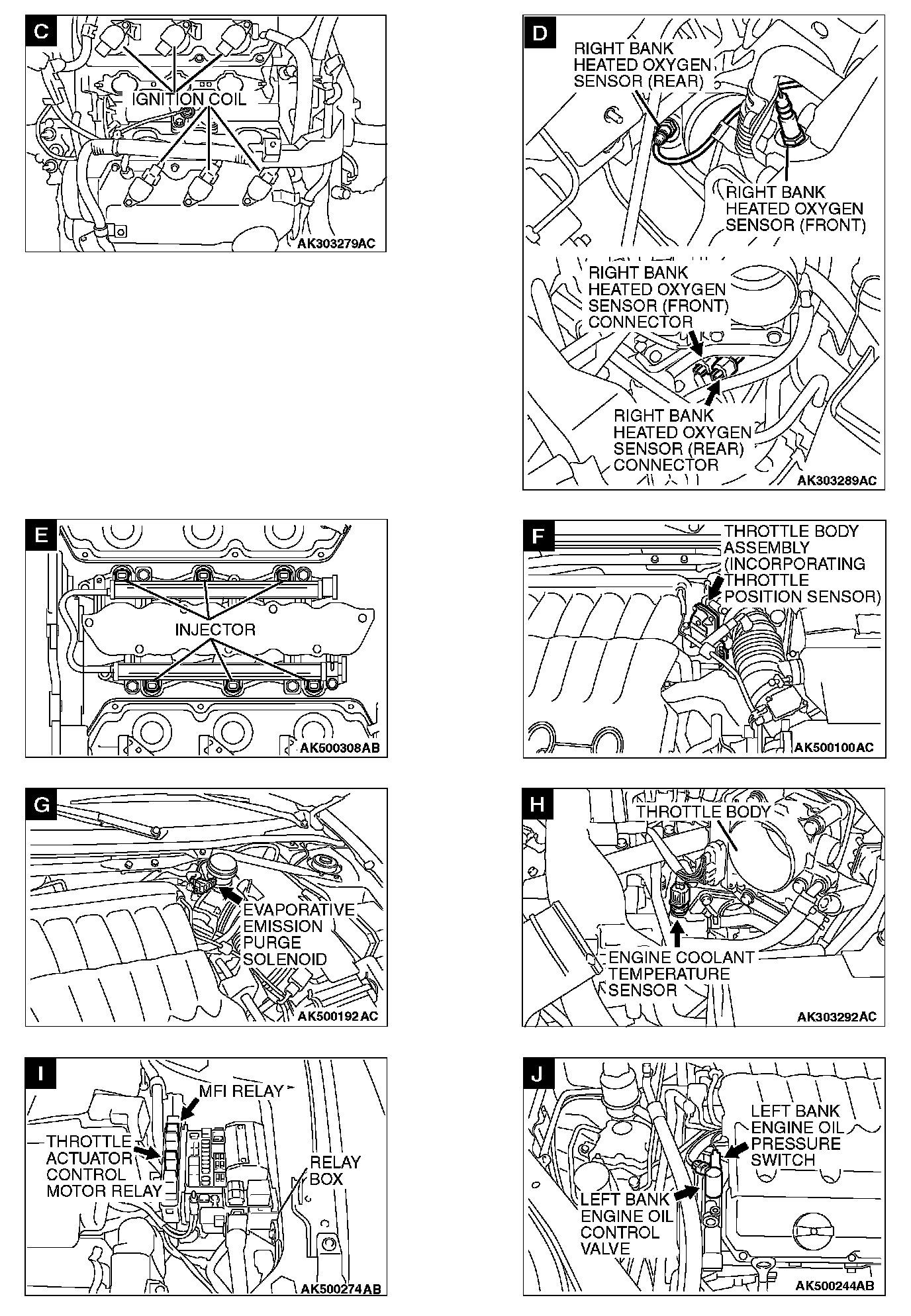

View C - J:

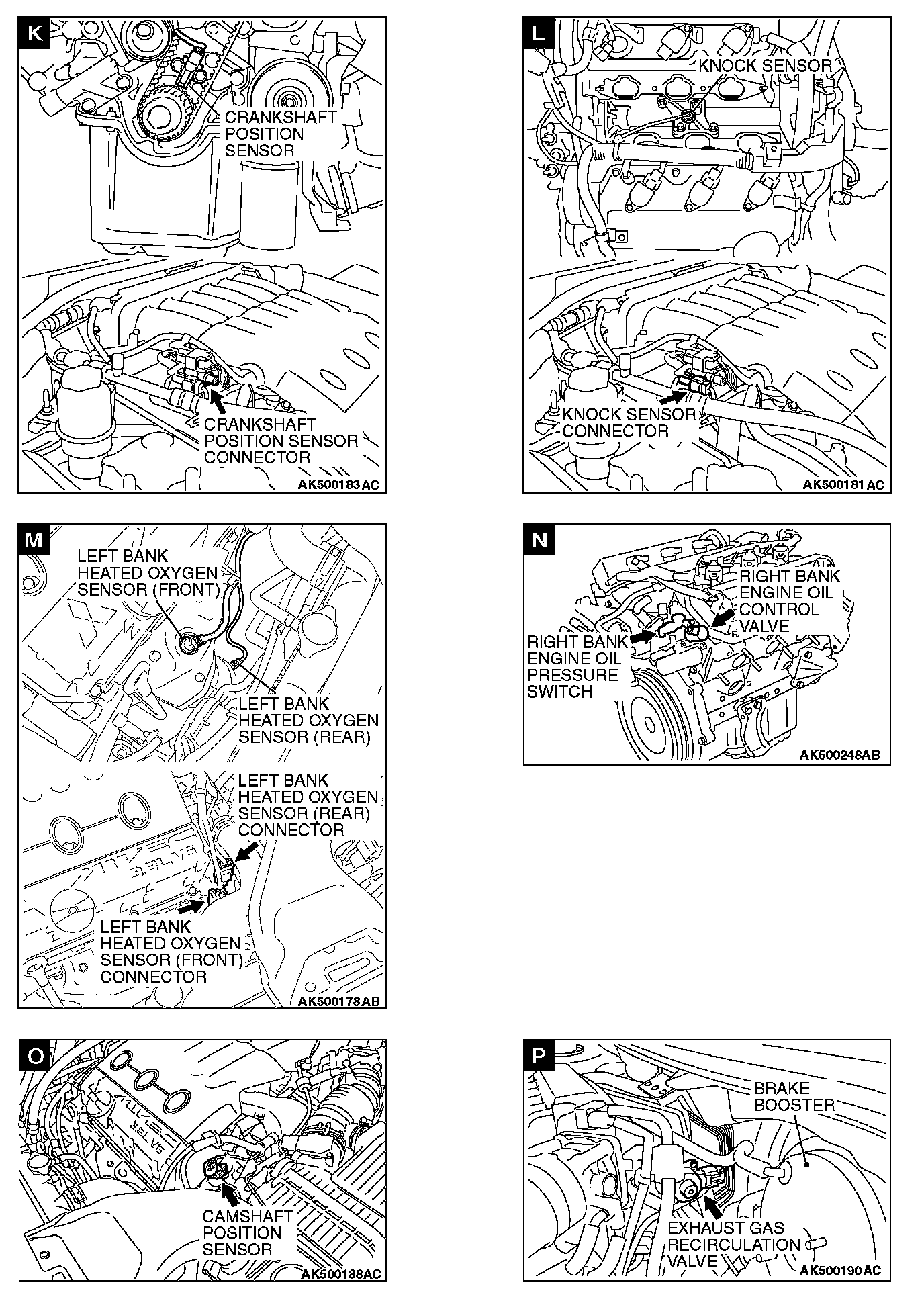

View K - P:

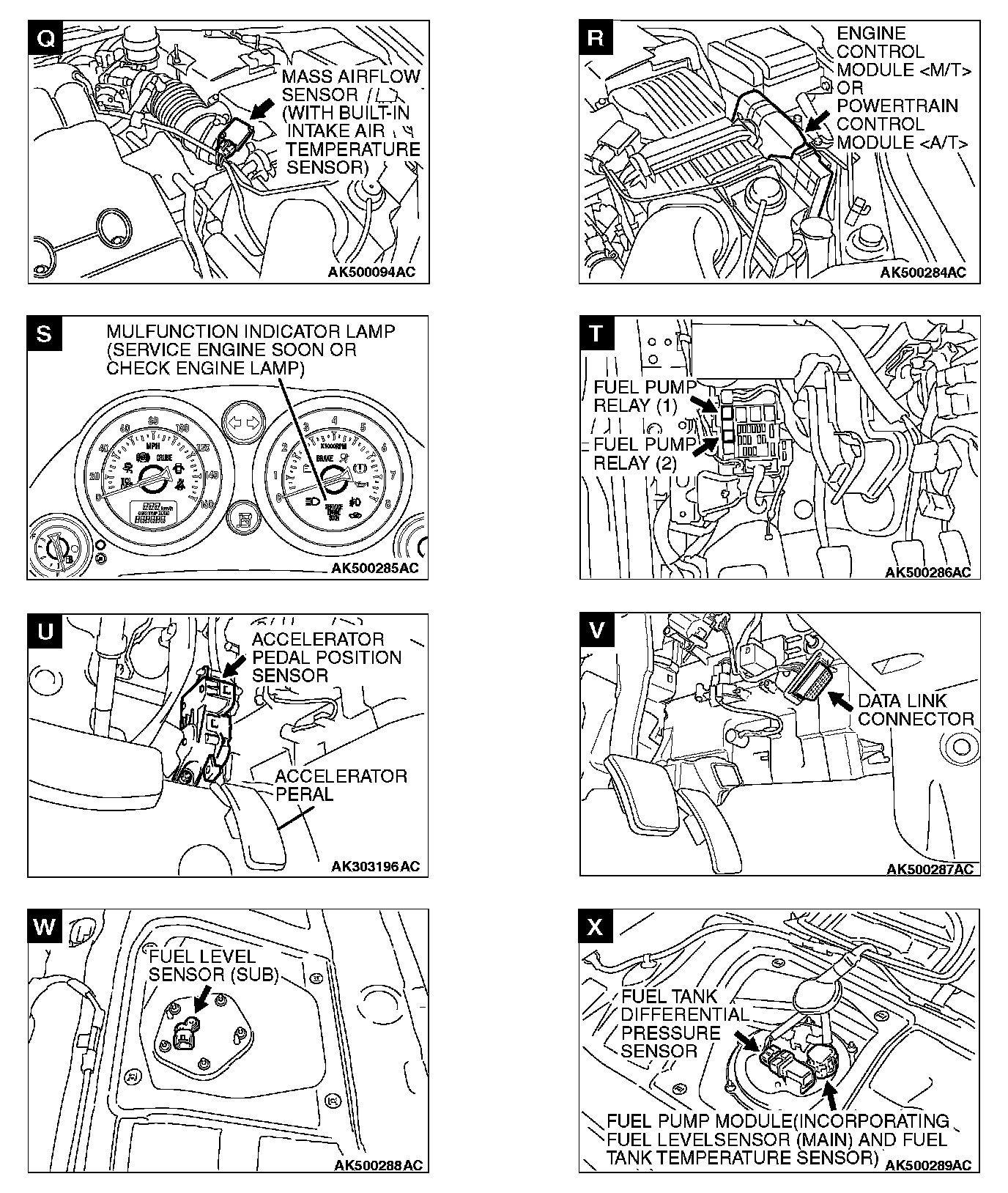

View Q - X:

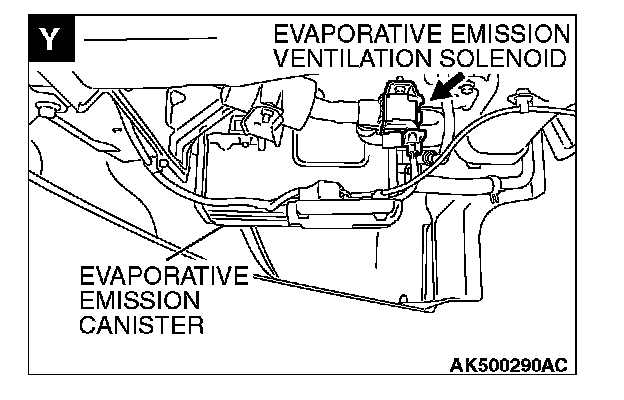

View Y:
