Injector Check

INJECTOR CHECK

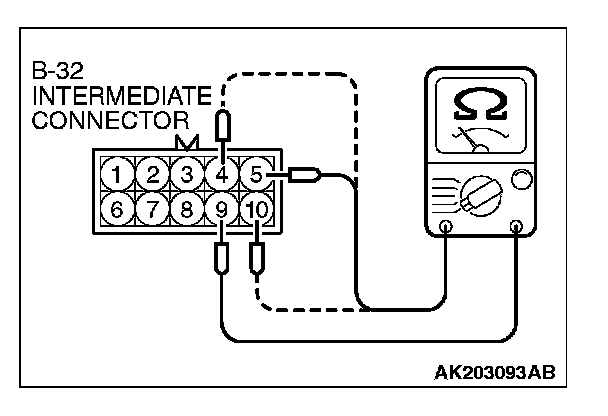

1. Disconnect the intermediate connector B-32.

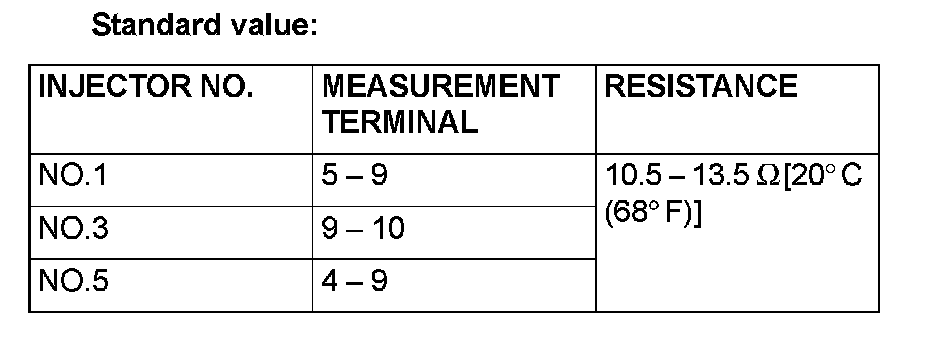

2. Measure the resistance between the injector intermediate connector terminals.




3. Connect the injector intermediate connector.

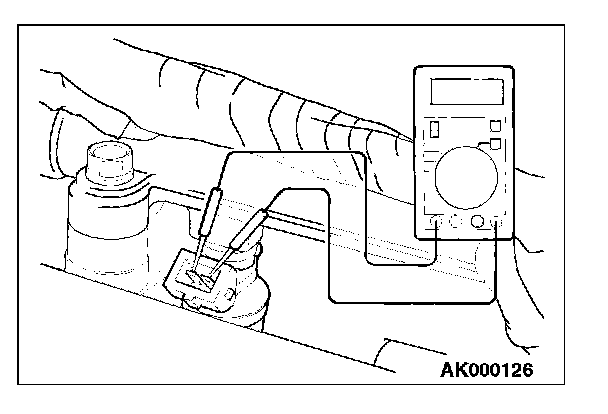

1. Disconnect the injector connector.
2. Measure the resistance between injector side connector terminals 1 and 2.

Standard value: 10.5 - 13.5 ohms [at 20 degrees C (68 degrees F)]

3. Connect the injector connector.
