Engine - Revised Intake Valve Clearance Maintenance
No: TSB-05-00-015DATE: December, 2005
MODEL: 2006 Eclipse 3.8L V6
SUBJECT:
CORRECTED SCHEDULED
MAINTENANCE TABLE FOR
INTAKE VALVE CLEARANCE
INSPECTION - SERVICE MANUAL
REVISION
TSB Revision: TSB-05-00-015
PURPOSE
This bulletin contains corrections to the Scheduled Maintenance Table concerning intake valve clearance inspection and adjustment for 3.8L MIVEC engine. Intake valve clearance should be checked, and adjusted if necessary, at 30,000 mile intervals.
AFFECTED VEHICLES
2006 Eclipse equipped with the 3.8L MIVEC V6
AFFECTED SERVICE MANUAL
2006 Eclipse Service Manual CD, pages 00-45 & 00-49
SERVICE MANUAL REVISIONS

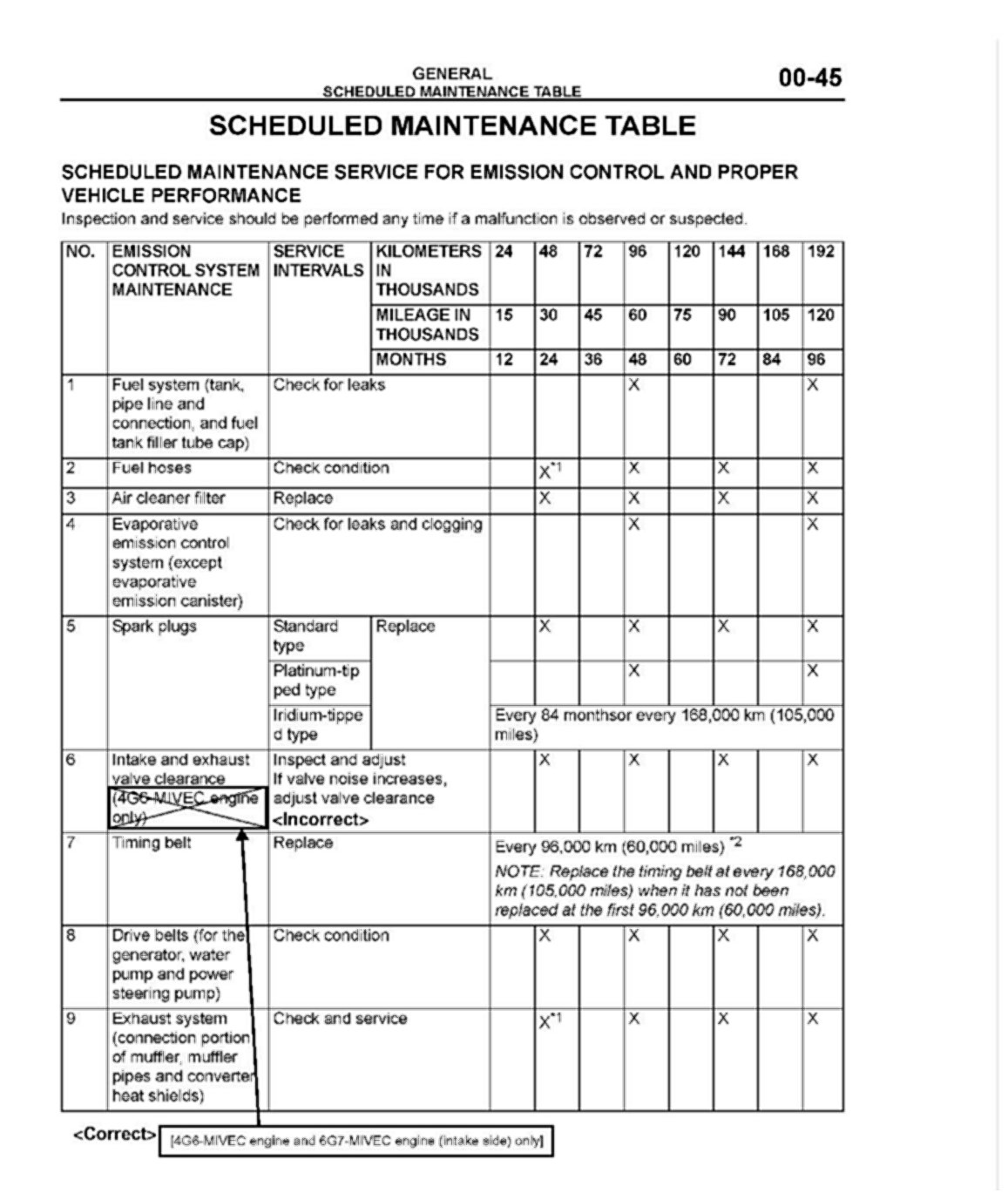

2006 Eclipse Service Manual CD, Page 00-45
Add the new valve clearance inspection and adjustment information as shown.
2006 Eclipse Service Manual CD, Page 00-49
Add the new valve clearance inspection and adjustment information as shown.
