Oil Feeder Control Valve

OIL FEEDER CONTROL VALVE

OIL FEEDER CONTROL VALVE REMOVAL AND INSTALLATION

Removal Steps 1-25:

INSTALLATION SERVICE POINTS

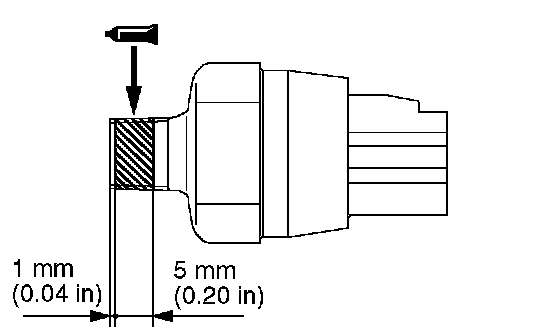

]]A[[ OIL PRESSURE SWITCH INSTALLATION

CAUTION: Do not block the oil passage with sealant.





Apply 3M AAD Part number 8672 or equivalent to the threads of the oil pressure switch.

]]B[[ OIL FEEDER CONTROL FEEDER VALVE INSTALLATION





CAUTION:
^ Never re-use the O-ring.

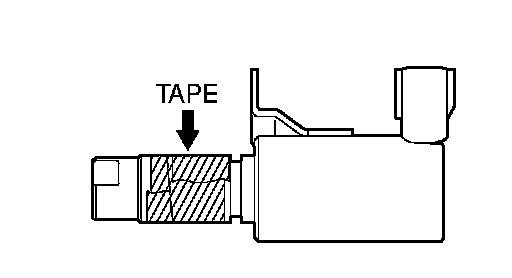

^ Before installing O-ring, wind sealing tape around the oil passages cut-out area of engine oil control valve, to prevent damage. If the O-ring is damaged, it can cause an oil leak.

1. Apply a small amount of engine oil to the O-ring and then install it to the engine oil control valve.
2. Install the engine oil control valve to the cylinder head.
3. Tighten the engine oil control valve to the specified torque of 11 ± 1 Nm (98 ± 8 inch lbs.).

]]C[[ OIL SEAL INSTALLATION





1. Apply engine oil to the lip area of the oil seal and the front end outside diameter of camshaft.

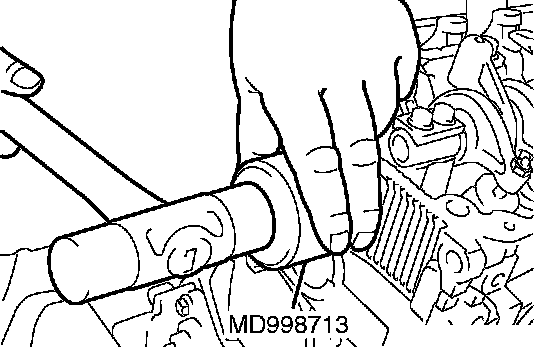

2. Using special tool MD998713, install the camshaft oil seal.
