Ignition System

IGNITION SYSTEM

REMOVAL AND INSTALLATION

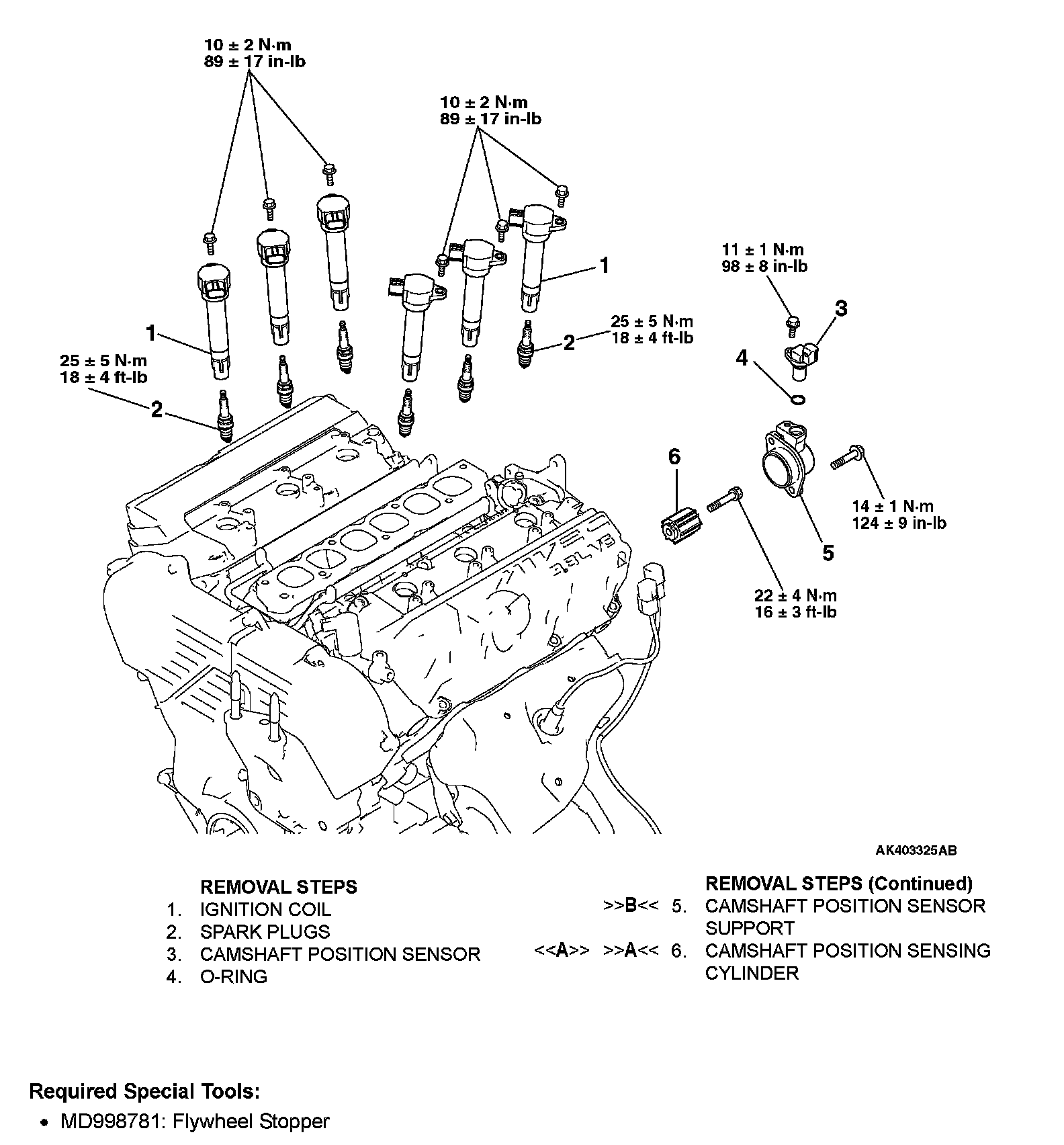

Removal Steps 1-6 & Required Special Tools:

REMOVAL SERVICE POINT
[[A]] CAMSHAFT POSITION SENSING CYLINDER REMOVAL

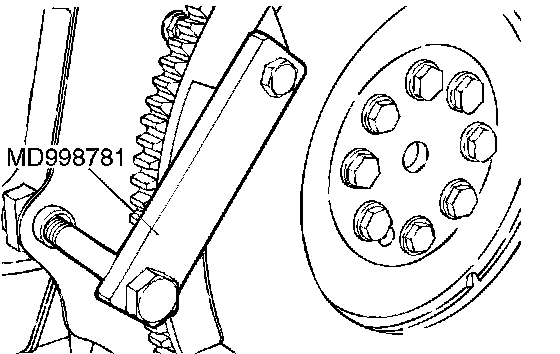

1. Using special tool MD998781, hold the drive plate.
2. Loosen the camshaft position sensing cylinder bolt.

INSTALLATION SERVICE POINT
]]A[[ CAMSHAFT POSITION SENSING CYLINDER INSTALLATION

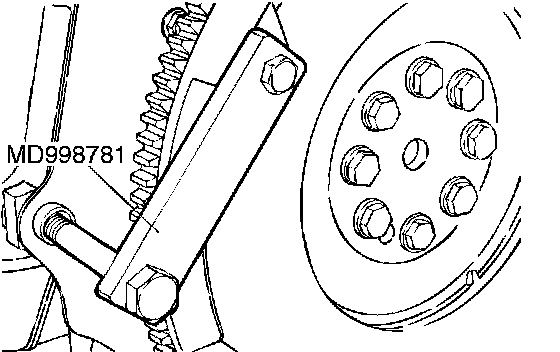

1. Using special tool MD998781, hold the drive plate.
2. Tighten the camshaft position sensing cylinder bolt to the specified torque.
Tightening torque: 22 ± 4 Nm (16 ± 3 ft. lbs.)

]]B[[ CAMSHAFT POSITION SENSOR SUPPORT INSTALLATION

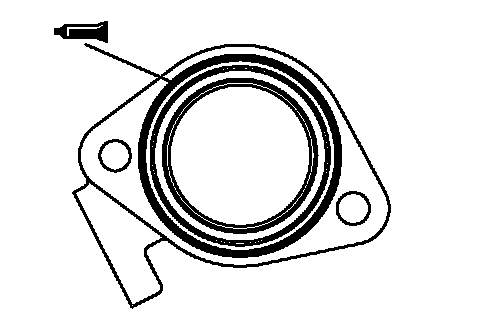

Apply a 3 mm (0.12 inch) diameter bead of sealant Mitsubishi Genuine Part number MD970389 or equivalent to the camshaft position sensor support.
