Rear Crankshaft Main Bearing Seal: Service and Repair

CRANKSHAFT OIL SEAL

REMOVAL AND INSTALLATION

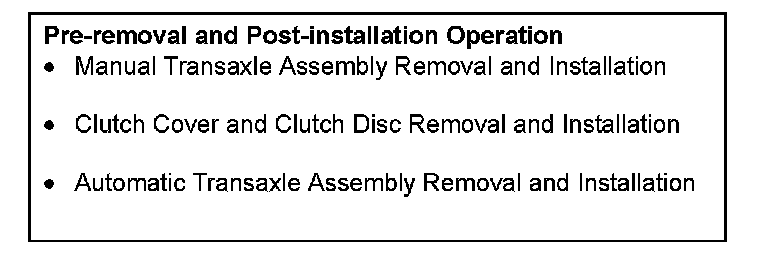

Pre-removal & Post-installation Operation:

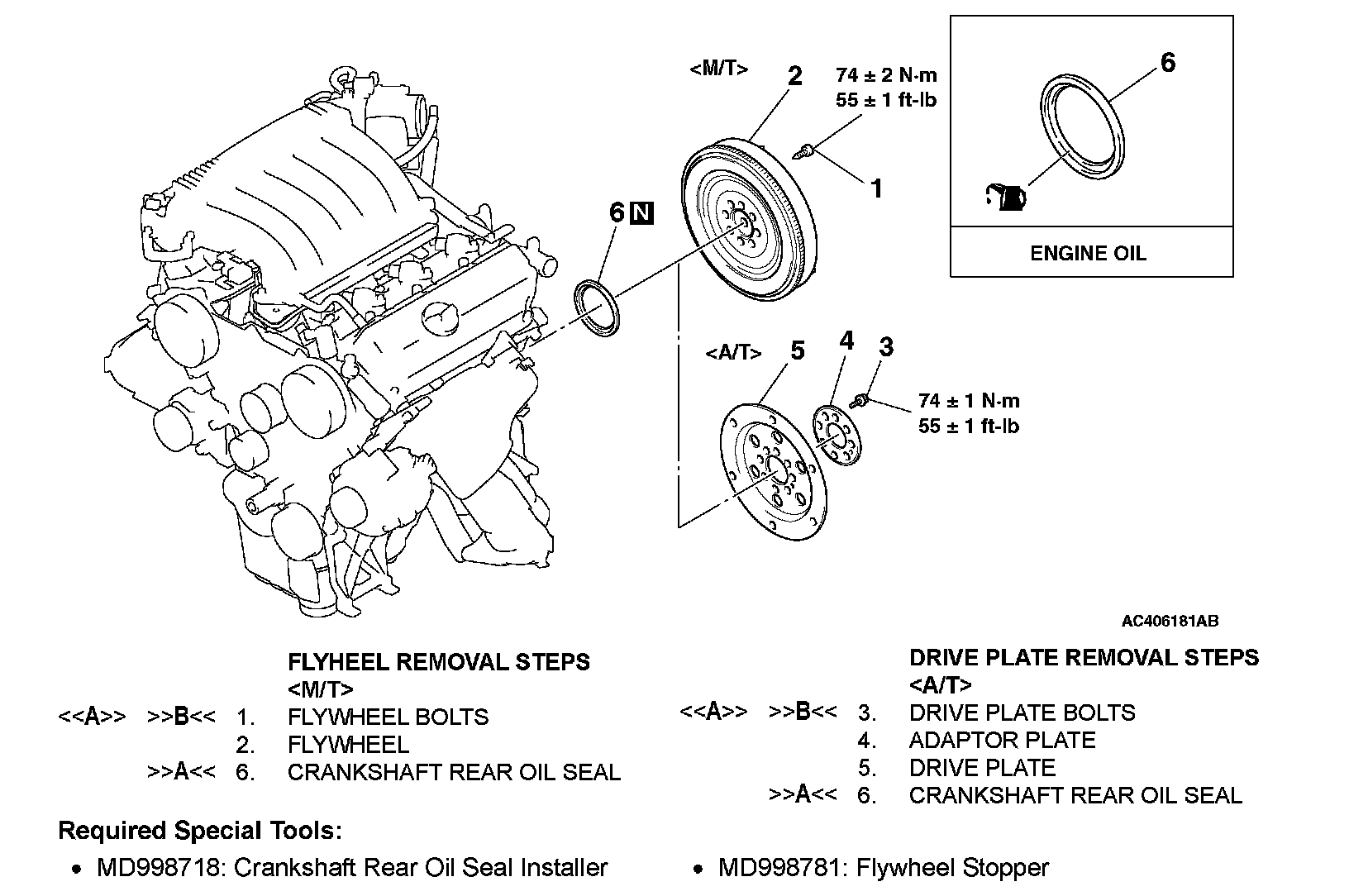

Removal Steps 1-6 & Required Special Tools:

REMOVAL SERVICE POINT
[[A]] FLYWHEEL BOLTS/DRIVE PLATE BOLTS REMOVAL

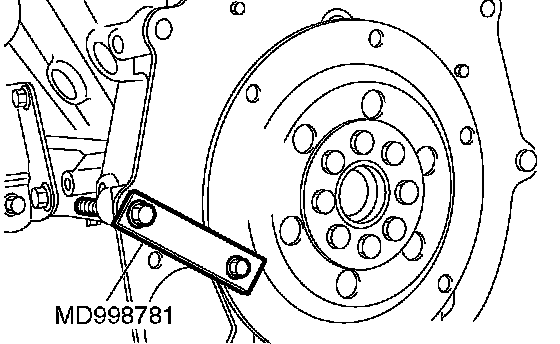

Use special tool MD998781 to secure the drive plate and remove the flywheel bolts or drive plate bolts.

INSTALLATION SERVICE POINTS
]]A[[ CRANKSHAFT REAR OIL SEAL INSTALLATION
1. Apply a small amount of engine oil to the entire circumference of the oil seal lip.

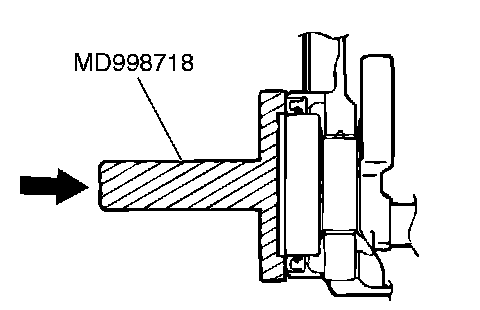

2. Use special tool MD998718 to tap in the oil seal as shown in the illustration.

]]B[[ DRIVE PLATE BOLTS/FLYWHEEL BOLTS INSTALLATION

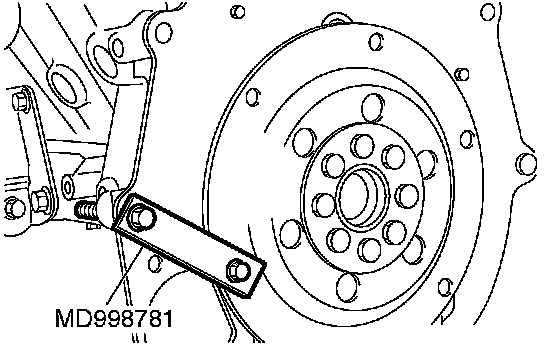

Use special tool MD998781 in the same way as during removal to install the flywheel bolts or drive plate bolts.
