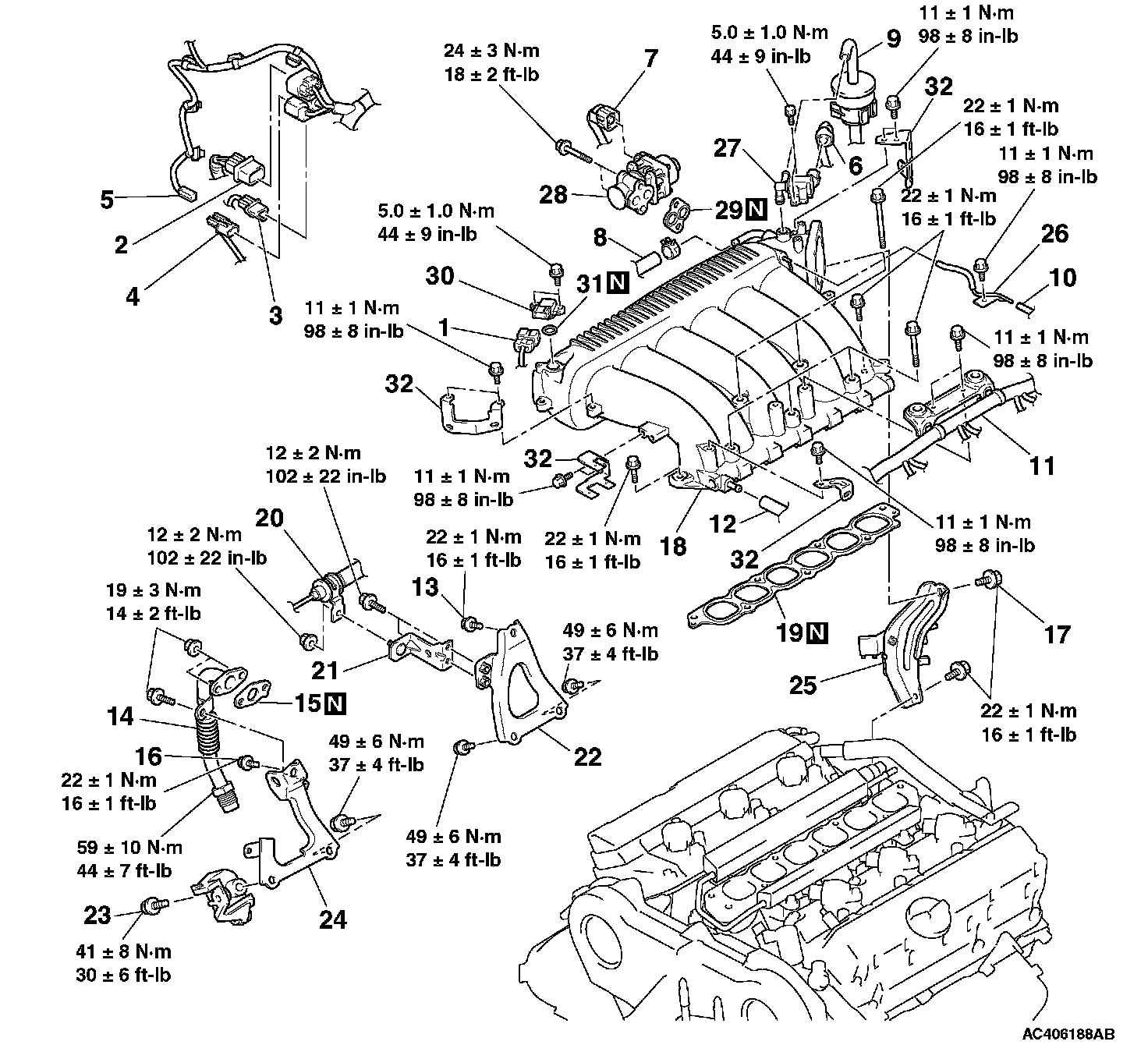

Intake Manifold Plenum

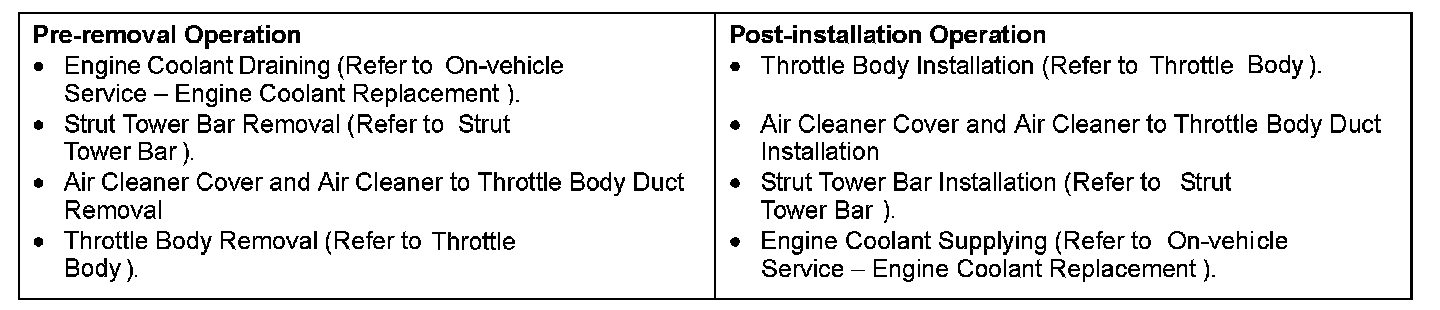

Pre-removal Operation And Pre-Installation Operation:

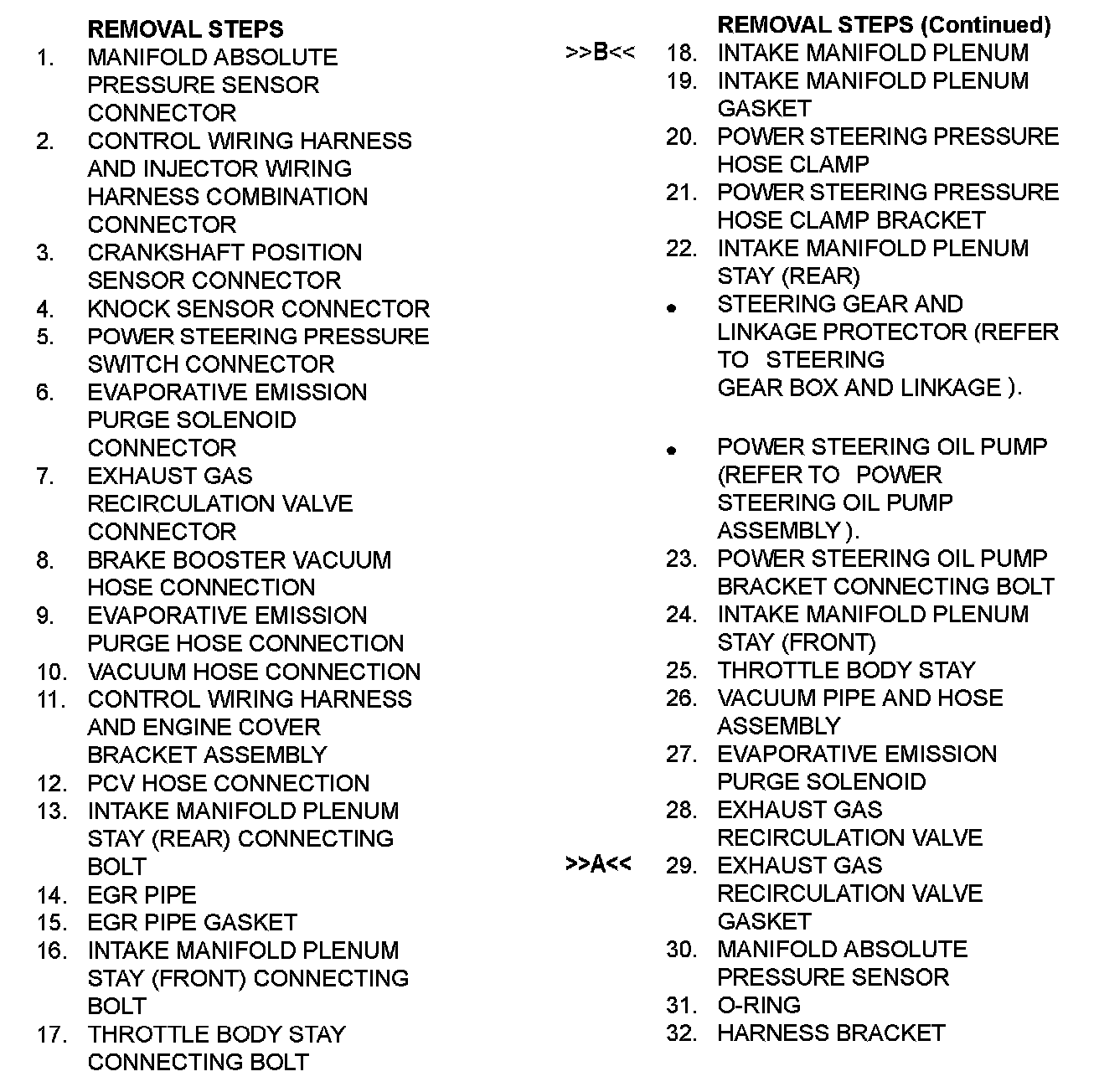

Removal Steps 1 - 32:

Required Special Tool:
MD998412: Guide

INSTALLATION SERVICE POINTS

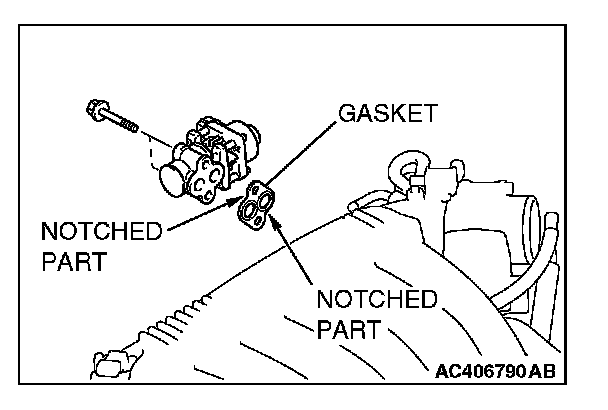

]]A[[ EXHAUST GAS RECIRCULATION VALVE GASKET INSTALLATION




Install the exhaust gas recirculation valve gasket as shown in the illustration.

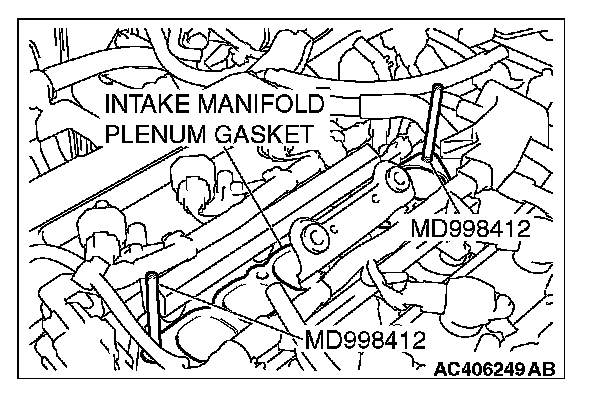

]]B[[ INTAKE MANIFOLD PLENUM INSTALLATION




Use special tool MD998412 to install the intake manifold plenum.
