Liftgate Window Glass: Service and Repair

LIFTGATE WINDOW GLASS

REMOVAL AND INSTALLATION

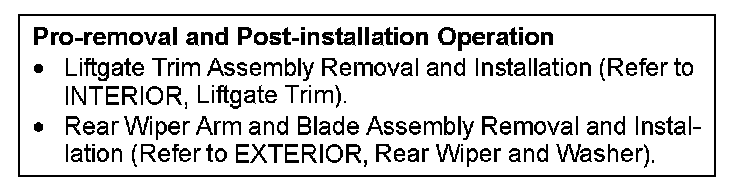

Pro-removal & Post-installation Operation:

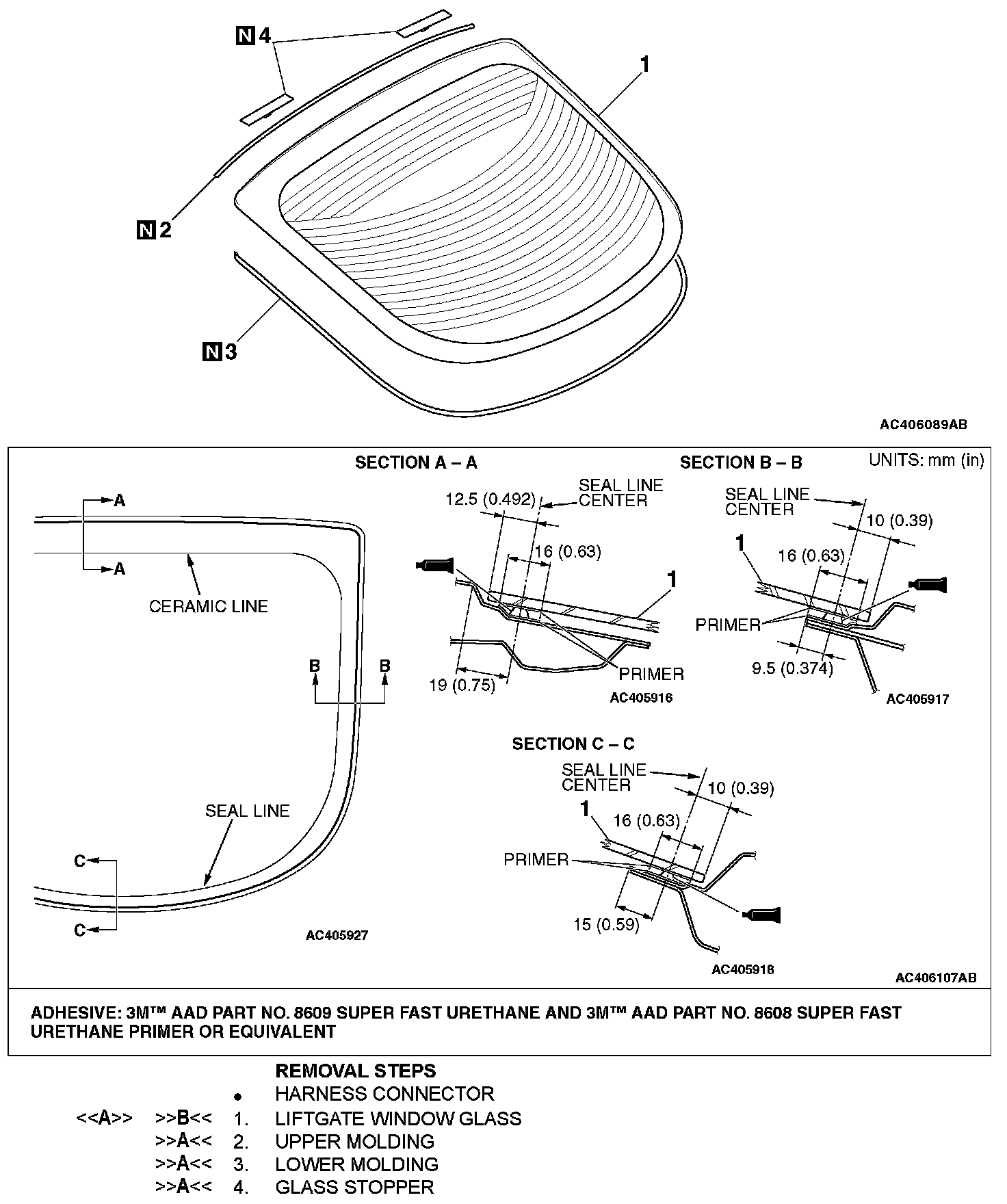

Removal Steps 1-4:

Required Special Tool:
- MB990480: Glass Holder

REMOVAL SERVICE POINT

[[A]] LIFTGATE WINDOW GLASS REMOVAL

Remove the liftgate window glass in the same manner as the windshield.

NOTE: Use a piano wire to remove the liftgate window glass.

INSTALLATION SERVICE POINTS

]]A[[ GLASS STOPPER/LOWER MOLDING/UPPER MOLDING INSTALLATION

CAUTION: Before the next job, leave the degreased parts for 3 minutes or more to dry. Do not touch the degreased parts.

1. Use 3M(TM) AAD Part number 8880 or equivalent to degrease the inside and outside of the liftgate window glass and the liftgate flanges.






2. Assemble the glass stopper, lower molding and upper molding to specified positions on the liftgate window glass.

]]B[[ LIFTGATE WINDOW GLASS INSTALLATION

Install the liftgate window glass in the same manner as the windshield.
