Window Glass Runchannel and Door Opening Weatherstrip

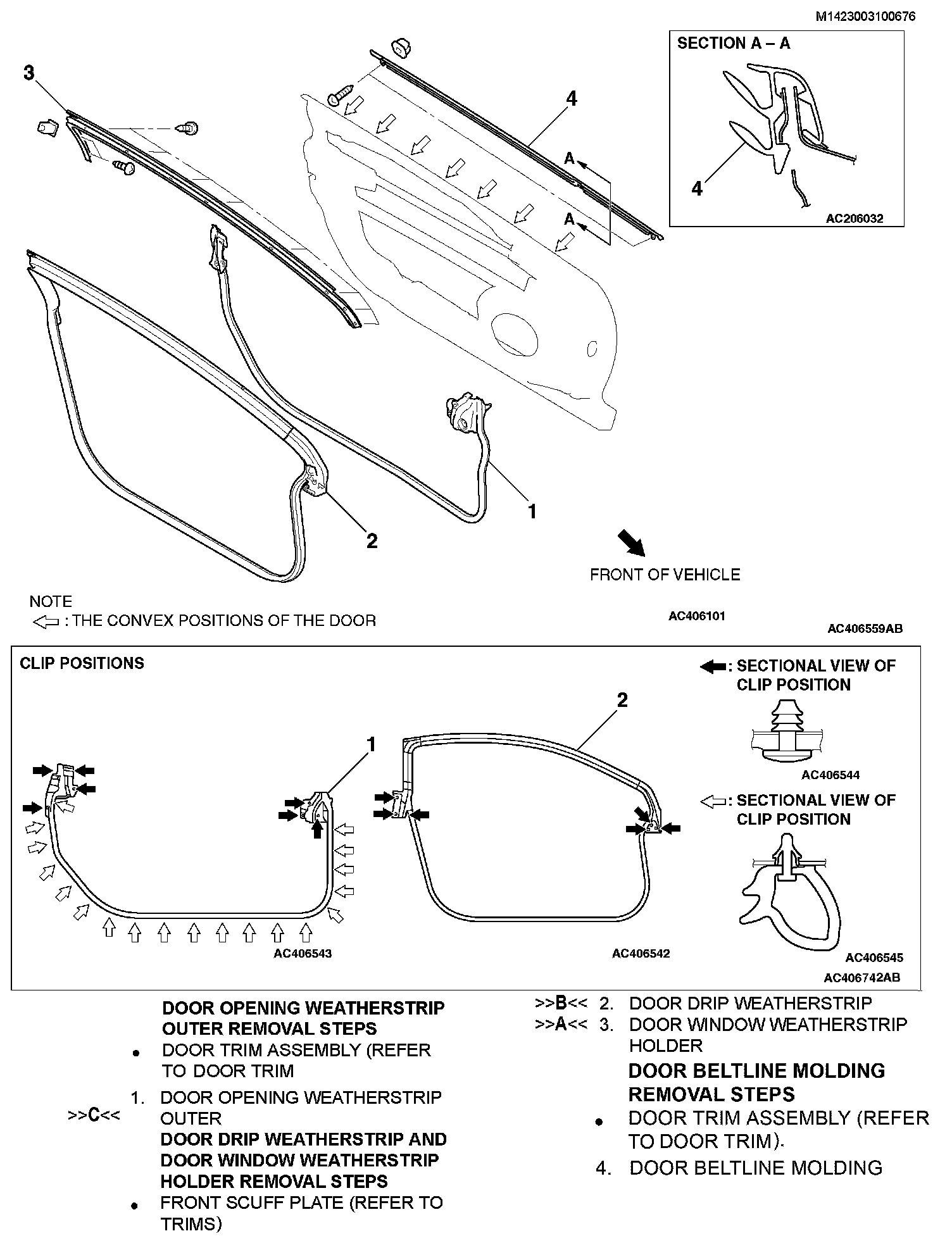

WINDOW GLASS RUNCHANNEL AND DOOR OPENING WEATHERSTRIPRemoval Steps 1-4:
REMOVAL AND INSTALLATION
INSTALLATION SERVICE POINTS
]]A[[ DOOR WINDOW WEATHERSTRIP HOLDER INSTALLATION
Install the door window weatherstrip holder in the sequence shown.

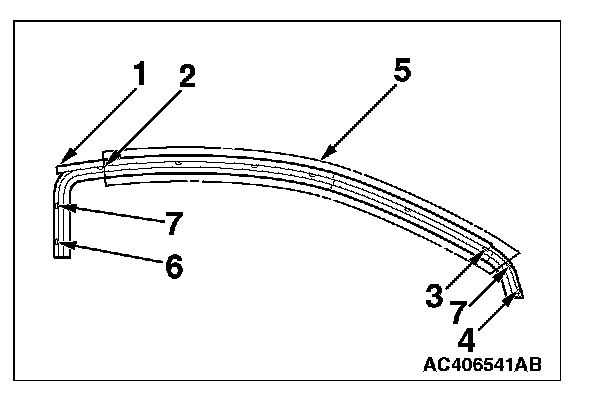

]]B[[ DOOR DRIP WEATHERSTRIP INSTALLATION
Install the door drip weatherstrip in the sequence shown. Apply a force in the narrowed direction shown and install the door drip weatherstrip.

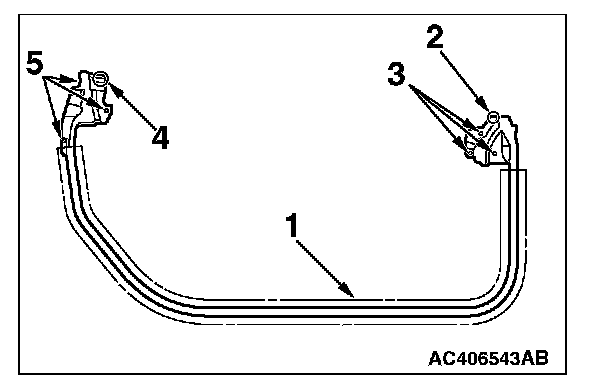

]]C[[ DOOR OPENING WEATHERSTRIP OUTER INSTALLATION
Install the door opening weatherstrip outer in the sequence shown.
