Electrical Diagram

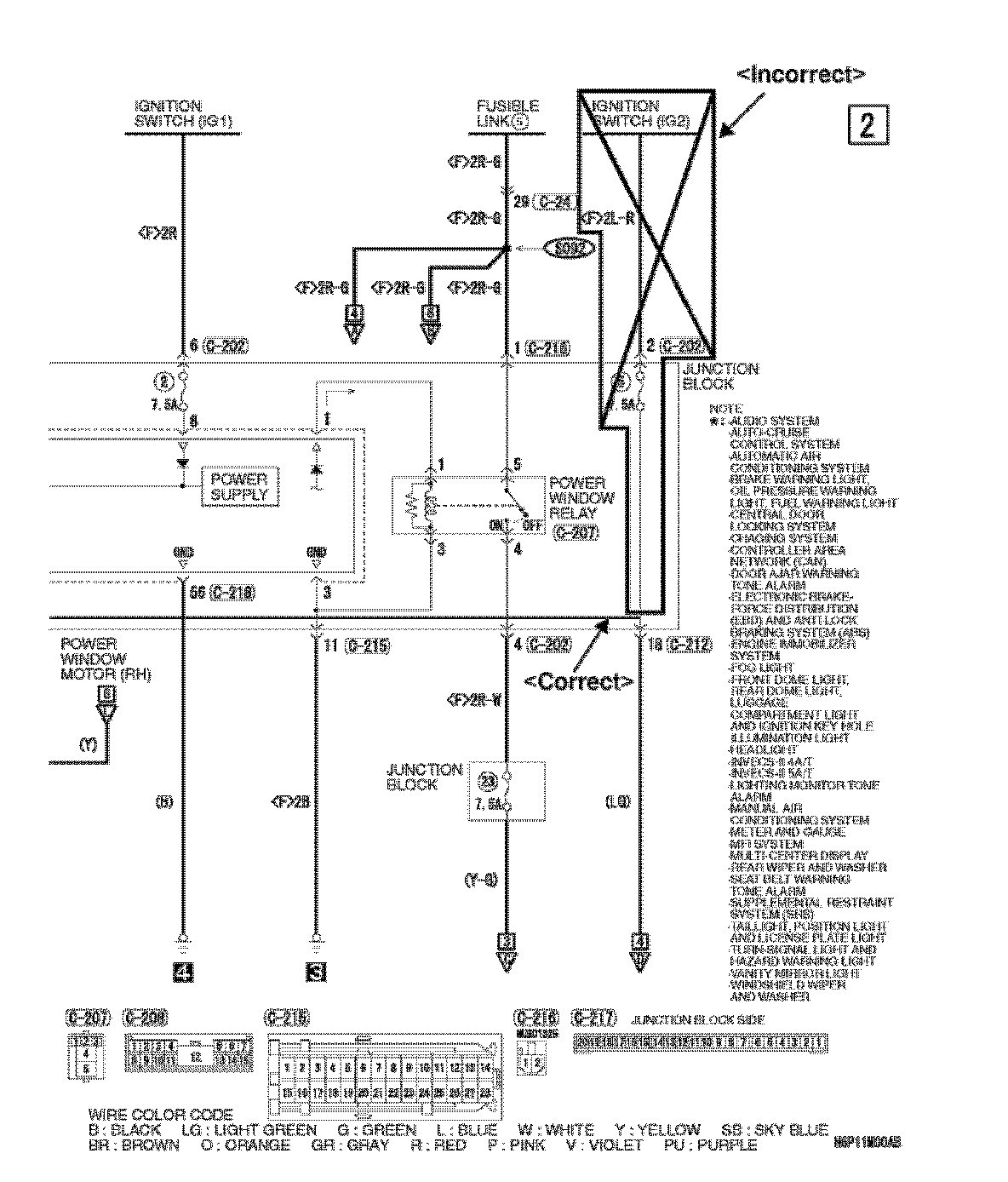

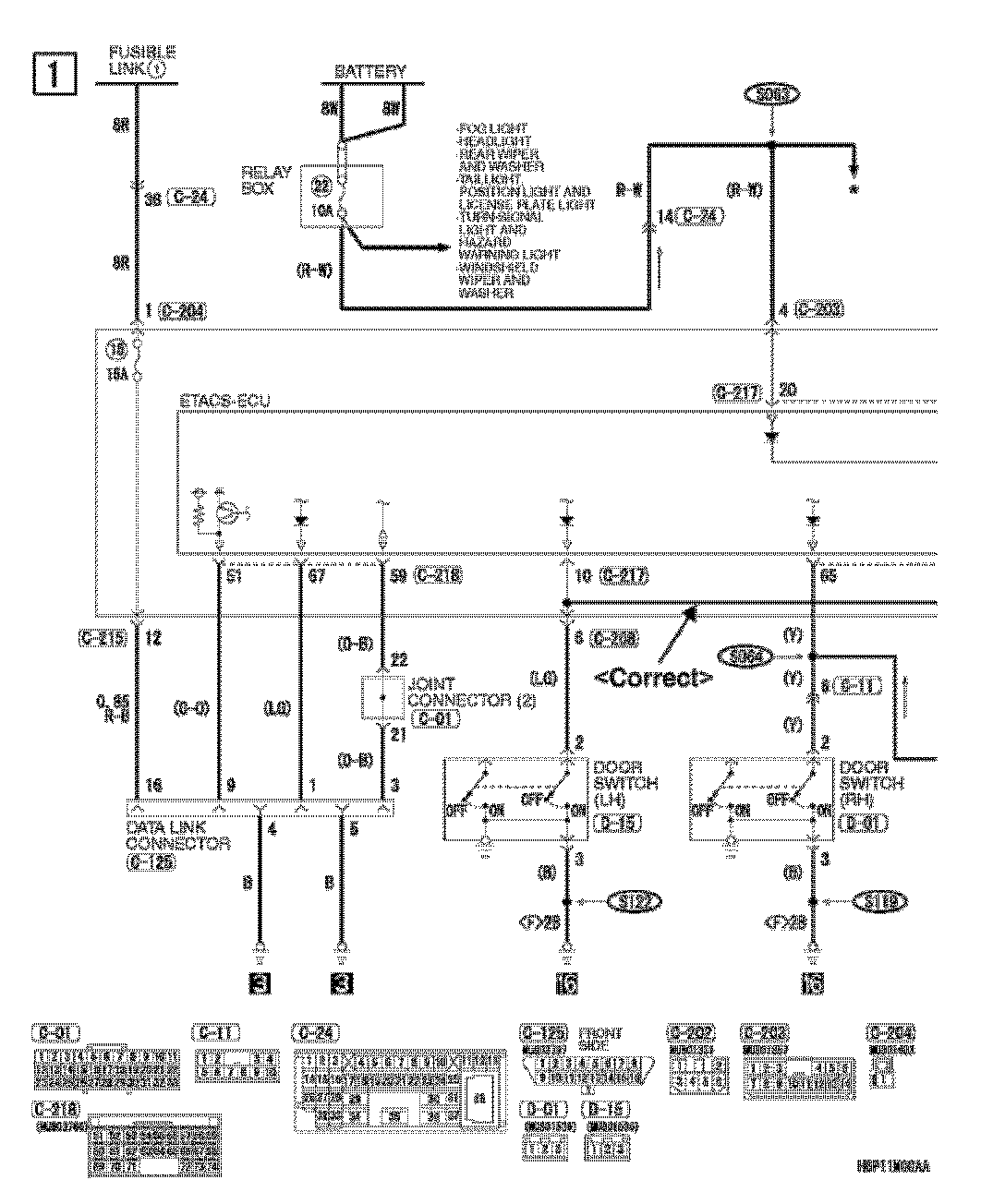

This article updated per Mitsubishi TSB# 06-54-012

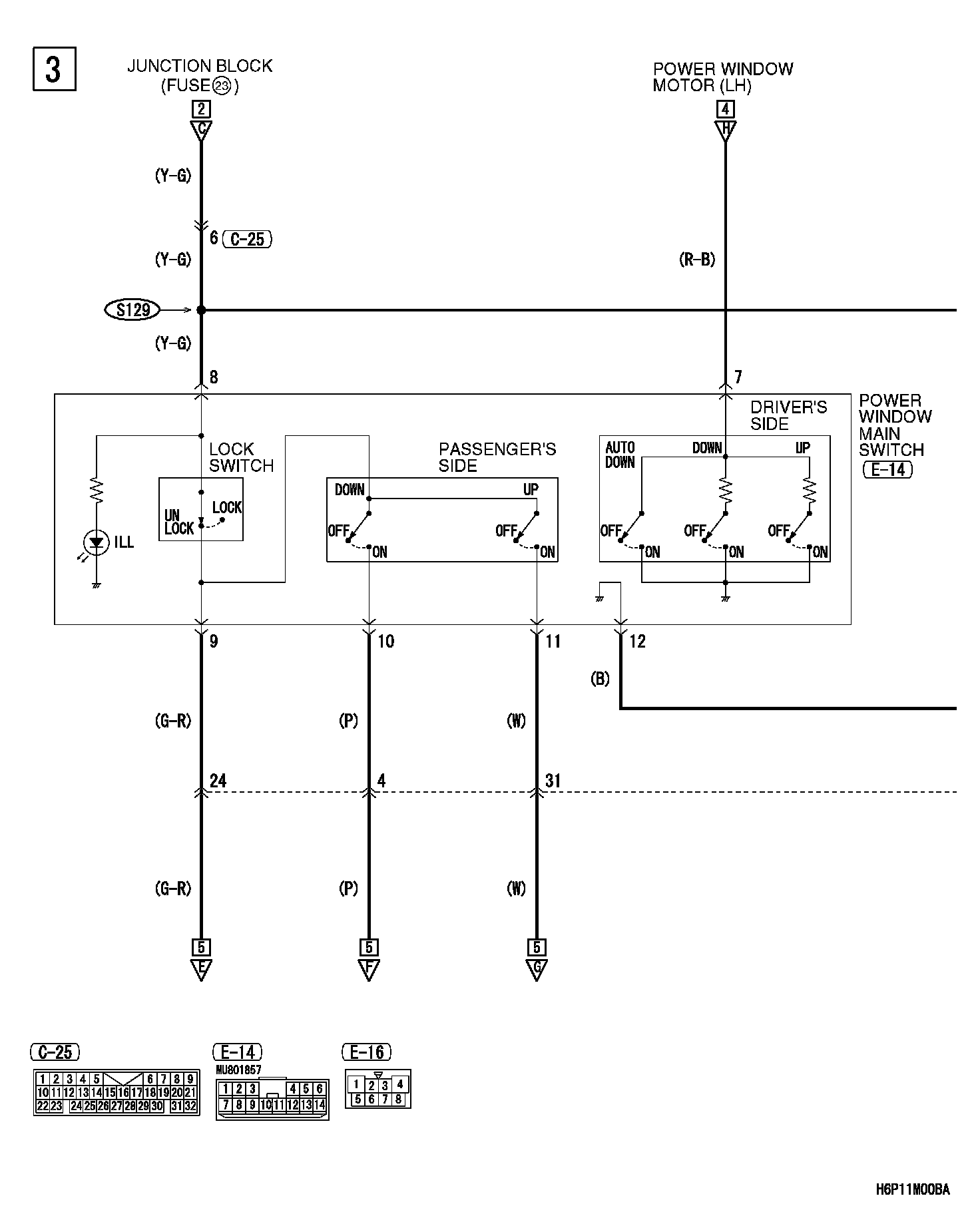

Power Windows Part 3:

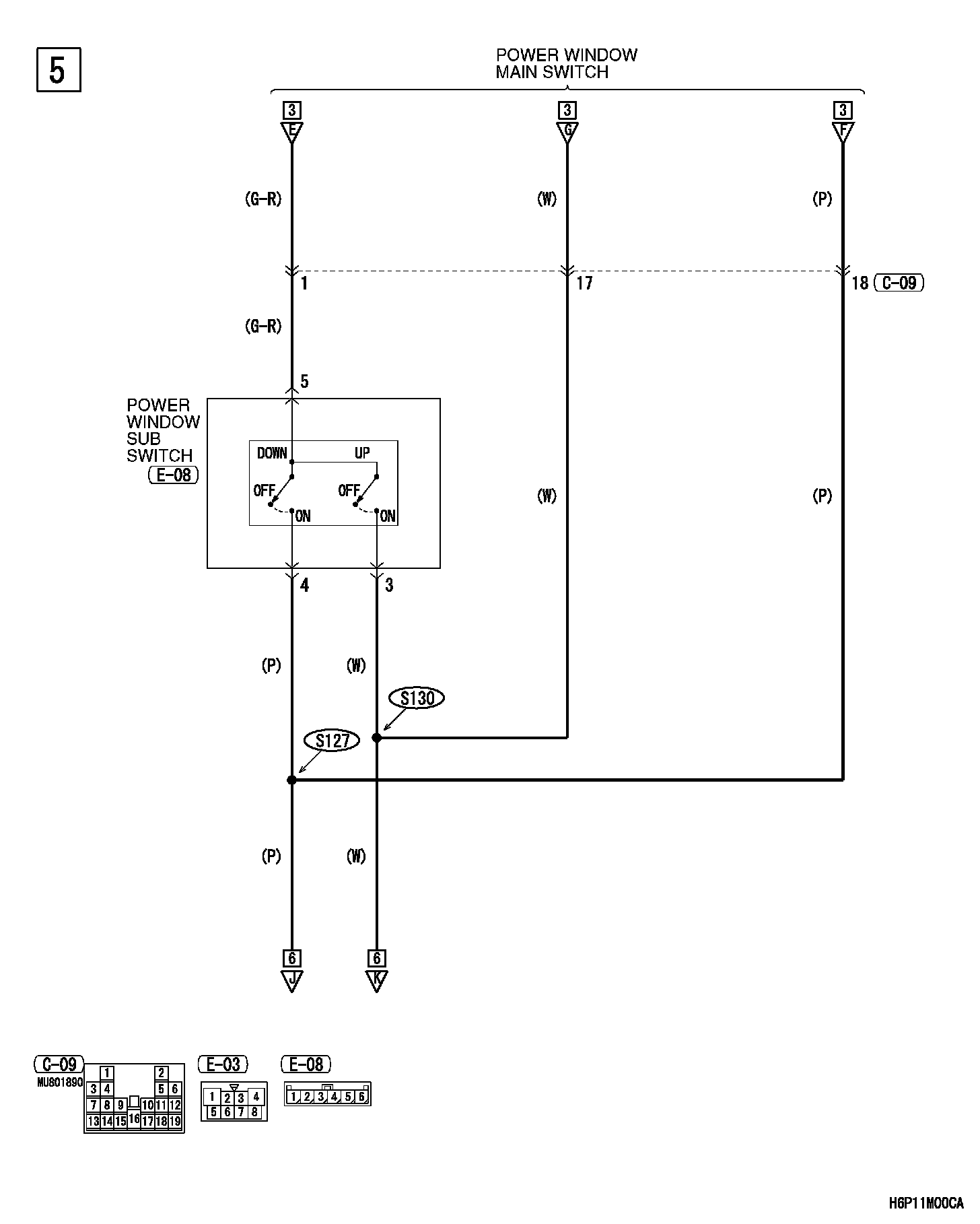

Power Windows Part 5:

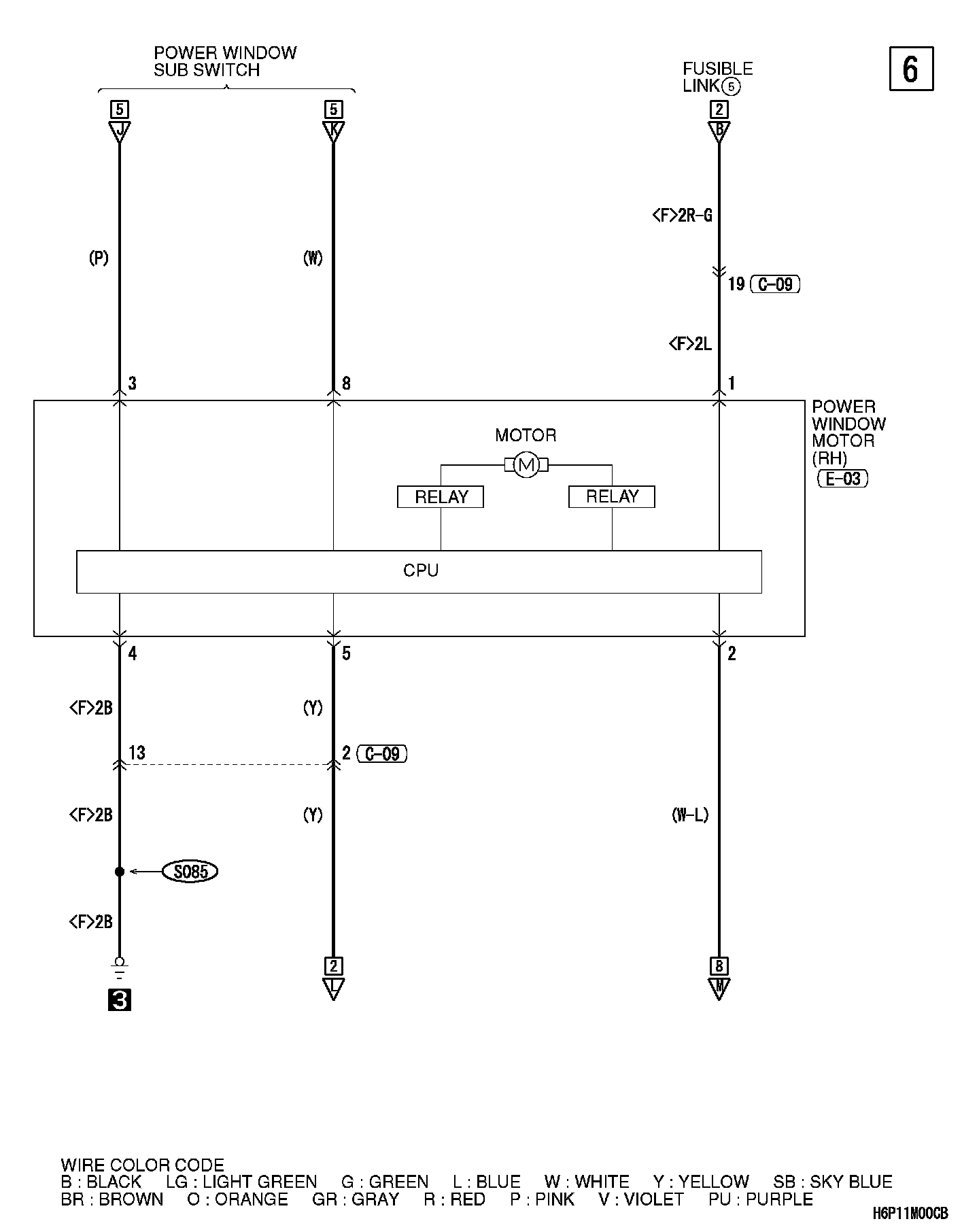

Power Windows Part 6:

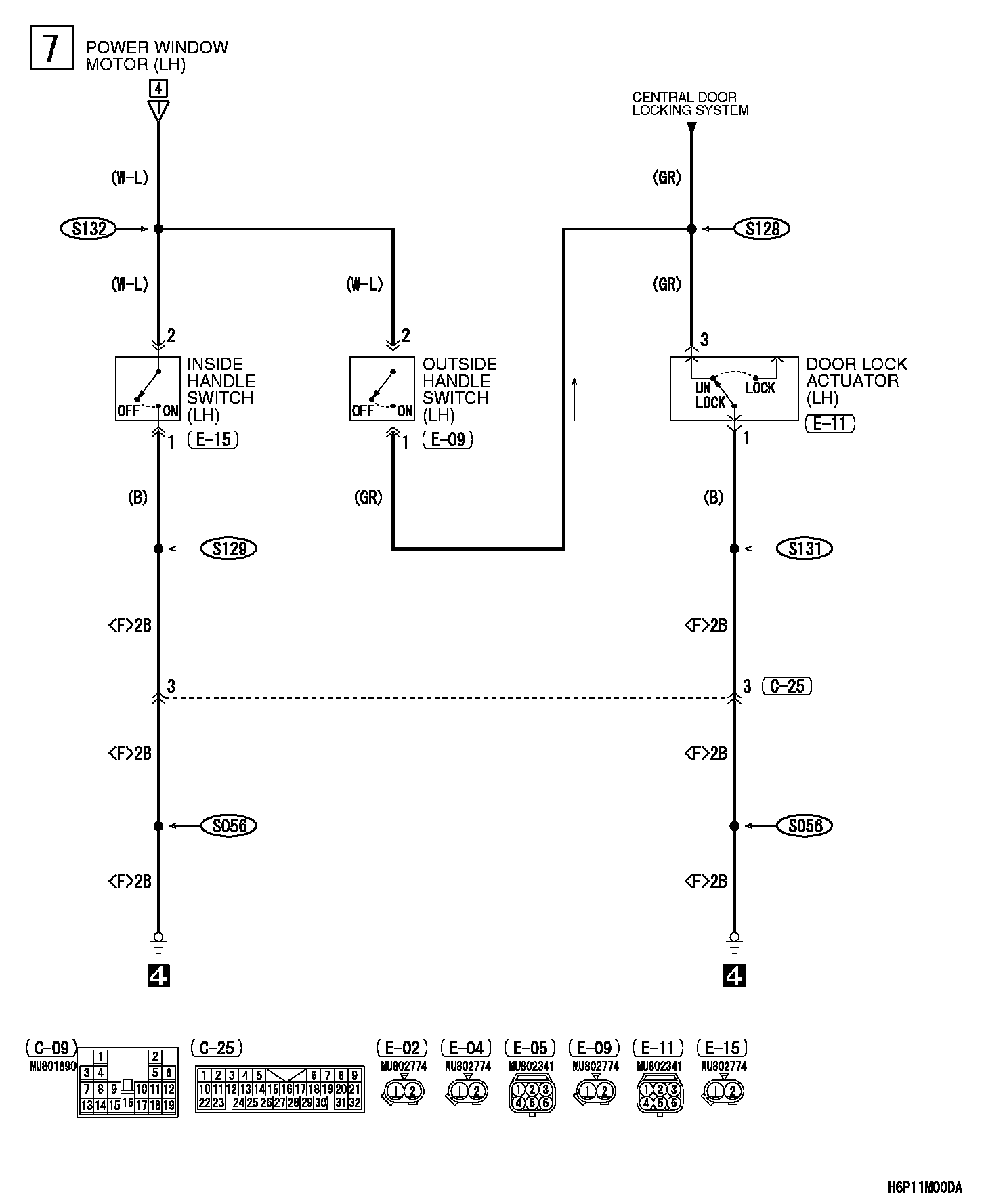

Power Windows Part 7:

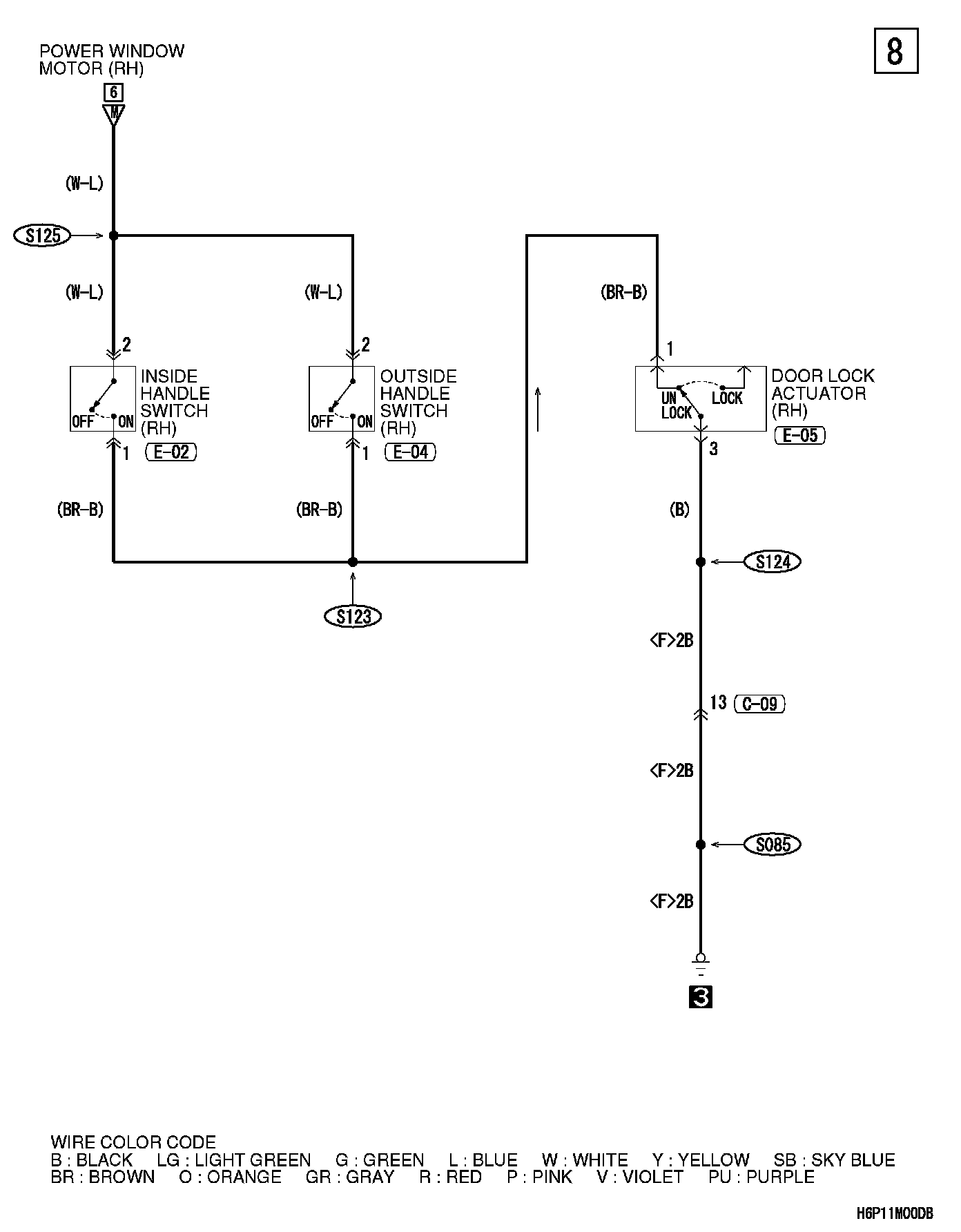

Power Windows Part 8:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Splice Locations: The locations of Splices referred to within these diagrams can be found via the splice number at Vehicle Splice Locations. Splice Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
