Power Window Switch: Testing and Inspection

INSPECTION

POWER WINDOW SWITCH CONTINUITY CHECK

Remove the power window switch (Refer to Interior, Door trim).

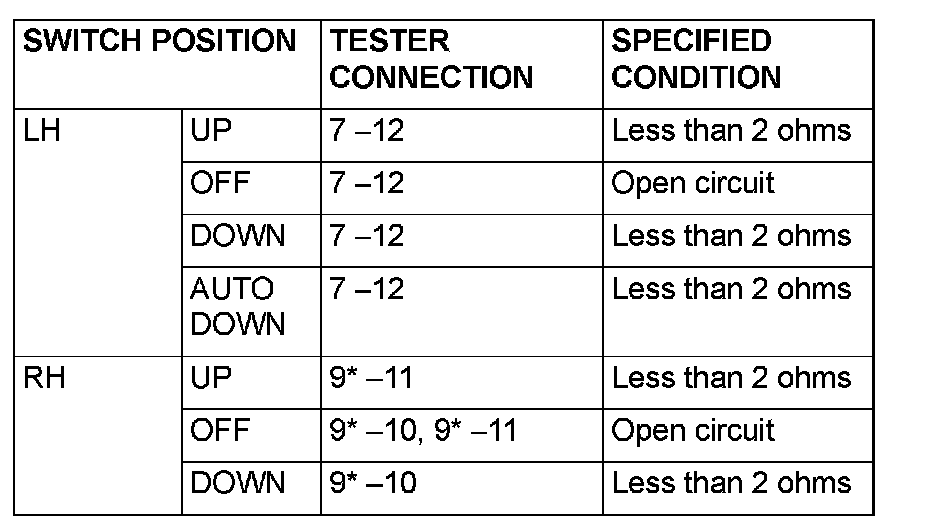

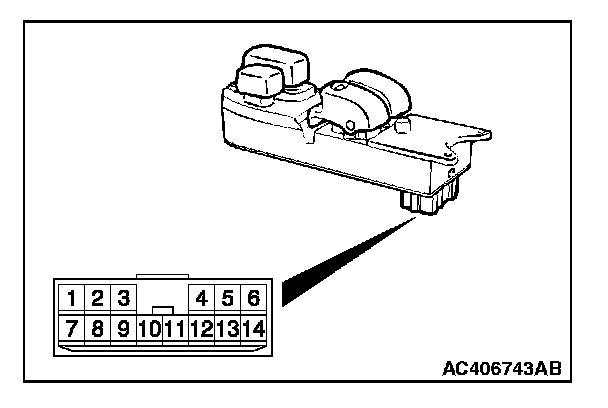

Main Switch:

MAIN SWITCH

NOTE: *: Set the power window lock switch to UNLOCK position.

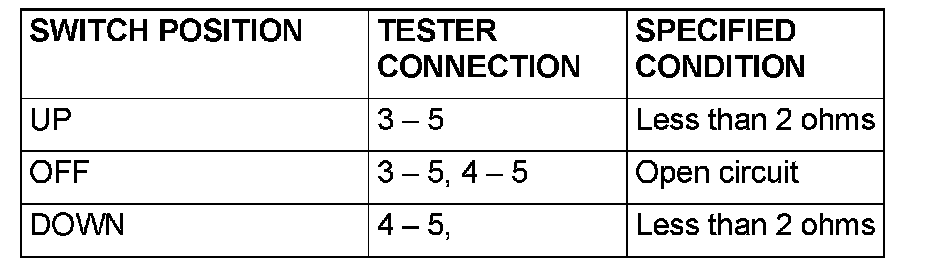

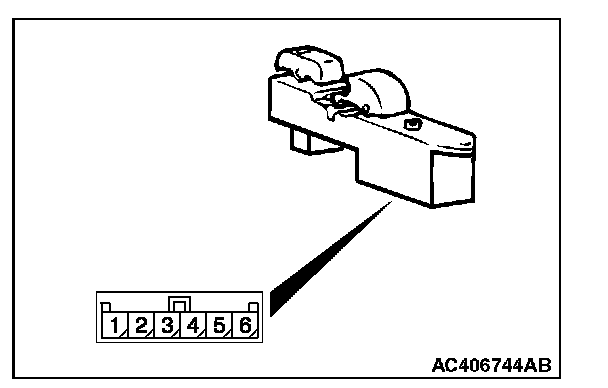

Sub Switch:

SUB SWITCH
