Manual Transmission/Transaxle: Description and Operation

GROUP 22A
MANUAL TRANSAXLE

GENERAL DESCRIPTION:





GENERAL DESCRIPTION

SECTIONAL VIEW

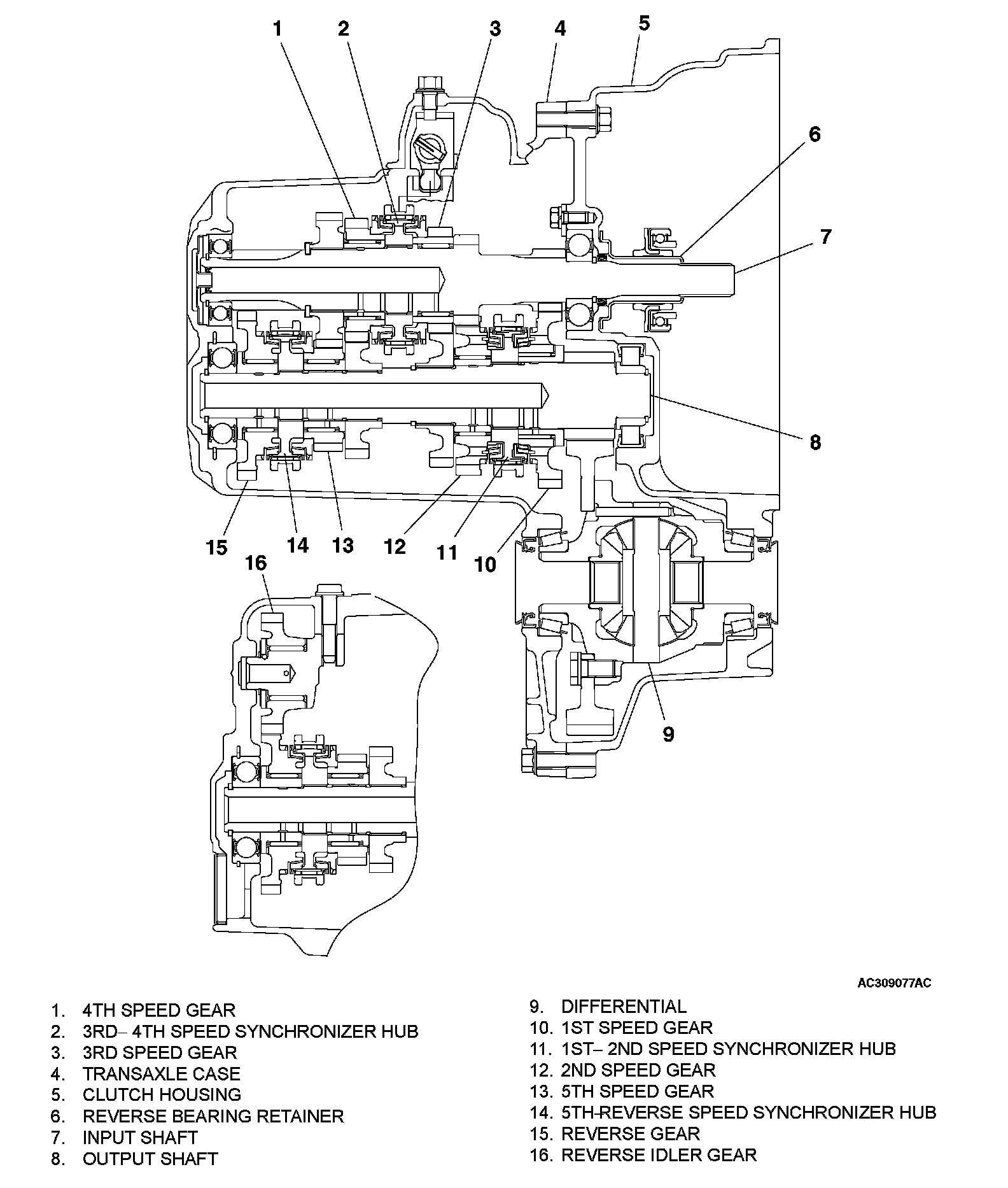

SECTIONAL VIEW <5M/T>:





<5M/T>

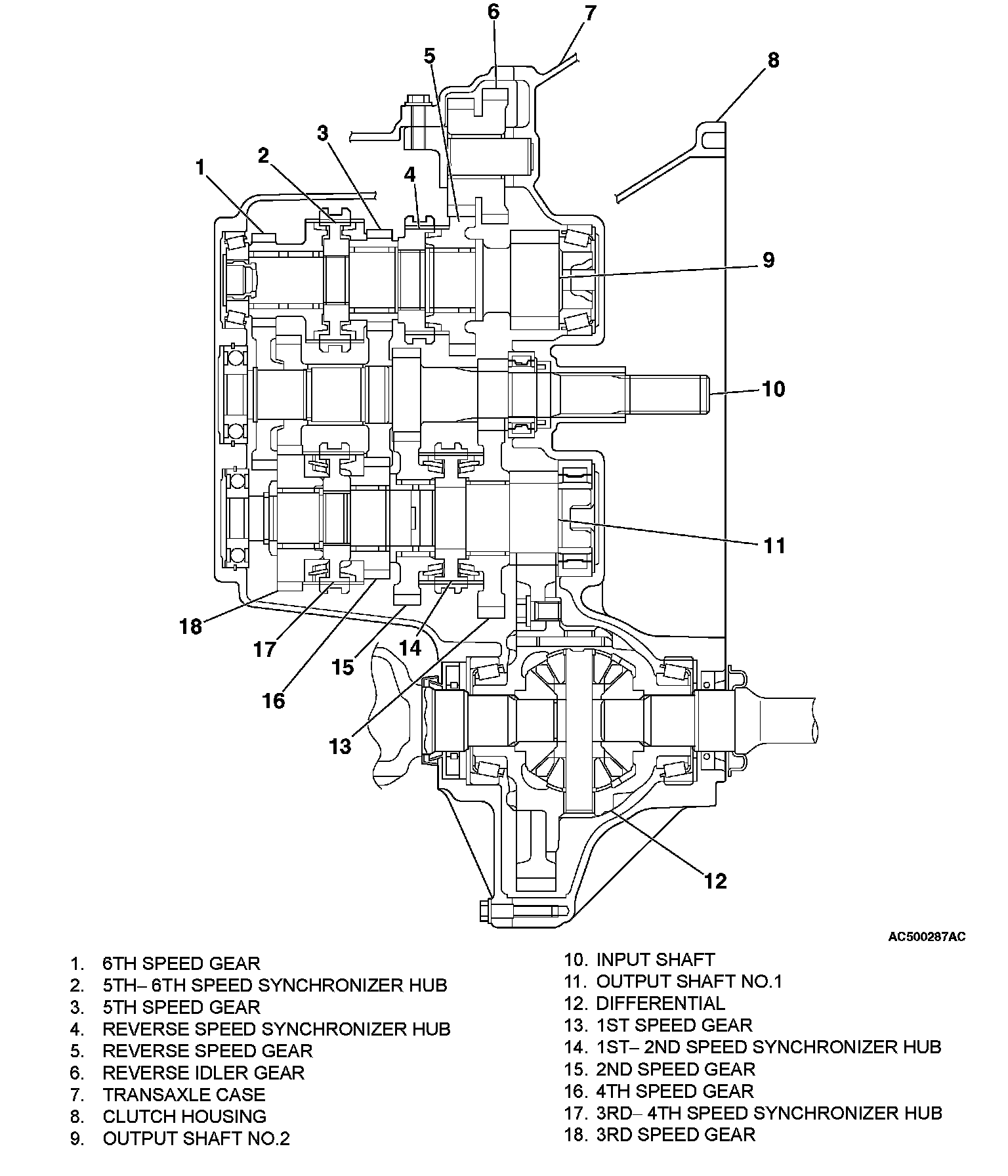

SECTIONAL VIEW <6M/T>:





<6M/T>
