Differential Mount: Service and Repair

ENGINE ROLL STOPPER AND CENTERMEMBER

REMOVAL AND INSTALLATION

CAUTION*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

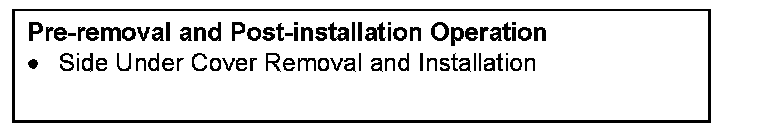

Pre-removal & Post-installation Operation:

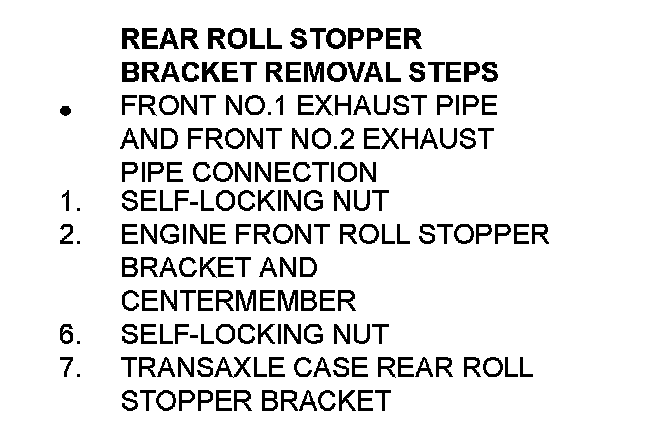

Removal Steps 1-5:

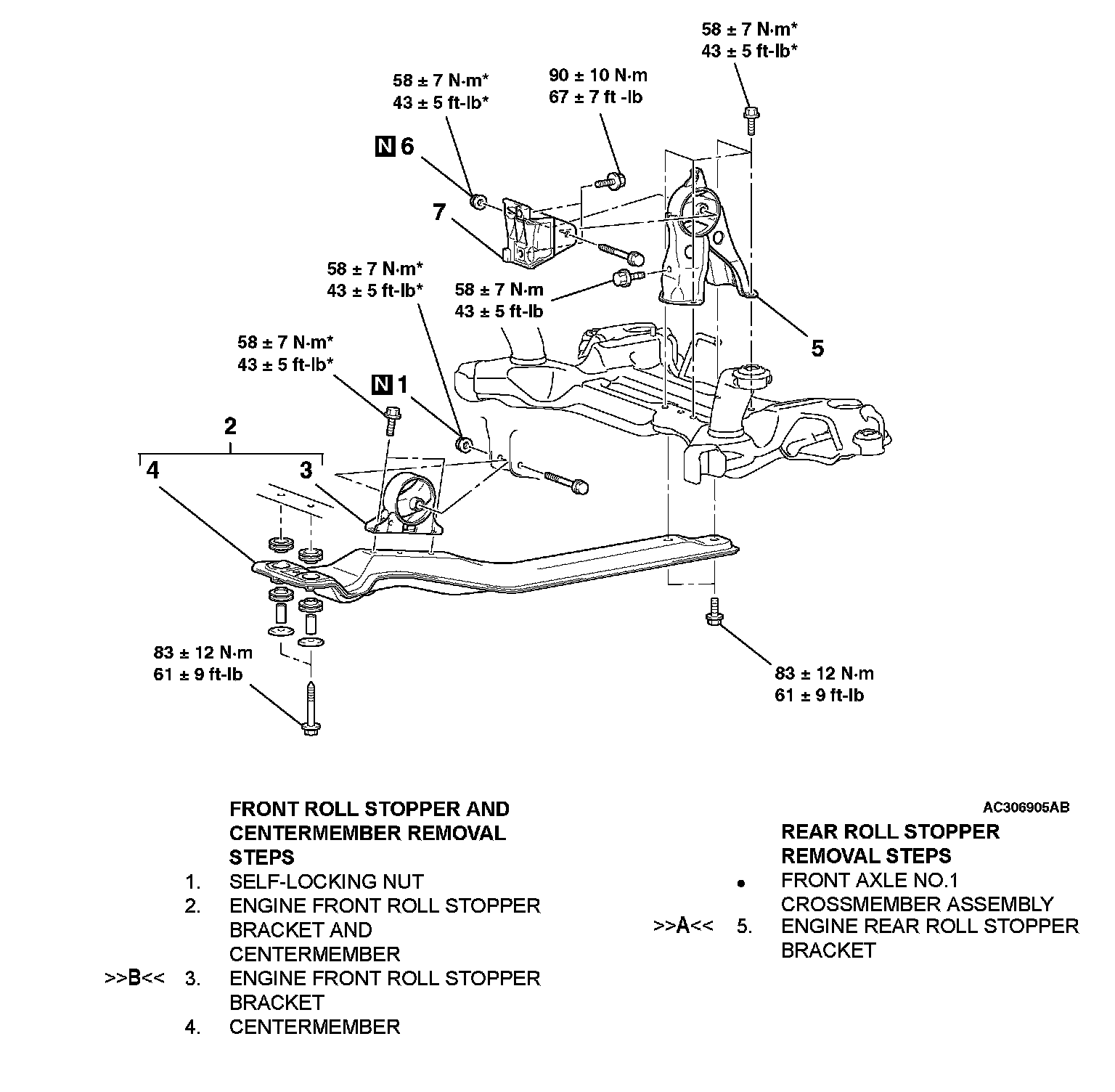

Removal Steps:

INSTALLATION SERVICE POINTS

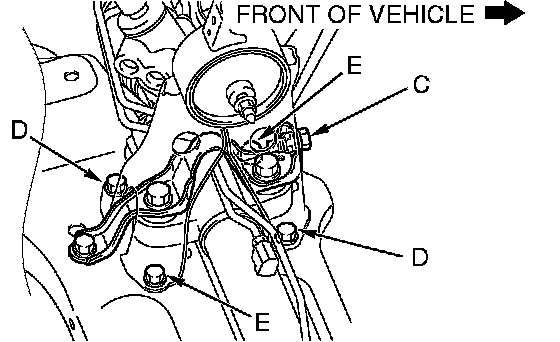

>>A<< ENGINE REAR ROLL STOPPER BRACKET INSTALLATION





Tighten the bolts in the following sequence:
1. Tighten bolts E finger tight.
2. Tighten bolt C and then tighten bolts D.
3. Tighten bolts E.

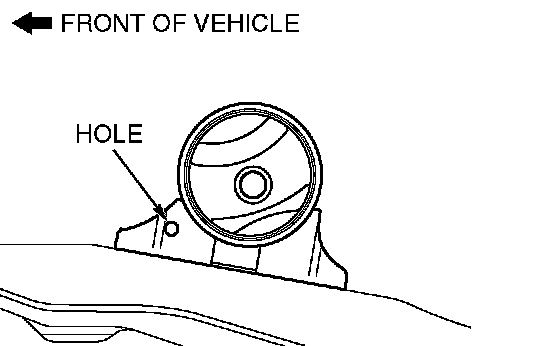

>>B<< ENGINE FRONT ROLL STOPPER BRACKET INSTALLATION





Install the engine front roll stopper bracket so that its hole points towards the front side of the vehicle.
