5A/T

TRANSMISSION FLUID COOLER, HOSE AND PIPE

REMOVAL AND INSTALLATION
<5A/T>

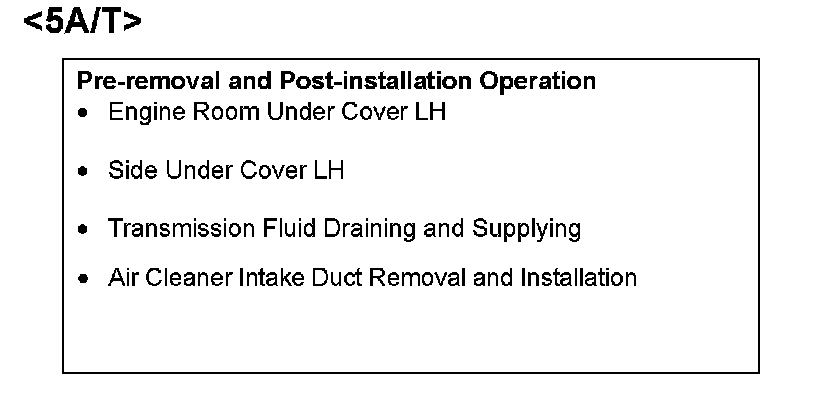

<5A/T> Pre-removal And Post-installation Operation:

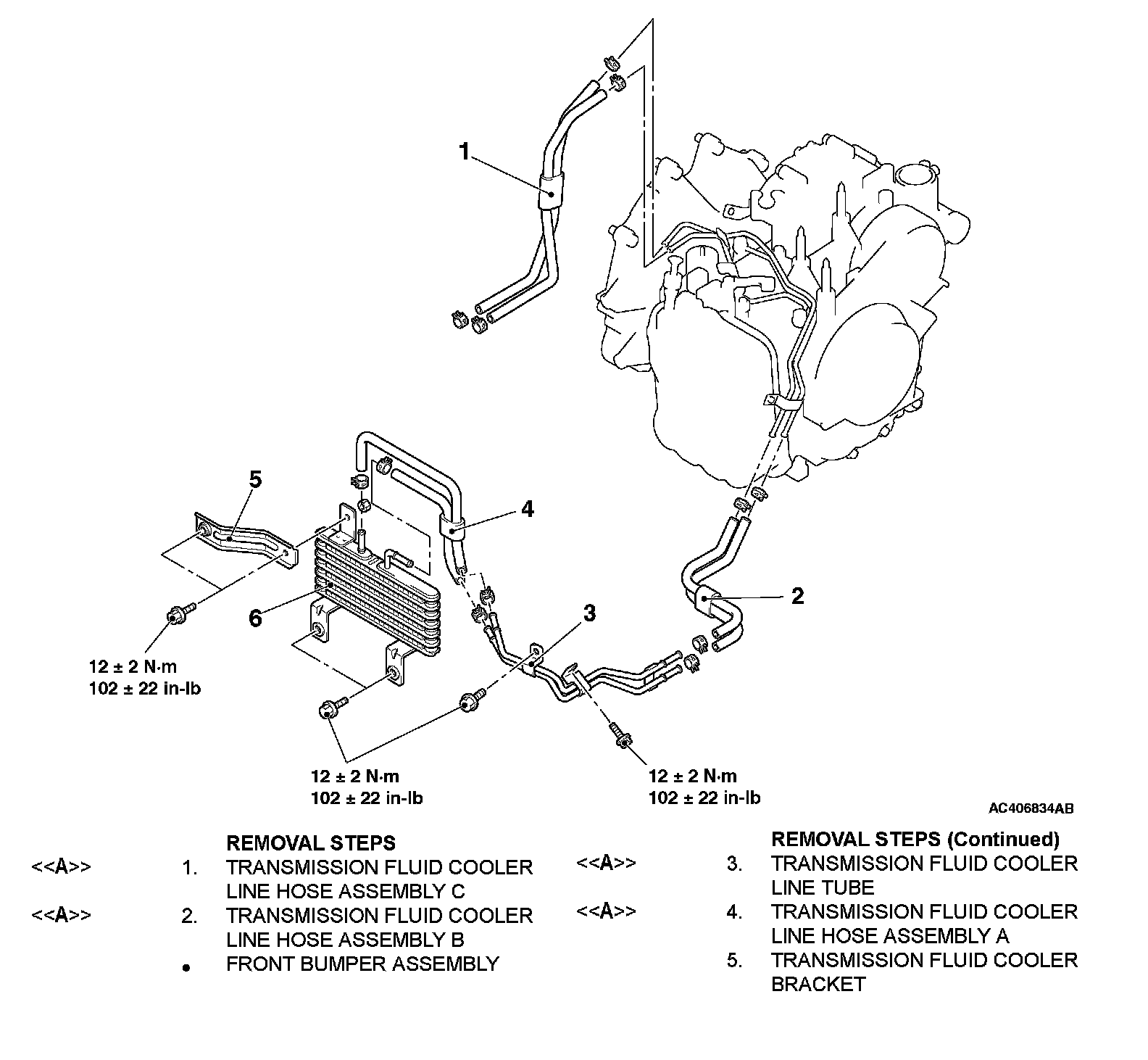

<5A/T> Removal Steps 1-5:

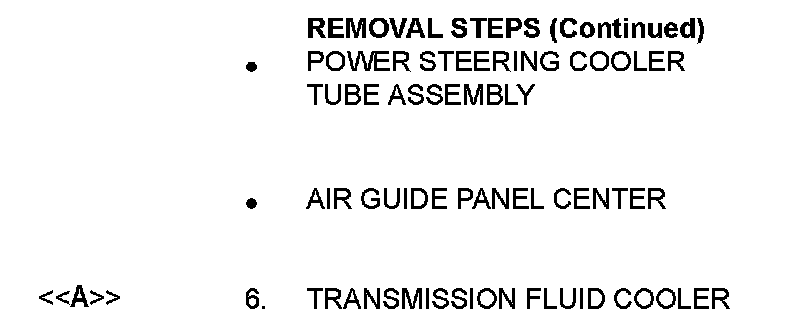

<5A/T> Removal Steps 4(continued)-5:

REMOVAL SERVICE POINTS
<> TRANSMISSION FLUID COOLER LINE HOSE A, B, C/TRANSMISSION FLUID COOLER LINE TUBE/TRANSMISSION FLUID COOLER REMOVAL
Drain the transmission fluid and engine coolant, which still remain in the hoses and the transmission fluid cooler.
