4A/T

TRANSMISSION FLUID COOLER, HOSE AND PIPE

REMOVAL AND INSTALLATION
<4A/T>

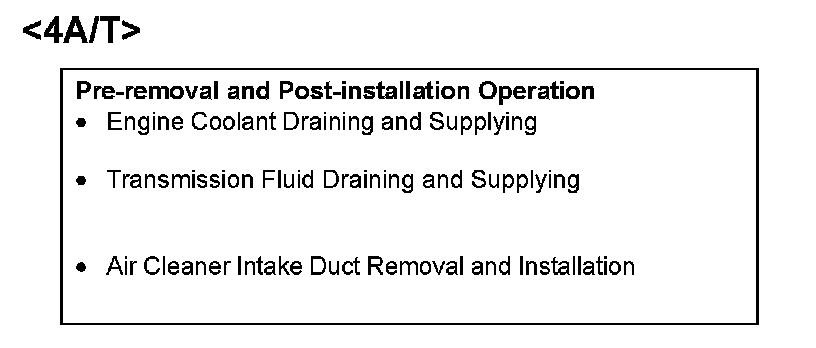

<4A/T> Pre-removal And Post-installation Operation:

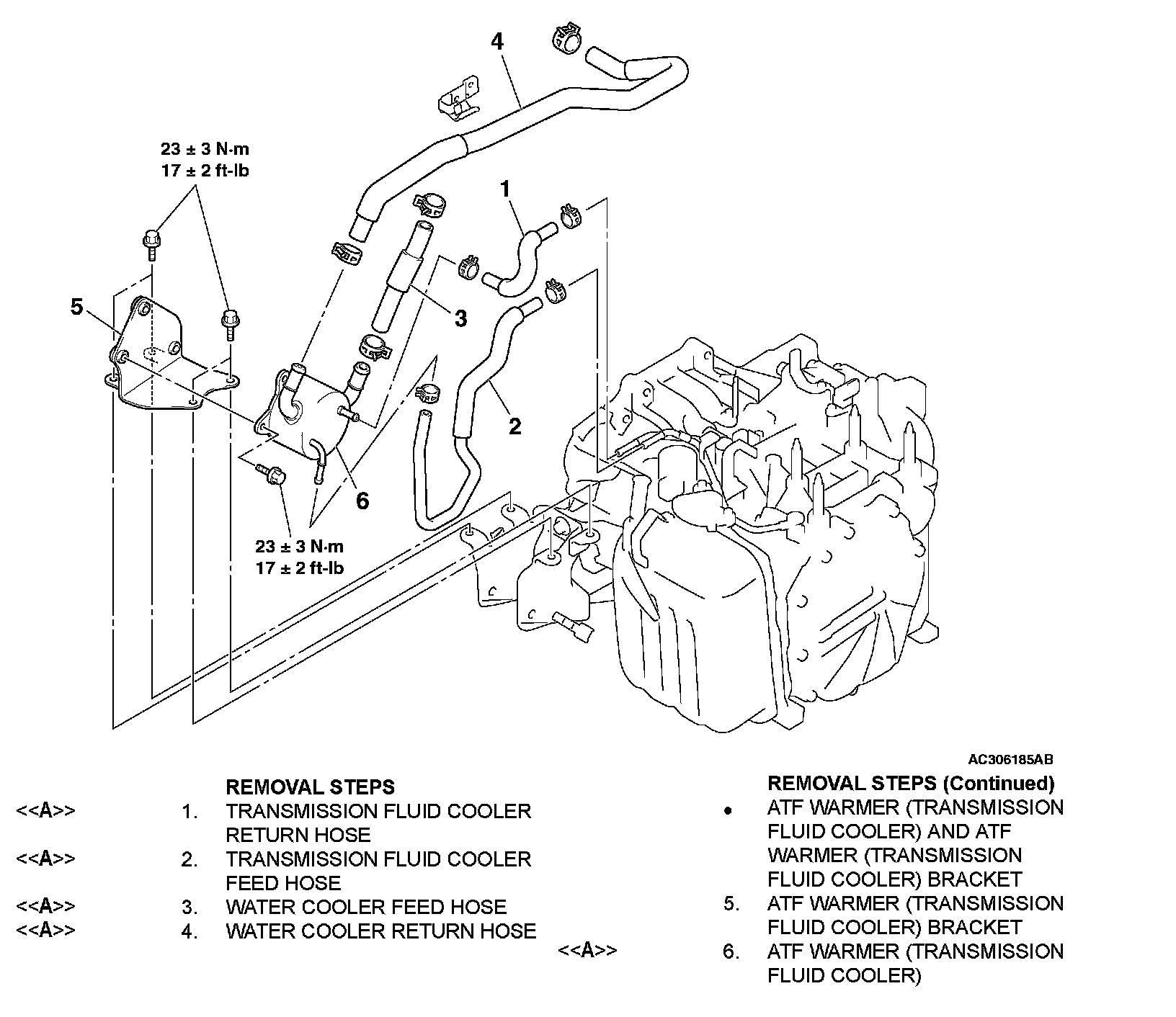

<4A/T> Removal Steps 1-6:

REMOVAL SERVICE POINTS
<> TRANSMISSION FLUID COOLER RETURN HOSE/TRANSMISSION FLUID COOLER FEED HOSE/WATER COOLER FEED HOSE/WATER COOLER RETURN HOSE/ATF WARMER (TRANSMISSION FLUID COOLER) REMOVAL
Drain the transmission fluid and engine coolant, which still remained in the hoses and the ATF warmer (transmission fluid cooler).
