Adjusting Plate, Snap Ring and Spacers

ADJUSTING PLATE, SNAP RING AND SPACERS

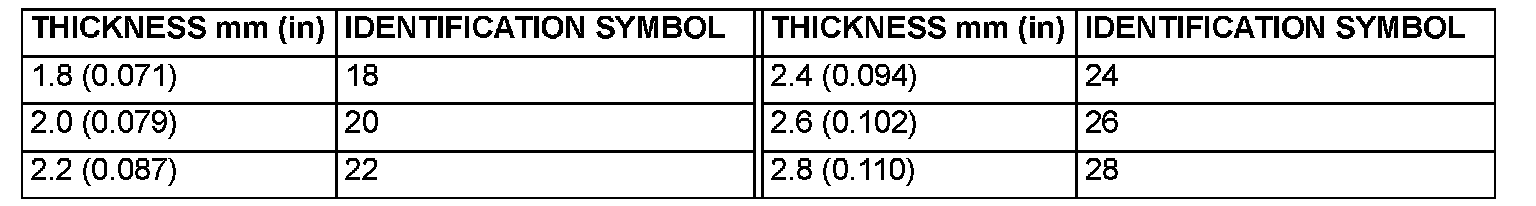

ADJUSTING PLATE, SNAP RING AND SPACERS:

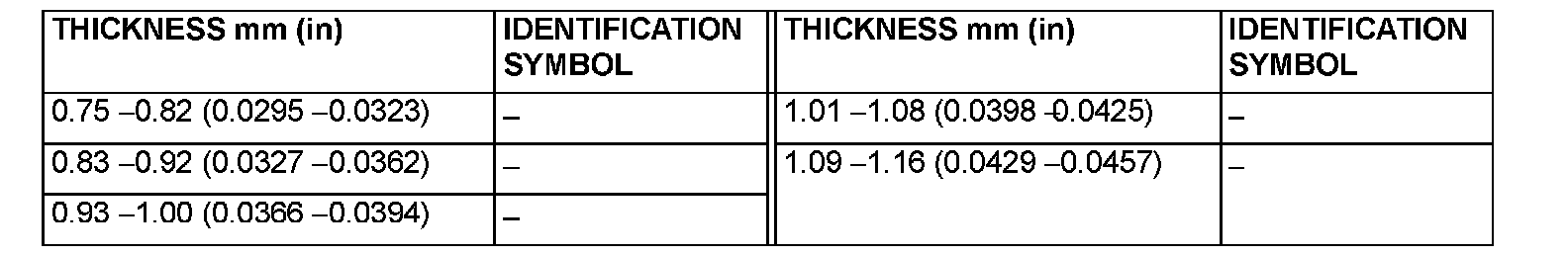

ADJUSTING PLATE, SNAP RING AND SPACERS:

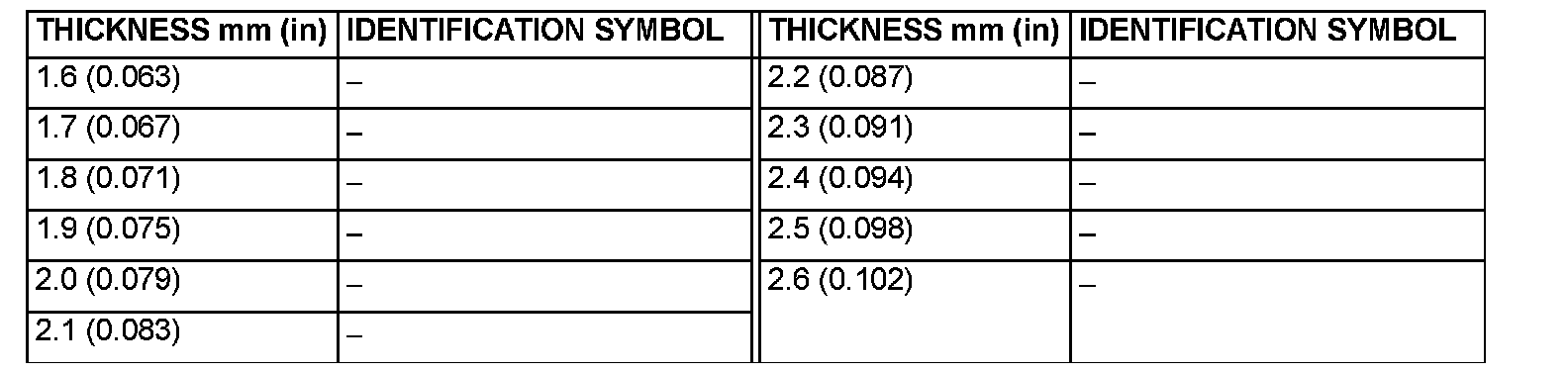

ADJUSTING PLATE, SNAP RING AND SPACERS:





Spacer (For adjustment of backlash between differential side gear and pinion
