Intersystem Affiliated DTC Reference Table

INTERSYSTEM AFFILIATED DTC REFERENCE TABLE

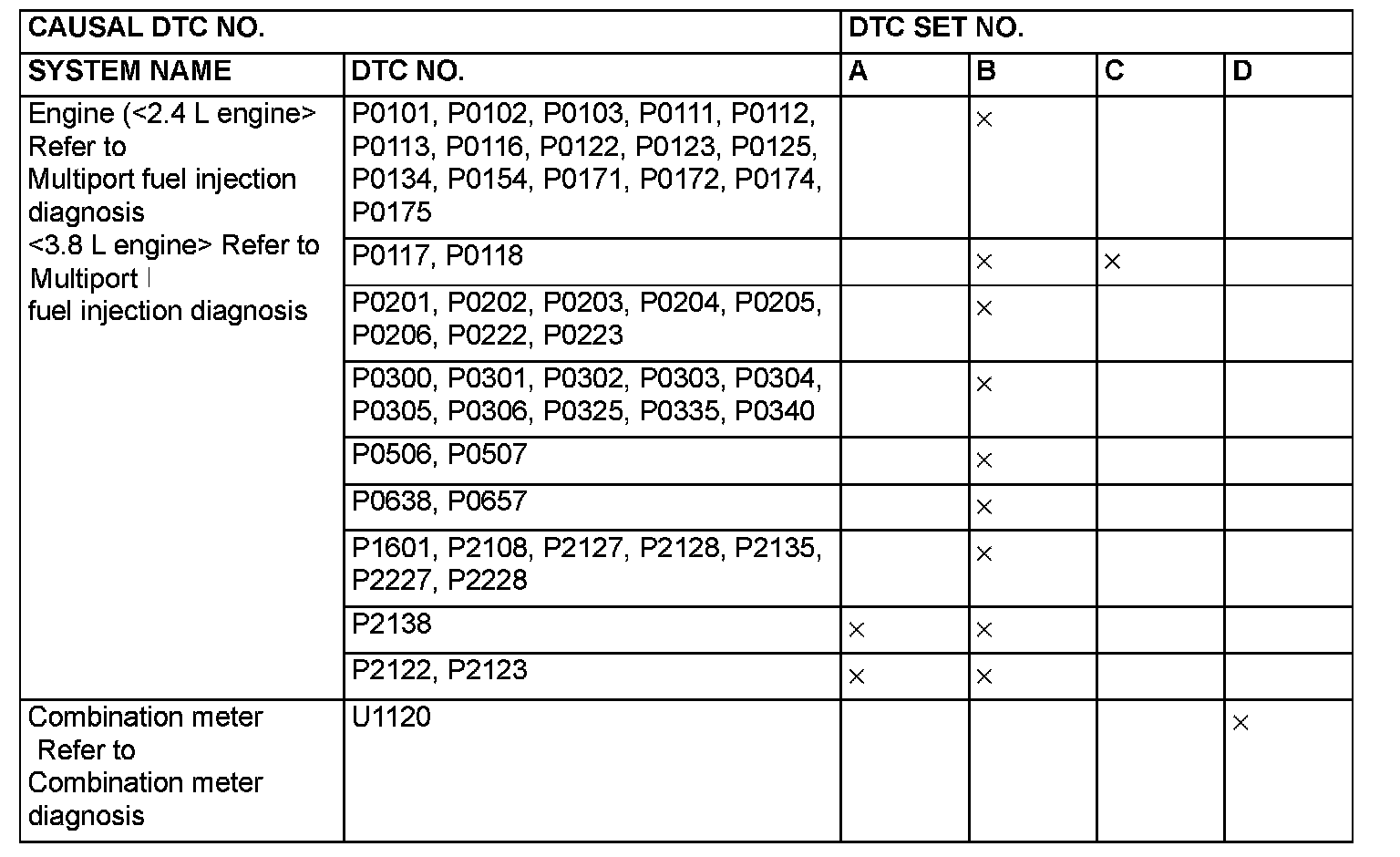

For vehicles with CAN, when DTC which influences the transmission data is set to the ECU which sends the data, DTC also could be set to the ECU which receives and controls the transmission data. The table shows the relativity of DTC between ECUs. In addition, the alphabet shows the following DTC.
^ A: TCL - DTC No. U1073
^ B: TCL - DTC No. U1120
^ C: Air conditioner - DTC No. U1120
^ D: SWS - DTC No. U1128
