Brakes - Brake Booster Service Information Revision

No.: TSB-05-35-002

DATE: June, 2005

MODEL:
2006 Eclipse

SUBJECT:
BRAKE BOOSTER SERVICE INFORMATION - SERVICE MANUAL REVISION

TSB Revision: TSB-05-35-002

PURPOSE

Brake booster service information is incorrect in the 2006 Eclipse service manual. The brake booster push rod is NOT adjustable. This bulletin deletes the brake booster push rod adjustment procedure in the affected service manual.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.

AFFECTED VEHICLES
2006 Eclipse

AFFECTED SERVICE MANUAL
2006 Eclipse, pages 35A-27, 35A-28, 35A-29

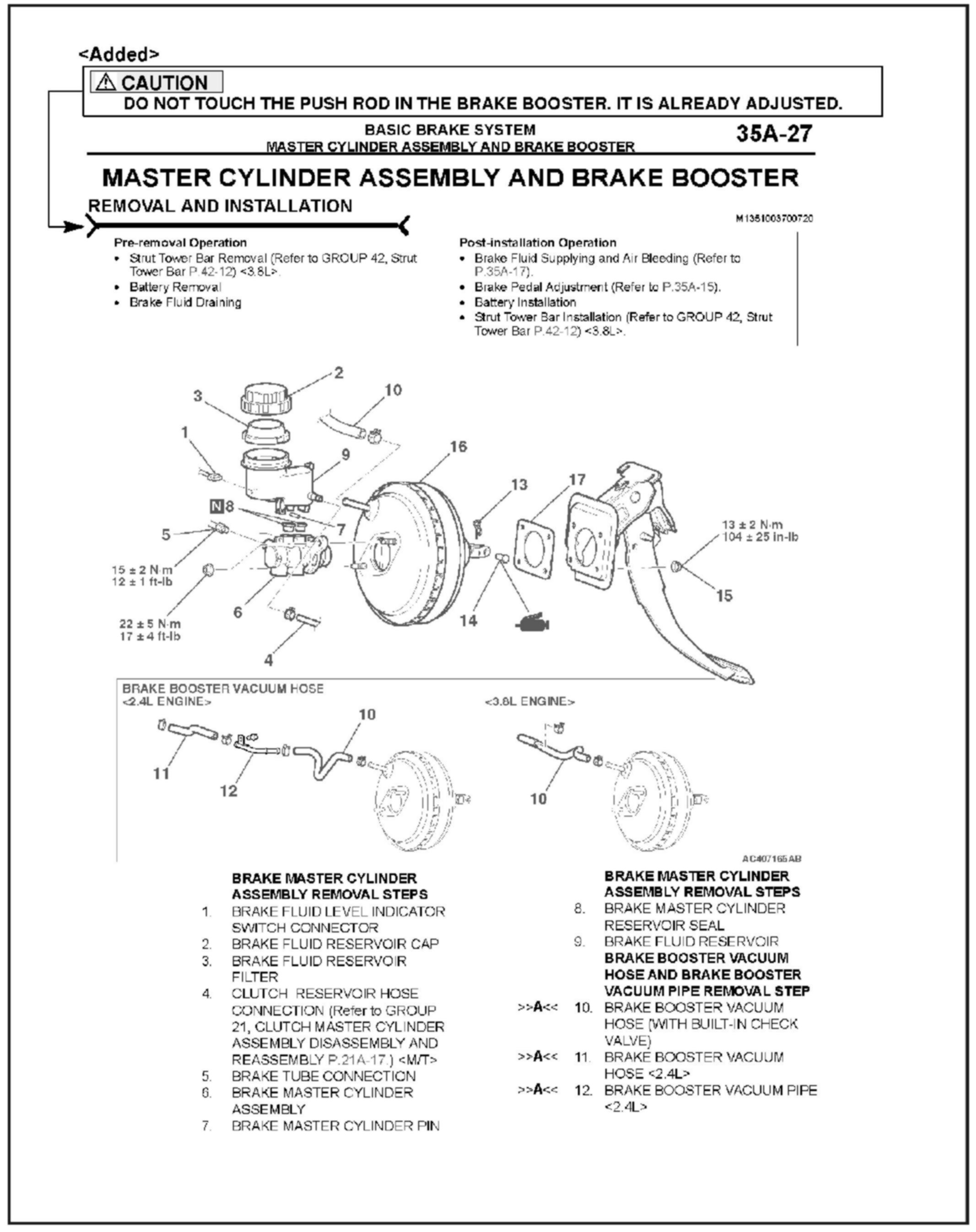

2006 Eclipse, page 35A-27

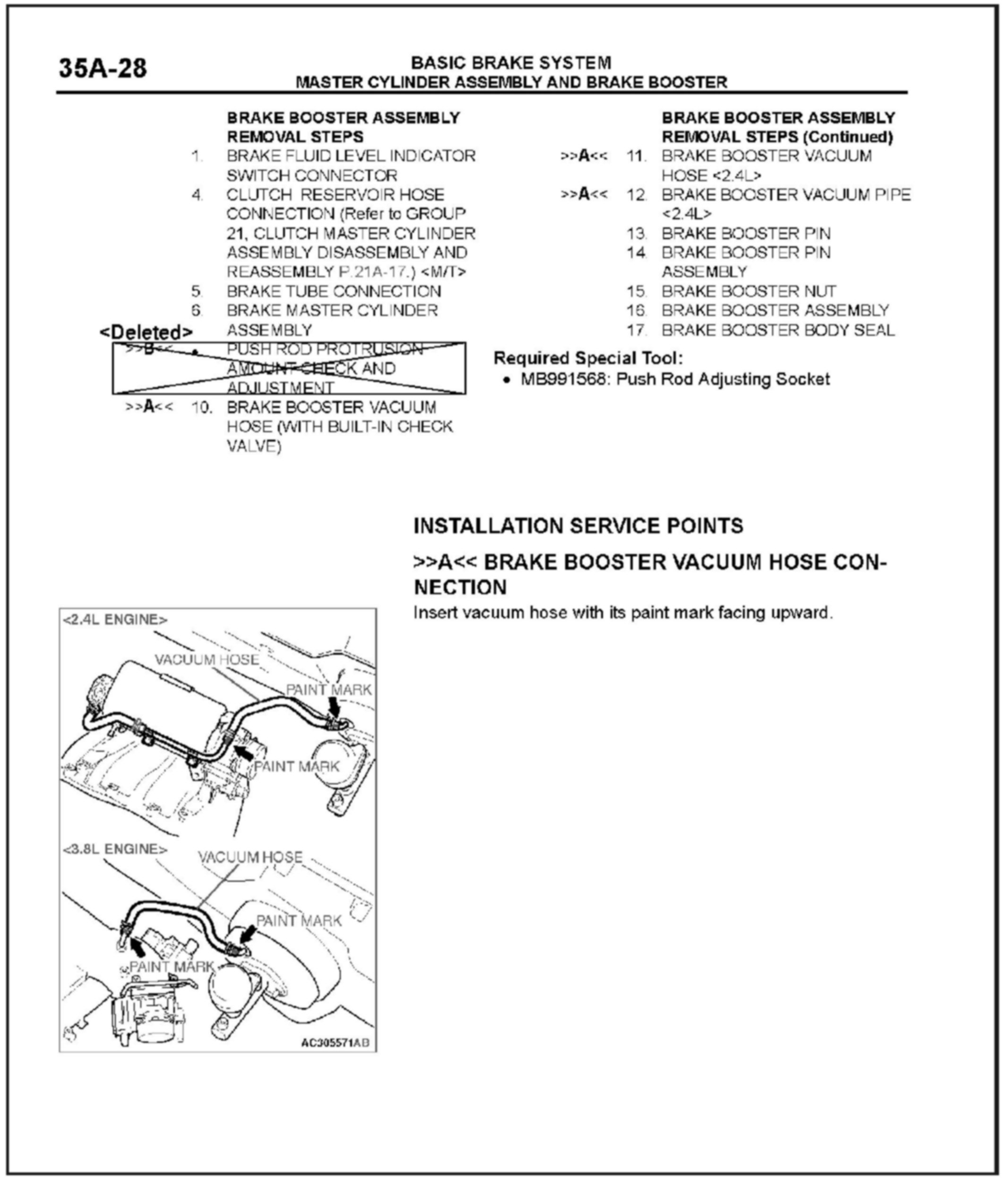

2006 Eclipse, page 35A-28

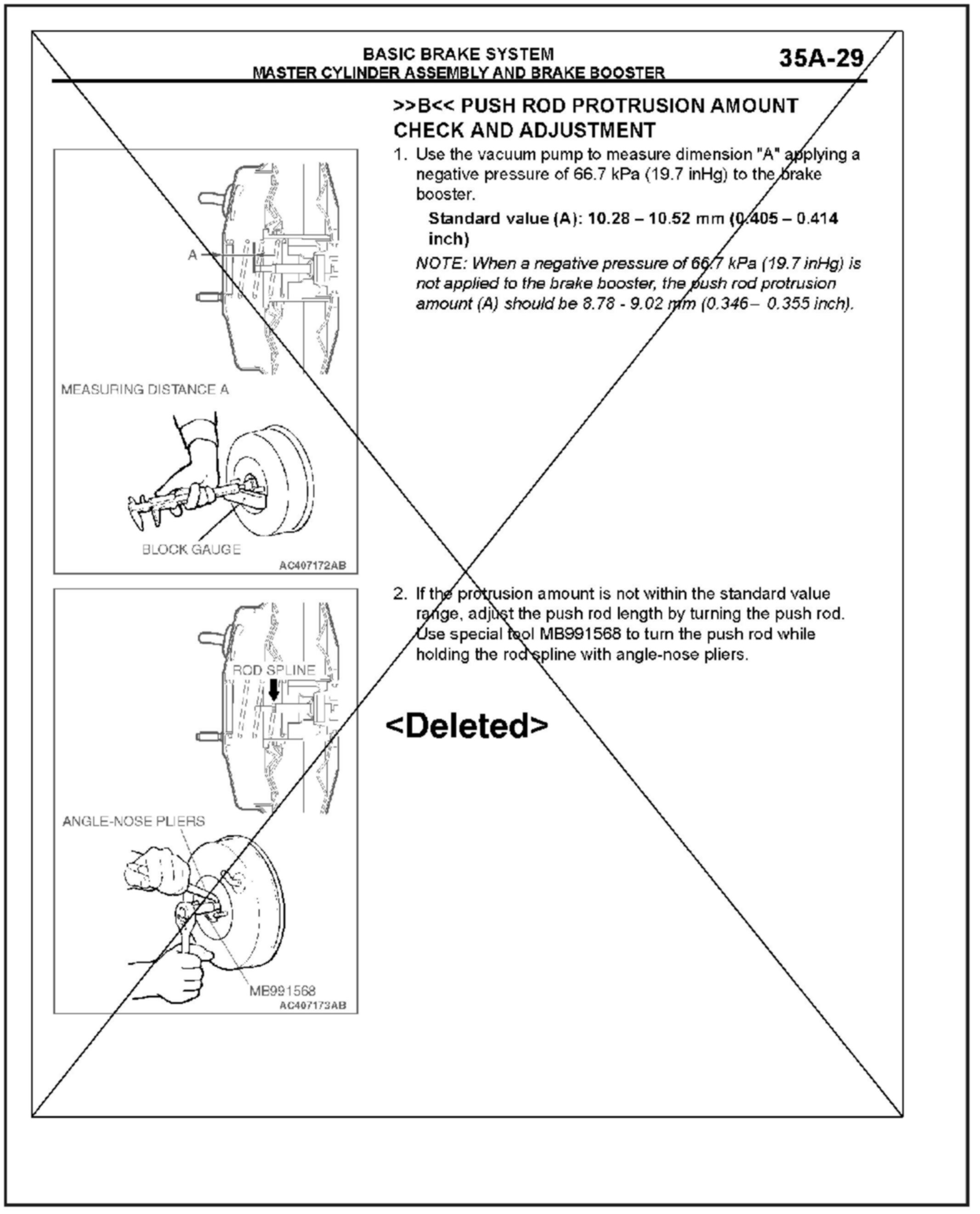

2006 Eclipse, page 35A-29
