Removal and Installation

GENERATOR ASSEMBLY

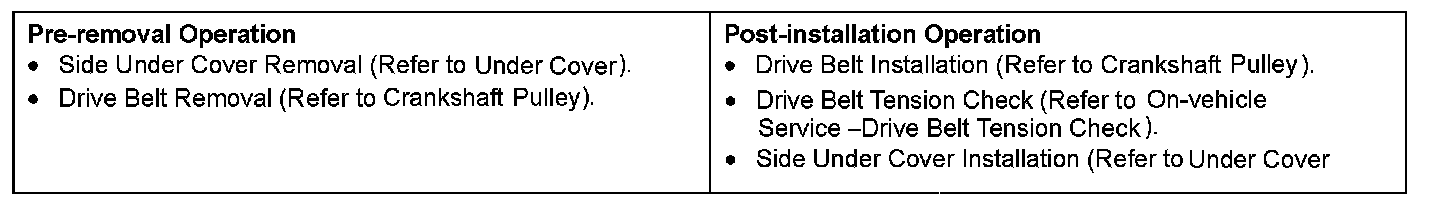

Pre-removal & Post-installation Operation:

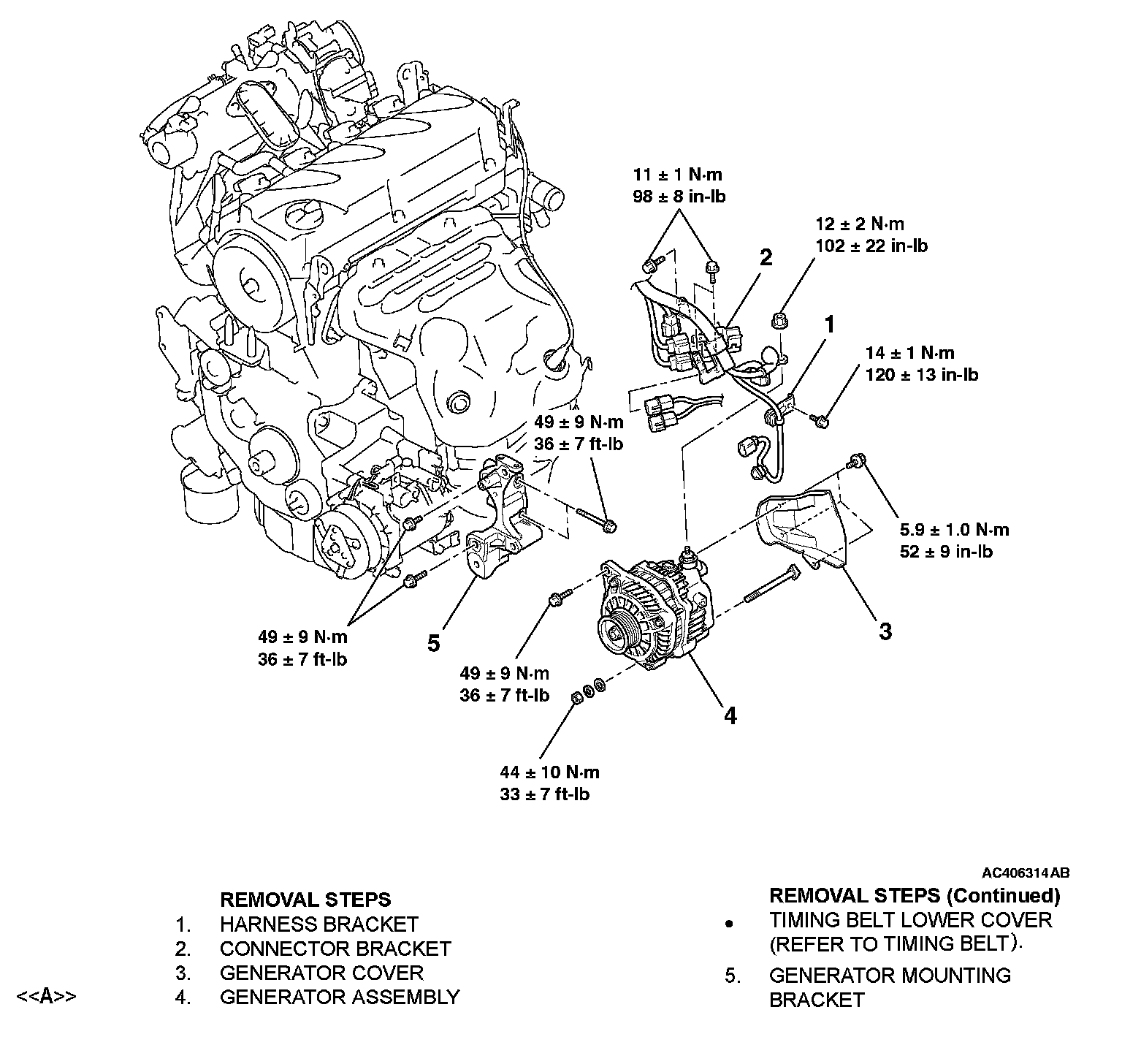

Removal Steps 1-5:




REMOVAL AND INSTALLATION <2.4L ENGINE>

REMOVAL SERVICE POINT

<> GENERATOR ASSEMBLY REMOVAL
Remove the generator assembly from above the vehicle.
