Traction Control Switch: Service and Repair
TCL SWITCH

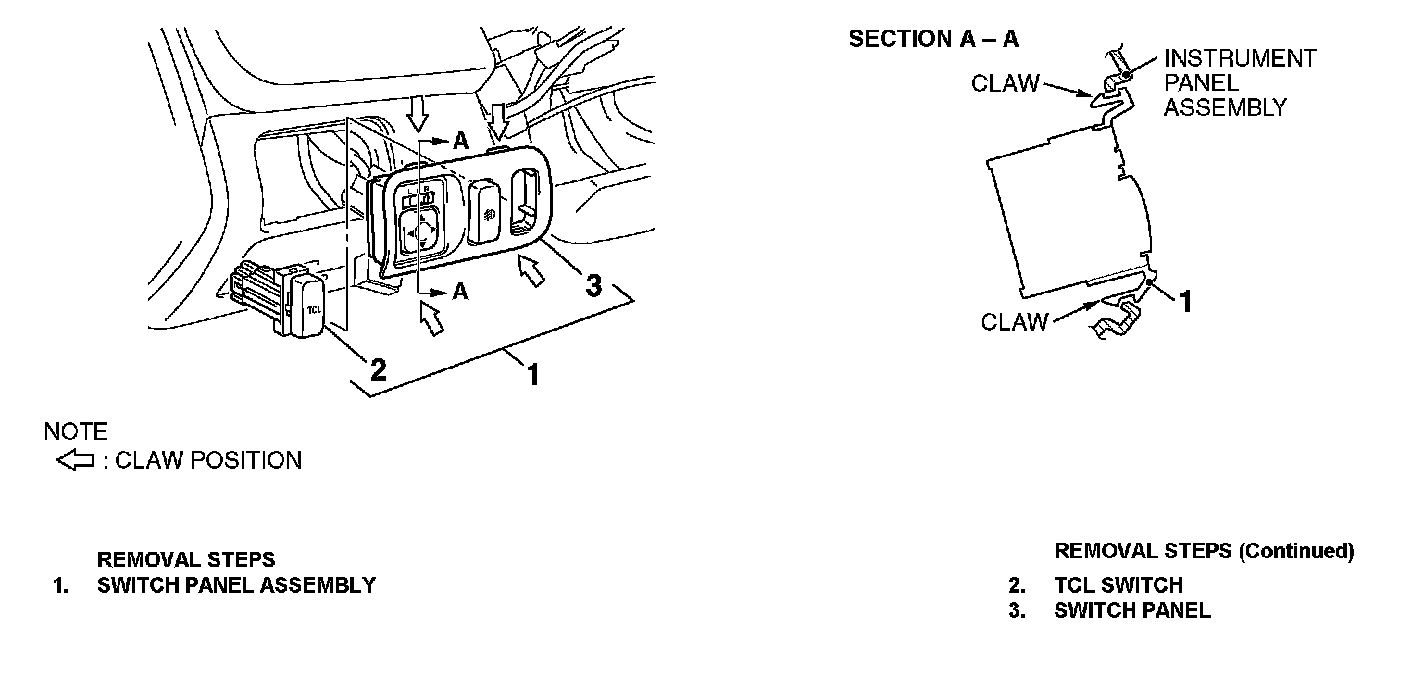

Removal Steps 1-3:
REMOVAL AND INSTALLATION
INSPECTION

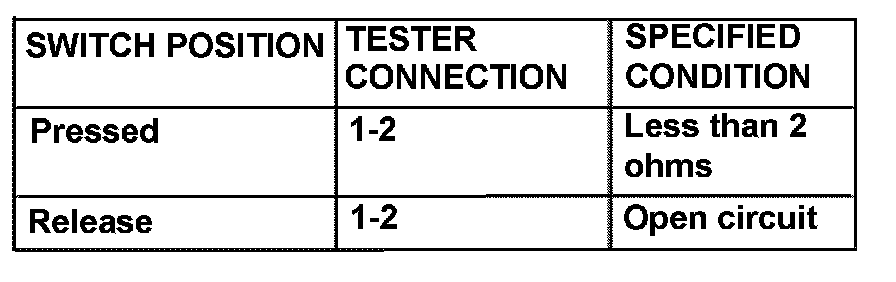

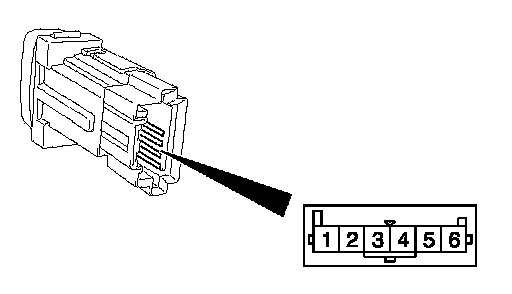

TCL SWITCH CONTINUITY CHECK:
TCL SWITCH CONTINUITY CHECK:
