Electrical Diagrams

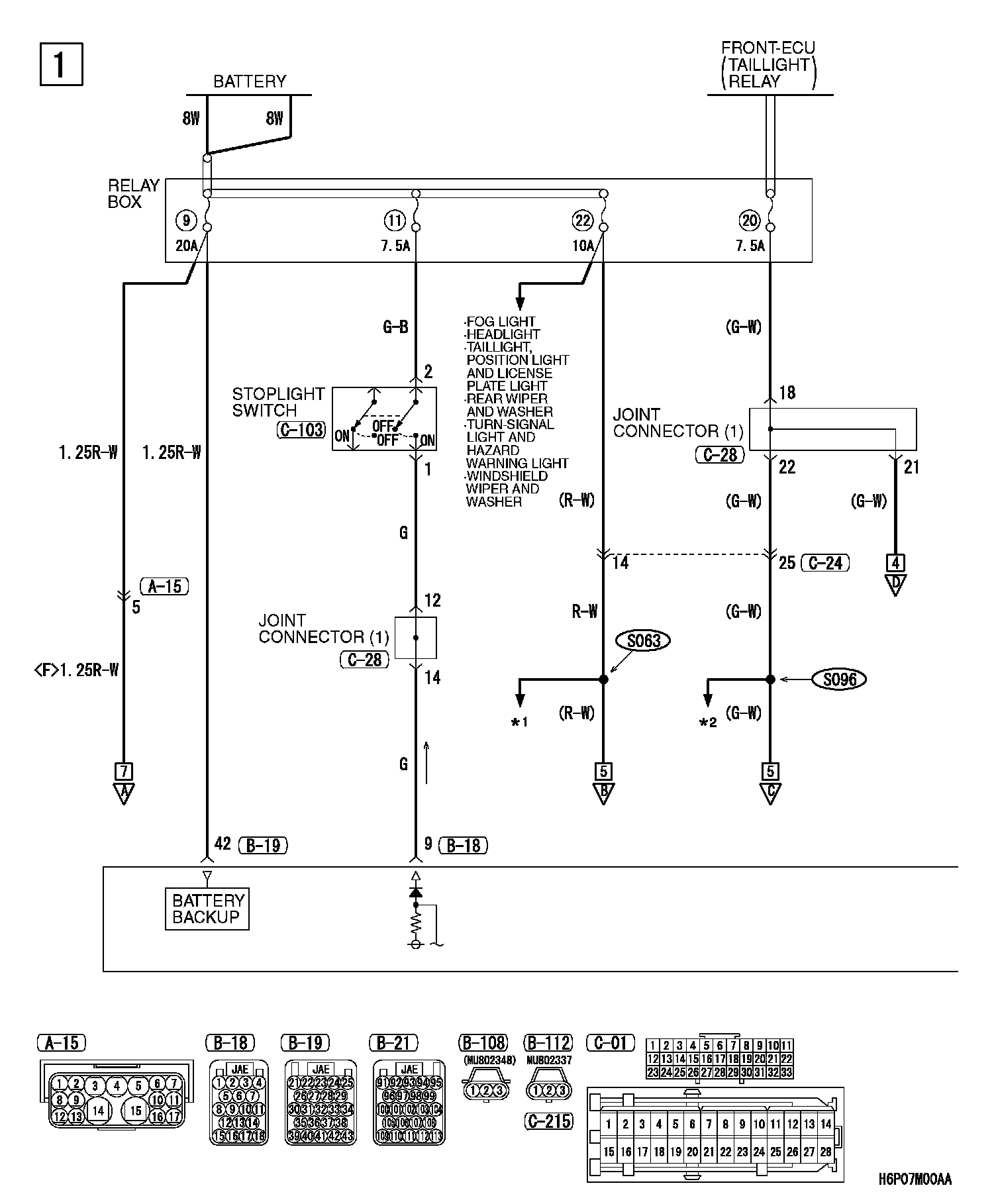

INVECS-II 4A/T Part 1:

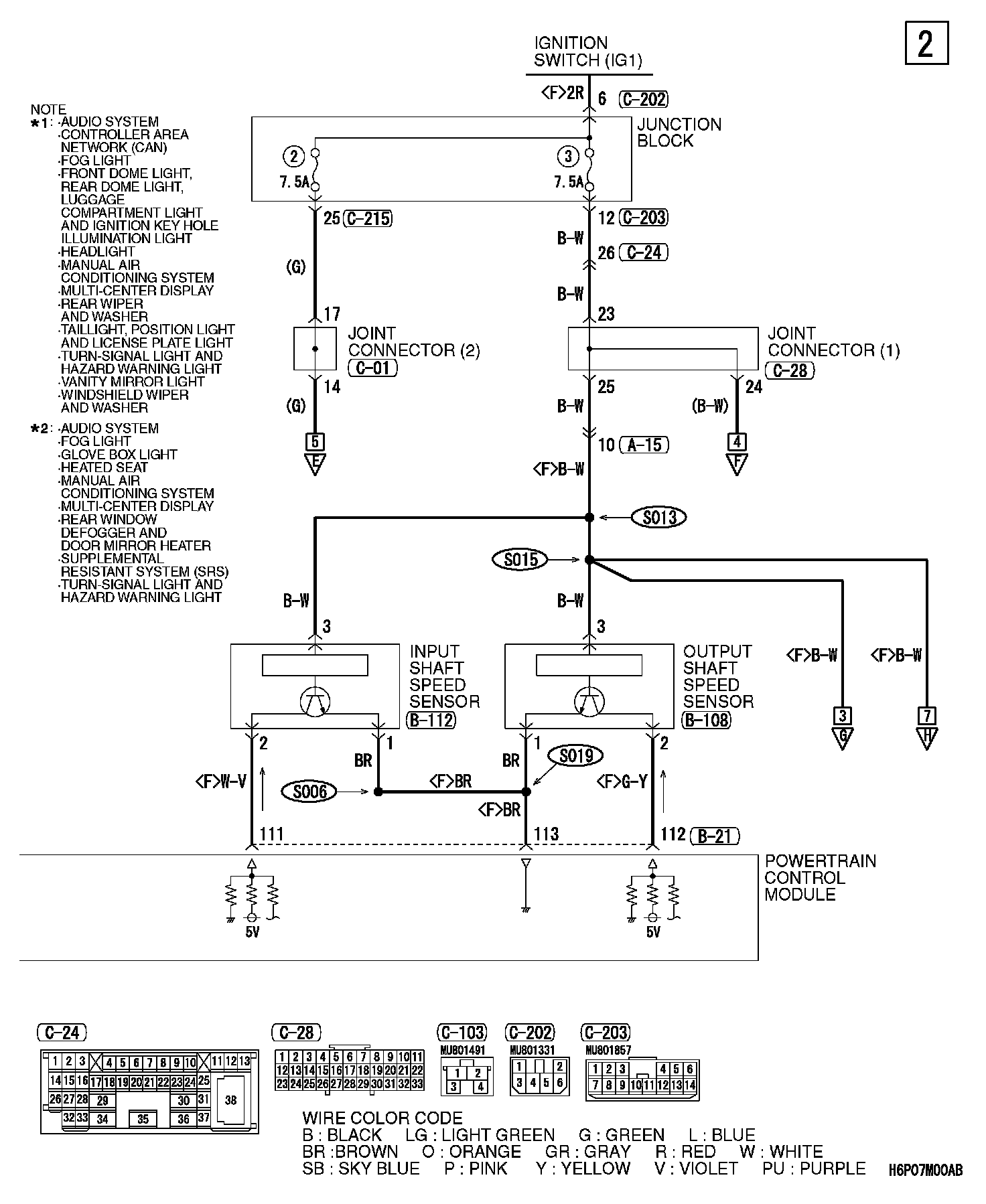

INVECS-II 4A/T Part 2:

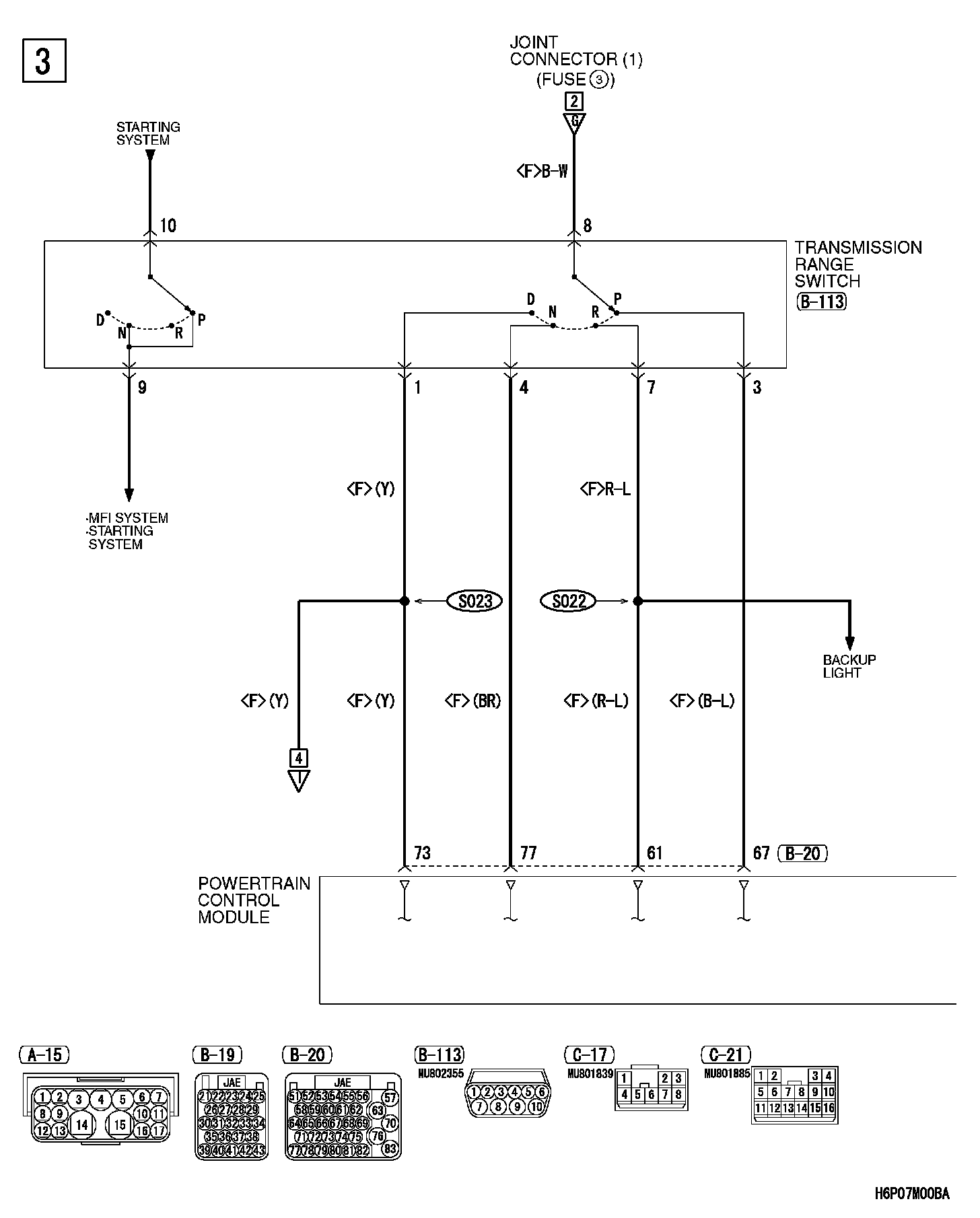

INVECS-II 4A/T Part 3:

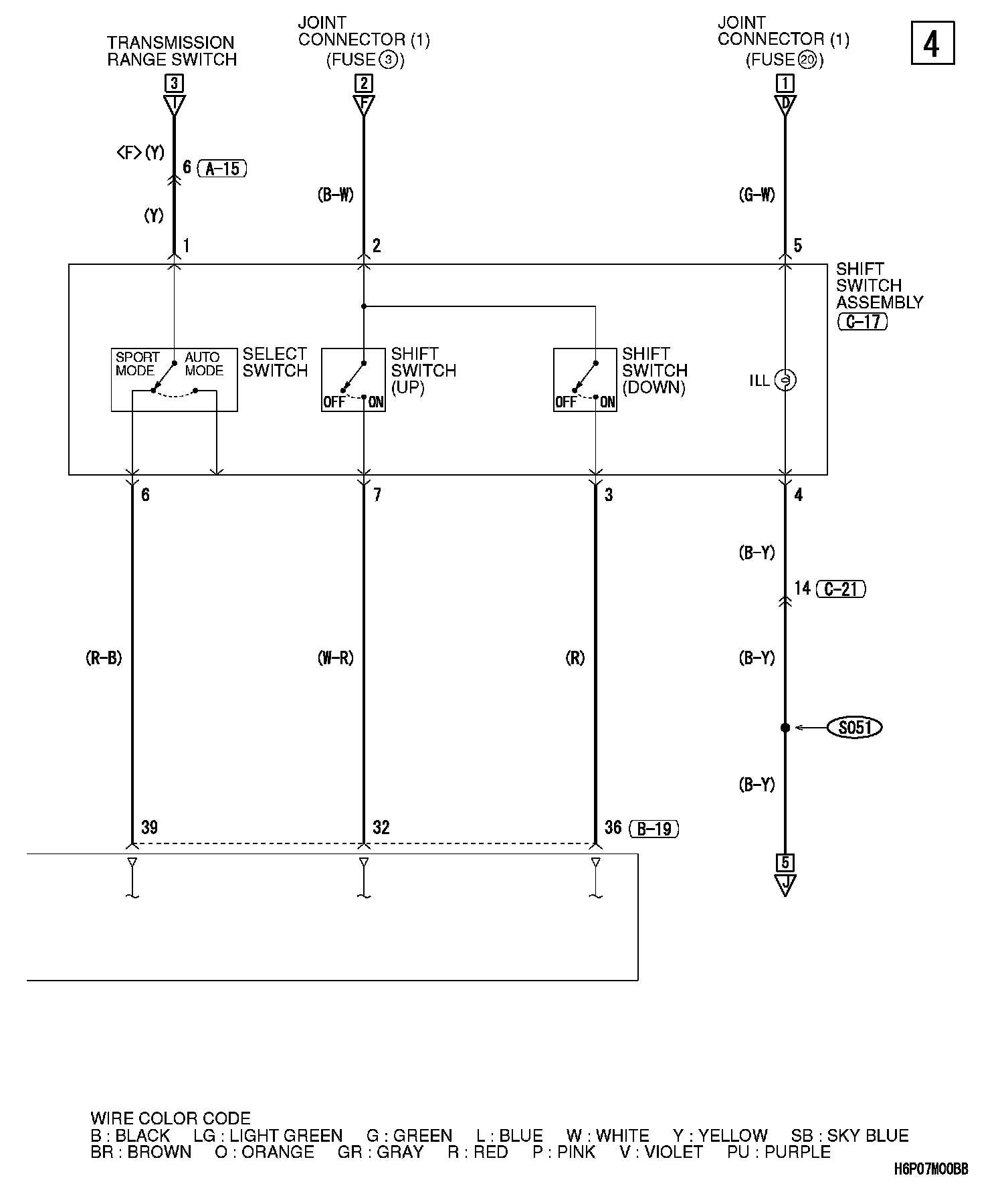

INVECS-II 4A/T Part 4:

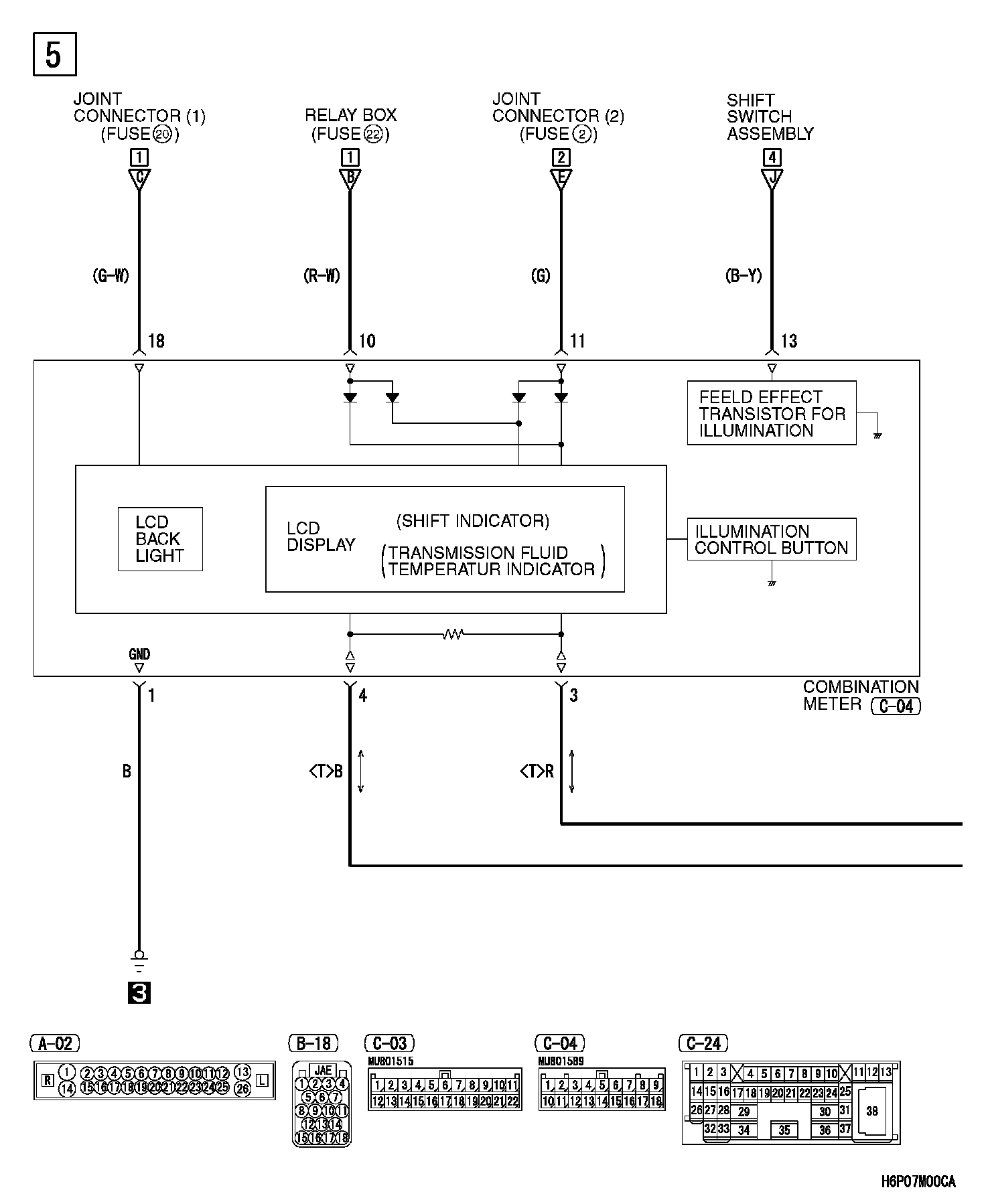

INVECS-II 4A/T Part 5:

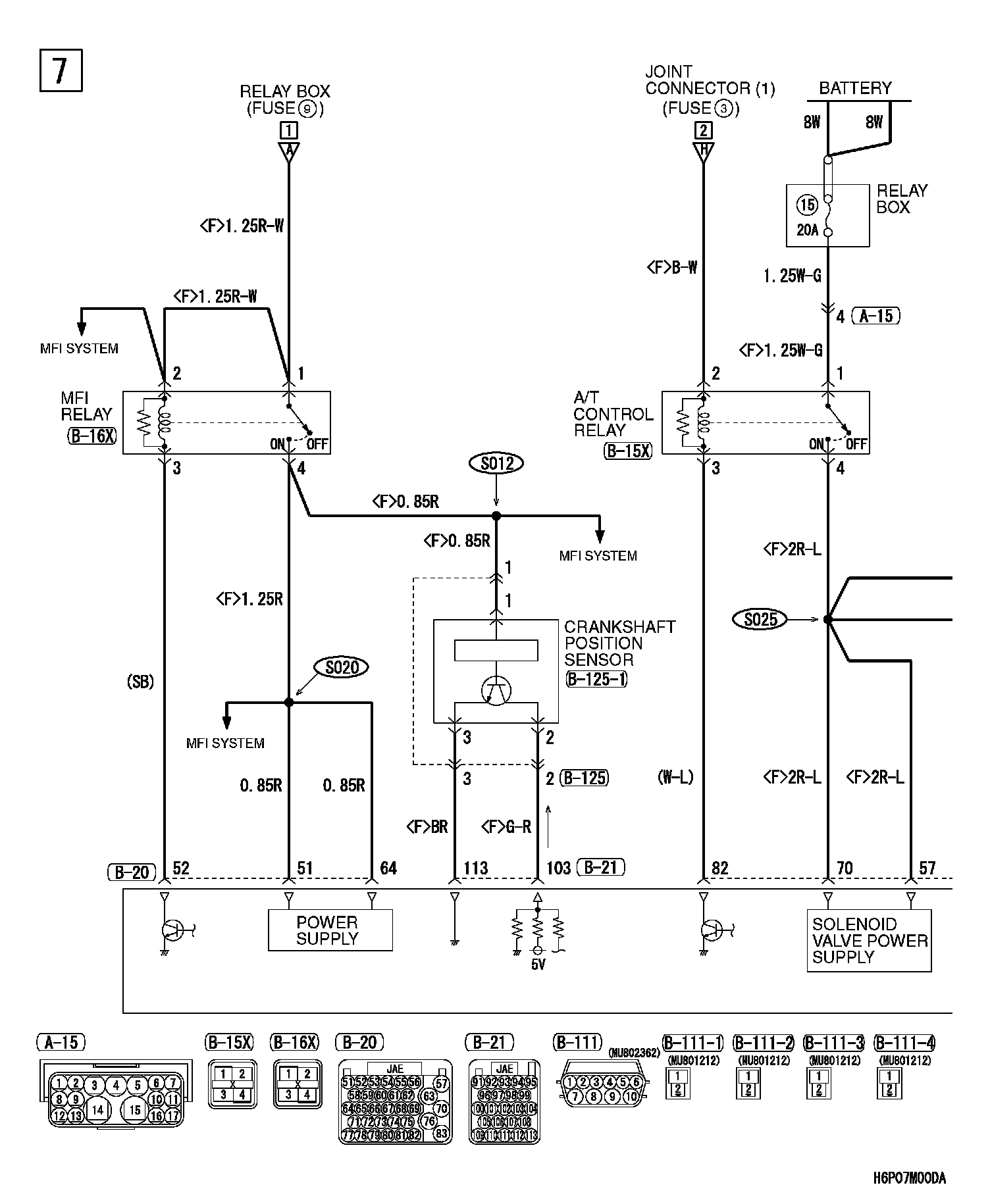

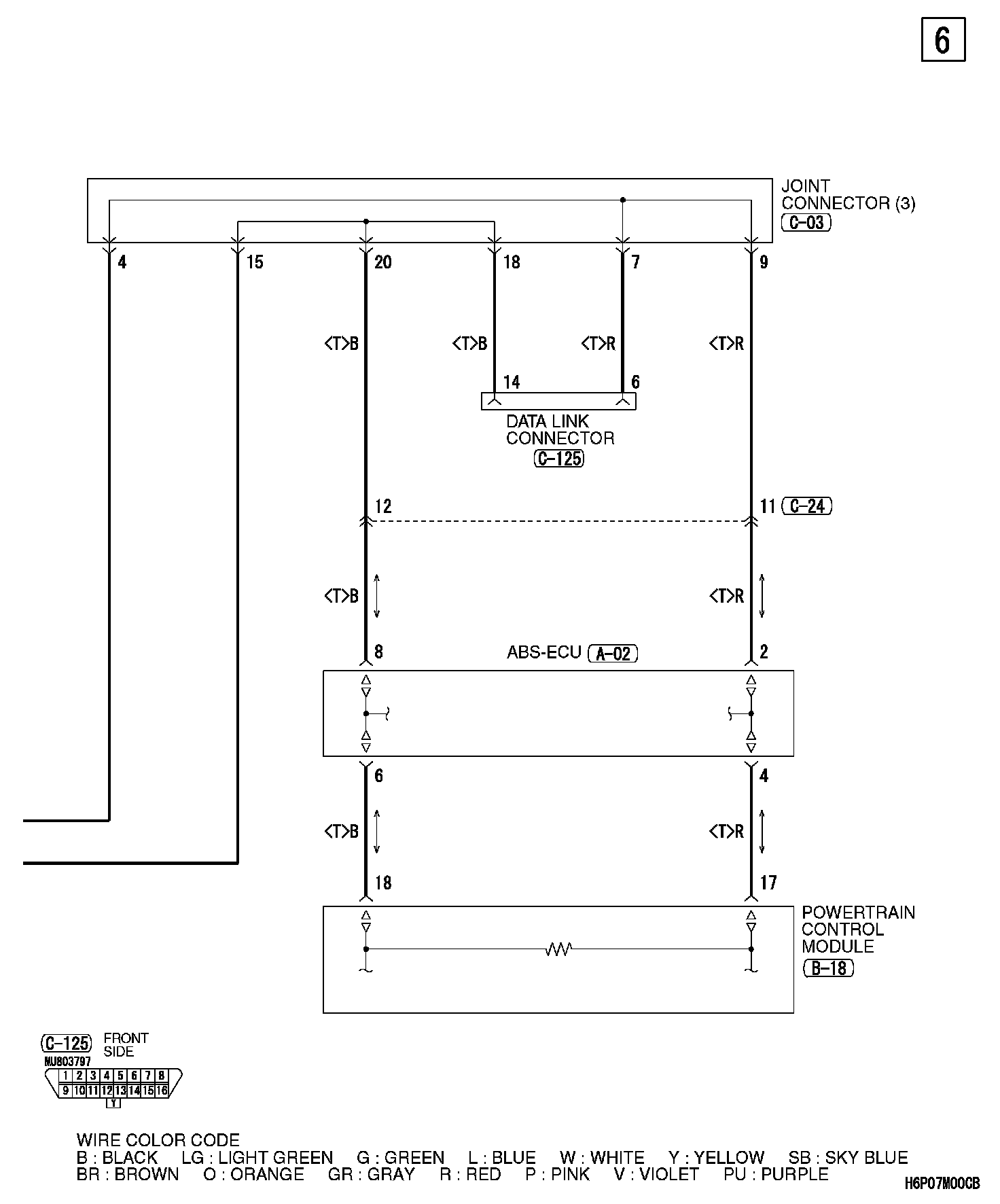

INVECS-II 4A/T Part 6:

INVECS-II 4A/T Part 7:

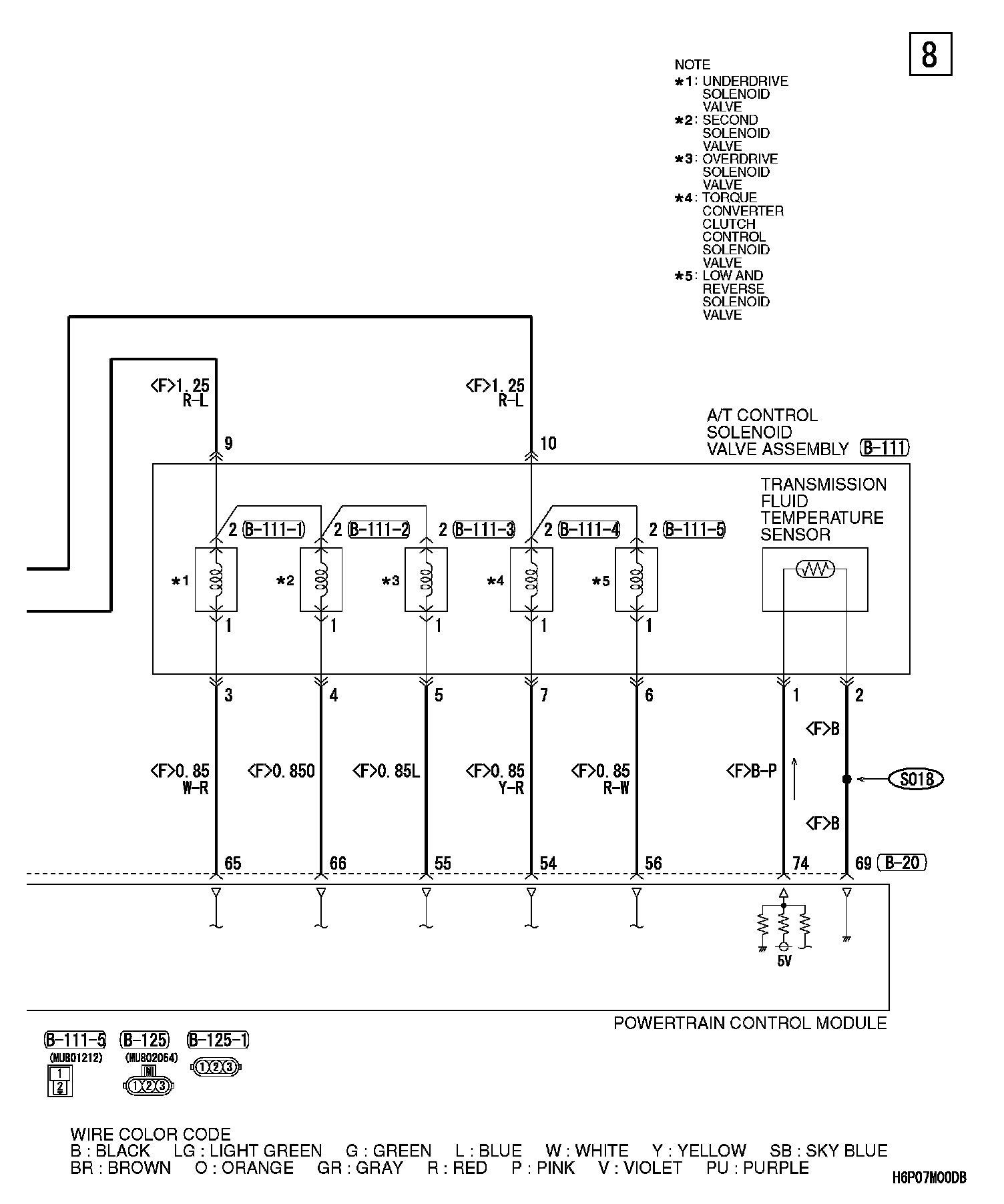

INVECS-II 4A/T Part 8:

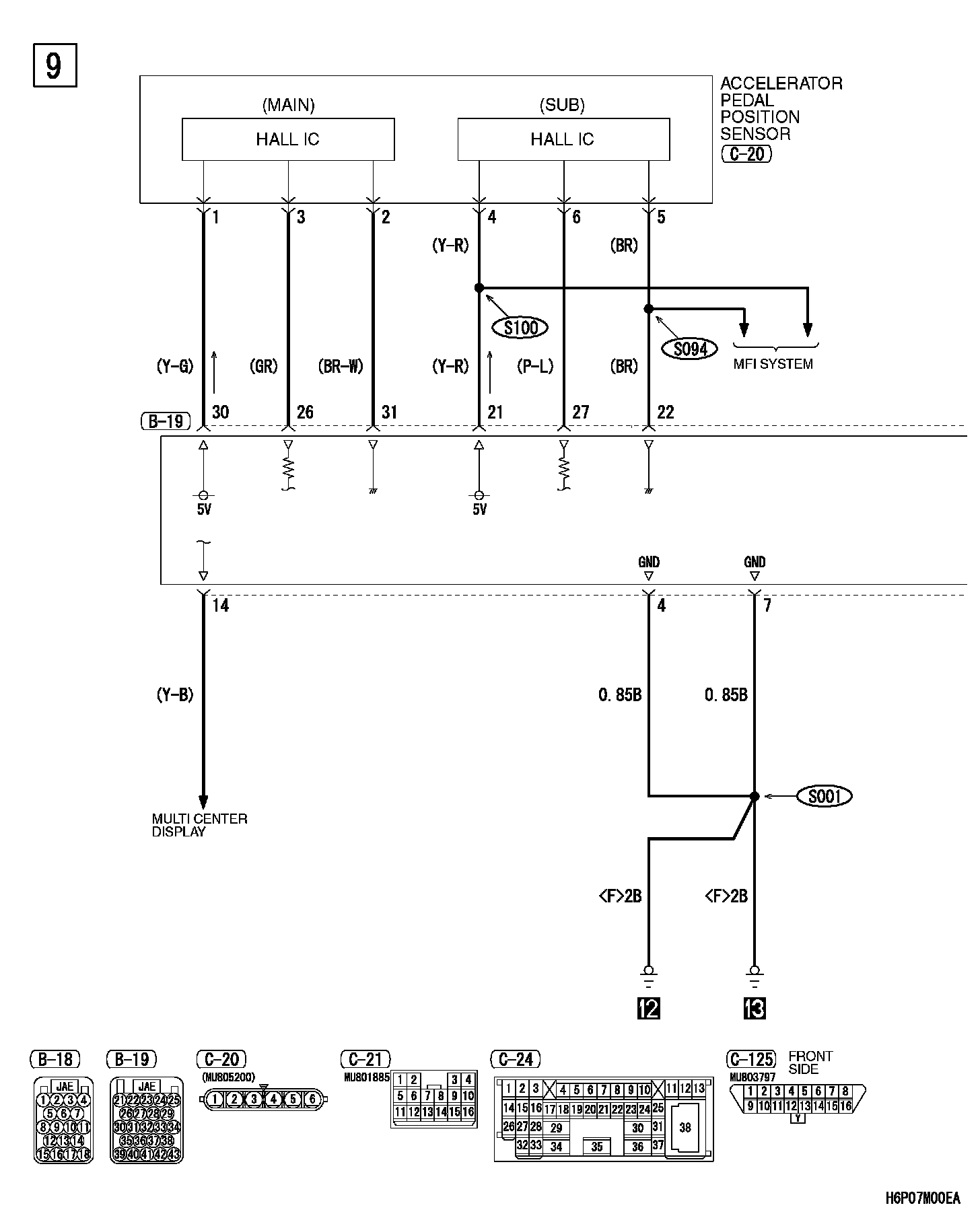

INVECS-II 4A/T Part 9:

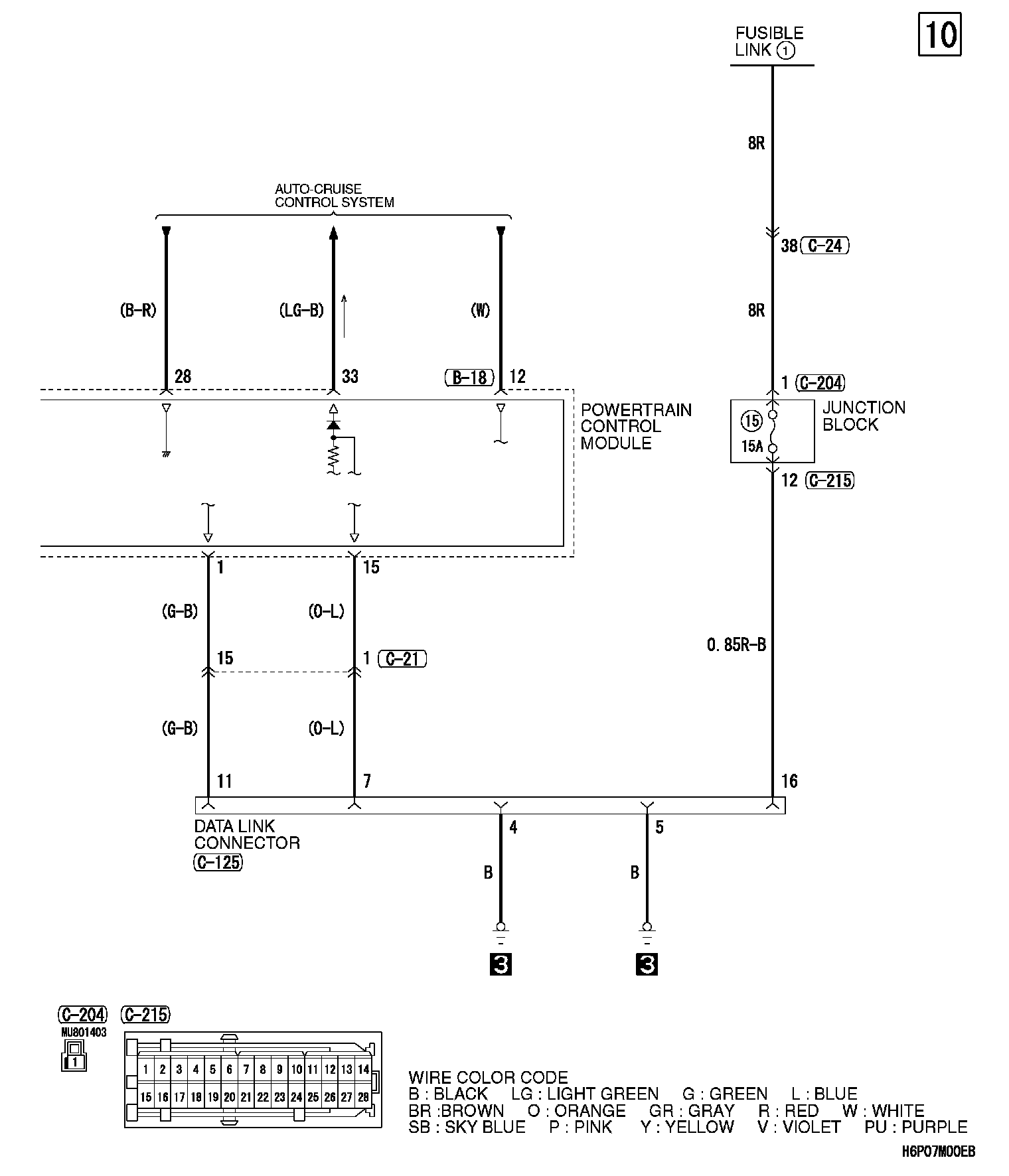

INVECS-II 4A/T Part 10:
