Removal and Installation

KNOCK SENSOR

REMOVAL AND INSTALLATION <2.4L ENGINE>

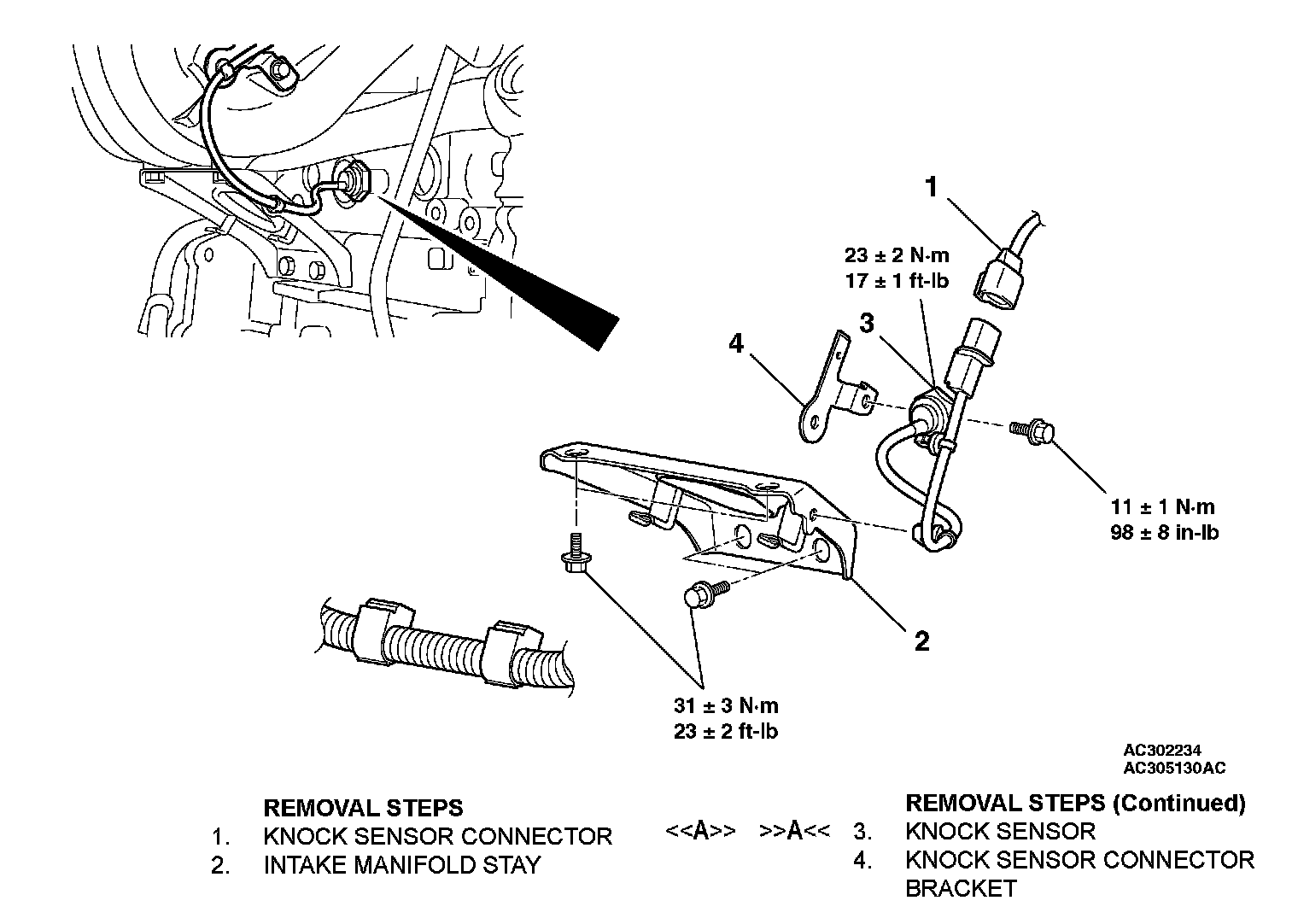

Removal Steps 1-4:

CAUTION: When the knock sensor replacement is performed, use scan tool MB991958 to initialize the learning value.

Required Special Tool:
MD998773: Knock Sensor Wrench

REMOVAL SERVICE POINT

<> KNOCK SENSOR REMOVAL

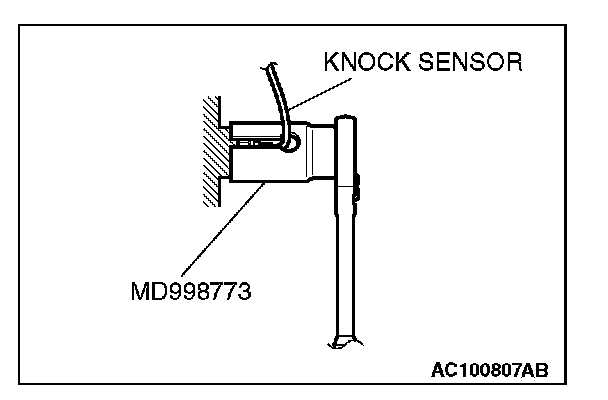

Use special tool MD998773 to remove the knock sensor.

INSTALLATION SERVICE POINT

>>A<< KNOCK SENSOR INSTALLATION

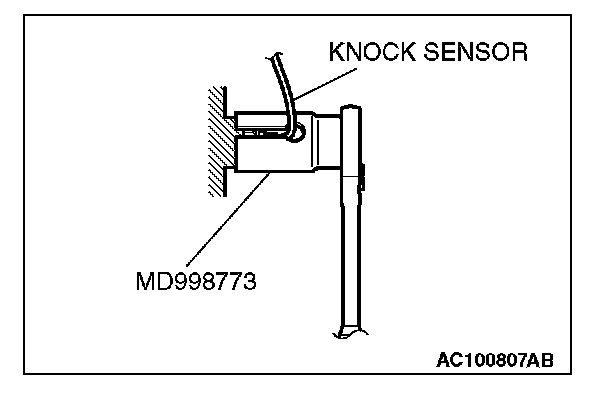

Use special tool MD998773 to tighten the knock sensor to the specified torque in the same manner as removal.

Tightening torque: 23 ± 2 Nm (17 ± 1 ft-lb)
