Removal and Installation

REMOVAL AND INSTALLATION

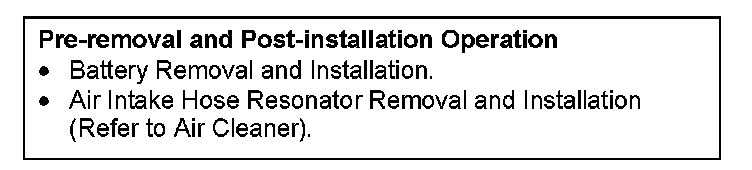

Pre-removal And Post-installation Operation:

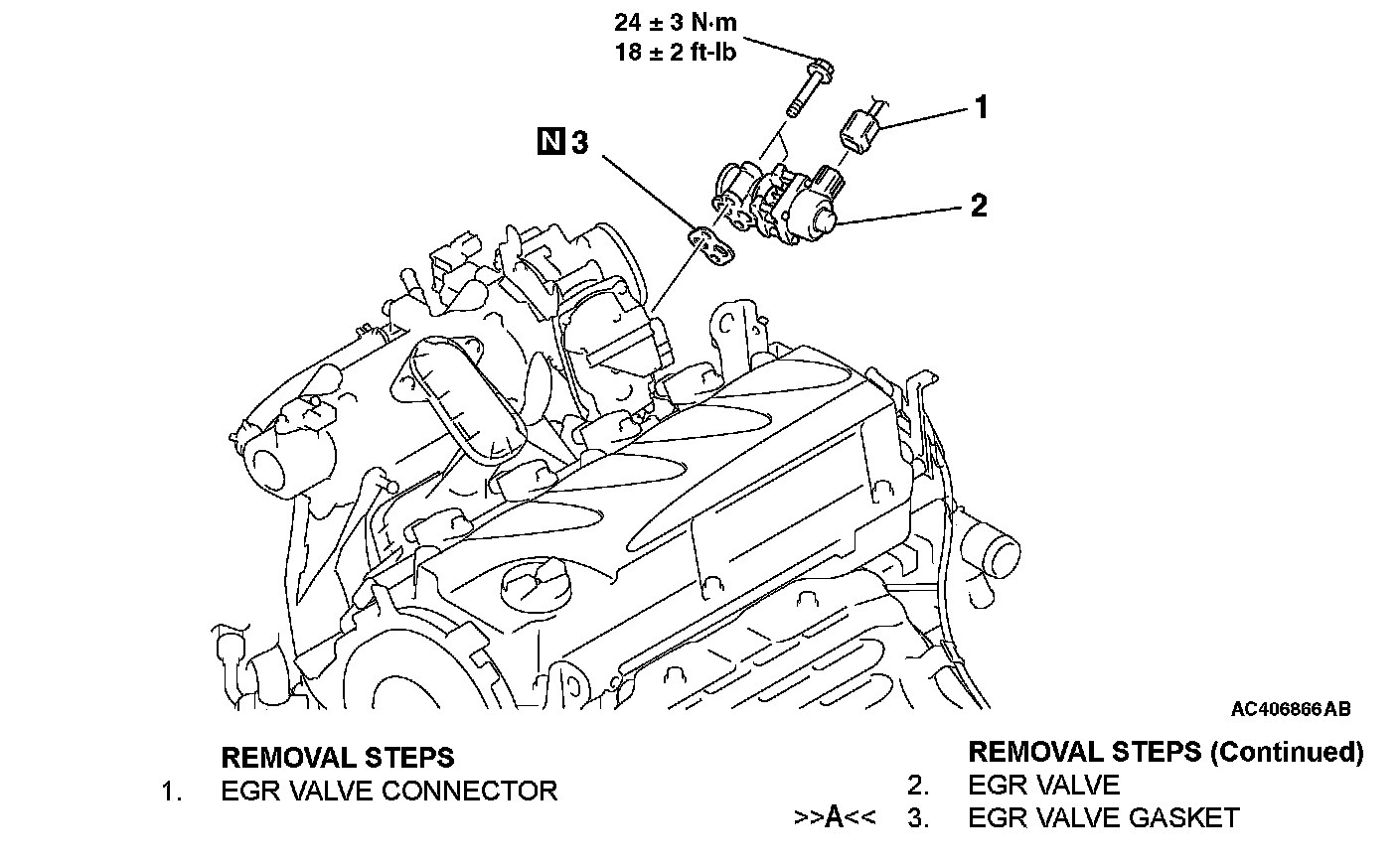

Removal Steps 1 - 3:





INSTALLATION SERVICE POINT

>>A<< EGR VALVE GASKET INSTALLATION

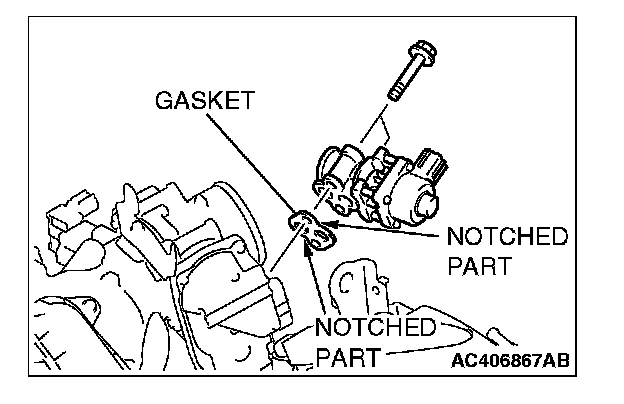

Install the EGR valve gasket as shown in the illustration.
