Leak Detection Pump: Testing and Inspection
INSPECTIONEVAPORATIVE EMISSION VENTILATION SOLENOID CHECK

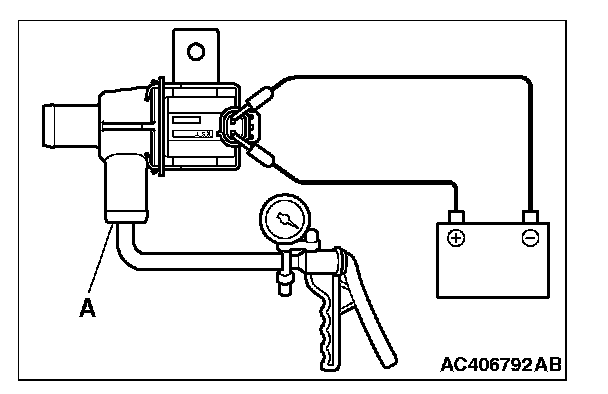

1. Connect a hand vacuum pump to nipple (A) of the solenoid.
2. Check air tightness by applying a vacuum with voltage applied directly from the battery to the evaporative emission ventilation solenoid and without applying voltage.

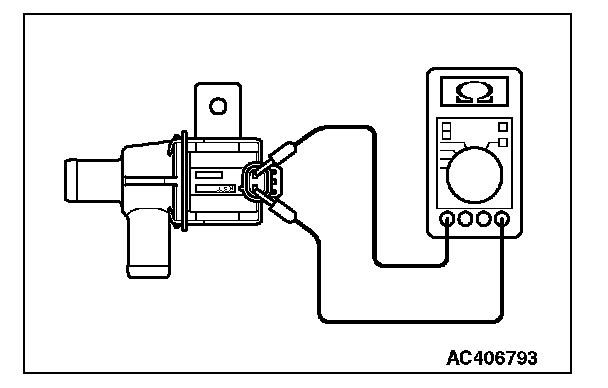

3. Measure the resistance between the terminals of the solenoid.
Standard value: 17 - 21 Ohms [at 20 degrees C (68 degrees F)]
