Fail-Safe Function Reference Table

FAIL-SAFE FUNCTION REFERENCE TABLE

Fail-Safe Function Reference Table Part 1:

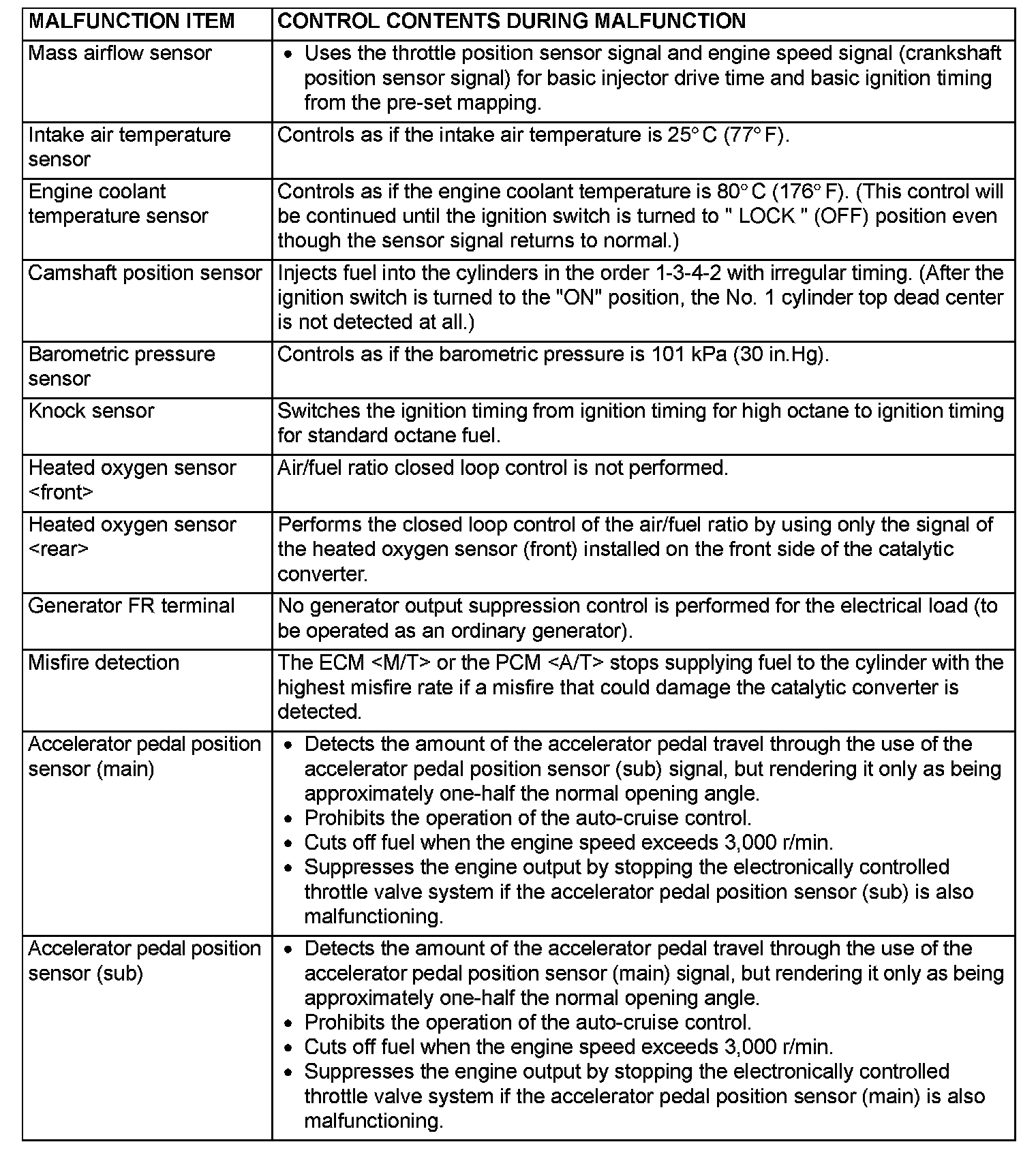

Fail-Safe Function Reference Table Part 2:

When the main sensor malfunctions are detected by the diagnostic test mode, the vehicle is controlled by means of the following defaults.
