Diagnostic Item 2
DIAGNOSTIC ITEM 2: Diagnose shorts in the ground to CAN bus lineCAUTION: When servicing a CAN bus line, ground yourself by touching a metal object such as an unpainted water pipe. If you fail to do so, a component connected to the CAN bus line may be damaged.
Part 1:
Part 2:
FUNCTION
when diagnosing the CAN bus lines, the scan tool MB991958 measures the voltage of CAN_H and CAN_L line and detects the short to power supply or ground.
TROUBLE JUDGEMENT CONDITIONS
The scan tool MB991958 judges the trouble when it is impossible to receive the periodically sent data and the voltage of CAN_H or CAN_L line is less than 1.0 volt.
TROUBLESHOOTING HINTS
- The wiring harness may be defective (CAN bus lines or the wiring harness between the data link connector and joint connector (3) for short to ground)
- The connectors may be defective (short to ground in the connector)
- Each ECU may be defective (short to ground in the ECU)

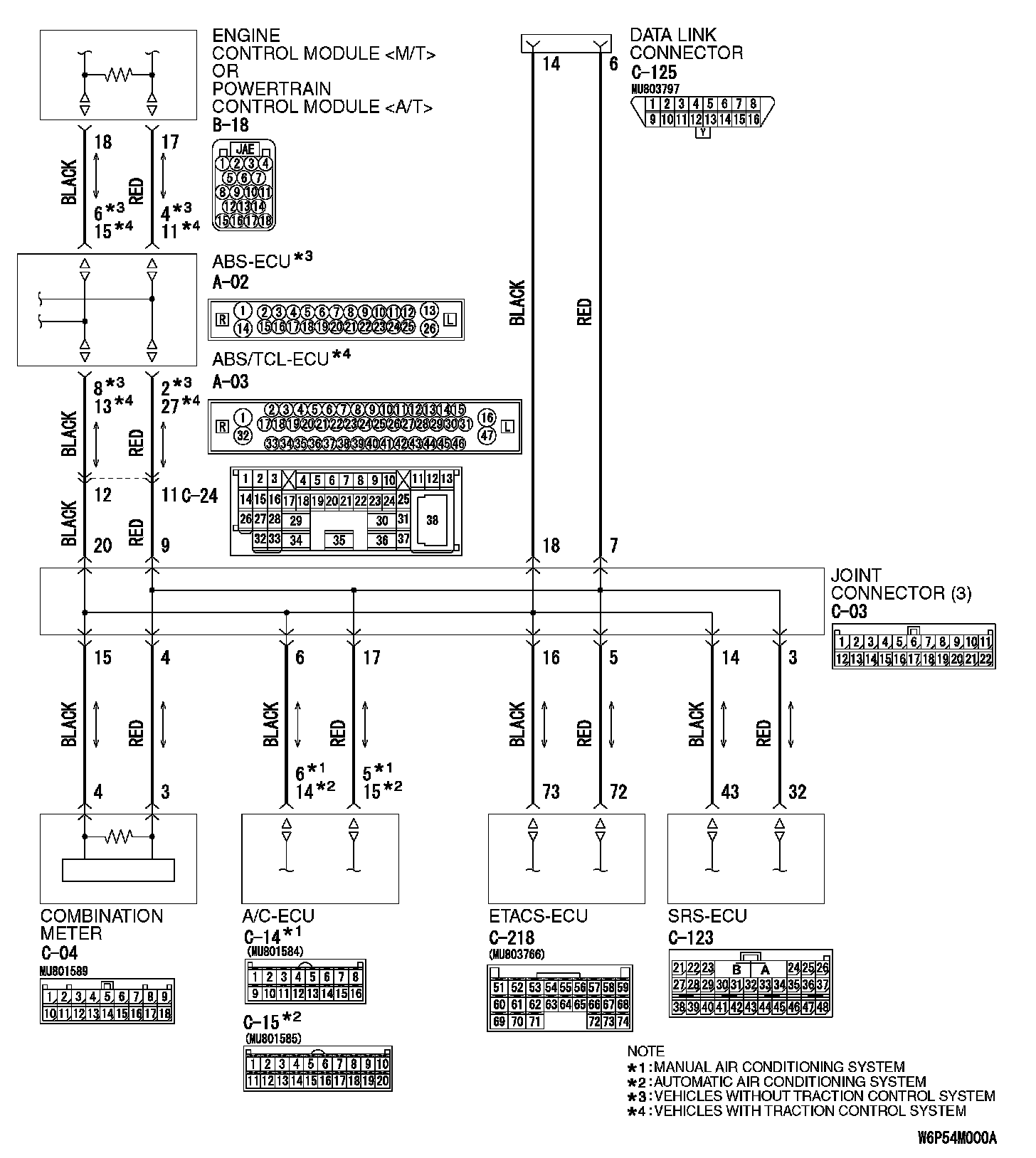

DIAGNOSIS
Required Special Tools:
- MB991223: Harness Set
- MB992006: Extra Fine Probe
- MB991958: Scan Tool (MUT-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827: MUT-III USB Cable
- MB991910: MUT-III Main Harness A
- MB991970: ABS Check Harness

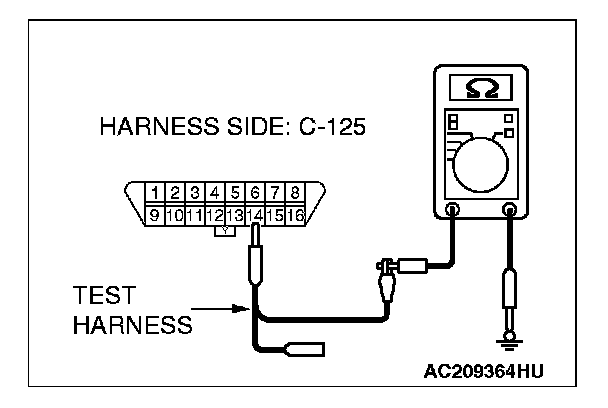

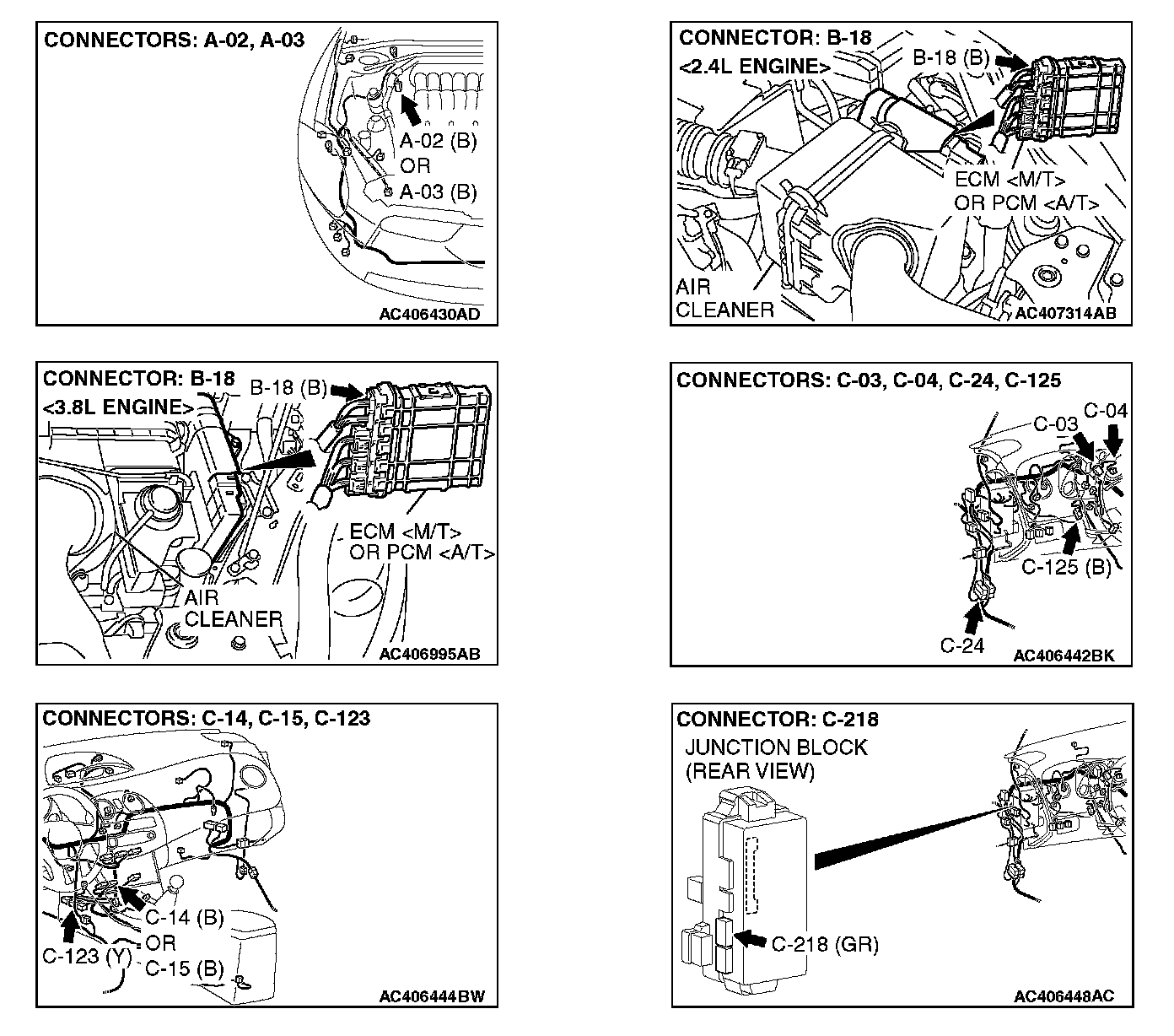

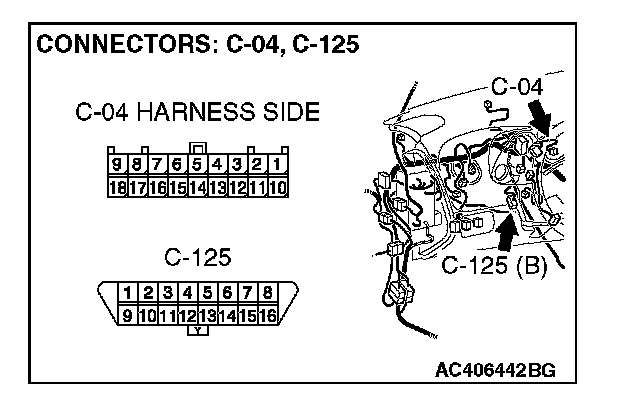

STEP 1. Check the CAN bus lines for short to ground. Measure the resistance at data link connector C-125.
CAUTION
- A digital multimeter should be used.
- The test wiring harness should be used.
NOTE: This inspection allows you to check that there is a short to ground in either CAN_H line or CAN_L line.
CAUTION: Disconnect the negative battery terminal.
1. Disconnect the negative battery terminal.

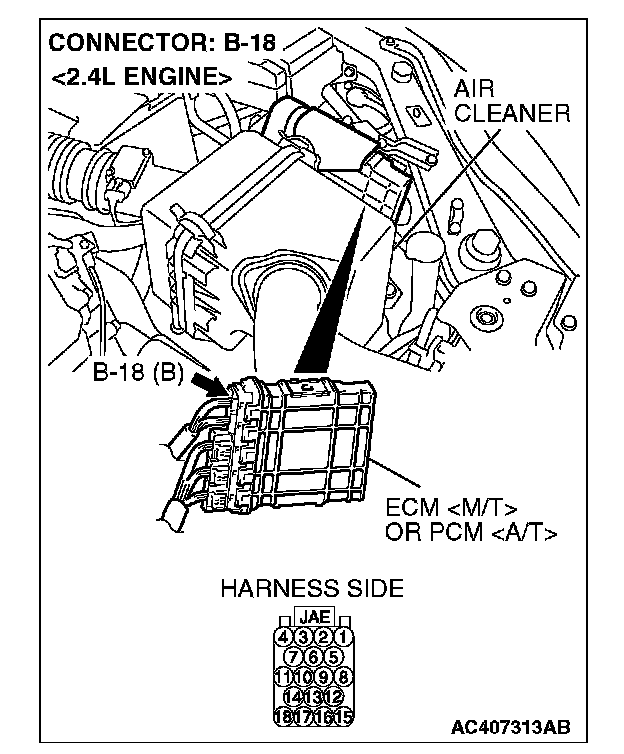

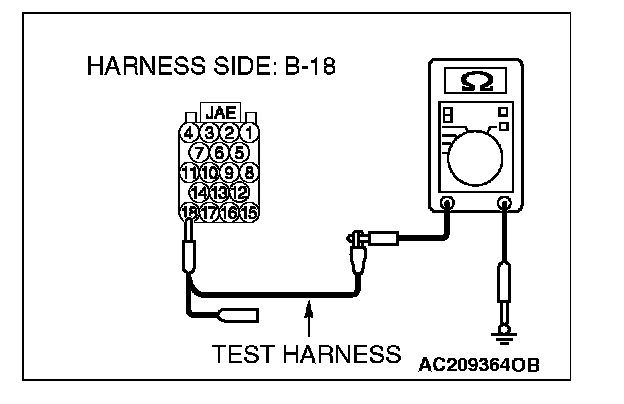

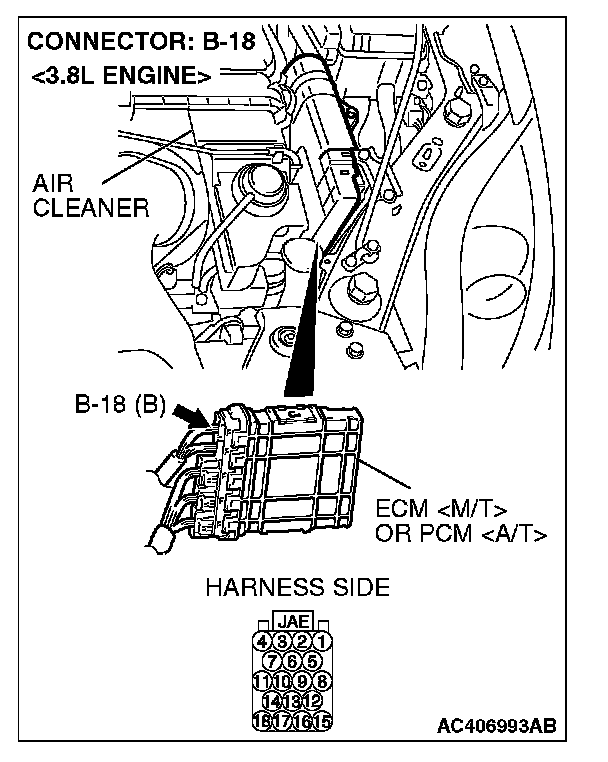

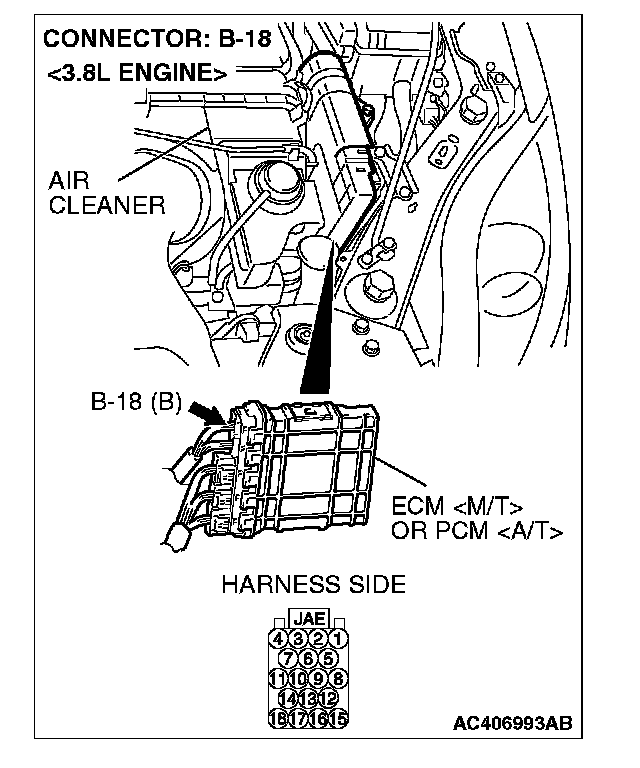

2. Disconnect ECM
3. Measure the resistance between data link connector terminal 6 (CAN_H) and body ground.
OK: 1 k ohms or more
4. Measure the resistance between data link connector terminal 14 (CAN_L) and body ground.
OK: 1 k ohms or more
Q: Is the check result normal?
YES: Go to Step 14.
NO: Go to Step 2.
STEP 2. Check the CAN bus line of the front wiring harness for short to ground. Measure the resistance at intermediate connector C-24.
CAUTION: Disconnect the negative battery terminal.
1. Disconnect the negative battery terminal.

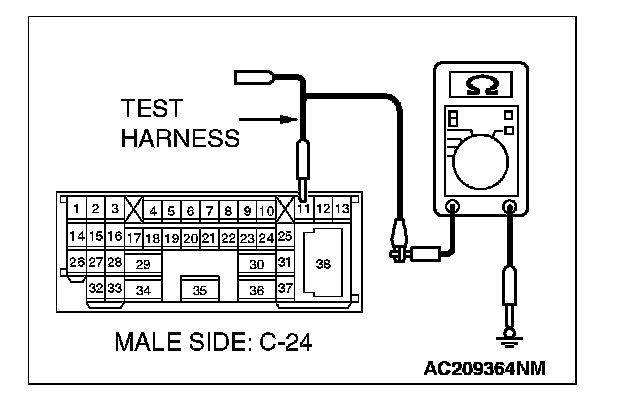

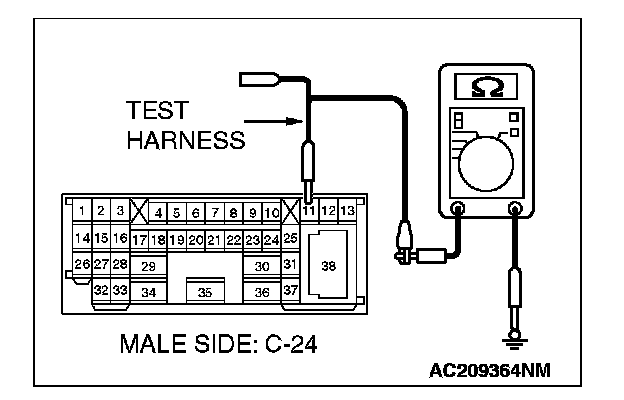

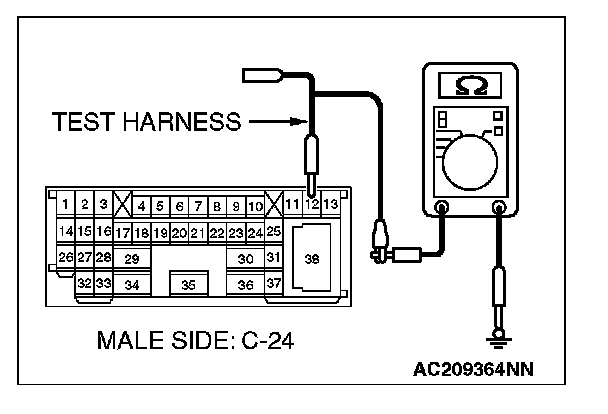

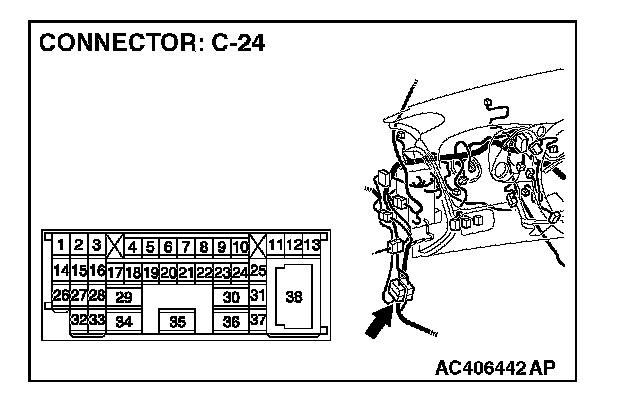

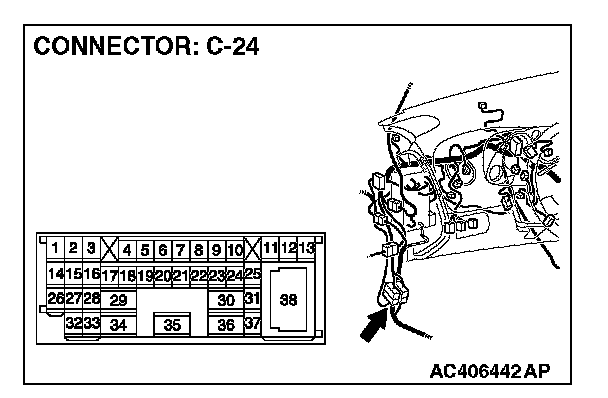

2. Disconnect intermediate connector C-24, and measure the resistance at the male side (at front wiring harness side).
3. Measure the resistance between intermediate connector terminal 11 (CAN_H) and body ground.
OK: 1 k ohms or more

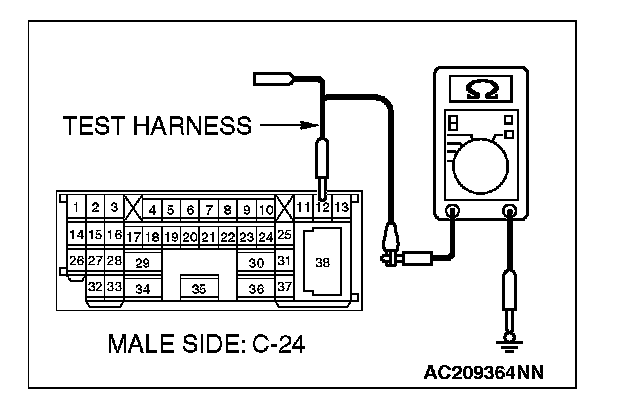

4. Measure the resistance between intermediate connector terminal 12 (CAN_L) and body ground.
OK: 1 k ohms or more
Q: Is the check result normal?
YES: Go to Step 3.
NO: Go to Step 11.
STEP 3. Check the CAN line between joint connector (3) and the combination meter for short to ground. Measure the resistance at joint connector (3) C-03.
CAUTION: Disconnect the negative battery terminal.
1. Disconnect the negative battery terminal.

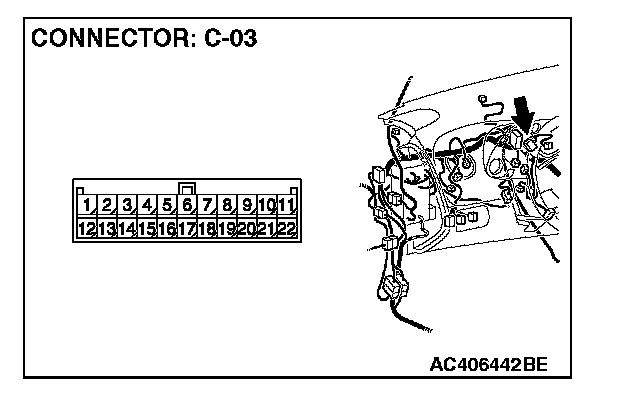

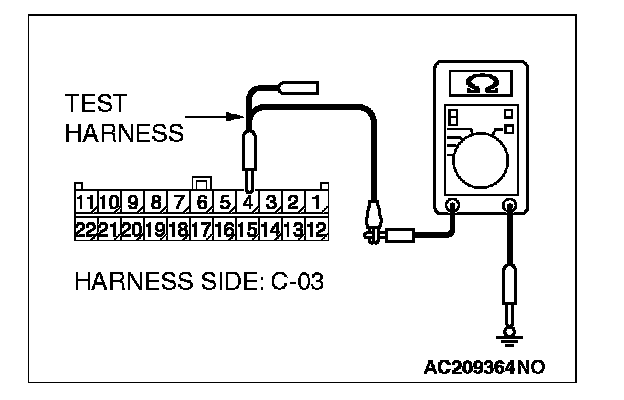

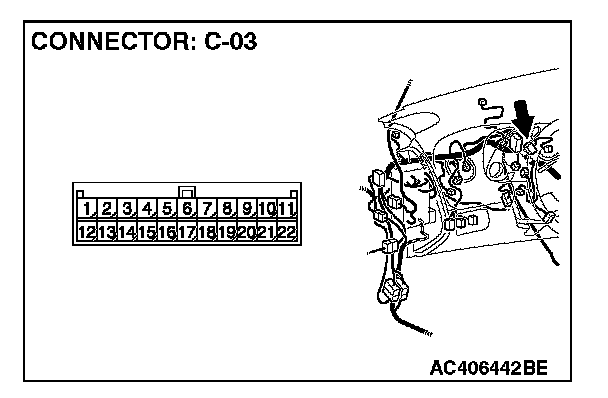

2. Disconnect joint connector (3) C-03, and measure the resistance at the wiring harness side of joint connector (3) C-03.
3. Measure the resistance between joint connector (3) terminal 4 (CAN_H) and body ground.
OK: 1 k ohms or more

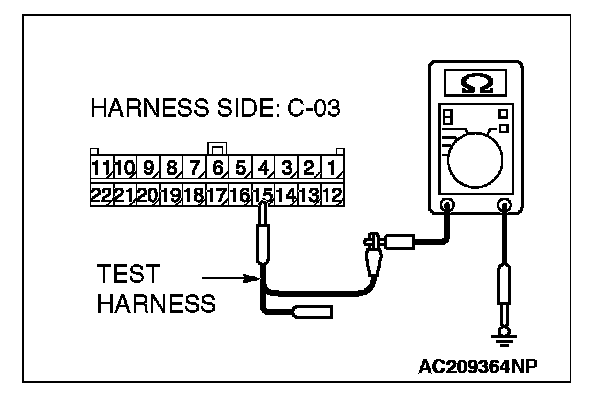

4. Measure the resistance between joint connector (3) terminal 15 (CAN_L) and body ground.
OK: 1 k ohms or more
CAUTION: Strictly observe the specified wiring harness repair procedure.
Q: Is the check result normal?
YES: Go to Step 4.
NO: Repair the wiring harness between joint connector (3) and the combination meter connector.
STEP 4. Check the CAN line between joint connector (3) and the ETACS-ECU connector for short to ground. Measure the resistance at joint connector (3) C-03.
CAUTION: Disconnect the negative battery terminal.
1. Disconnect the negative battery terminal.

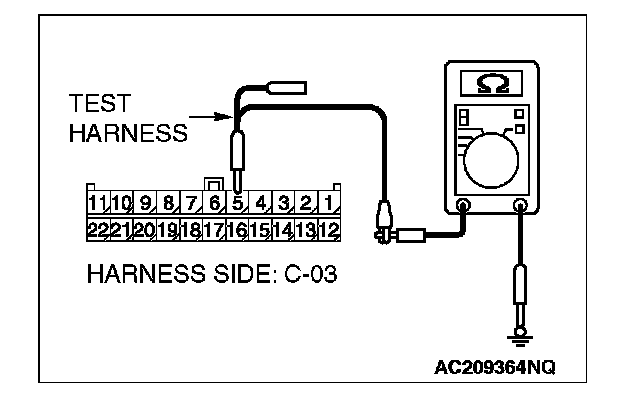

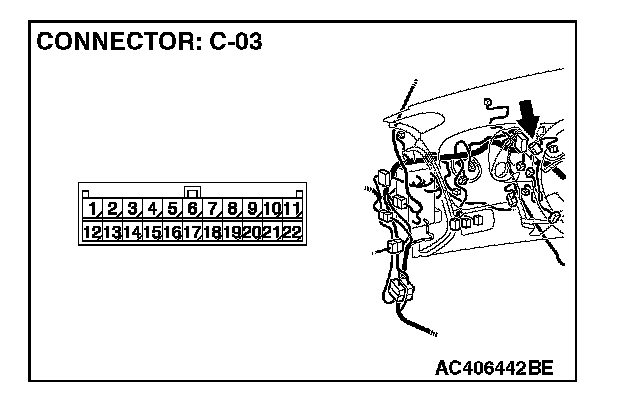

2. Disconnect joint connector (3) C-03, and measure the resistance at the wiring harness side of joint connector (3) C-03.
3. Measure the resistance between joint connector (3) terminal 5 (CAN_H) and body ground.
OK: 1 k ohms or more

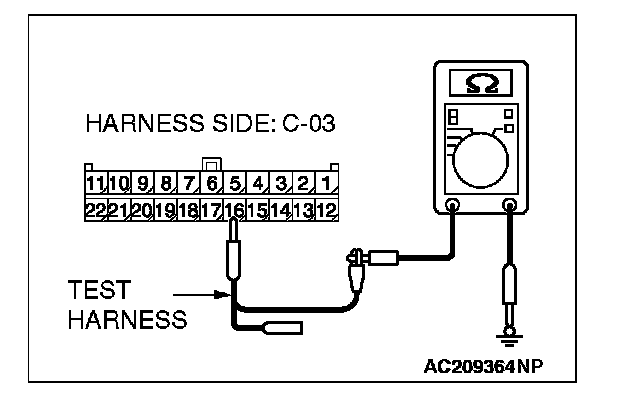

4. Measure the resistance between joint connector (3) terminal 16 (CAN_L) and body ground.
OK: 1 k ohms or more
Q: Is the check result normal?
YES: Go to Step 5.
NO: Go to Step 8.
STEP 5. Check the CAN line between joint connector (3) and the A/C-ECU connector for short to ground. Measure the resistance at joint connector (3) C-03.
CAUTION: Disconnect the negative battery terminal.
1. Disconnect the negative battery terminal.
2. Disconnect joint connector (3) C-03, and measure the resistance at the wiring harness side of joint connector (3) C-03.
3. Measure the resistance between joint connector (3) terminal 6 (CAN_H) and body ground.
OK: 1 k ohms or more

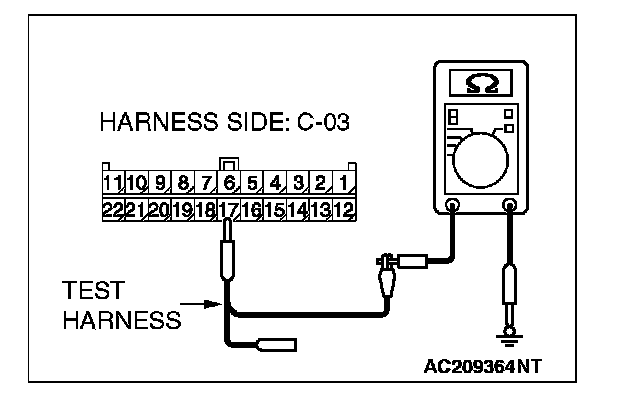

4. Measure the resistance between joint connector (3) terminal 17 (CAN_L) and body ground.
OK: 1 k ohms or more
Q: Is the check result normal?
YES: Go to Step 6.
NO: Go to Step 9.
STEP 6. Check the CAN line between joint connector (3) and the SRS-ECU connector for short to ground. Measure the resistance at joint connector (3) C-03.
CAUTION: Disconnect the negative battery terminal.
1. Disconnect the negative battery terminal.

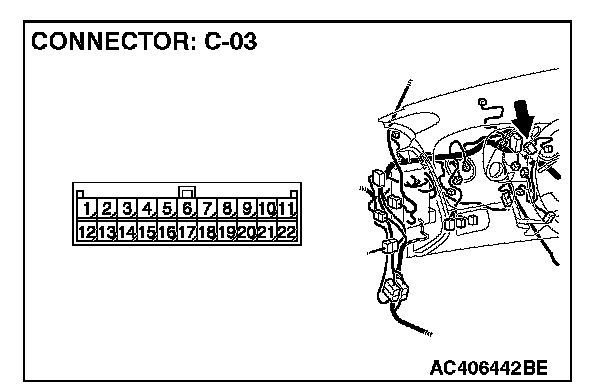

2. Disconnect joint connector (3) C-03, and measure the resistance at the wiring harness side of joint connector (3) C-03.

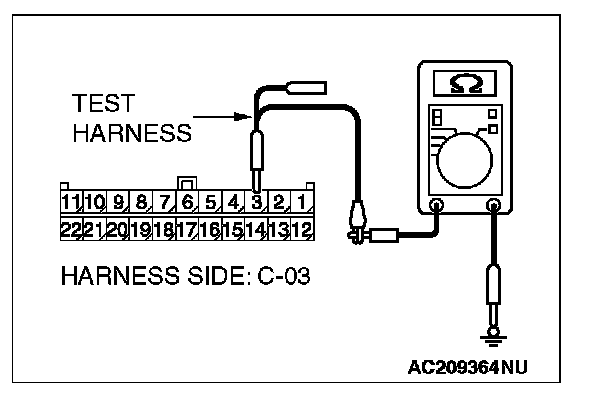

3. Measure the resistance between joint connector (3) terminal 3 and body ground.
OK: 1 k ohms or more

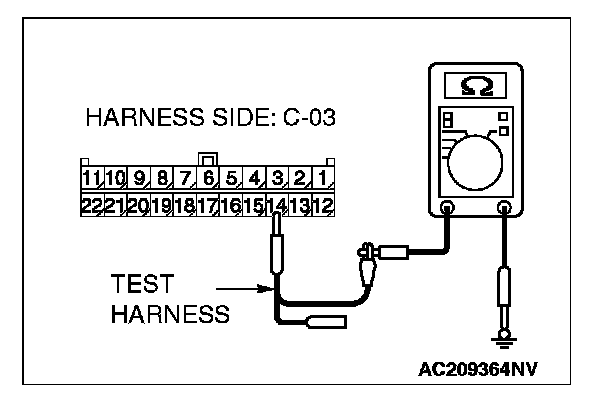

4. Measure the resistance between joint connector (3) terminal 14 and body ground.
OK: 1 k ohms or more
Q: Does the resistance measure 1 k ohms or more?
YES: Go to Step 7.
NO: Go to Step 10.
STEP 7. Check the CAN line between joint connector (3) and the data link connector for short to ground. Measure the resistance at joint connector (3) C-03.
CAUTION: Disconnect the negative battery terminal.
1. Disconnect the negative battery terminal.

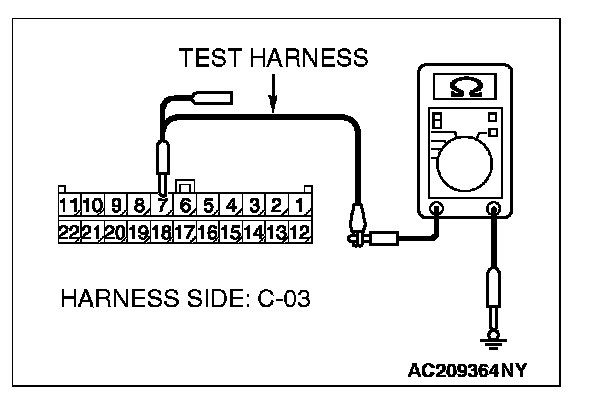

2. Disconnect joint connector (3) C-03, and measure the resistance at the wiring harness side of joint connector (3) C-03.
3. Measure the resistance between joint connector (3) terminal 7 (CAN_H) and body ground.
OK: 1 k ohms or more

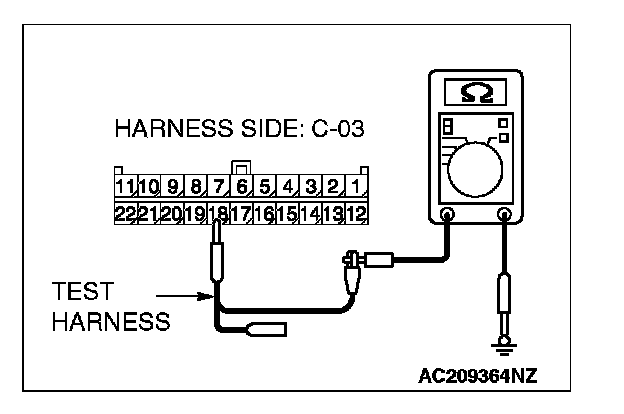

4. Measure the resistance between joint connector (3) terminal 18 (CAN_L) and body ground.
OK: 1 K ohms or more
CAUTION: Strictly observe the specified wiring harness repair procedure.
Q: Does the resistance measure 1 k ohms or more?
YES: Repair the wiring harness between joint connector (3) and the intermediate connector.
NO: Repair the wiring harness between joint connector (3) and the data link connector.
STEP 8. Check the ETACS-ECU for a short to ground.

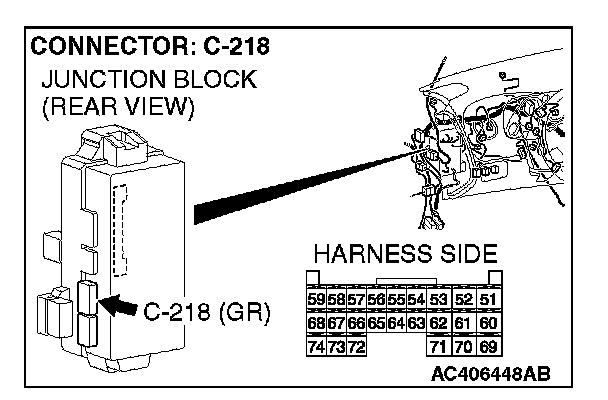

1. Disconnect ETACS-ECU connector C-218.
CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

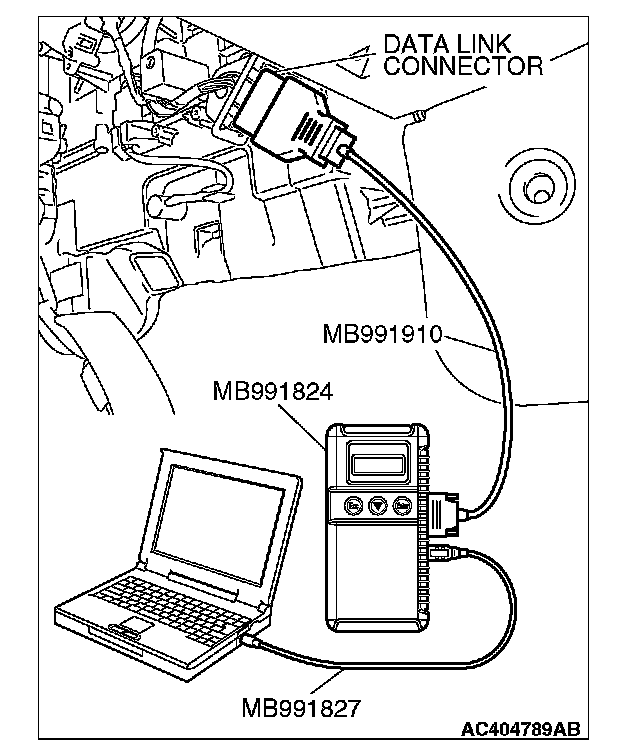

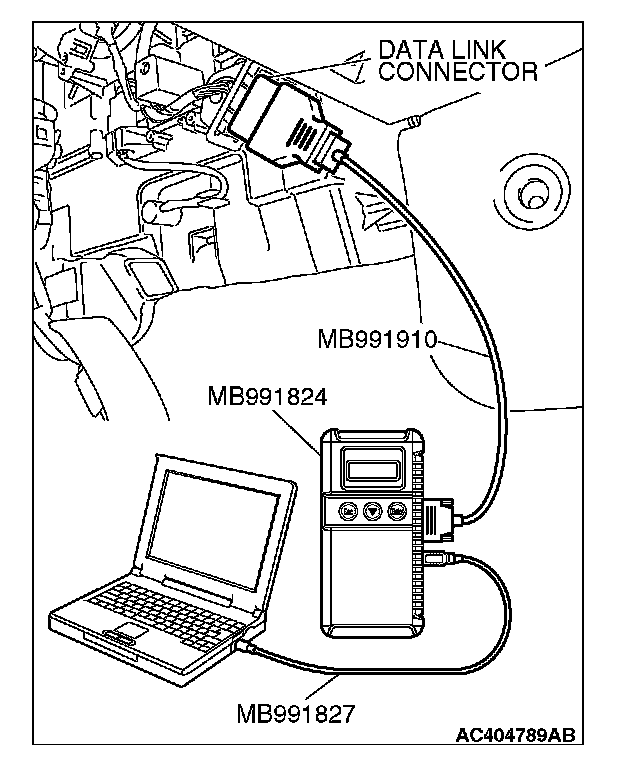

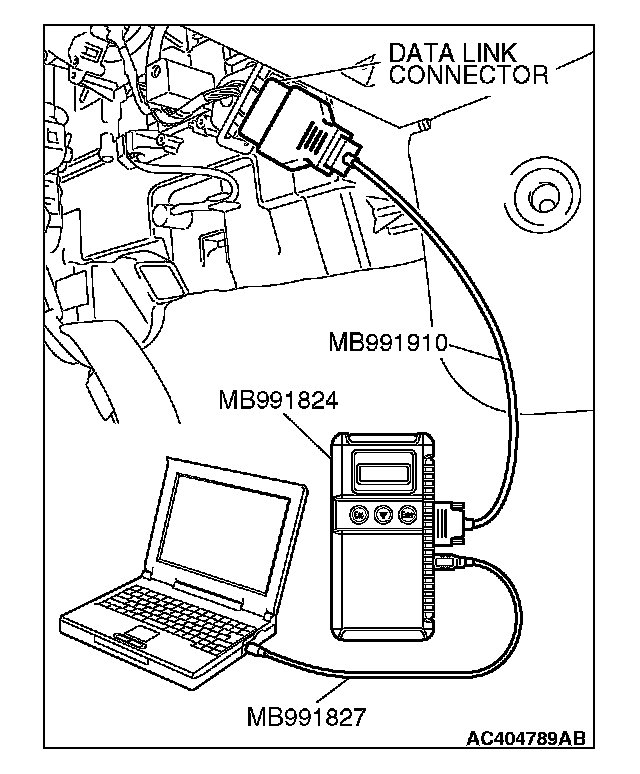

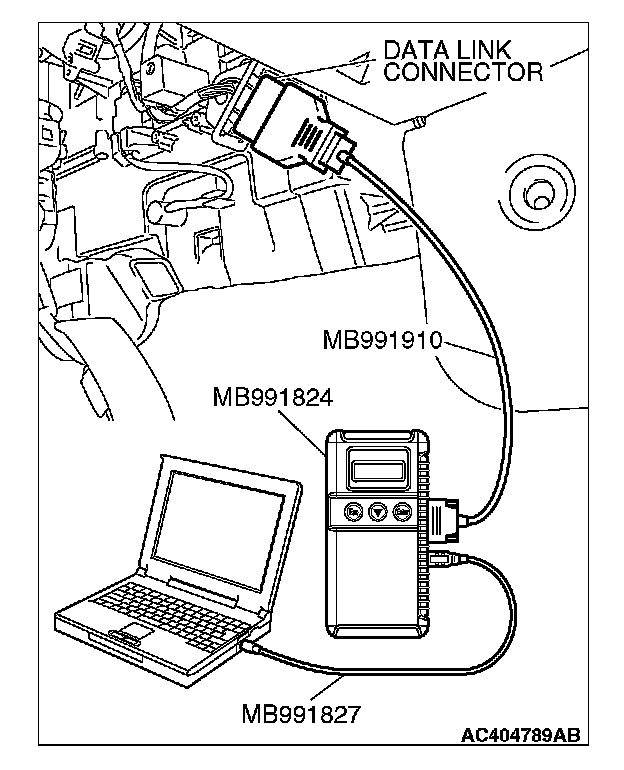

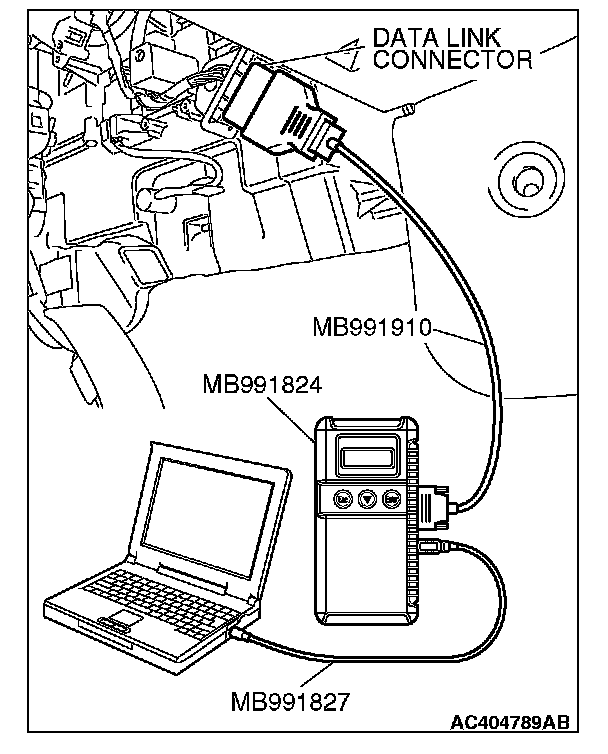

2. Connect scan tool MB991958 to the data link connector.

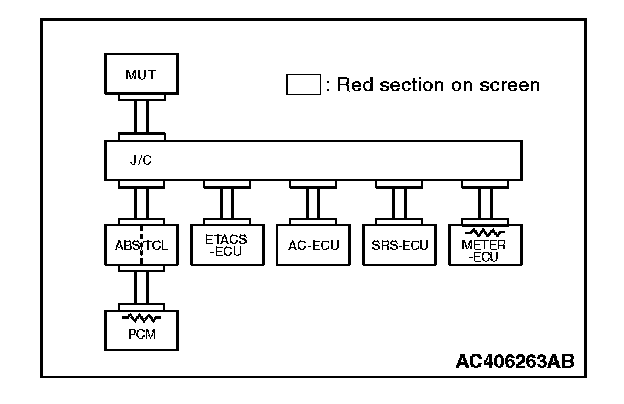

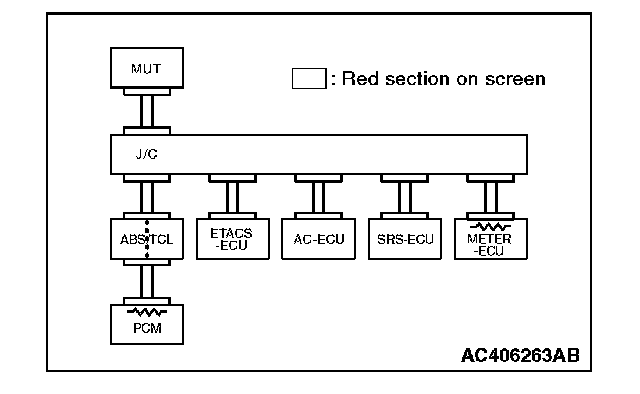

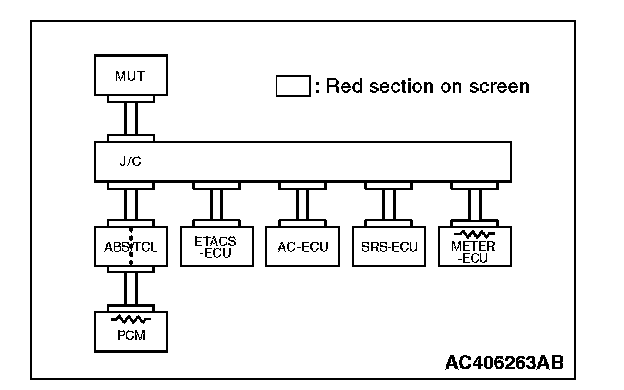

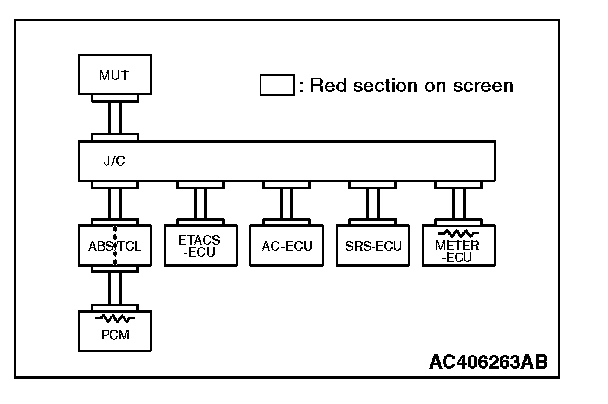

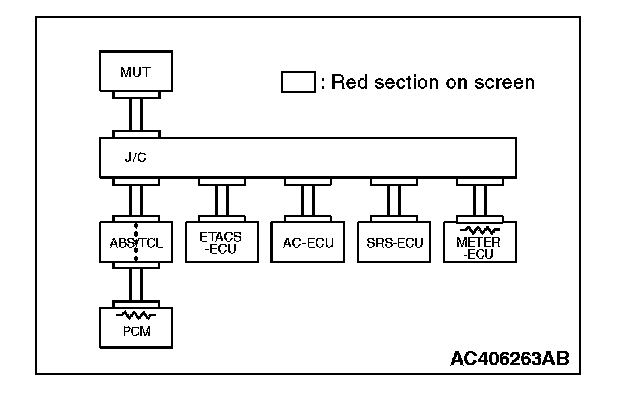

3. Diagnose CAN bus lines, and check if scan tool MB991958 screen is as shown in the illustration.
Q: Does scan tool MB991958 screen correspond to the illustration?
YES: Repair the wiring harness between joint connector (3) and the ETACS-ECU connector.
NO: Check the ETACS-ECU connector, and repair if necessary. If the ETACS-ECU connector is in good condition, replace the ETACS-ECU. When the ETACS-ECU is replaced, register the encrypted code. Refer to Encrypted Code Registration Criteria Table in Antitheft and Alarm Systems.
STEP 9. Check the A/C-ECU for a short to ground.

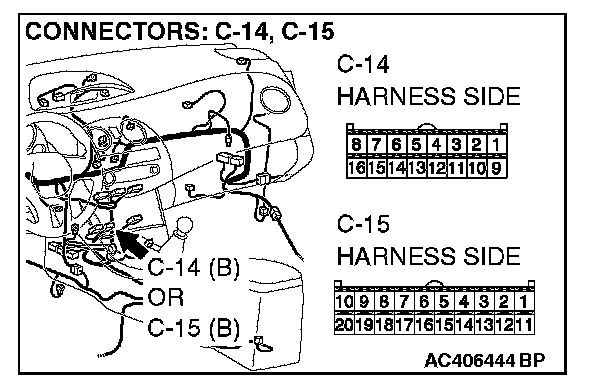

1. Disconnect A/C-ECU connector C-14
CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
2. Connect scan tool MB991958 to the data link connector.
3. Diagnose CAN bus lines, and check if scan tool MB991958 screen is as shown in the illustration.
Q: Does scan tool MB991958 screen correspond to the illustration?
YES: Repair the wiring harness between joint connector (3) and the A/C-ECU connector.
NO: Check the A/C-ECU connector, and repair if necessary. If the A/C-ECU connector is in good condition, replace the A/C-ECU.
STEP 10. Check the SRS-ECU for a short to ground.
1. Disconnect SRS-ECU connector C-123.
CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
2. Connect scan tool MB991958 to the data link connector.
3. Diagnose CAN bus lines, and check if scan tool MB991958 screen is as shown in the illustration.
Q: Does scan tool MB991958 screen correspond to the illustration?
YES: Repair the wiring harness between joint connector (3) and the SRS-ECU connector.
NO: Check the SRS-ECU connector, and repair if necessary. If the SRS-ECU connector is in good condition, replace the SRS-ECU.
STEP 11. Check the CAN line between intermediate connector C-24 and ABS-ECU
CAUTION: Disconnect the negative battery terminal.
1. Disconnect the negative battery terminal.

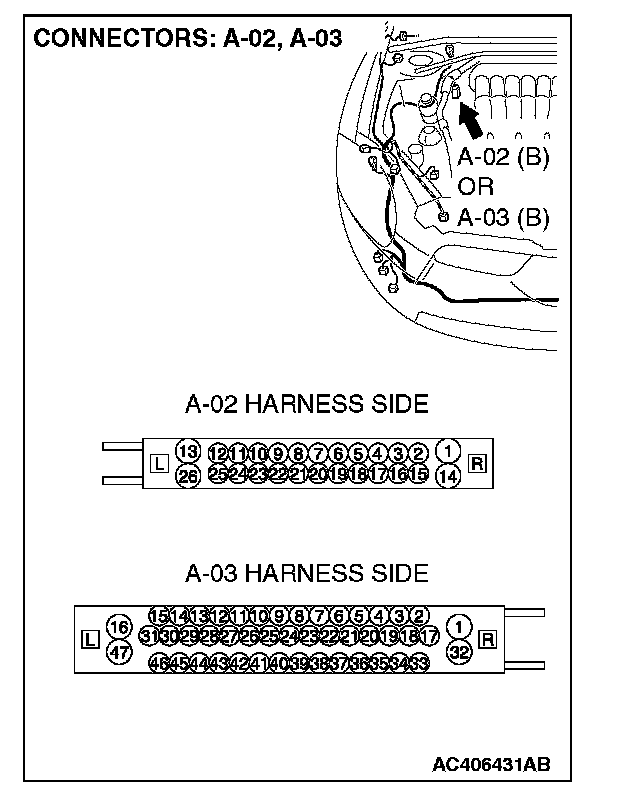

2. Disconnect intermediate connector C-24 and ABS-ECU connector A-02
3. Measure the resistance between intermediate connector terminal 11 (CAN_H) and body ground.
OK: 1 k ohms or more
4. Measure the resistance between intermediate connector terminal 12 (CAN_L) and body ground.
OK: 1 k ohms or more
CAUTION: Strictly observe the specified wiring harness repair procedure.
Q: Is the check result normal?
YES: Go to Step 12.
NO: Repair the wiring harness.
STEP 12. Check the CAN line between the ECM
CAUTION: Disconnect the negative battery terminal.
1. Disconnect the negative battery terminal.

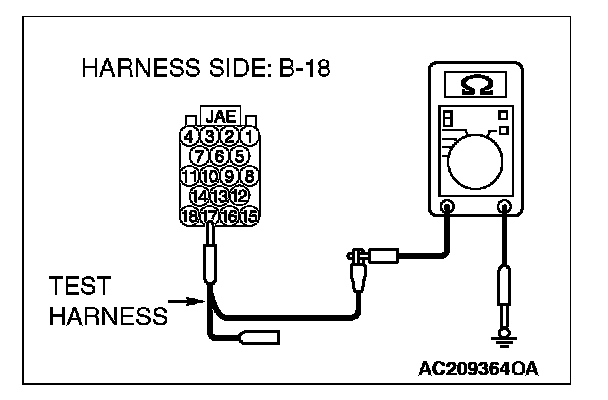

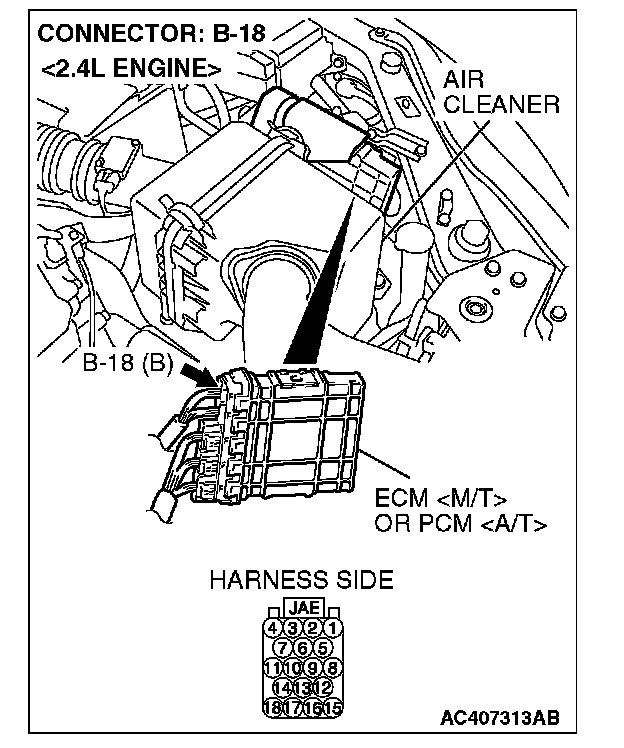

2. Disconnect ECM
3. Measure the resistance between ECM
OK: 1 k ohms or more
4. Measure the resistance between ECM
OK: 1 k ohms or more
CAUTION: Strictly observe the specified wiring harness repair procedure.
Q: Is the check result normal?
YES: Go to Step 13.
NO: Repair the wiring harness between ECM
STEP 13. Retest the system.
CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958 to the data link connector.
2. Diagnose CAN bus lines, and check if scan tool MB991958 screen shows normal state.
Q: Is the check result normal?
YES: Intermittent malfunction.
NO: Check the ABS-ECU
STEP 14. Check the combination meter for a short to ground.

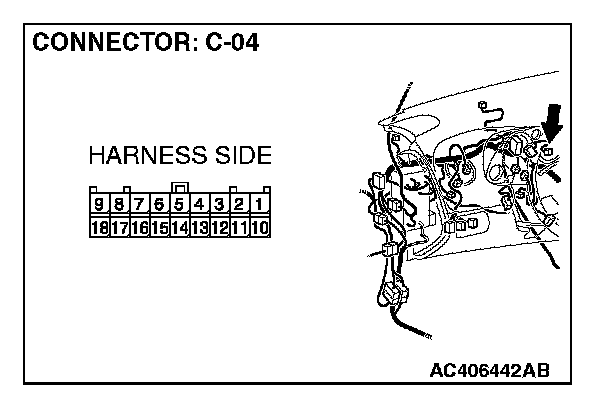

1. Disconnect combination meter connector C-04.
CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
2. Connect scan tool MB991958 to the data link connector.
3. Diagnose CAN bus lines, and check if scan tool MB991958 screen is as shown in the illustration.
Q: Does scan tool MB991958 screen correspond to the illustration?
YES: Go to Step 15.
NO: Go to Step 16.
STEP 15. Check the ECM
1. Disconnect ECM
CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
2. Connect scan tool MB991958 to the data link connector.
3. Diagnose CAN bus lines, and check if scan tool MB991958 screen is as shown in the illustration.
Q: Does scan tool MB991958 screen correspond to the illustration?
YES: Intermittent malfunction.
NO: Go to Step 17.
STEP 16. Retest the system.
CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958 to the data link connector.
2. Diagnose CAN bus lines, and check if scan tool MB991958 screen shows normal state.
Q: Is the check result normal?
YES: Intermittent malfunction.
NO: Check the combination meter connector, and repair if necessary. If the combination meter connector is in good condition, replace the combination meter.
STEP 17. Retest the system.
CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958 to the data link connector.
2. Diagnose CAN bus lines, and check if scan tool MB991958 screen shows normal state.
Q: Is the check result normal?
YES: Intermittent malfunction.
NO: Check the ECM
