Tail Lamp: Service and Repair

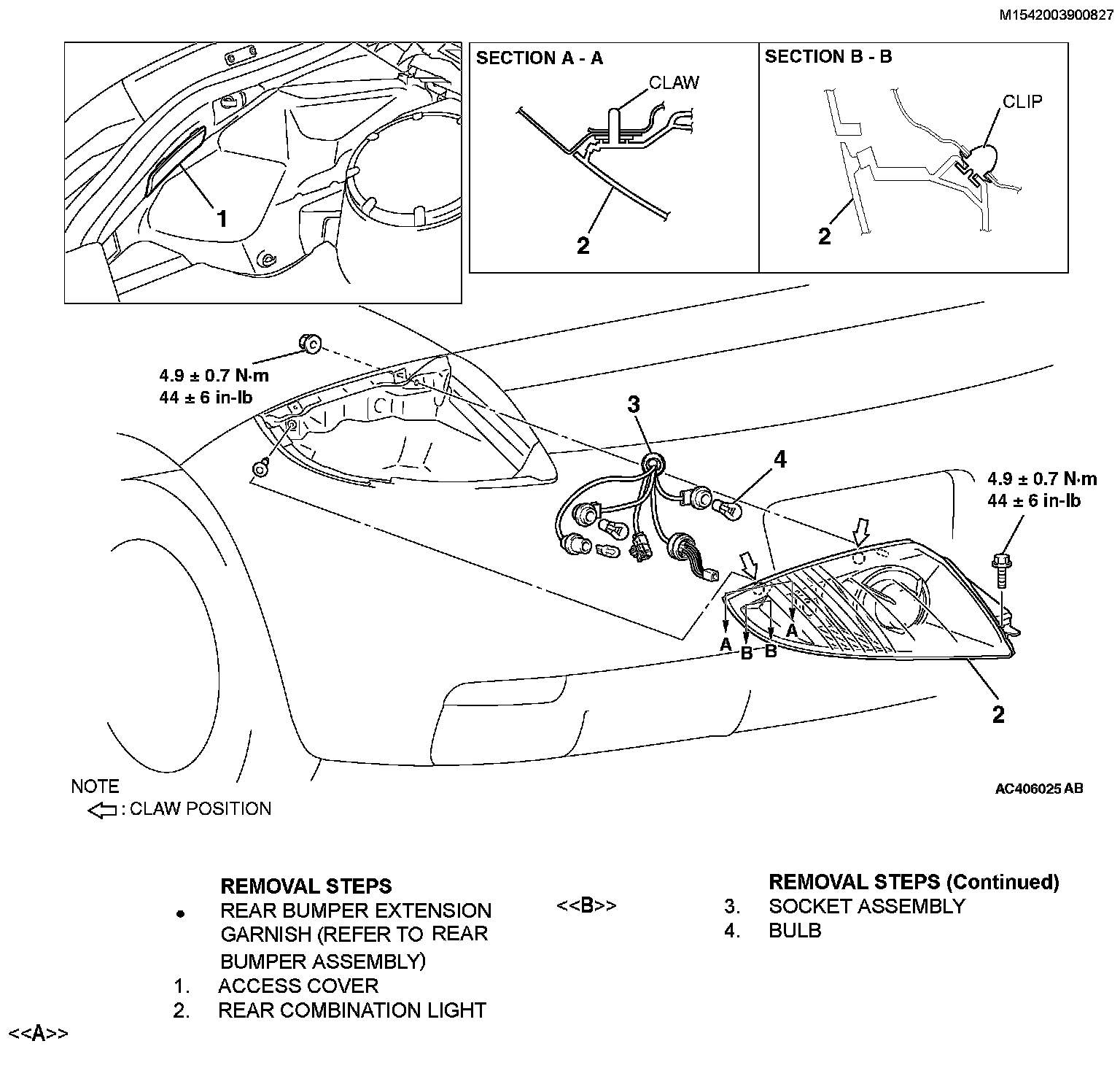

REAR COMBINATION LIGHTREMOVAL AND INSTALLATION
Removal Steps 1-4:
REMOVAL SERVICE POINTS
<> REAR COMBINATION LIGHT REMOVAL

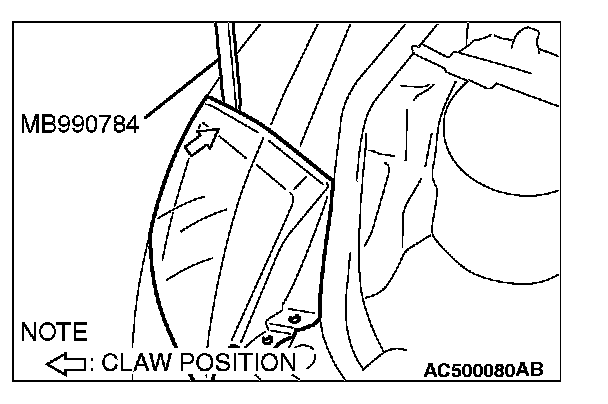

Before removing the rear combination light, disengage the claw shown in the illustration using special tool MB990784.
<> SOCKET ASSEMBLY REMOVAL
Remove the socket assembly connector using a flat-tipped screwdriver as shown.
