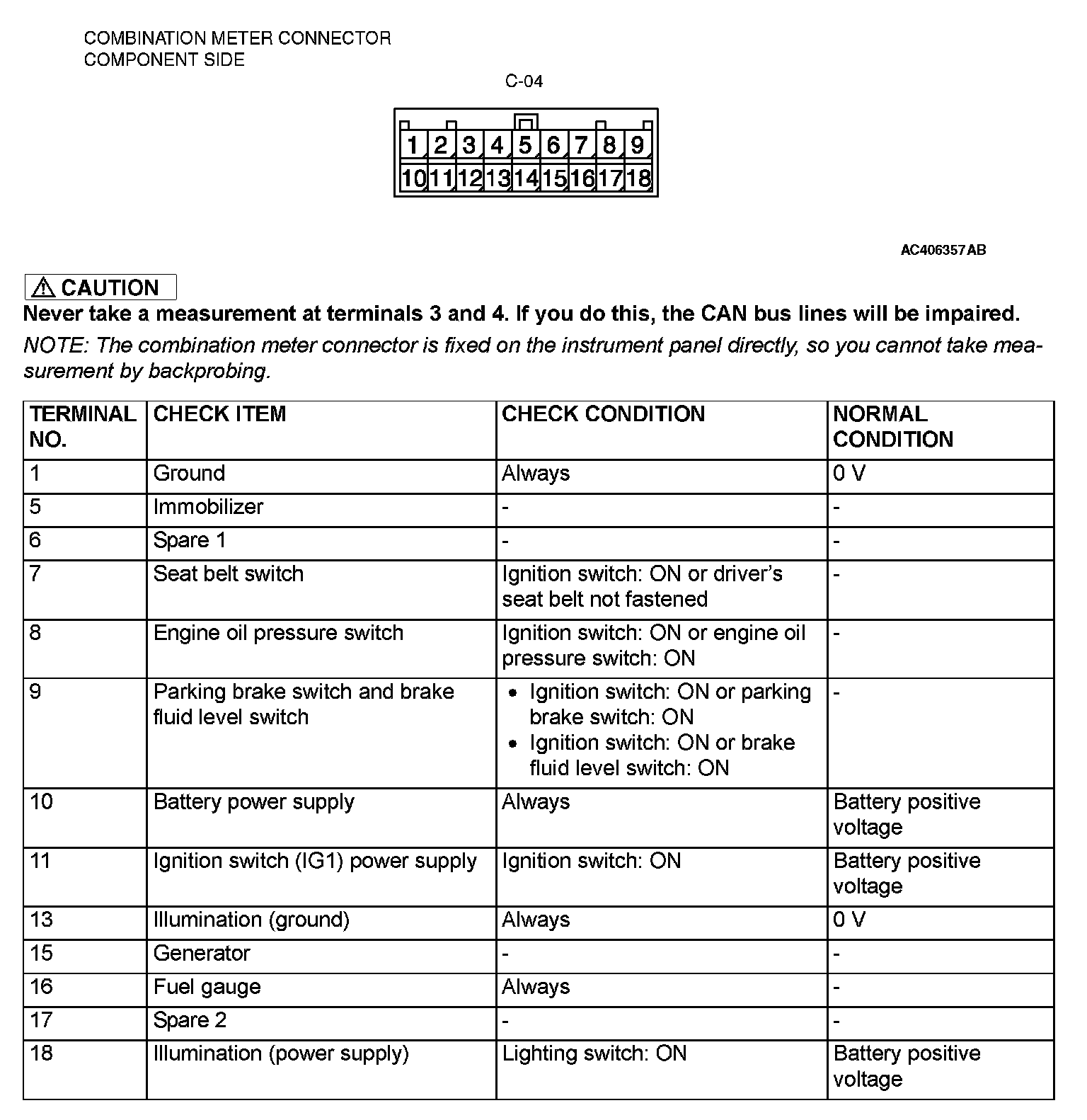

COMBINATION METER TERMINAL CHECK
Combination Meter Terminal Check:
Measure the voltage between terminals using a voltmeter.
