Exhaust Manifold
EXHAUST MANIFOLDREMOVAL AND INSTALLATION

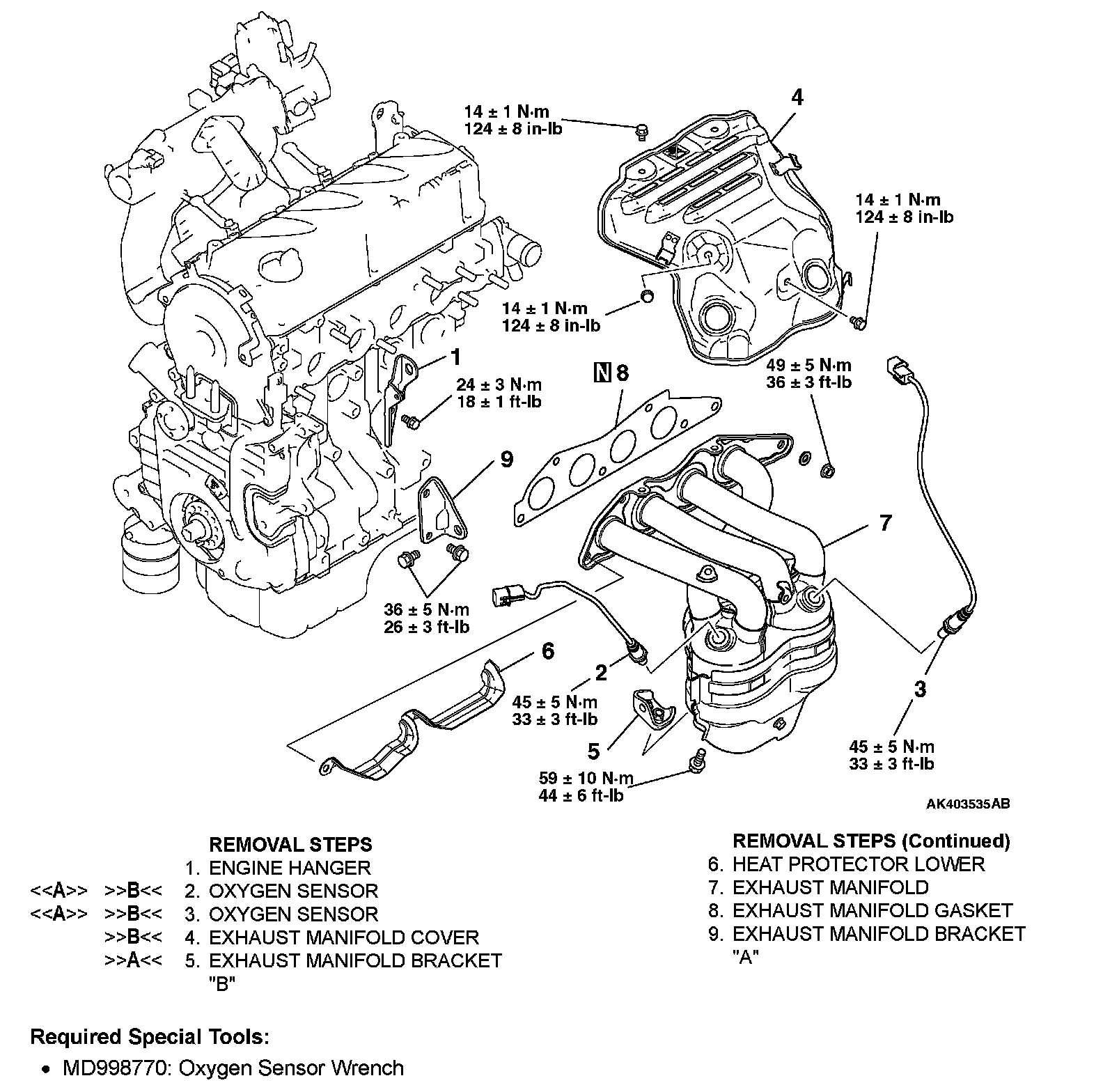

Removal Steps 1-9 & Required Special Tools:
REMOVAL SERVICE POINT
[[A]] OXYGEN SENSOR REMOVE
Using special tool MD998770, remove the oxygen sensor.
INSTALLATION SERVICE POINT

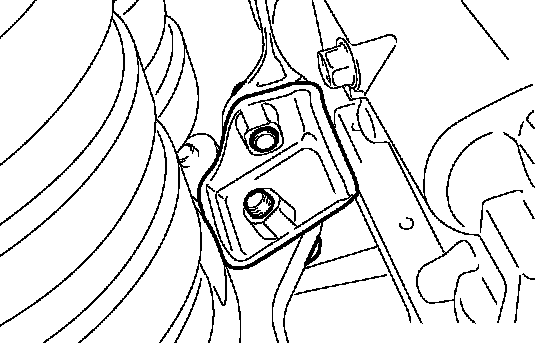

]]A[[ EXHAUST MANIFOLD BRACKET "B" INSTALLATION
Check to ensure that the exhaust manifold bracket "B" is in close contact with the exhaust manifold and the cylinder block before tightening the respective mounting bolts to the specified torque.
Tightening torque:
59 ± 10 Nm (44 ± 6 ft. lbs.)
36 ± 5 Nm (27 ± 3 ft. lbs.)
]]B[[ OXYGEN SENSOR / EXHAUST MANIFOLD COVER INSTALLATION
1. Install the exhaust manifold cover to the exhaust manifold.
2. Temporarily tighten the exhaust manifold cover bolt.

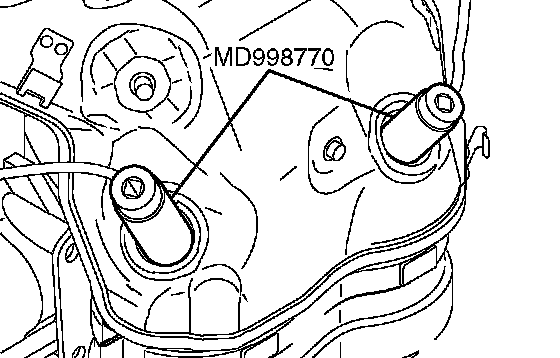

3. Using Special Tool of Oxygen Sensor (MD998770), install both of the oxygen sensors to the exhaust manifold.
NOTE: Do not remove the special tool after the oxygen sensor is installed.
4. Tighten the exhaust manifold cover bolt to the specified torque of 14 ± 5 Nm (124 ± 8 inch lbs.).
5. Remove the special tool.
