Radiator: Service and Repair

RADIATOR

REMOVAL AND INSTALLATION

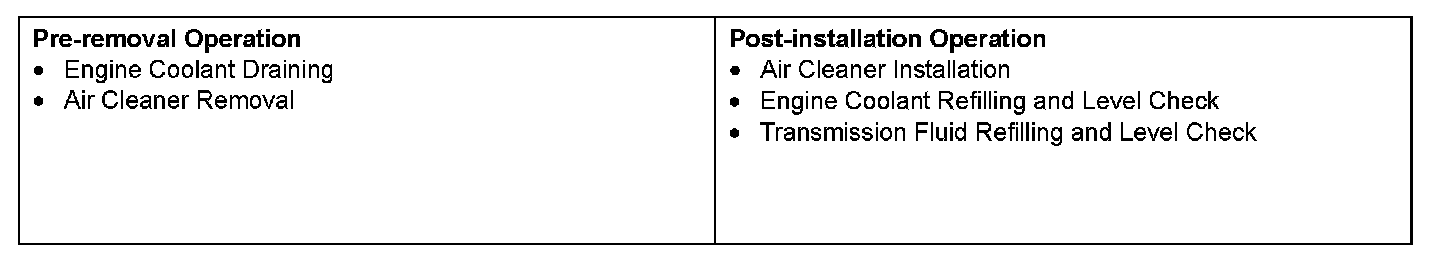

Pre-removal & Post-installation Operation:

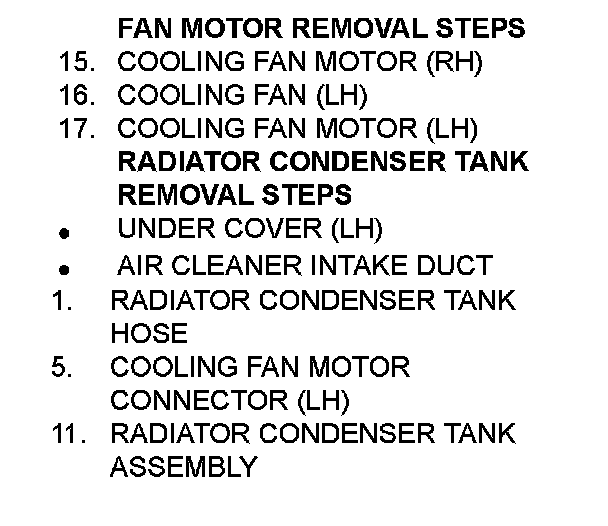

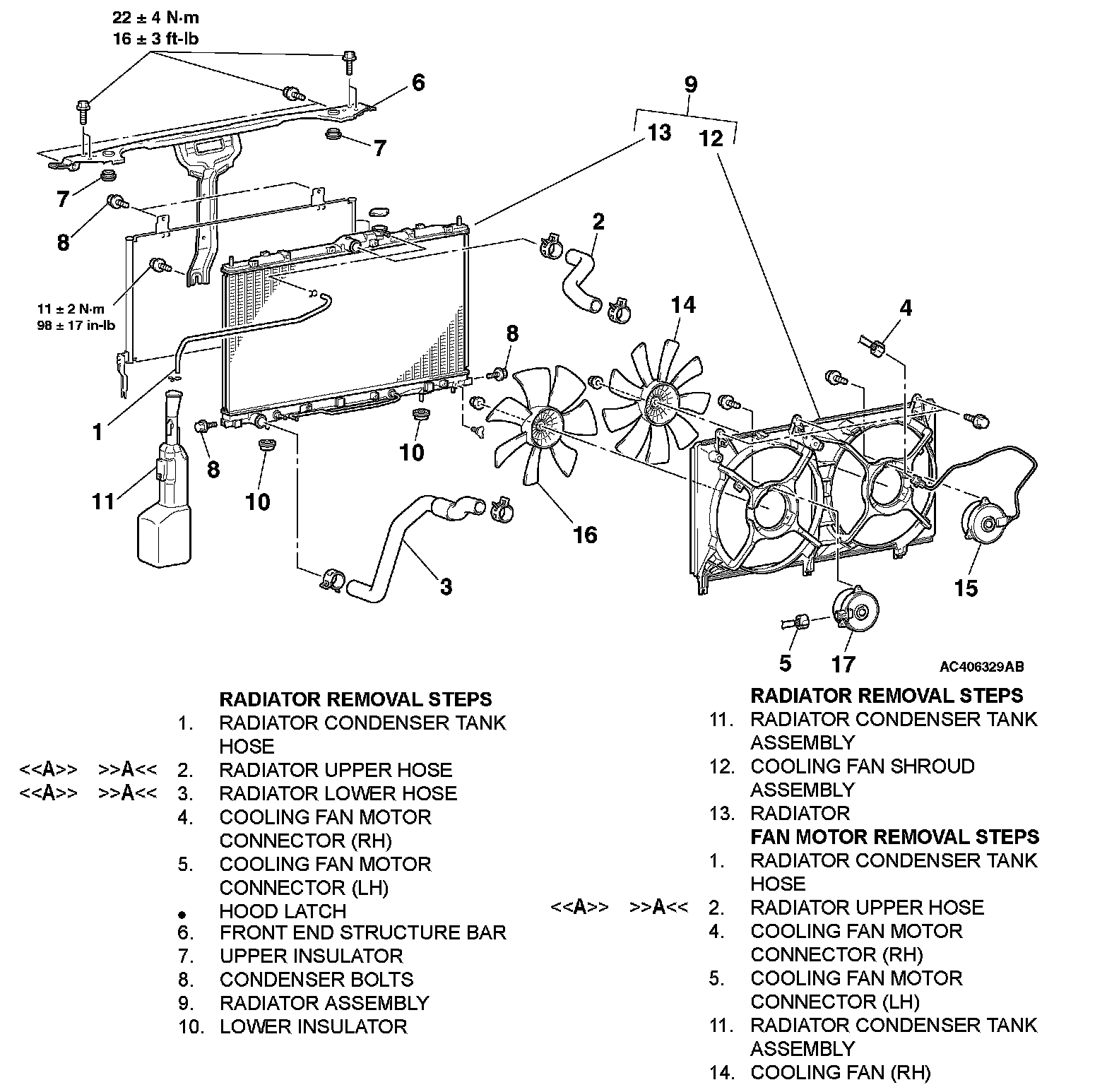

Removal Steps:

REMOVAL SERVICE POINTS
[[A]] RADIATOR UPPER HOSE/RADIATOR LOWER HOSE DISCONNECTION

Make mating marks on the radiator hose and the hose clamp. Disconnect the radiator hose.

[[B]] TRANSMISSION FLUID COOLER LINE HOSE REMOVAL
After removing the hose from the radiator, plug the hose and the radiator nipple to prevent dust or foreign particles from getting in.

INSTALLATION SERVICE POINT
]]A[[ RADIATOR LOWER HOSE/RADIATOR UPPER HOSE CONNECTION

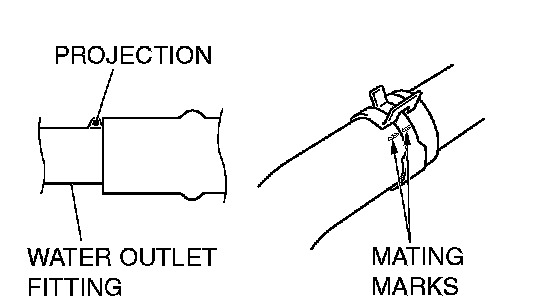

1. Insert each hose as far as the projection of the water inlet fitting.
2. Align the mating marks on the radiator hose and hose clamp, and then connect the radiator hose.
