Home >> Mitsubishi >> 2006 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Reverse and Overdrive Clutch

Reverse and Overdrive Clutch

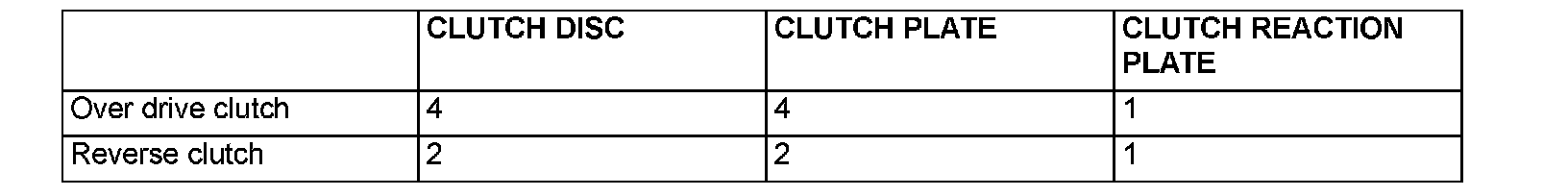

NUMBER OF CLUTCH DISCS AND PLATES:

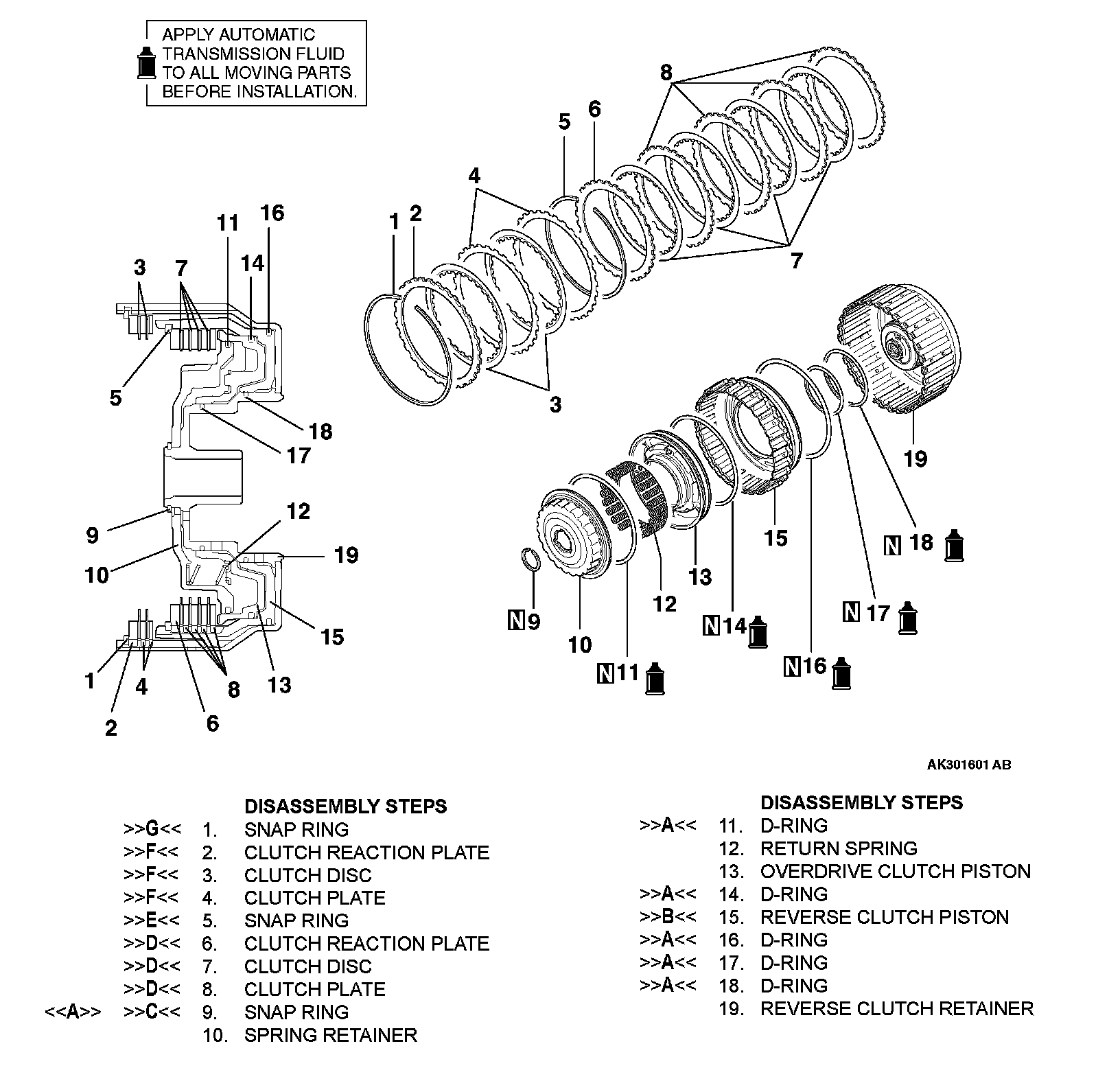

Disassembly Steps 1-19:

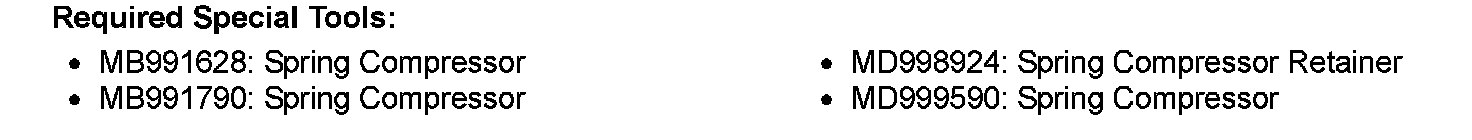

Required Special Tools:
