Controller Area Network (CAN) - A/T

Controller Area Network (CAN) Part 1:

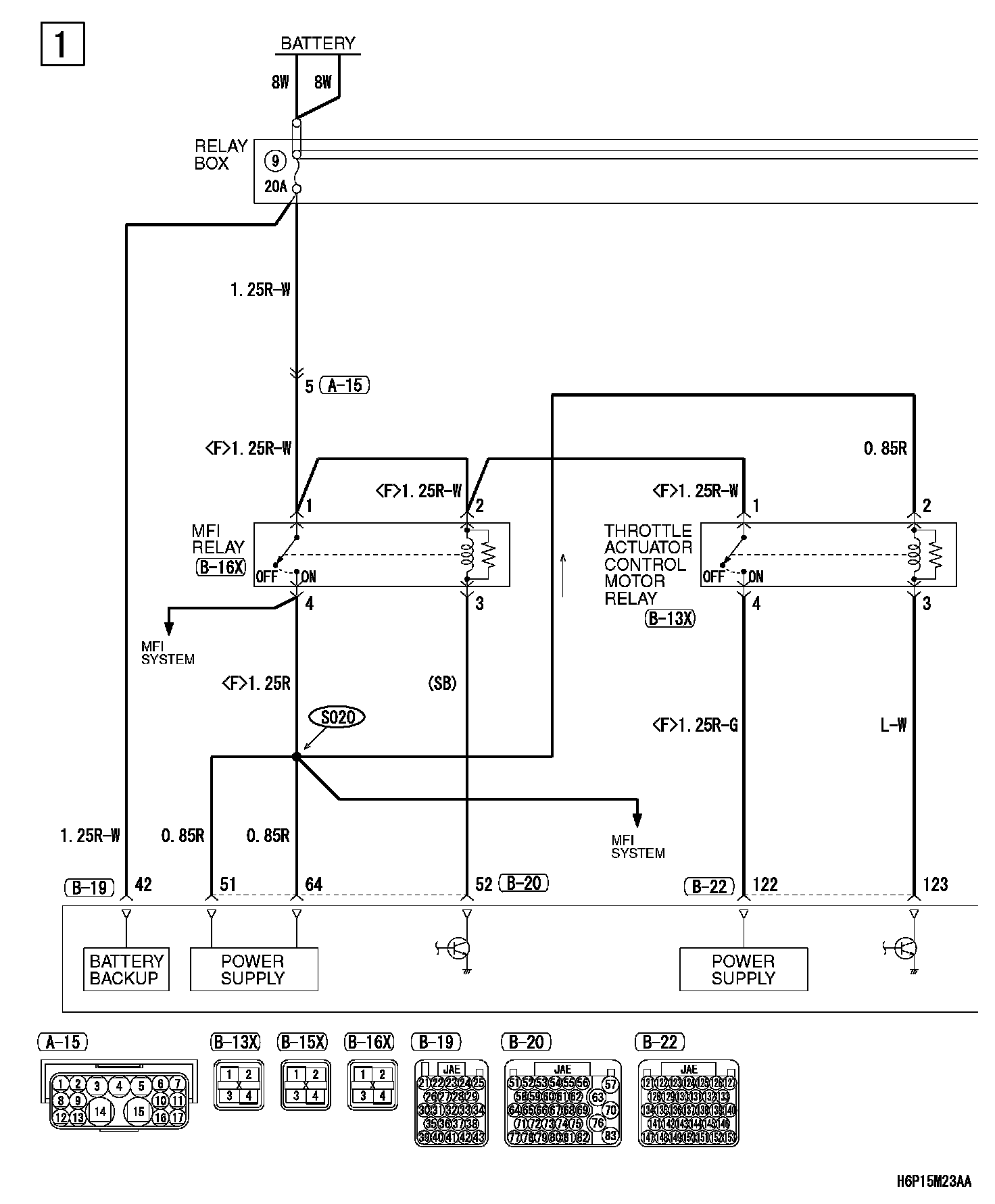

Controller Area Network (CAN) Part 2:

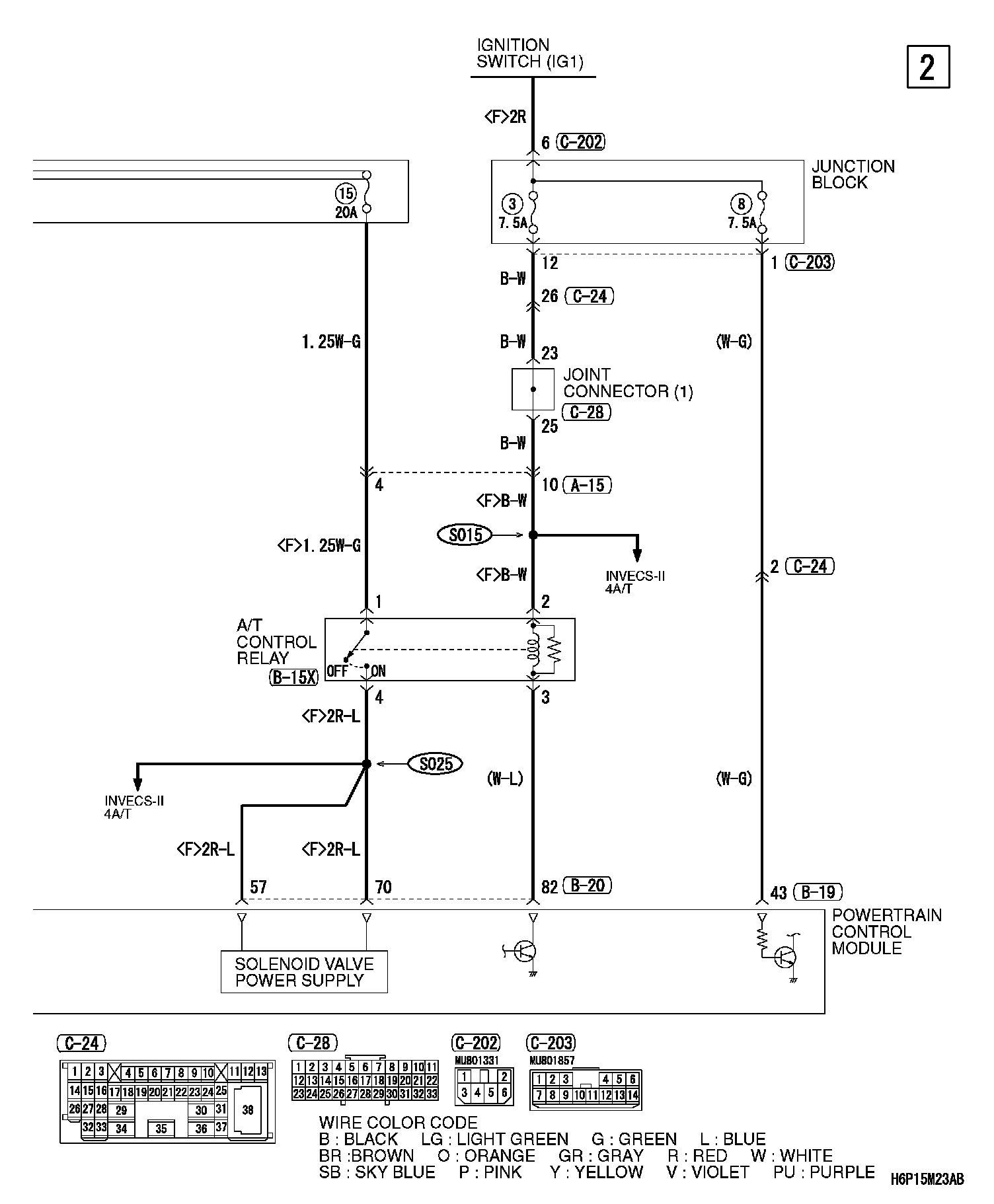

Controller Area Network (CAN) Part 3:

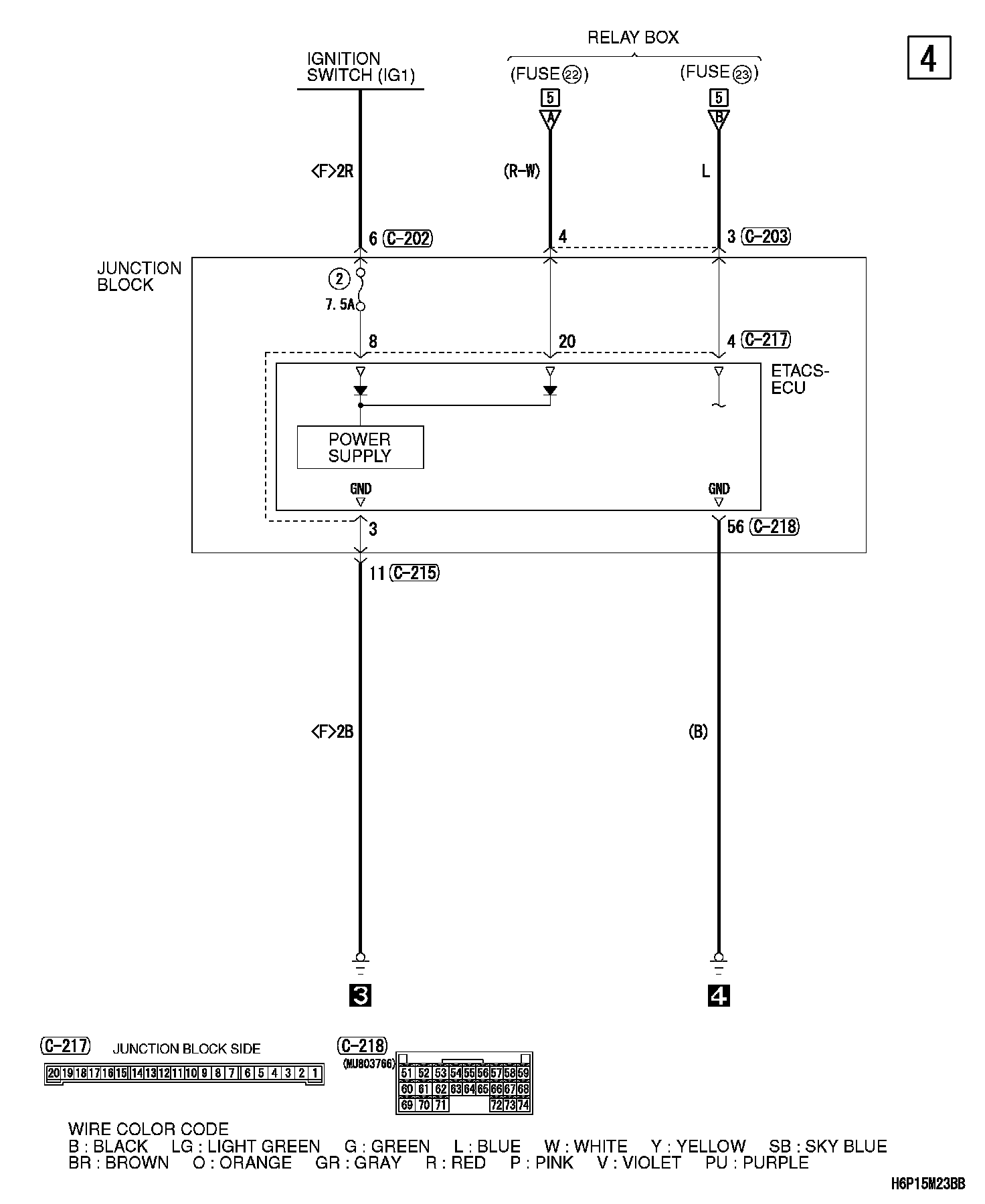

Controller Area Network (CAN) Part 4:

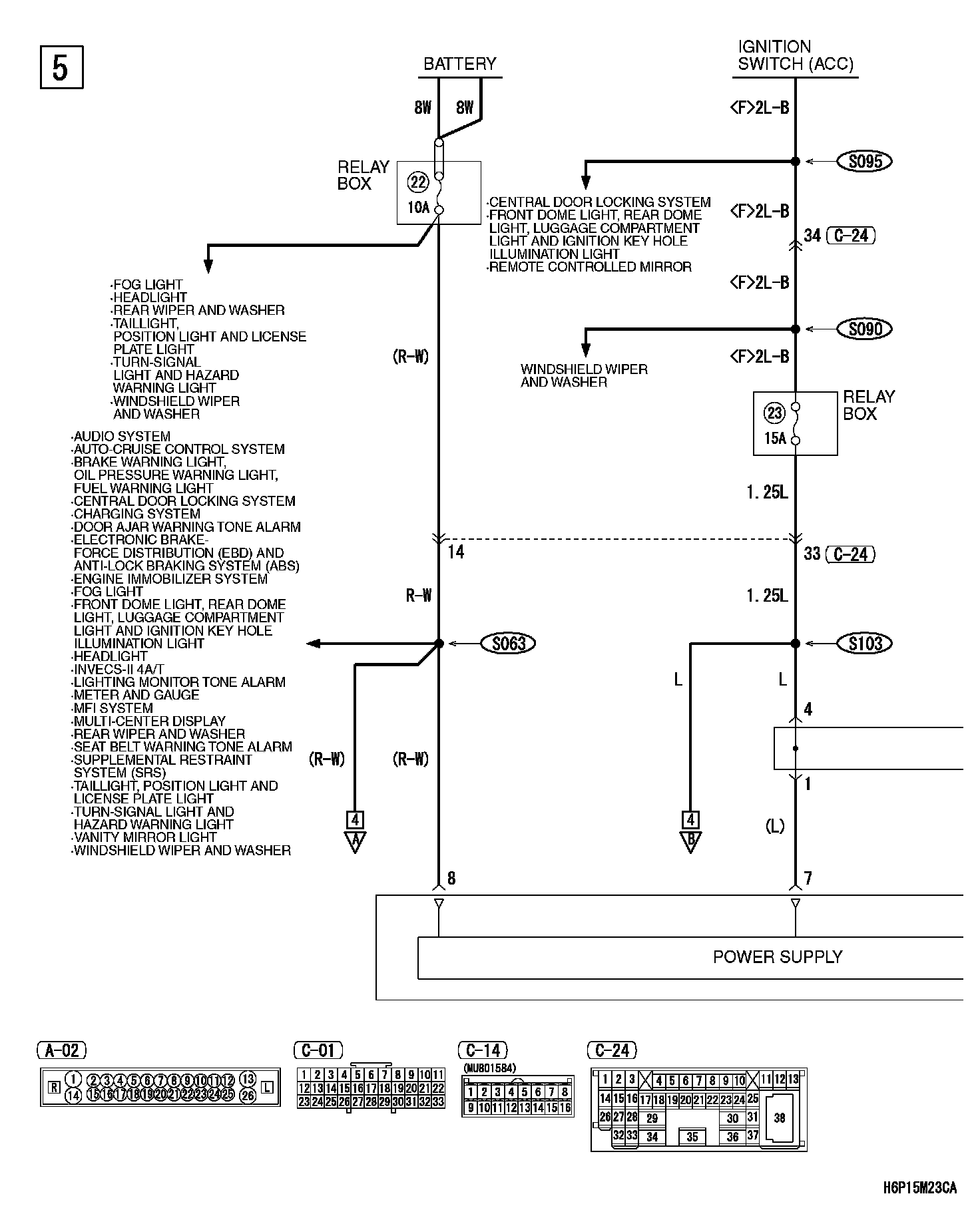

Controller Area Network (CAN) Part 5:

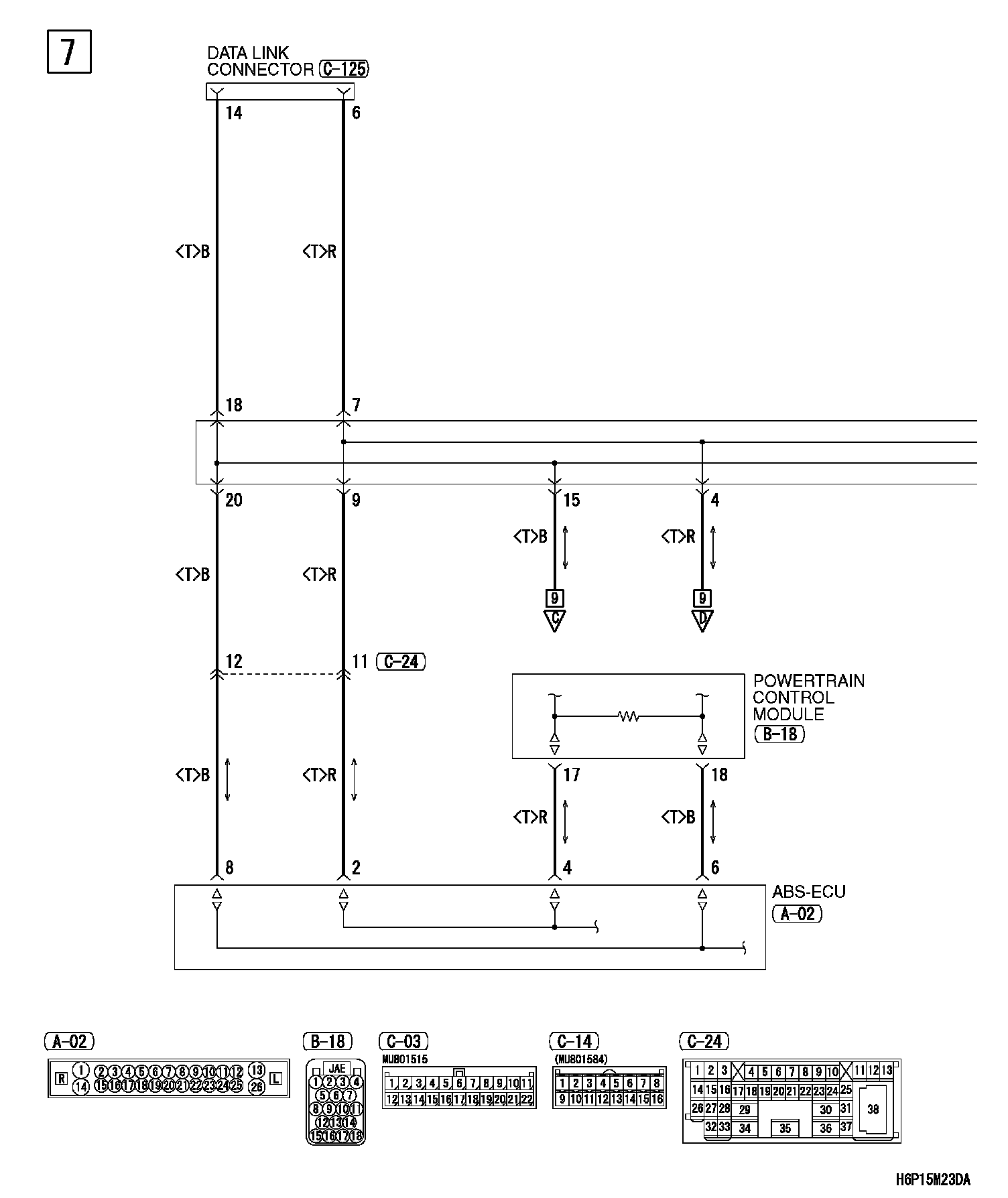

Controller Area Network (CAN) Part 6:

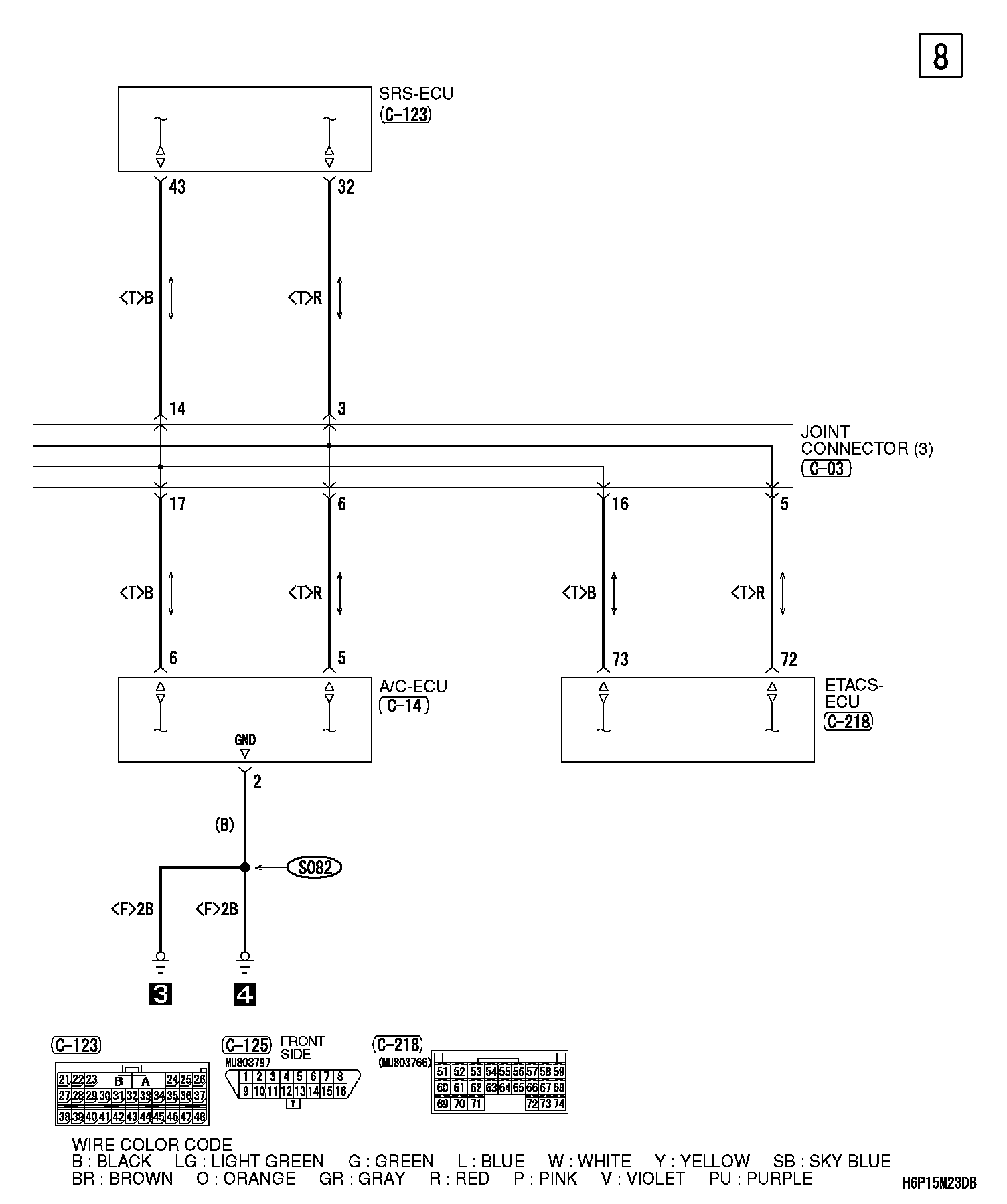

Controller Area Network (CAN) Part 7:

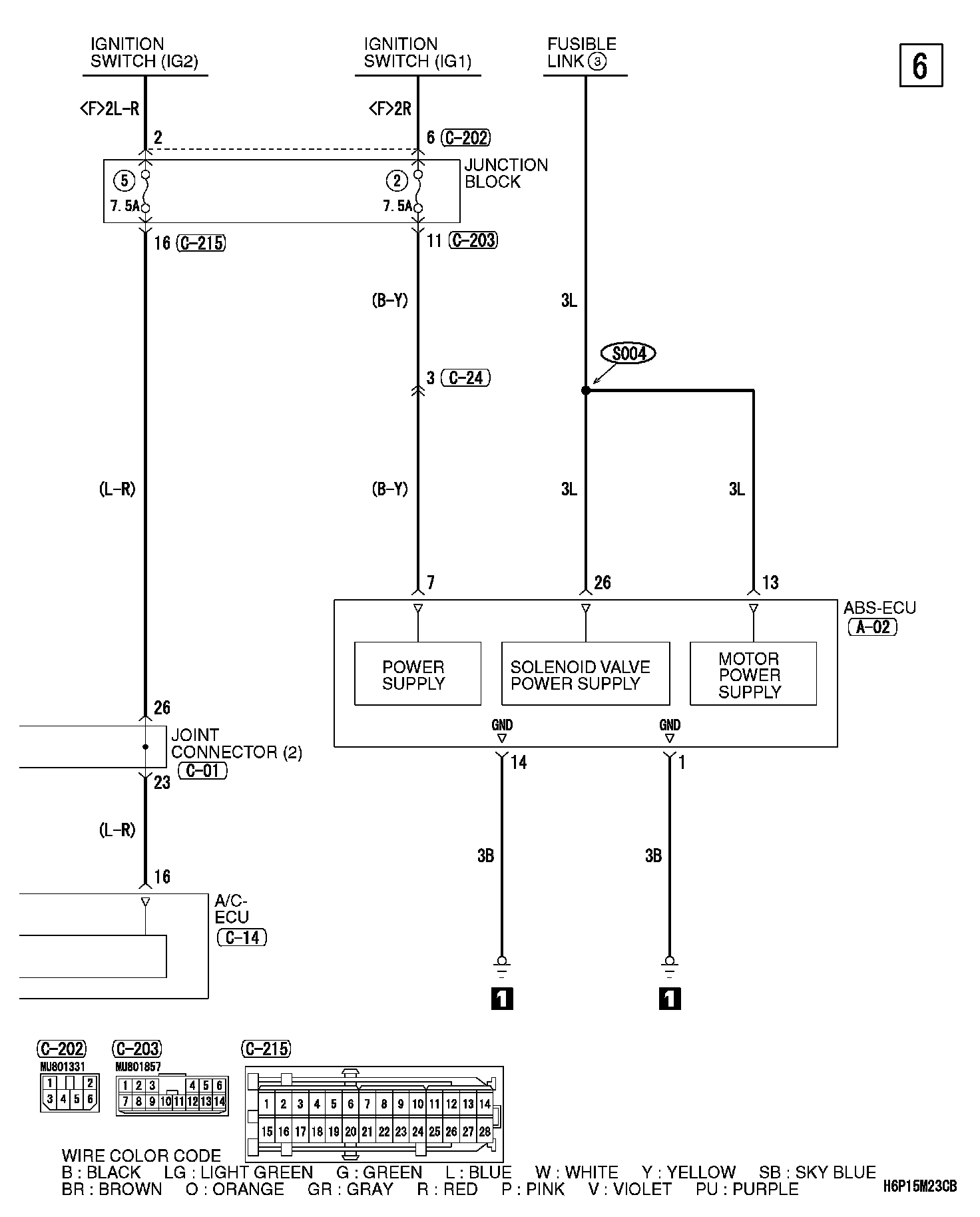

Controller Area Network (CAN) Part 8:

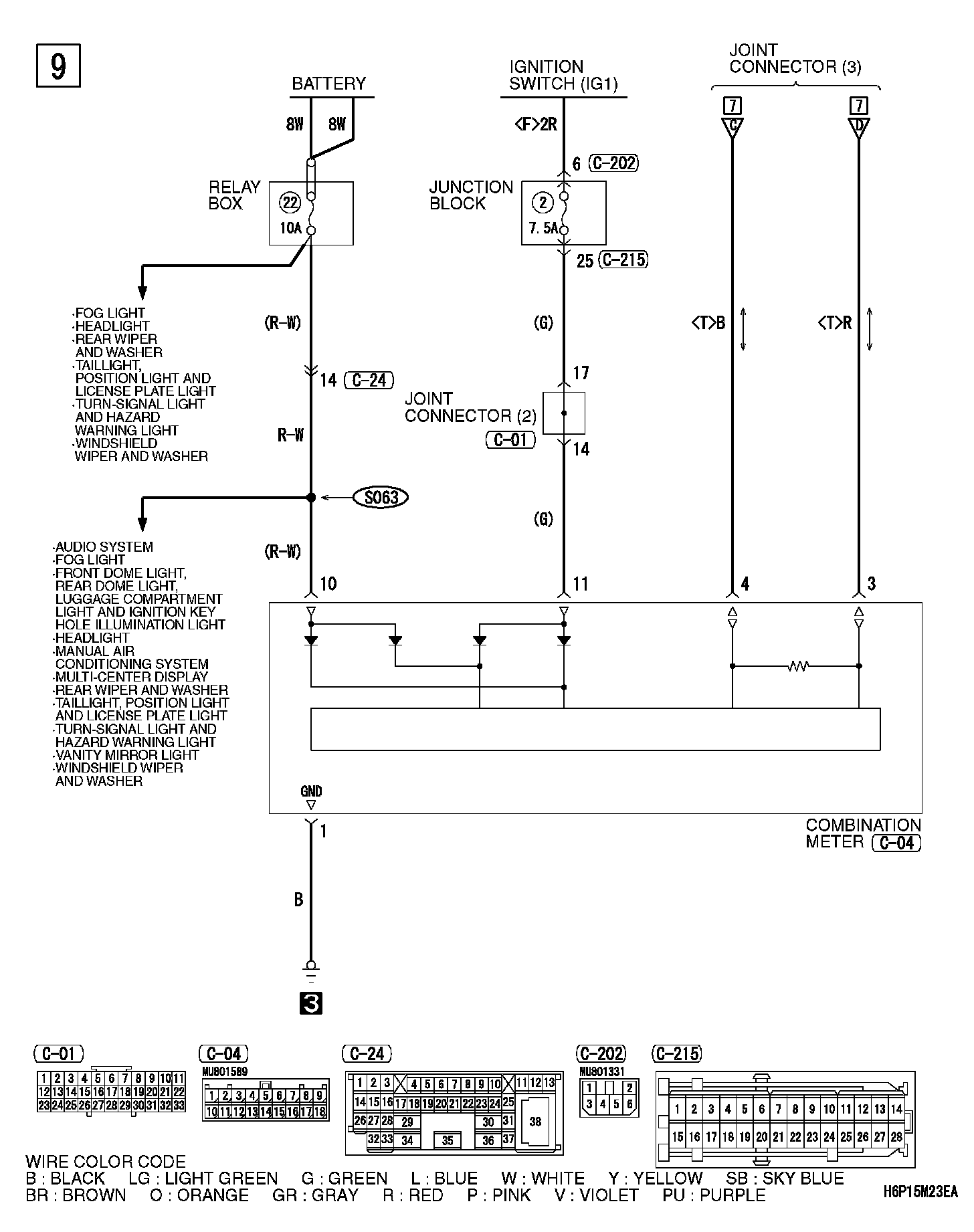

Controller Area Network (CAN) Part 9:

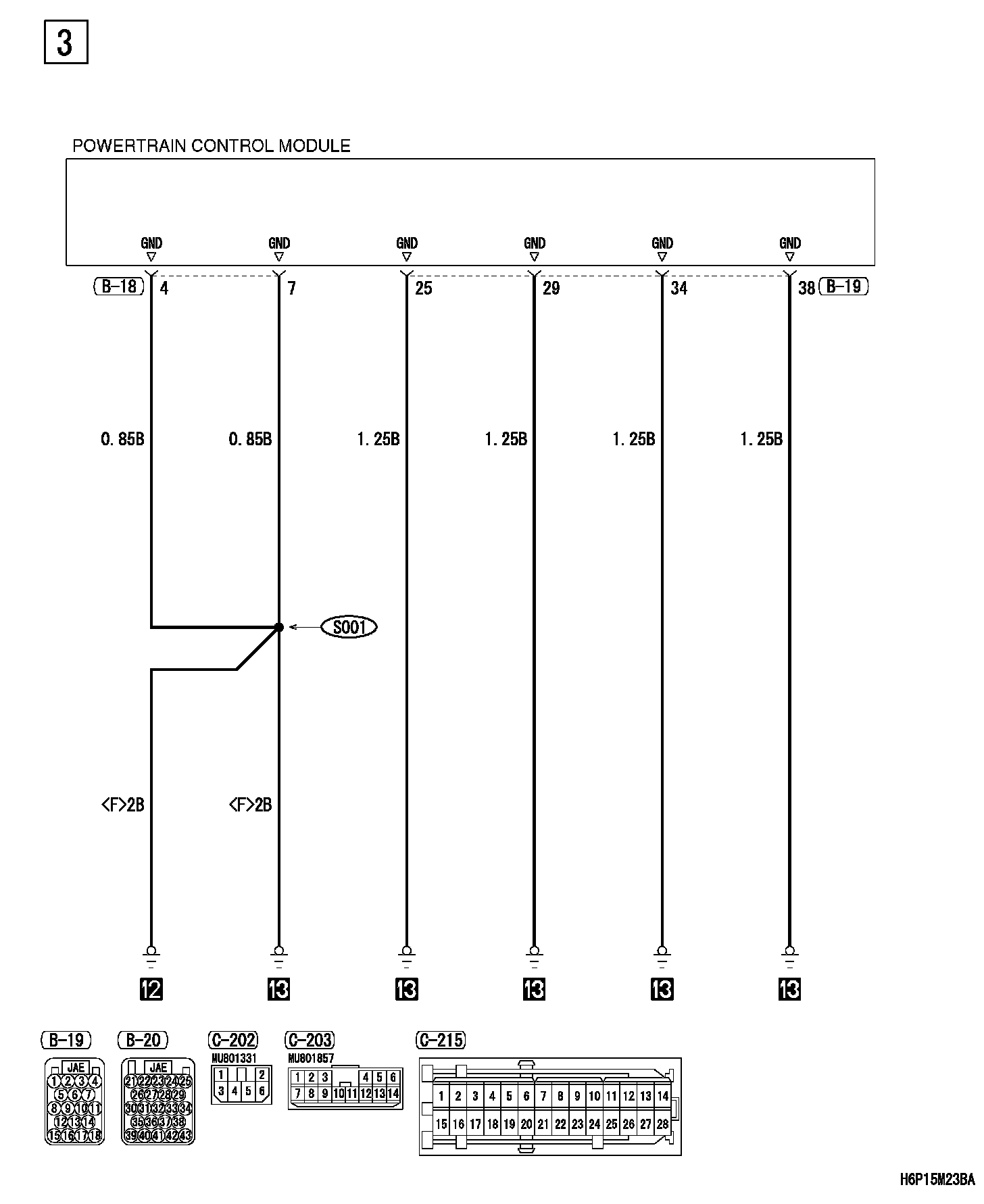

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Splice Locations: The locations of Splices referred to within these diagrams can be found via the splice number at Vehicle Splice Locations. Splice Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
