Circuit Diagram

General Circuit Diagram For Ignition Key Reminder Tone Alarm Function:

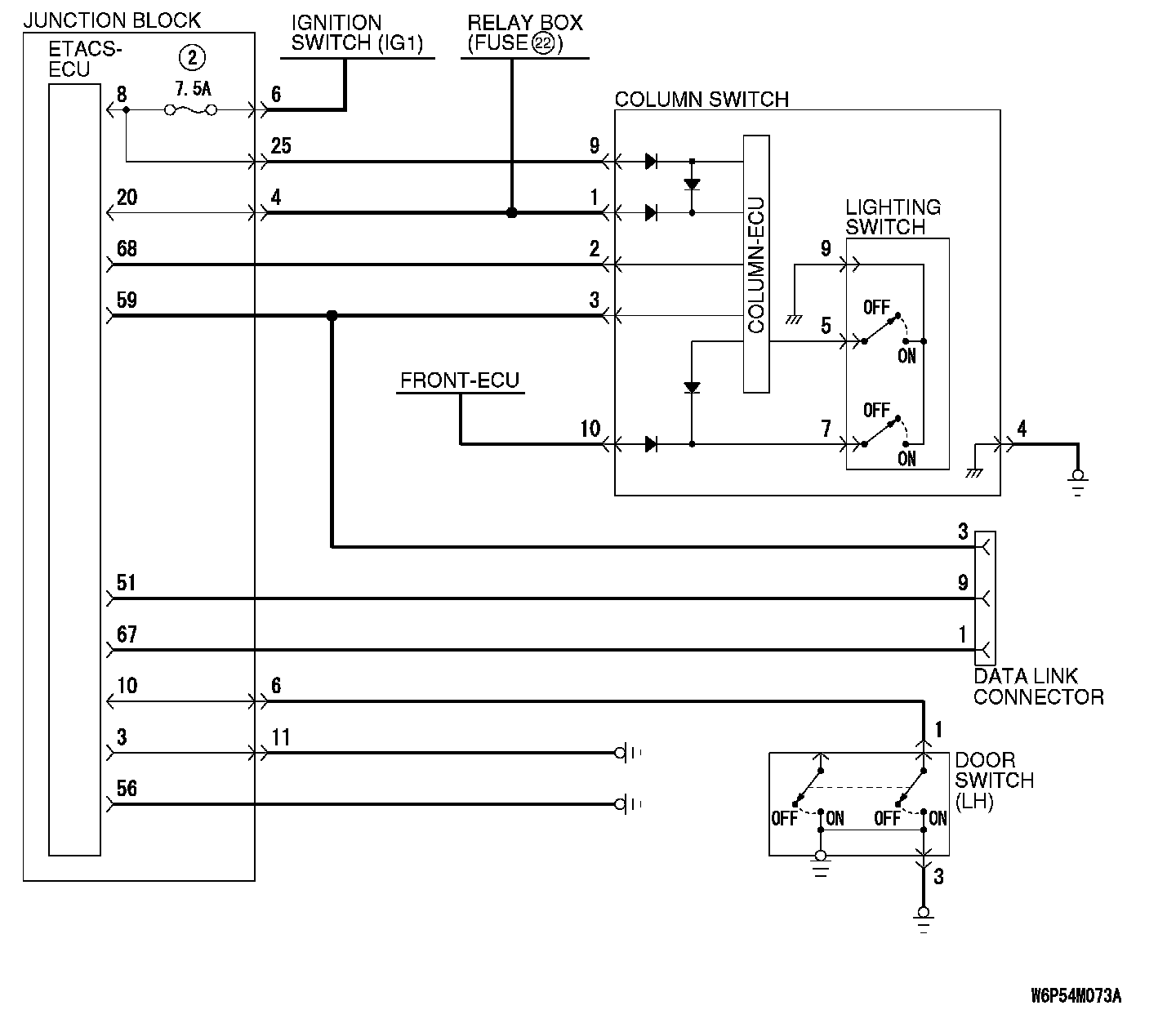

General Circuit Diagram For Light Reminder Alarm Function:

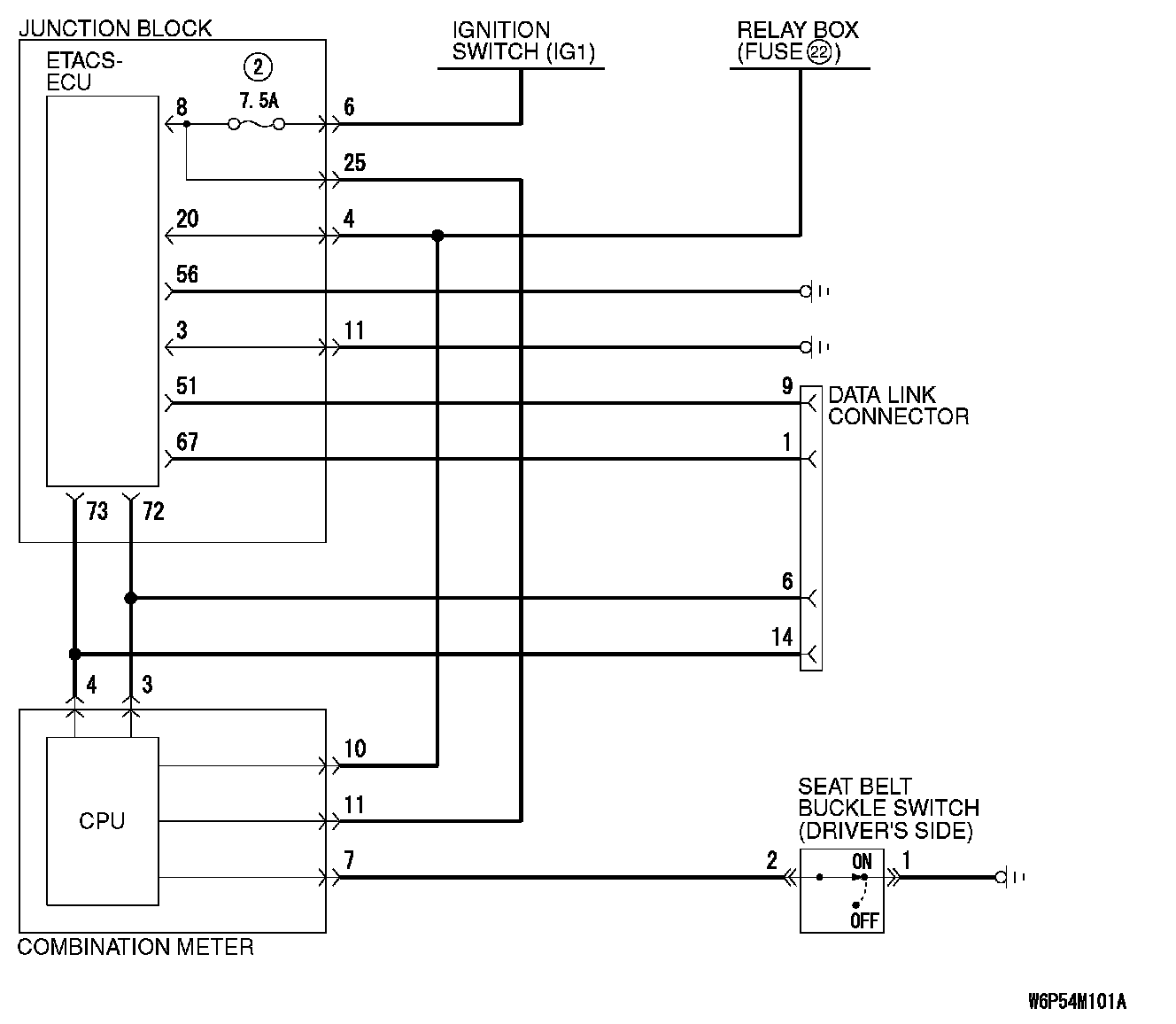

General Circuit Diagram For Seat Belt Tone Alarm Function:
