Vehicles With Traction Control System (TCL)

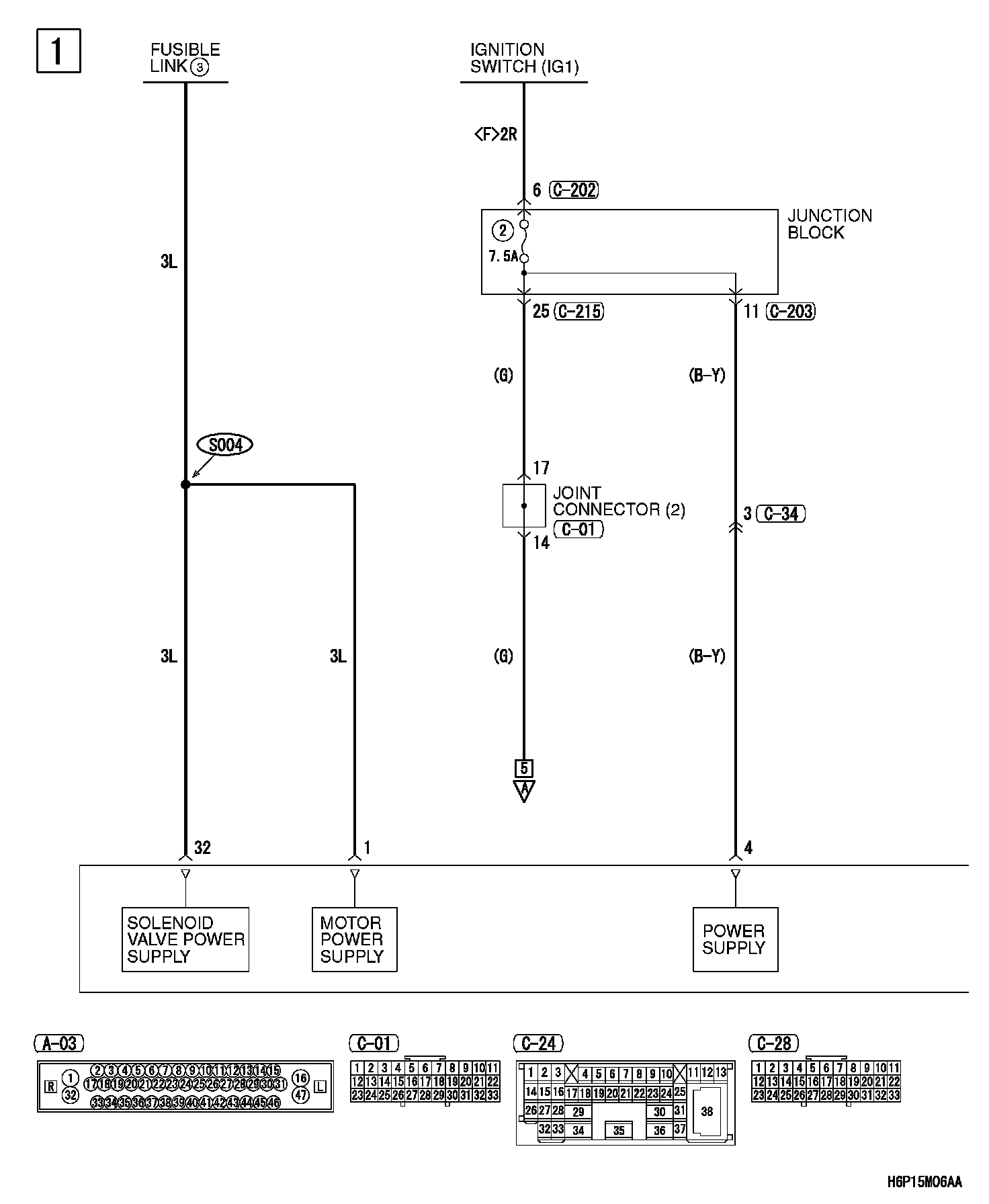

Electronic Brake-Force Distribution (EBD) And Anti-Lock Braking System (ABS) (Vehicles With Traction Control System (TCL)) Part 1:

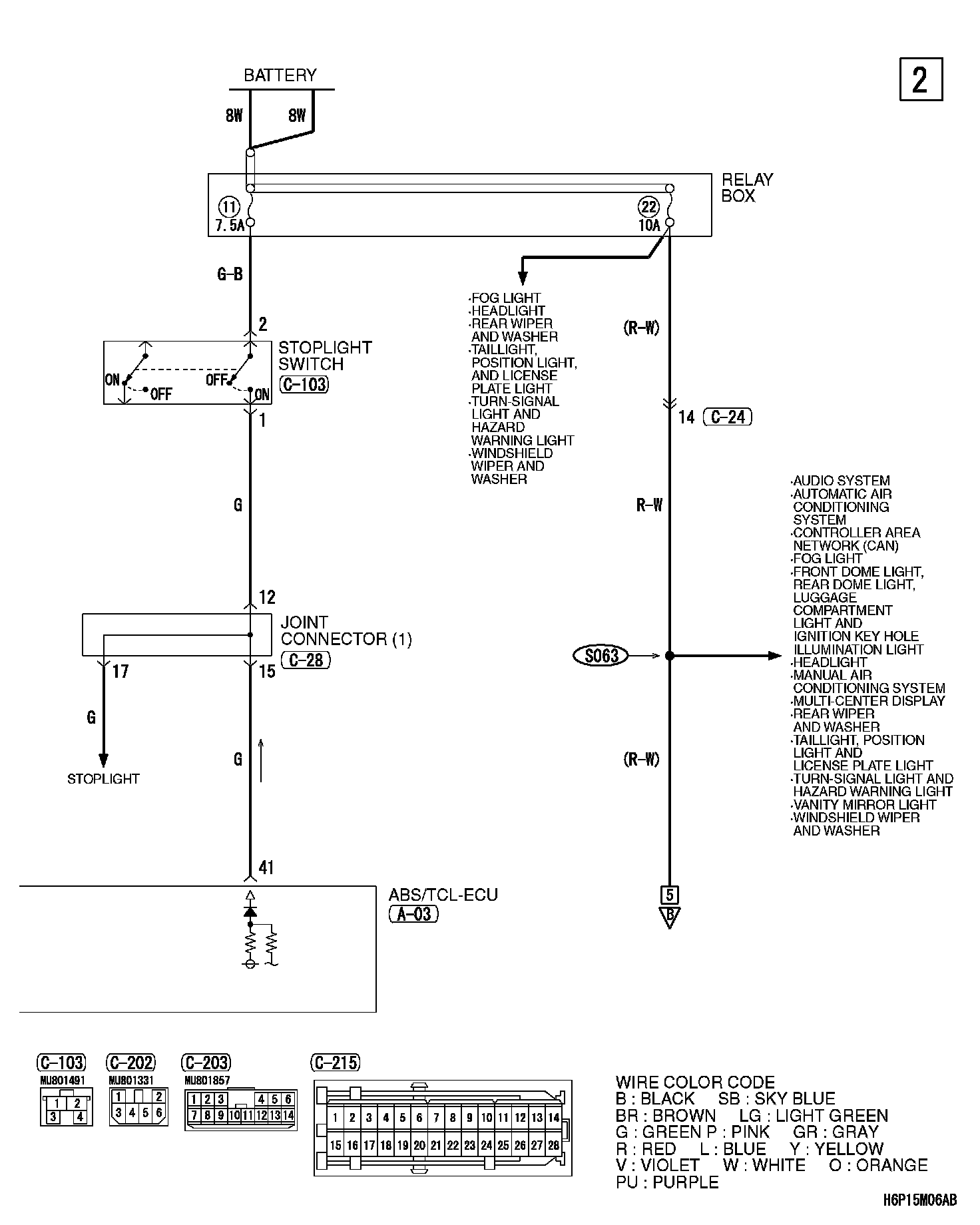

Electronic Brake-Force Distribution (EBD) And Anti-Lock Braking System (ABS) (Vehicles With Traction Control System (TCL)) Part 2:

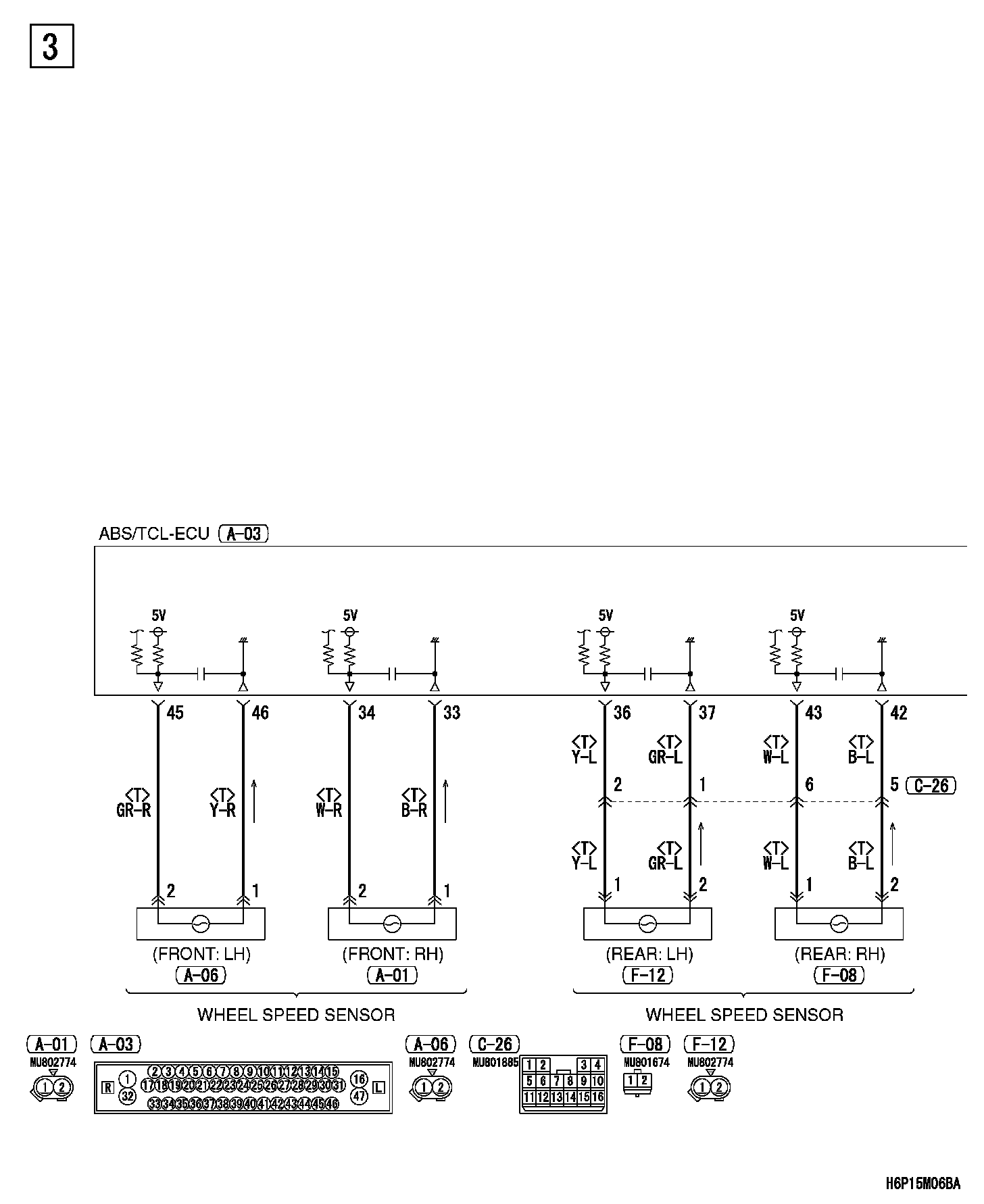

Electronic Brake-Force Distribution (EBD) And Anti-Lock Braking System (ABS) (Vehicles With Traction Control System (TCL)) Part 3:

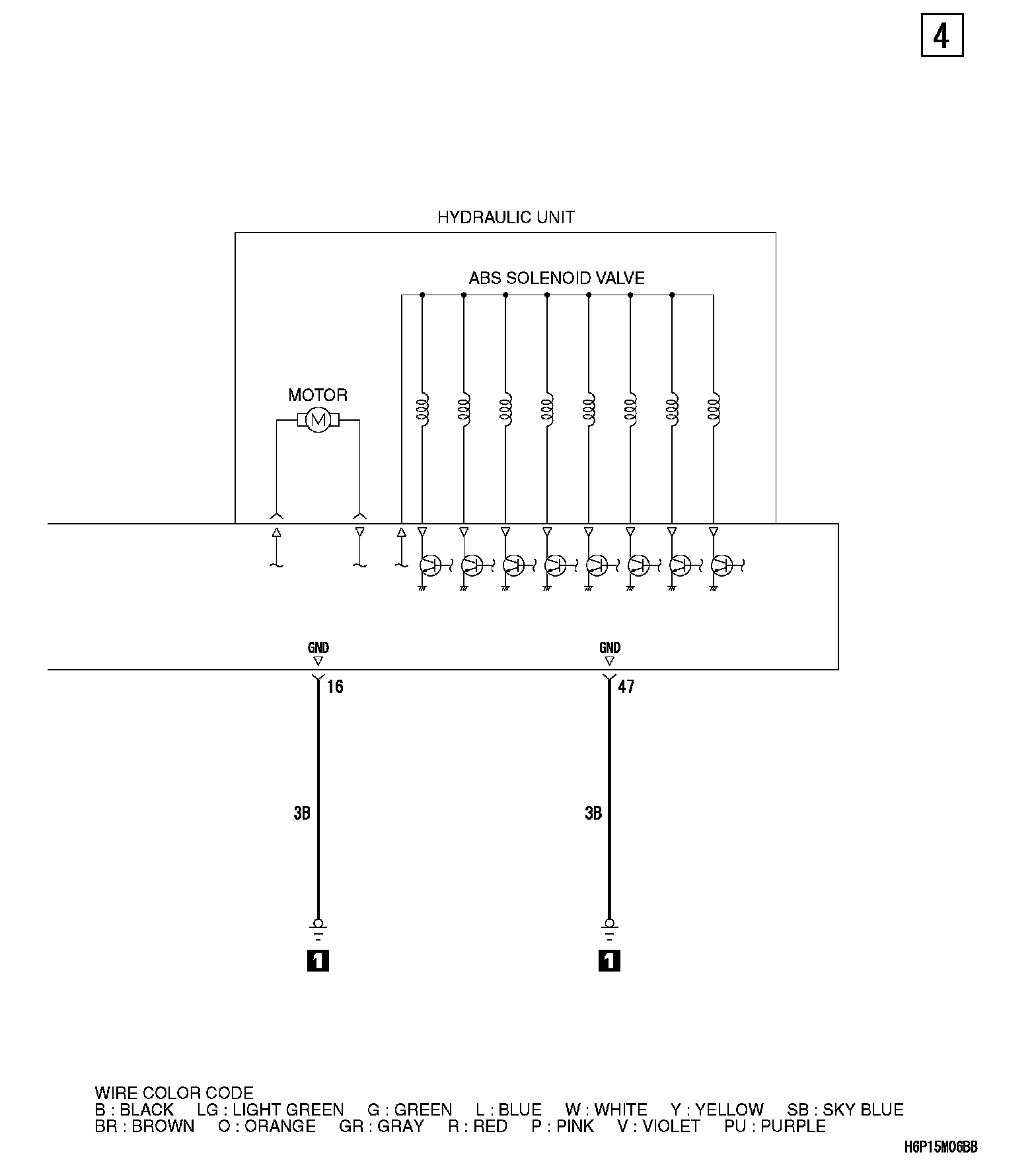

Electronic Brake-Force Distribution (EBD) And Anti-Lock Braking System (ABS) (Vehicles With Traction Control System (TCL)) Part 4:

Electronic Brake-Force Distribution (EBD) And Anti-Lock Braking System (ABS) (Vehicles With Traction Control System (TCL)) Part 5:

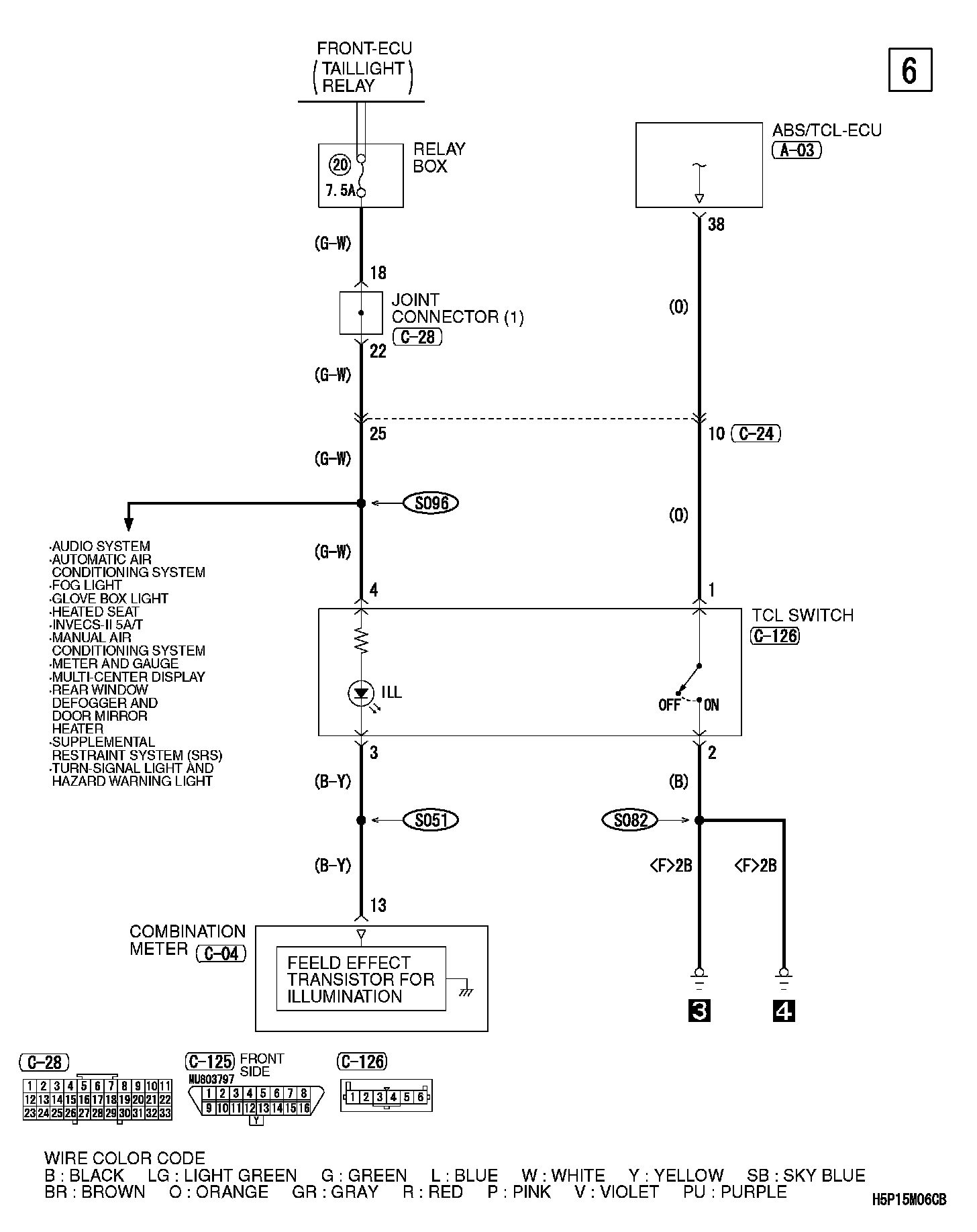

Electronic Brake-Force Distribution (EBD) And Anti-Lock Braking System (ABS) (Vehicles With Traction Control System (TCL)) Part 6:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Splice Locations: The locations of Splices referred to within these diagrams can be found via the splice number at Vehicle Splice Locations. Splice Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
