Data List Reference Table

DATA LIST REFERENCE TABLE

CAUTION
- Driving tests always need two persons: one driver and one observer.
- When shifting the selector lever to "D" range apply the brakes should be applied so that the vehicle does not move forward .

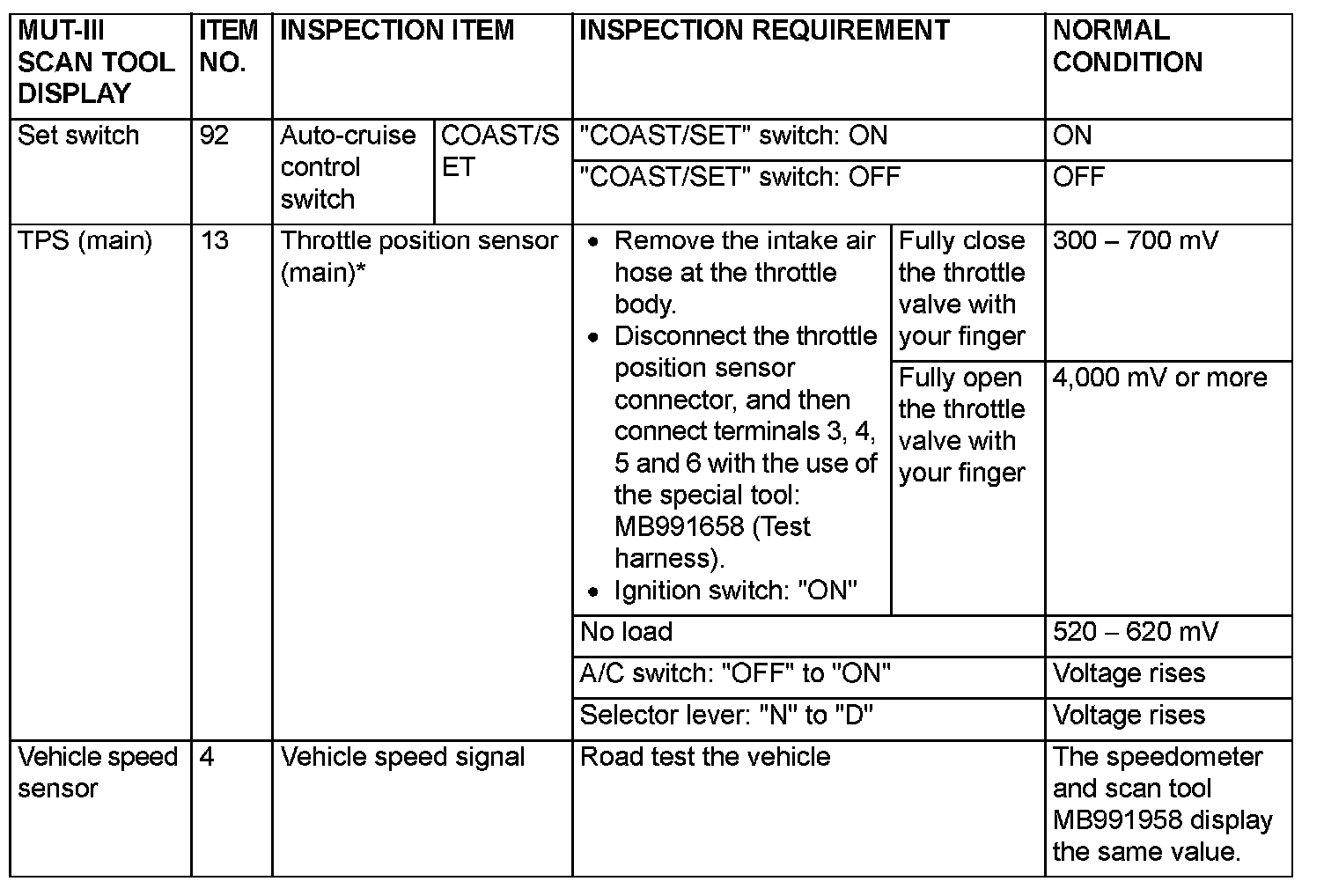

Data List References Table Part 1:

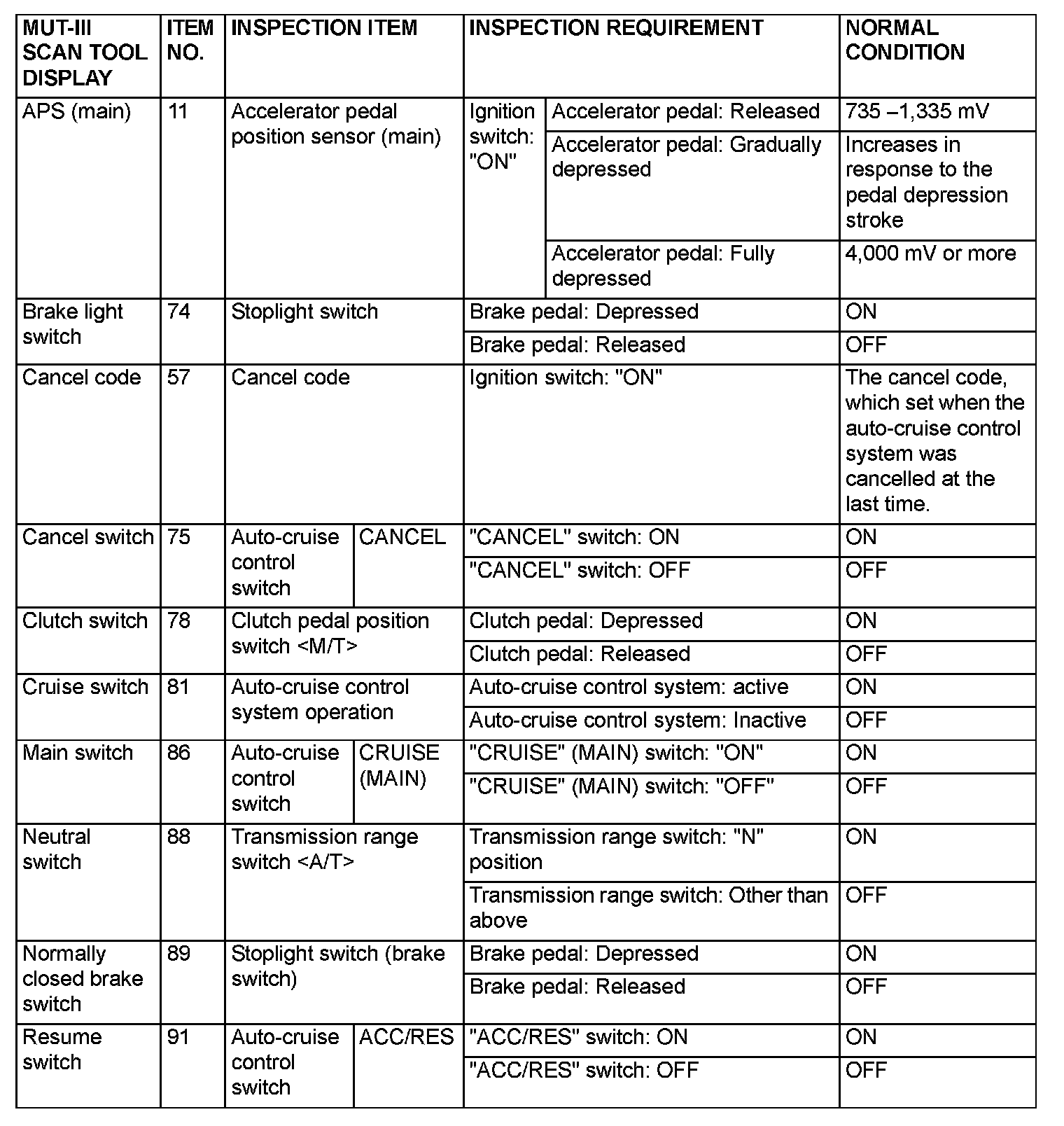

Data List References Table Part 2:

NOTE: *:After the inspection is completed, disconnect the throttle position sensor connector, and then delete the diagnostic trouble code using scan tool MB991958.
