Pinout Values and Diagnostic Parameters

ECM OR PCM TERMINAL VOLTAGE REFERENCE CHART FOR AUTO-CRUISE CONTROL SYSTEM OPERATION

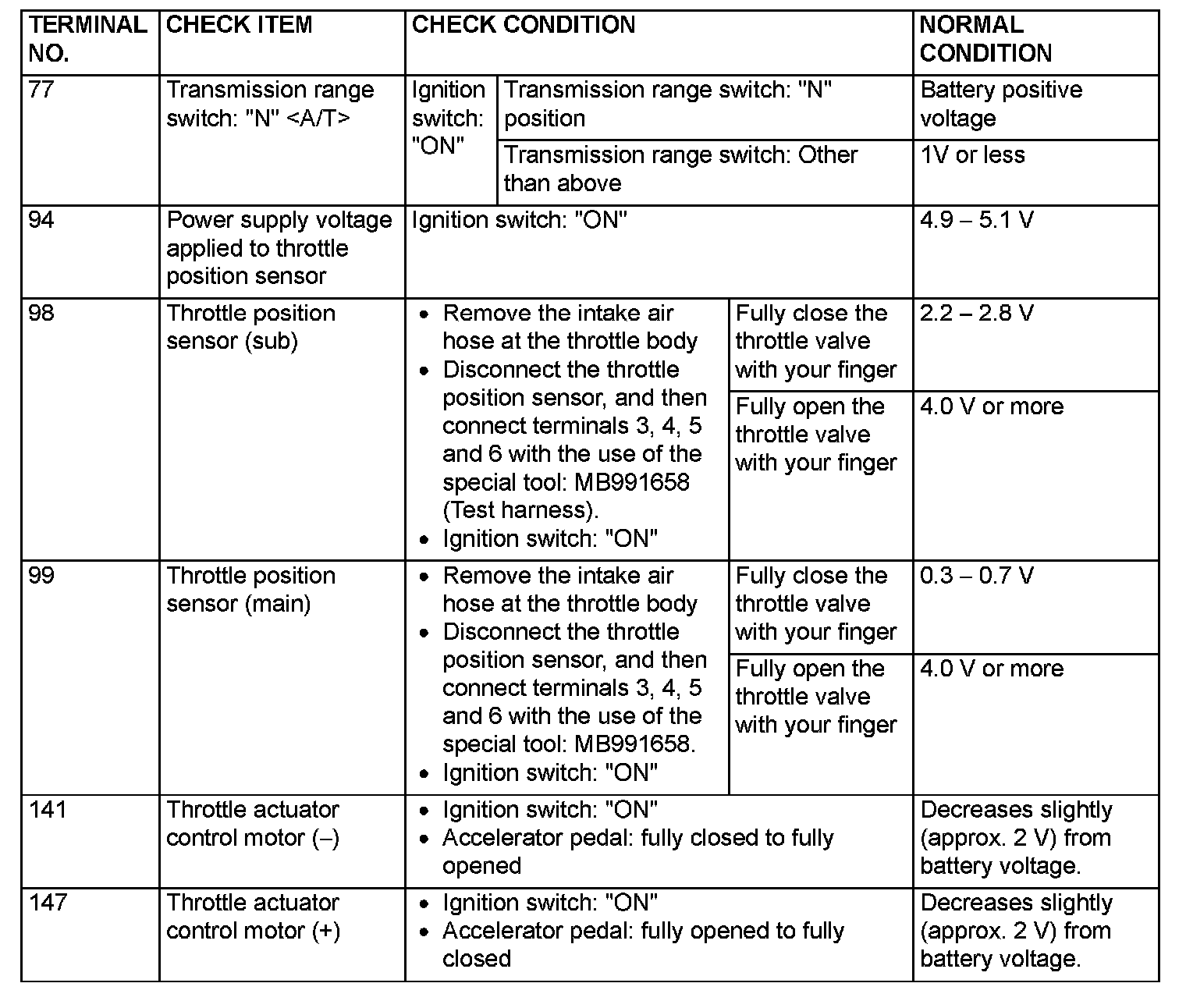

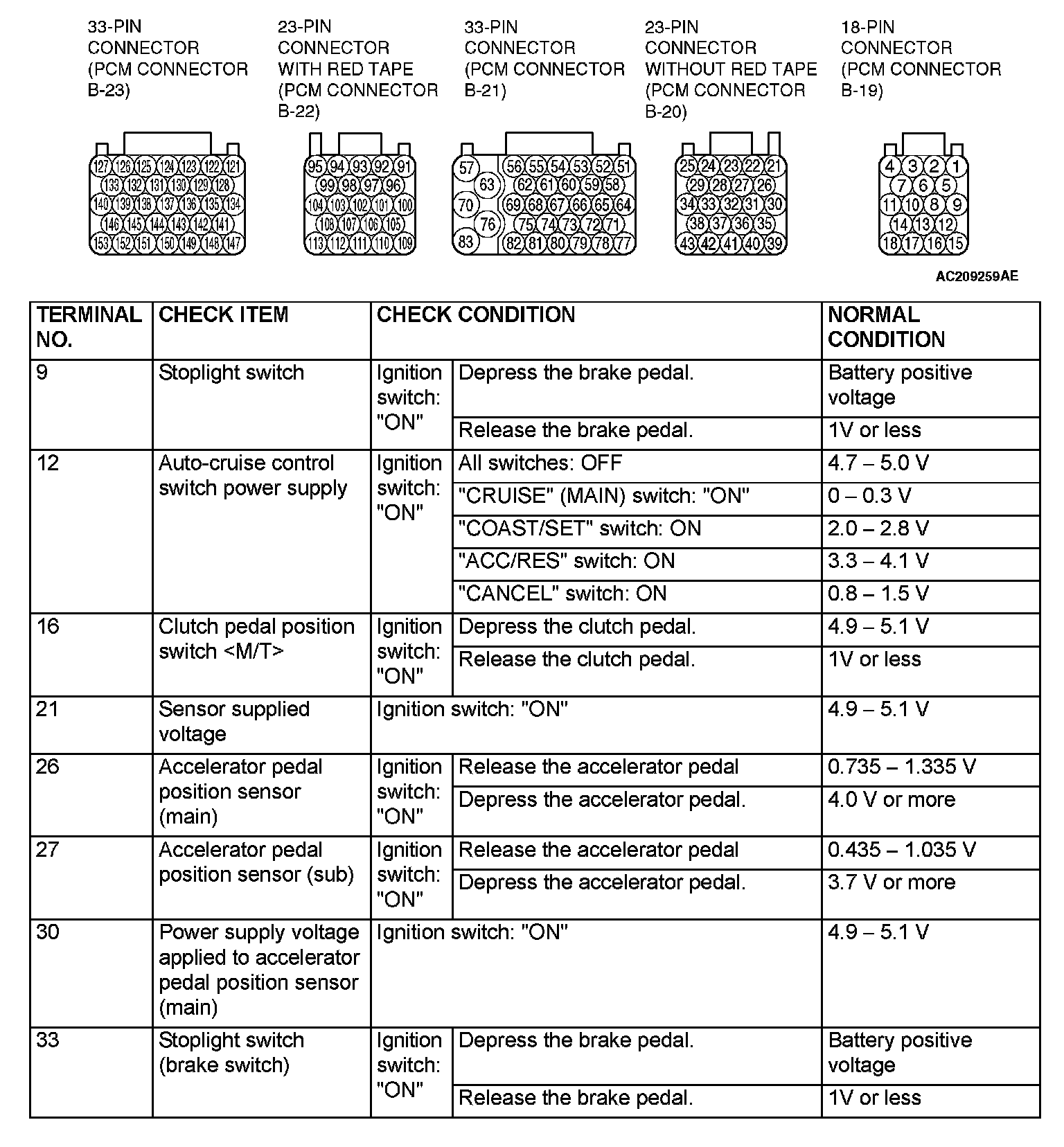

ECM <M/T> Or PCM <A/T> Terminal Voltage Reference Chart Part 1:

ECM <M/T> Or PCM <A/T> Terminal Voltage Reference Chart Part 2:

1. Disconnect the ECM or PCM connectors, and connect special tool MB991923 and (Power plant ECU check harness) in between.
2. Measure the voltages between the check connector terminals of special too MB991923 and ground terminals 63 or 76.
