Vacuum Brake Booster: Service and Repair

This article has been updated per Mitsubishi TSB #05-35-002

REMOVAL AND INSTALLATION

CAUTION! Do NOT touch the push rod in the brake booster. It is already adjusted.

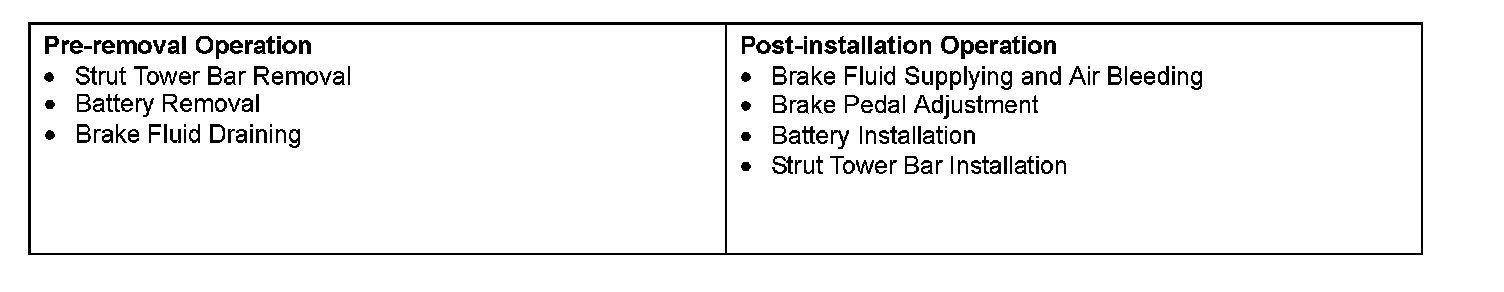

Pre-removal & Post-installation Operation:

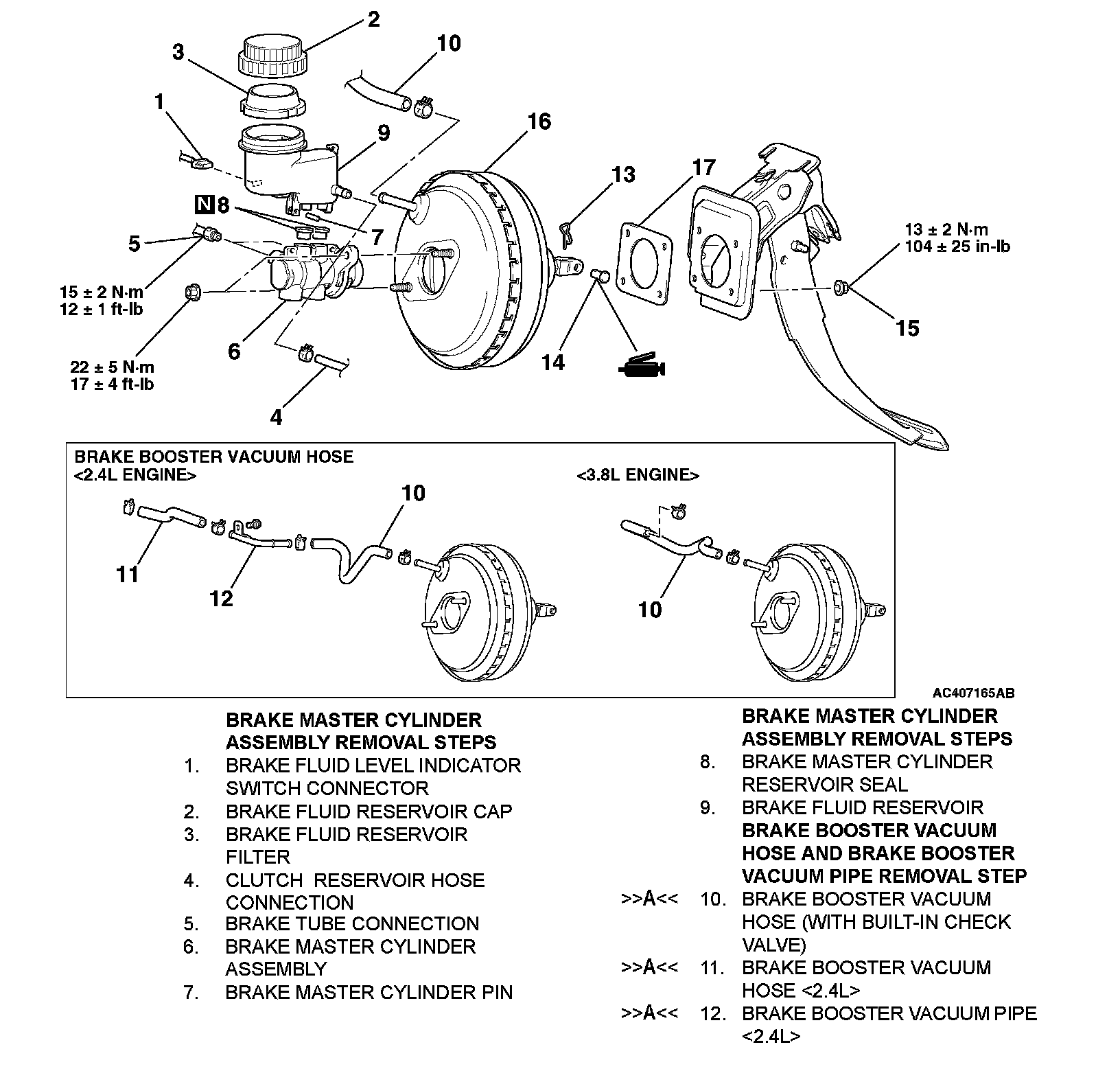

Removal Steps 1-12:

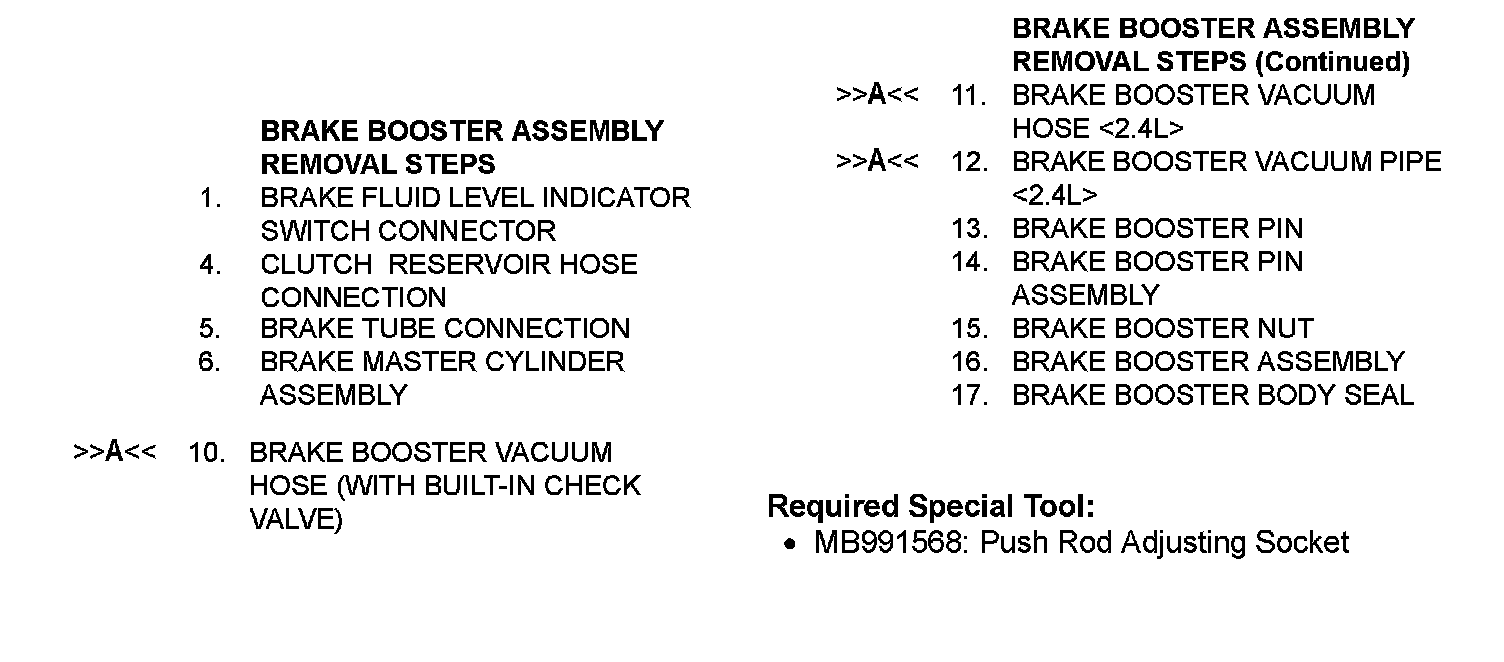

Removal Steps 1-17 & Required Special Tool:

INSTALLATION SERVICE POINTS
>>A<< BRAKE BOOSTER VACUUM HOSE CONNECTION

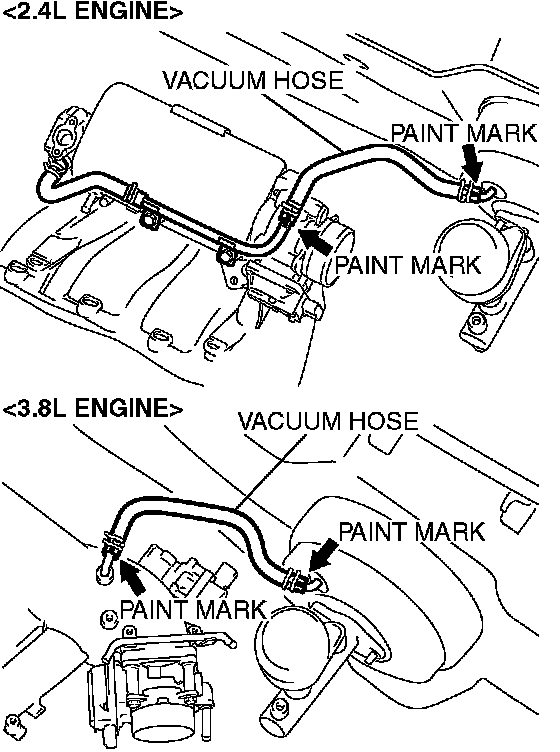

Insert vacuum hose with its paint mark facing upward.
