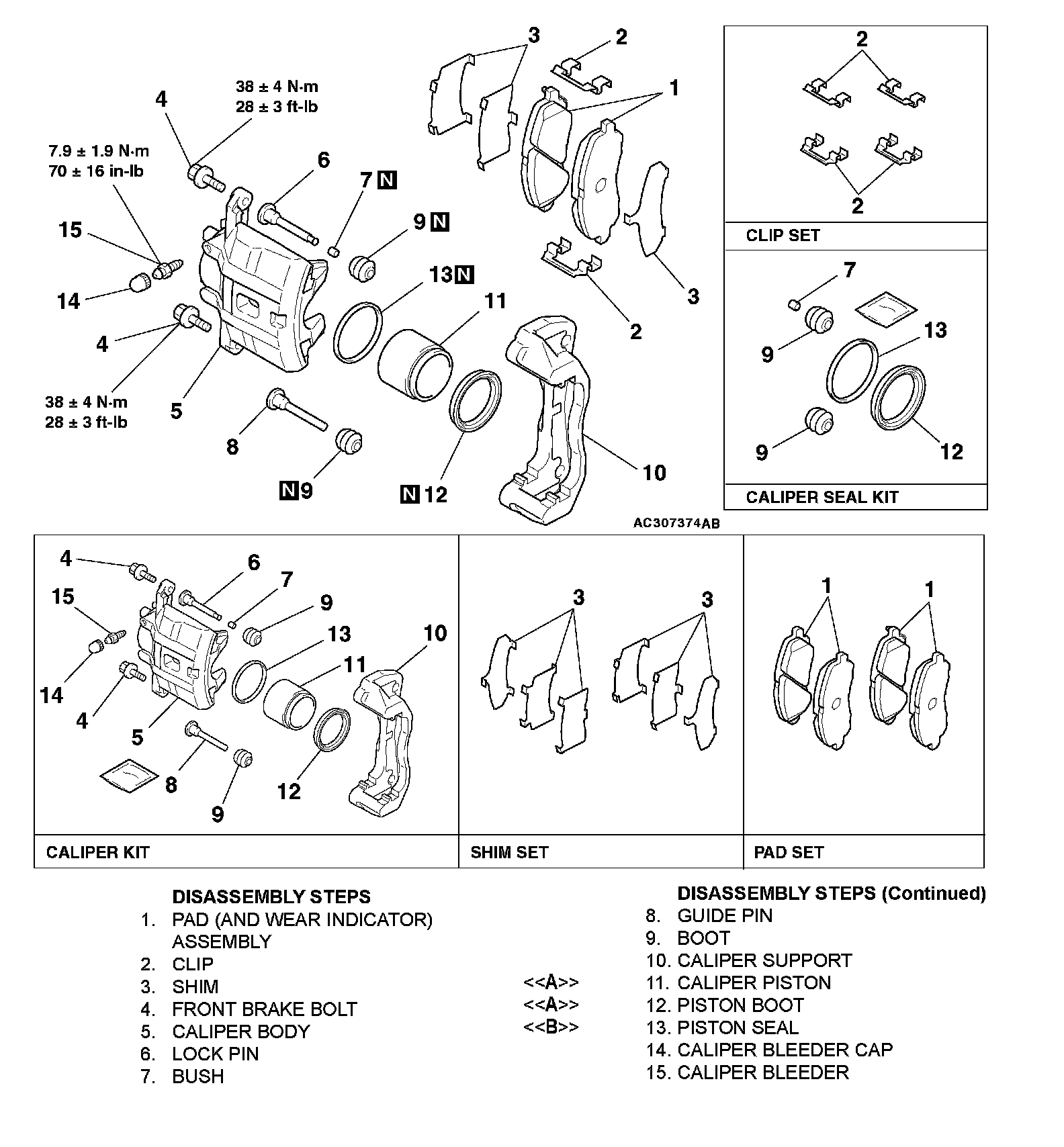

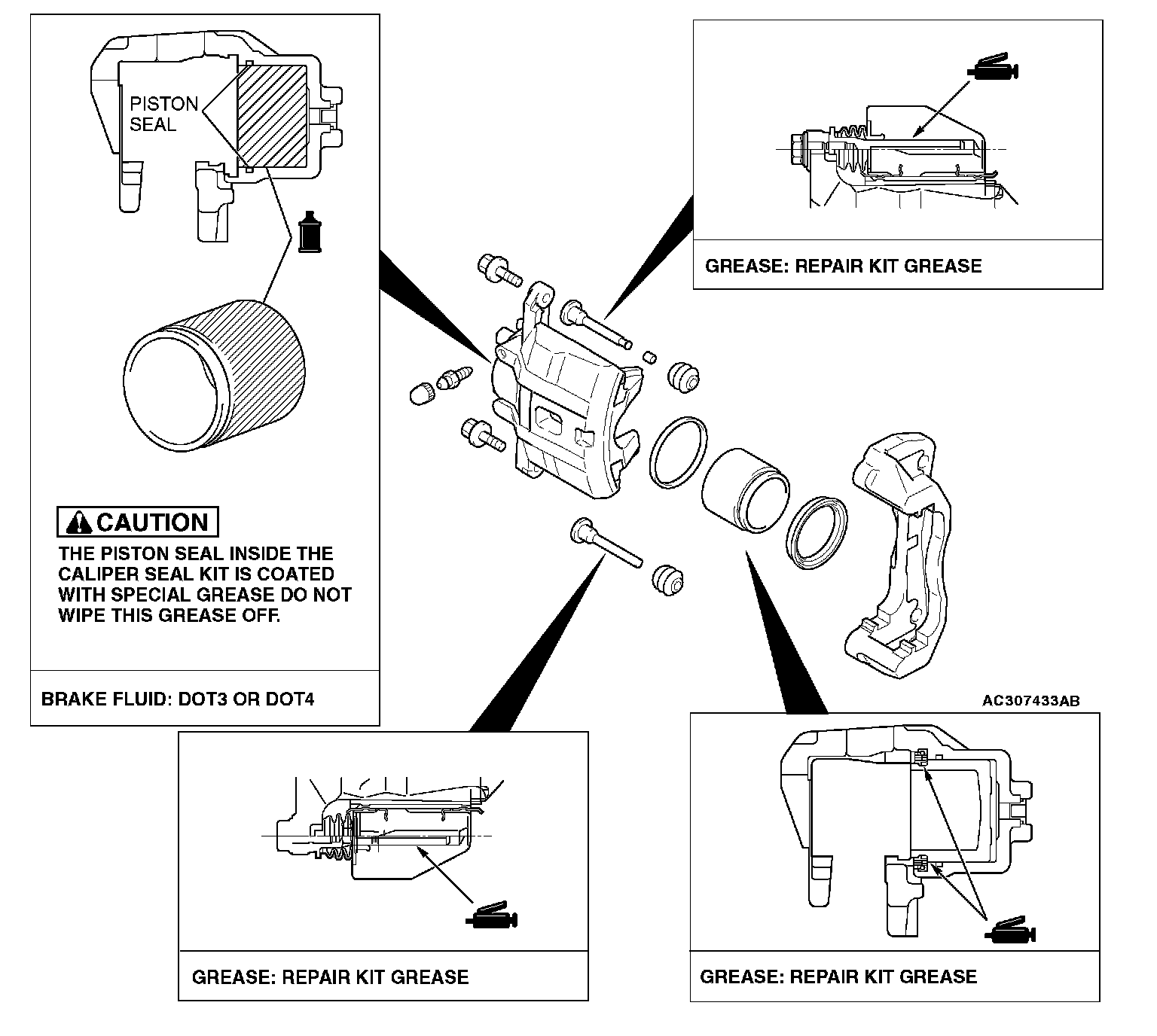

Disassembly and Assembly

DISASSEMBLY AND ASSEMBLY

DISASSEMBLY SERVICE POINTS

CAUTION: When disassembling the front disc brakes, disassemble both sides (left and right wheels) as a set.

<> CALIPER PISTON/PISTON BOOT REMOVAL

CAUTION: Blow air little by little to remove the piston. The piston will pop out if a force of air is applied suddenly.

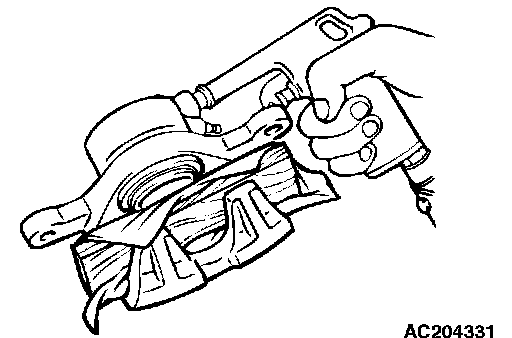

Place a piece of wood, etc. against the caliper body as shown. Blow compressed air through the brake hose connection hole to remove the piston boot and piston.

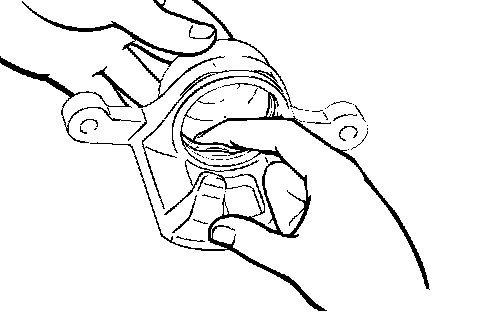

<> PISTON SEAL REMOVAL

CAUTION: Do not use a flat-tipped screwdriver or similar tool to remove the piston seal. These may damage the inner side of the cylinder.

1. Remove the piston seal with your finger tip.
2. Clean the piston surface and inner cylinder with alcohol brake fluid DOT 3 or DOT 4.

INSPECTION
^ Check the cylinder for wear, damage or rust.
^ Check the piston surface for wear, damage or rust.
^ Check the caliper body or sleeve for wear.
^ Check the pad for damage or adhesion of grease, check the backing metal for damage.

PAD WEAR CHECK

WARNING:
^ Always replace both brake pads on each wheel as a set (both front wheels or both rear wheels). Failure to do so will result in uneven braking, which may cause unreliable brake operation.
^ If there is significant difference in the thickness of the pads on the left and right sides, check the sliding condition of the piston and slide pins.

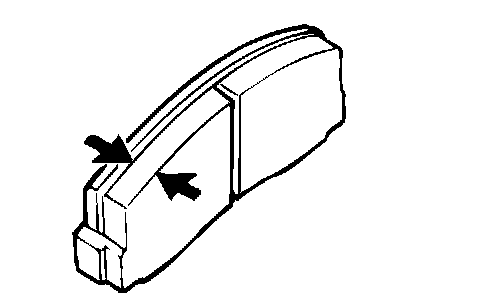

1. Measure thickness at the thinnest and most worn area of the pad.
Standard value: 10 mm (0.39 inch)
Minimum limit: 2.0 mm (0.08 inch)
2. Replace the pad assembly if pad thickness is less than the limit value.
