Brake Pedal Assy: Service and Repair

BRAKE PEDAL

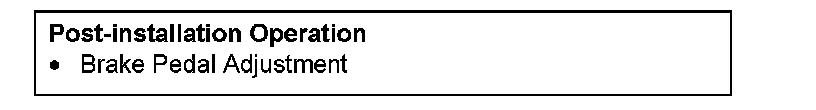

Post-installation Operation:

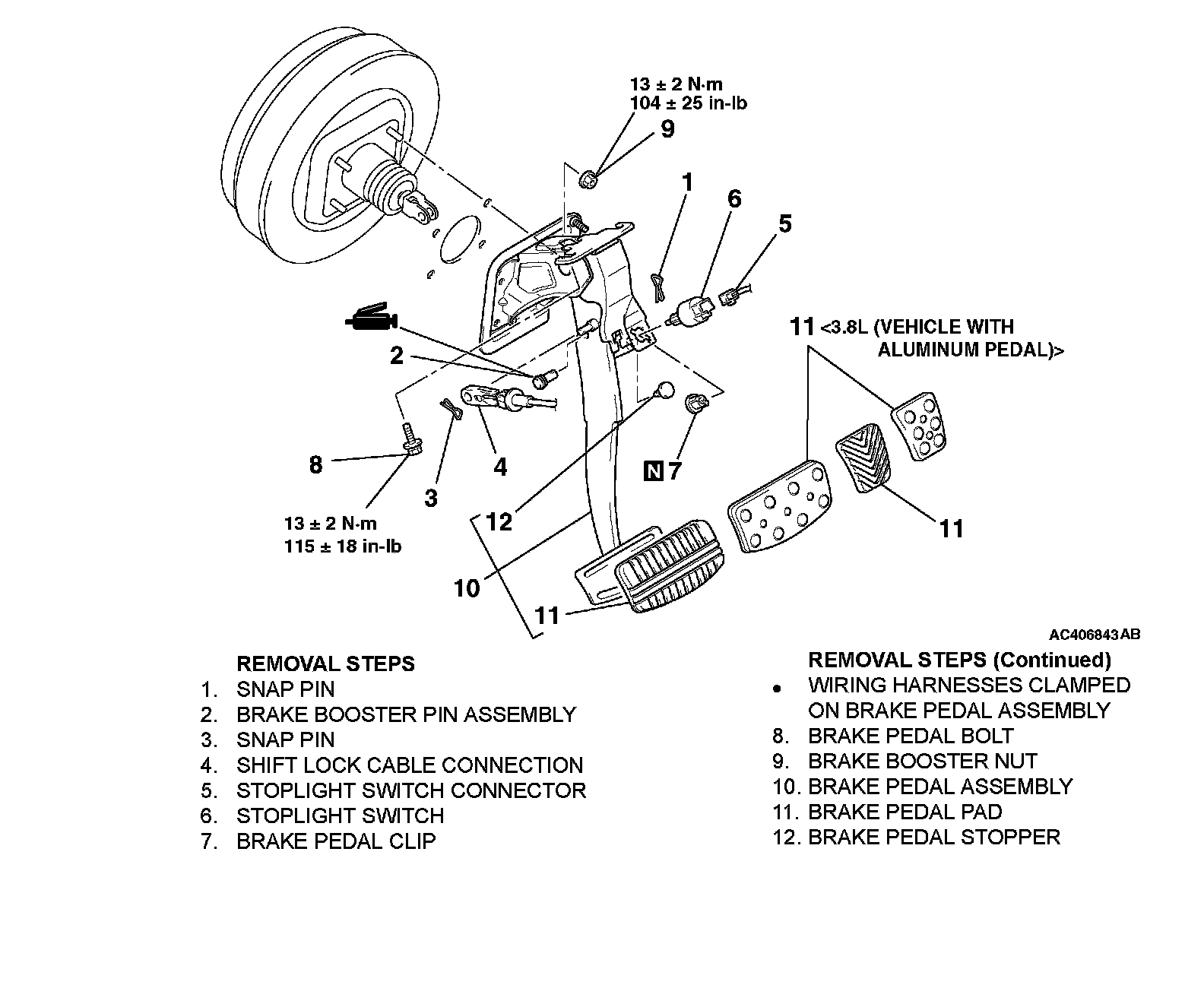

Removal Steps 1-12:

REMOVAL AND INSTALLATION

INSPECTION
STOPLIGHT SWITCH CHECK

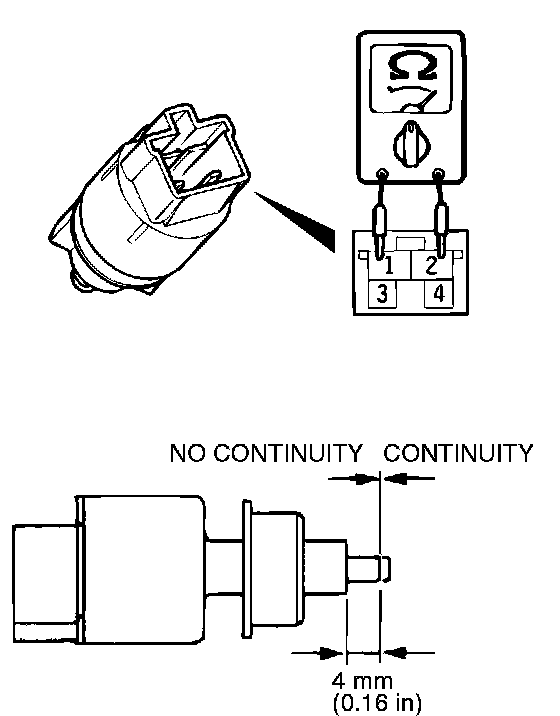

1. Connect an ohmmeter between the stoplight switch connector terminals.

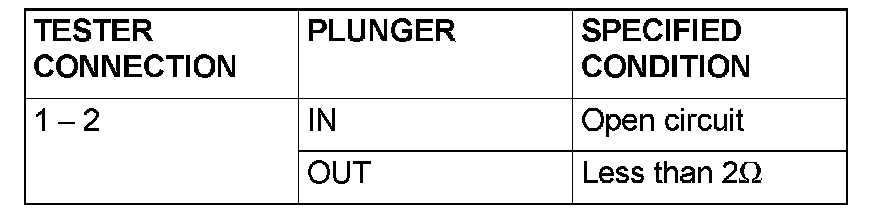

2. There should be no continuity between the terminals when the plunger is pushed in as shown. There should be continuity when it is released.
