Removal and Replacement

SUNROOF ASSEMBLY

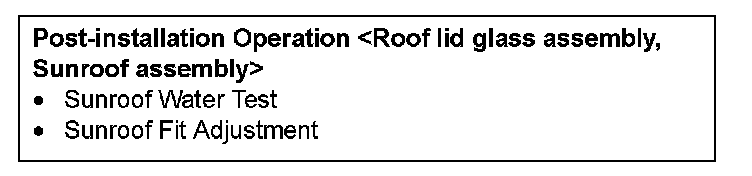

Post-installation Operation:

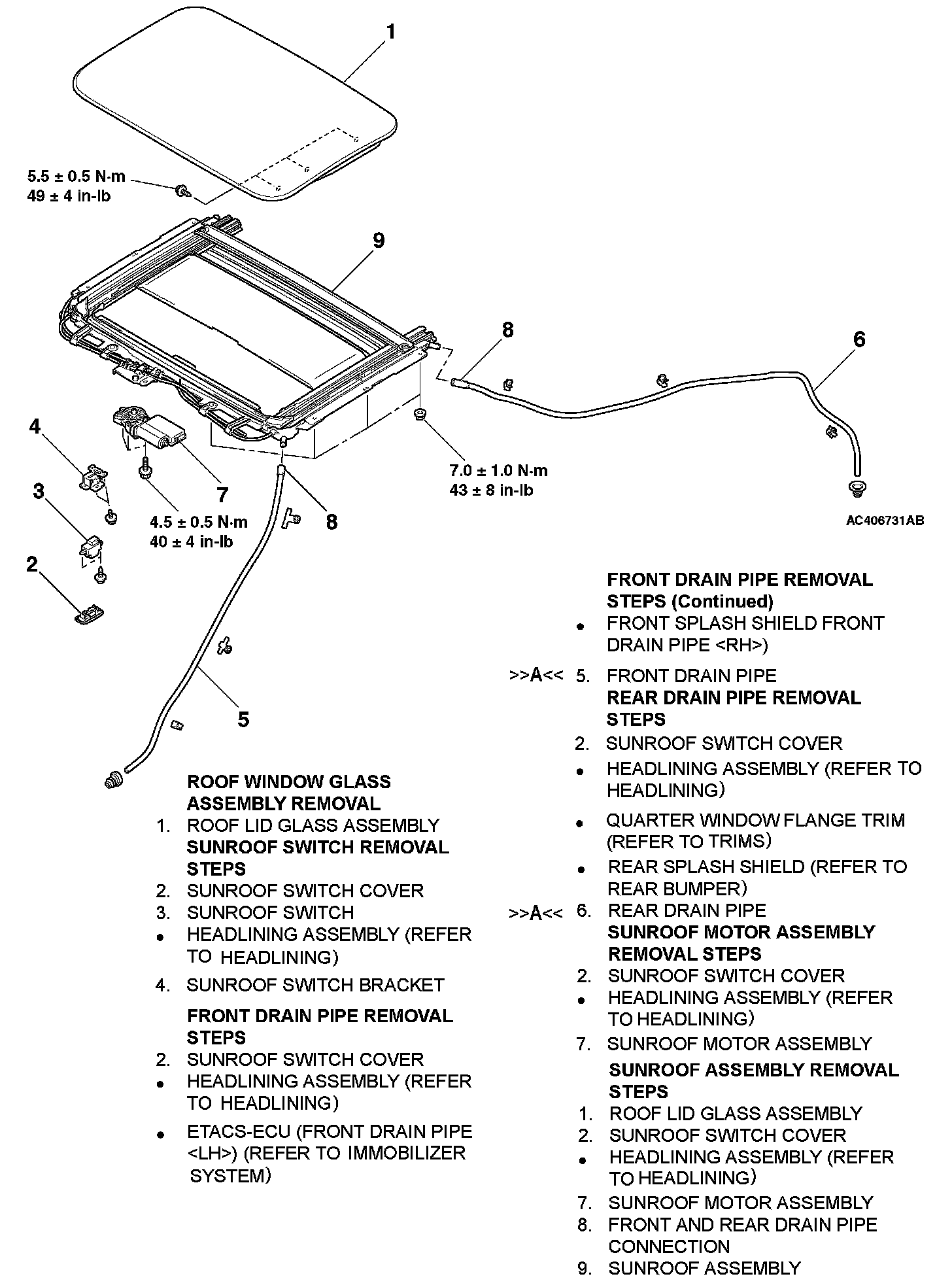

Removal Steps 1-9:

REMOVAL AND INSTALLATION

Required Special Tool:
- MB991223: Harness set

INSTALLATION SERVICE POINT

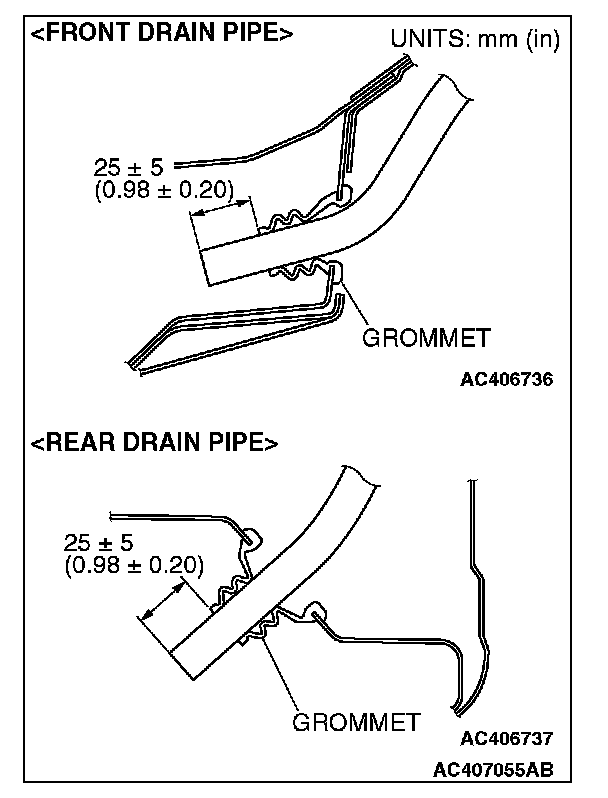

]]A[[ REAR DRAIN PIPE/FRONT DRAIN PIPE INSTALLATION




Install the grommet, and then position the drain pipe so that it protrudes from the grommet as shown in the illustration.
