Power Door Lock Actuator: Testing and Inspection

INSPECTION

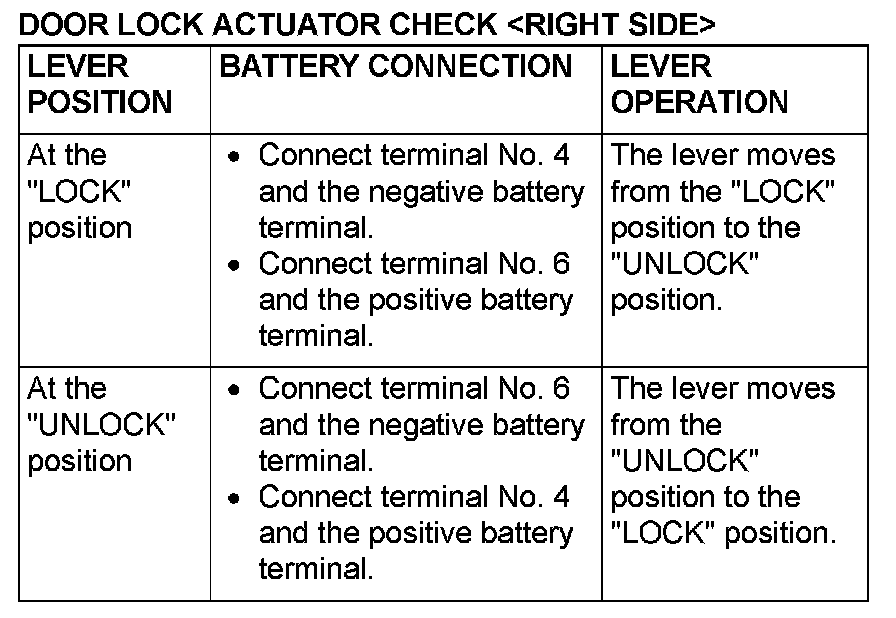

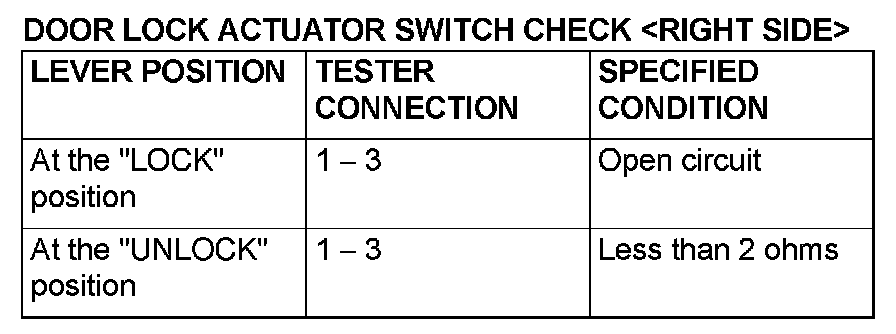

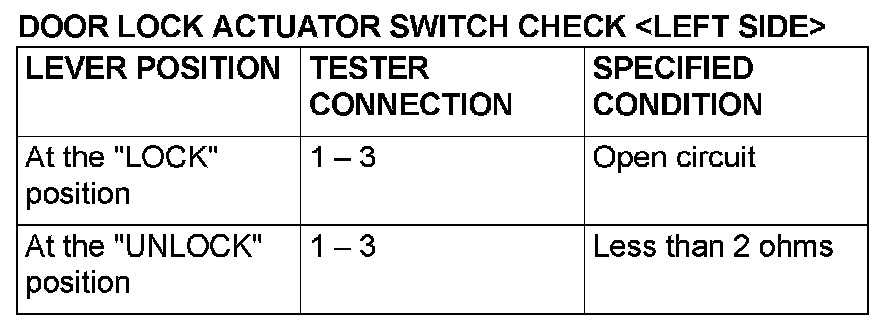

FRONT DOOR LATCH CHECK

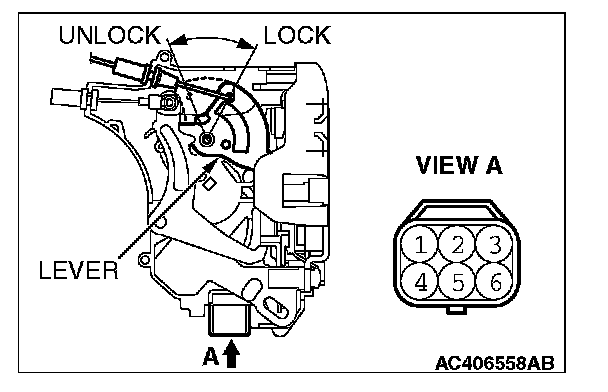

The illustration shows when the door lock actuator is viewed from inside the door.
